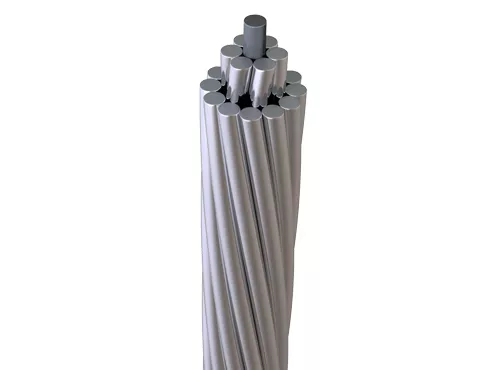

AACSR Conductor-Aluminum Alloy Conductor Steel Reinforced

Construction:
1. AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be single wire or stranded depending on the size.
2. The proportions of aluminum alloy and steel can be varied to obtain the relation between currentcarrying capacity and mechanical strength best suited to each application.
3.Core wire for AACSR is available with Class A, B or C galvanizing; “aluminized”

Standards
ASTM B711,DIN 48206,IEC 61089,Other International Standard

info@hlcables.com

AACSR Conductor-Aluminum Alloy Conductor Steel Reinforced Application:

AACSR is widely used in power transmission lines with various voltage levels and other structure. It can be used as large span conductor,heavy ice wire or overhead communications wire,ground wire.
The temperature for continuous use can be up to 90°C,heat-resistance AACSR can be up to 150°C and above.
AACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

info@hlcables.com

ASTM Specifications:

AACSR conductors meets or exceed the following ASTM specifications:
B-398 Specification for Aluminum Alloy 6201 J81 Wire for Electrical Purposes
B-711 Concentric Lay Stranded Conductors, Aluminum Alloy, Steel Reinforced(AACSR)
B-341 Aluminum Coated (Aluminized) Steel Core Wire for Aluminum Conductors,Steel Reinforced (ACSR/AZ)
B-498 Zinc Coated Steel (Galvanized) Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

AACSR Conductor International Parameter:

ASTM B711 Nominal Area(sq.mm): 163 173 186 198 209 222 232 247 260 276 291 308 326 345 367 387 413 436 465 491 509 563 631 710 800 901 973 1081 1211 1352
DIN 48206 sq.mm: 16/2.5 25/4 35/6 44/32 50/8 50/30 70/12 95/15 95/55 105/75 120/20 120/70 125/30 150/25 170/40 185/30 210/35 210/50 230/30 240/40 265/35 300/50 305/40 340/30 380/50 385/35 435/55 450/40 490/65 550/70 560/50 680/85
IEC 61089 sq.mm: 10 16 25 40 63 100 125 160 200 250 315 400 450 500 560 630 710 800 900 1000 1120
