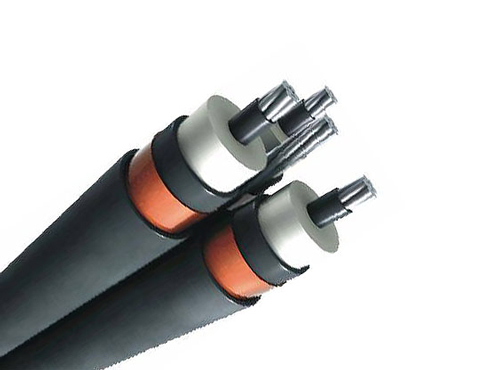

Medium Voltage ABC Cable

Medium voltage typically refers to voltage levels ranging from 1 kV to 36 kV, although the exact range may vary depending on regional standards.

Application

ABC cables are commonly used for distributing power in residential areas, rural regions, and areas where underground cabling is not feasible or cost-effective.

Construction

  • Conductor
  • Class 2 Circular compacted stranded Aluminium
  • Conductor Screen
  • Extruded semi-conductive layer
  • Insulation
  • XLPE (Cross-linked polyethylene)
  • Insulation Screen
  • Extruded semi-conductive layer
  • Metallic Screen
  • Copper wire screen or copper tape screen
  • Separator
  • Semi-conductive swellable tape
  • Outer Sheath
  • HDPE (High Density Polyethylene)
  • Support Conductor
  • Galvanized steel wires
  • Sheath Color
  • Black

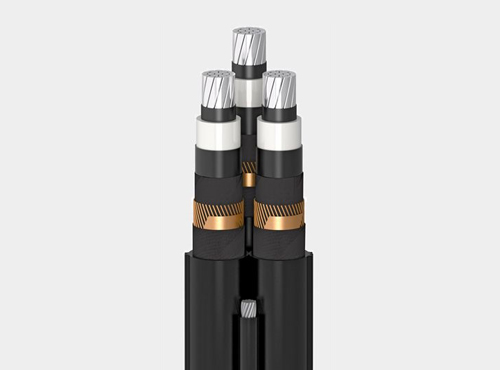

mv abc cable construction

Feature

Medium voltage ABC cables offer advantages such as reduced installation time, lower maintenance requirements, and improved resistance to external factors like weather and environmental conditions.

They provide a reliable and efficient solution for power distribution in various settings.

Standard

IEC 60502-2/AS/NZS 3599-1, BS 2627.

Medium Voltage ABC Cable Specification

Cross section No. of wires Conductor diam. Overall Diameter Minimum breaking load Approx. weight Max. DC-resistance at 20°C Ampacity 90°C
[mm²] [mm] [mm] [kgf] [kg/km] [Ohm/km] [A]
35 7 7.1 13.6 464 190 0.868 187
50 7 8.2 14.7 663 235 0.641 225
70 19 9.7 16.2 928 315 0.443 282
95 19 11.5 18 1259 400 0.32 345
120 19 12.9 19.4 1591 500 0.253 401
150 19 14.2 20.7 1988 580 0.206 456
185 37 16.2 22.6 2452 695 0.164 525
240 37 18.4 24.9 3182 875 0.125 625
