H07RN-F/H05RN-F Cable
H07RN-F cables are typically used in industrial settings and H05RN-F cables are typically used in lighter applications.
Share
Construction

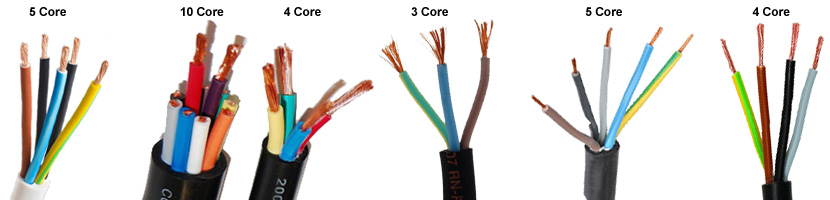

H07RN-F Cable
Voltage Rating
450/750V
Conductor
Class 5 flexible copper conductor
Insulation
EPR (Ethylene Propylene Rubber)
Sheath
PCP (Polychloroprene)

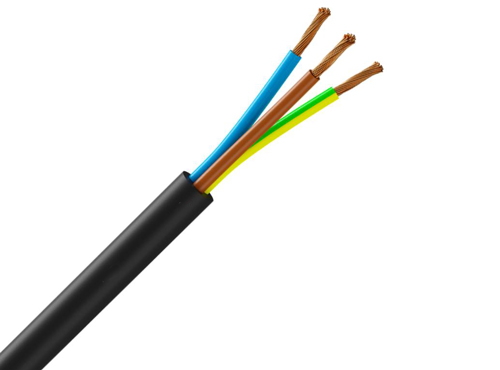

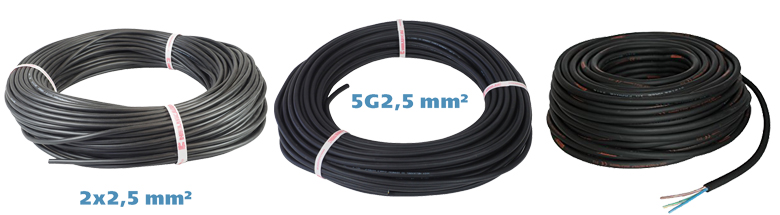

H05RN-F Cable
Voltage Rating
300/500V
Conductor
Class 5 flexible copper conductor
Insulation
Rubber compound
Sheath
Rubber compound
H07RN-F Cable's Application
H07RN-F cables are often used in industrial settings, construction sites, and outdoor applications where durability and resistance to environmental factors are essential.
They are suitable for both indoor and outdoor use, and their flexibility makes them easy to handle and install.
H05RN-F Cable's Application
H05RN-F cables are commonly used for lighter applications such as portable tools, appliances, and household devices.
They are suitable for both indoor and outdoor use, although they may have limitations in terms of their resistance to harsh environmental conditions compared to the heavier-duty H07RN-F cables.
Standard
IEC/VED/DIN/ASTM.
Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
1 X 1.5 | 5.7 – 6.5 | 14.4 | 59 |
1 X 2.5 | 6.3 – 7.2 | 24 | 72 |
1 X 4.0 | 7.2 – 8.1 | 38.4 | 99 |
1 X 6.0 | 7.9 – 8.8 | 57.6 | 130 |
1 X 10.0 | 9.5 – 10.7 | 96 | 230 |
1 X 16.0 | 10.8 – 12.0 | 153.6 | 320 |
1 X 25.0 | 12.7 – 14.0 | 240 | 450 |
1 X 35.0 | 14.3 – 15.9 | 336 | 605 |
1 X 50.0 | 16.5 – 18.2 | 480 | 825 |
1 X 70.0 | 18.6 – 20.5 | 672 | 1090 |
1 X 95.0 | 20.8 – 22.9 | 912 | 1405 |
1 X 120.0 | 22.8 – 25.1 | 1152 | 1745 |
1 X 150.0 | 25.2 – 27.6 | 1440 | 1887 |
1 X 185.0 | 27.6 – 30.2 | 1776 | 2274 |
1 X 240.0 | 30.6 – 33.5 | 2304 | 2955 |
1 X 300.0 | 33.5 – 36.7 | 2880 | 3479 |
3 G 1.0 | 8.3 – 9.6 | 28.8 | 130 |
2 X 1.5 | 8.5 – 9.9 | 28.8 | 135 |
3 G 1.5 | 9.2 – 10.7 | 43.2 | 165 |
4 G 1.5 | 10.2 – 11.7 | 57.6 | 200 |
5 G 1.5 | 11.2 – 12.8 | 72 | 240 |
7 G 1.5 | 14.7 – 16.5 | 100.8 | 385 |
12 G 1.5 | 17.6 – 19.8 | 172.8 | 516 |
19 G 1.5 | 20.7 – 26.3 | 273.6 | 800 |
24 G 1.5 | 24.3 – 27.0 | 345.6 | 882 |
25 G 1.5 | 25.1 – 25.9 | 360 | 920 |
2 X 2.5 | 10.2 – 11.7 | 48 | 195 |
3 G 2.5 | 10.9 – 12.5 | 72 | 235 |
4 G 2.5 | 12.1 – 13.8 | 96 | 290 |
5 G 2.5 | 13.3 – 15.1 | 120 | 294 |
7 G 2.5 | 17.1 – 19.3 | 168 | 520 |
12 G 2.5 | 20.6 – 23.1 | 288 | 810 |
19 G 2.5 | 25.5 – 31 | 456 | 1200 |
24 G 2.5 | 28.8 – 31.9 | 576 | 1298 |
2 X 4.0 | 11.8 – 13.4 | 76.8 | 270 |
3 G 4.0 | 12.7 – 14.4 | 115.2 | 320 |
4 G 4.0 | 14.0 – 15.9 | 153.6 | 395 |
5 G 4.0 | 15.6 – 17.6 | 192 | 485 |
7 G 4.0 | 20.1 – 22.4 | 268.8 | 681 |
3 G 6.0 | 14.1 – 15.9 | 172.8 | 360 |
4 G 6.0 | 15.7 – 17.7 | 230.4 | 475 |
5 G 6.0 | 17.5 – 19.6 | 288 | 760 |
3 G 10.0 | 19.1 – 21.3 | 288 | 880 |
4 G 10.0 | 20.9 – 23.3 | 384 | 1060 |
5 G 10.0 | 22.9 – 25.6 | 480 | 1300 |
3 G 16.0 | 21.8 – 24.3 | 460.8 | 1090 |
4 G 16.0 | 23.8 – 26.4 | 614.4 | 1345 |
5 G 16.0 | 26.4 – 29.2 | 768 | 1680 |
4 G 25.0 | 28.9 – 32.1 | 960 | 1995 |
5 G 25.0 | 32.0 – 35.4 | 1200 | 2470 |
3 G 35.0 | 29.3 – 32.5 | 1008 | 1910 |
4 G 35.0 | 32.5 – 36.0 | 1344 | 2645 |
5 G 35.0 | 35.7 – 39.5 | 1680 | 2810 |
4 G 50.0 | 37.7 – 41.5 | 1920 | 3635 |
5 G 50.0 | 41.8 – 46.6 | 2400 | 4050 |
4 G 70.0 | 42.7 – 47.1 | 2688 | 4830 |
4 G 95.0 | 48.4 – 53.2 | 3648 | 6320 |
4 G 120.0 | 53.0 – 57.5 | 4608 | 6830 |
4 G 150.0 | 58.0 – 63.6 | 5760 | 8320 |
4 G 185.0 | 64.0 – 69.7 | 7104 | 9800 |
4 G 240.0 | 72.0 – 79.2 | 9216 | 12800 |
Number of cores and mm²per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
2 X 0.75 | 5.7 – 6.7 | 14.4 | 55 |
3 G 0.75 | 6.2 – 7.4 | 21.6 | 68 |
4 G 0.75 | 6.8 – 7.9 | 28.8 | 81 |
2 X 1.0 | 6.1 – 7.3 | 19.2 | 63 |
3 G 1.0 | 6.5 – 7.7 | 28.8 | 78 |
If this page does not have the model you want, or if you need custom cable service, please contact us and we will be happy to assist you.
