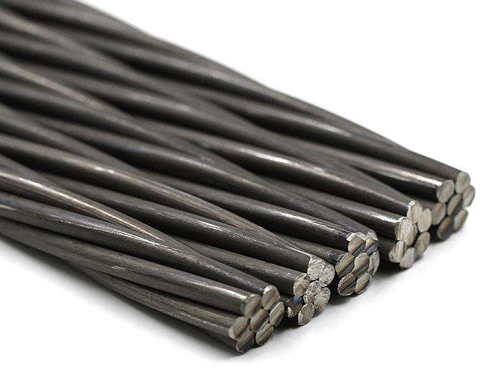

GSW - Galvanized Steel Wire Rope Cable
GSW wire consists of wire made of steel, which is coated with a layer of zinc by a galvanizing process to provide a protective layer coating.
Share
Construction
Conductor
Galvanized steel wire
Application
GSW wire is known for its high strength and durability due to the steel core.
The zinc coating provides corrosion resistance, protecting the underlying steel from rust and environmental elements.
This makes GSW wire suitable for various applications where strength, corrosion resistance, and long-term reliability are required.
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
Feature
GSW wire has high strength, durability and corrosion resistance.
Standard
ASTM, BS, DIN, JIS, etc
No.of Wires | Dia.of Wires | Approx.Strand Dia. | Approx.Strand Dia. | Siemem Martin Grade | High Strength Grade | Extra-high Strength Grade | Approx.Weight |
No. | Dia. | Inch | mm | KN | KN | KN | kg/km |
3 | 2.64 | 7/32 | 5.56 | 10.409 | 15.569 | 21.796 | 131 |
3 | 3.05 | 1/4 | 6.35 | 13.523 | 21.04 | 29.981 | 174 |
3 | 3.05 | 1/4 | 6.35 | – | – | – | 174 |
3 | 3.3 | 9/32 | 7.14 | 15.035 | 23.398 | 33.362 | 204 |
3 | 3.68 | 5/16 | 7.94 | 18.193 | 28.246 | 40.479 | 256 |
3 | 4.19 | 3/8 | 9.52 | 24.732 | 37.187 | 52.489 | 328 |
7 | 1.04 | 1/8 | 3.18 | 4.048 | 5.916 | 8.14 | 49 |
7 | 1.32 | 5/32 | 3.97 | 6.539 | 9.519 | 13.078 | 76 |
7 | 1.57 | 3/16 | 4.76 | 8.452 | 12.677 | 17.748 | 108 |
7 | 1.65 | 3/16 | 4.76 | – | – | – | 118 |
7 | 1.83 | 3/16 | 5.56 | 11.387 | 17.126 | 24.02 | 145 |
7 | 2.03 | 7/32 | 6.35 | 14.012 | 21.129 | 29.581 | 181 |
7 | 2.36 | 1/4 | 7.14 | 18.905 | 28.469 | 39.812 | 243 |
7 | 2.64 | 9/32 | 7.94 | 23.798 | 35.586 | 49.82 | 305 |
7 | 2.77 | 5/16 | 7.94 | – | – | – | 335 |
7 | 3.05 | 3/8 | 9.52 | 30.915 | 48.04 | 68.503 | 407 |
7 | 3.68 | 7/16 | 11.11 | 41.591 | 64.499 | 92.523 | 594 |
7 | 4.19 | 1/2 | 12.7 | 53.823 | 83.627 | 119.657 | 768 |
7 | 4.78 | 9/16 | 14.29 | 69.837 | 108.981 | 155.688 | 991 |
7 | 5.26 | 5/8 | 15.88 | 84.961 | 131.667 | 188.605 | 1211 |
19 | 2.54 | 1/2 | 12.7 | 56.492 | 84.961 | 118.768 | 751 |
19 | 2.87 | 9/16 | 12.49 | 71.616 | 107.202 | 149.905 | 948 |
19 | 3.18 | 5/8 | 15.88 | 80.513 | 124.995 | 178.819 | 1184 |
19 | 3.81 | 3/4 | 19.05 | 116.543 | 181.487 | 259.331 | 1719 |
19 | 4.5 | 7/8 | 22.22 | 159.691 | 248.211 | 354.523 | 2352 |
19 | 5.08 | 1 | 25.4 | 209.066 | 325.61 | 464.839 | 2384 |
If this page does not have the model you want, or if you need custom cable service, please contact us and we will be happy to assist you.
