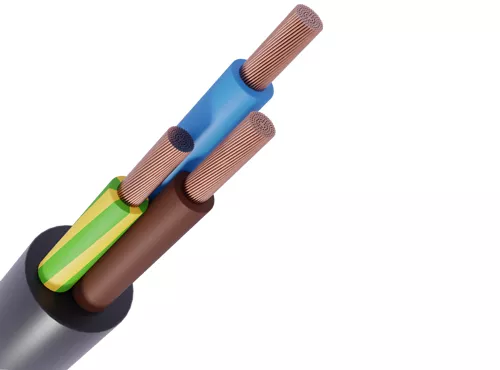

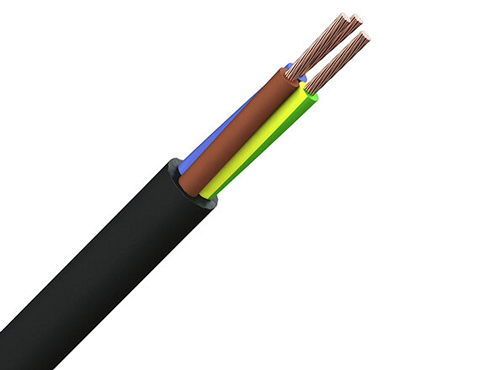

H05RR-F Tough Rubber Sheathed Flexible Cable

H05RR-F is a type of electrical cable that is commonly used for light to medium duty applications in both residential and commercial settings.
Share
Construction
- Voltage Rating
450/750V - Conductor
Class 5 flexible copper conductor - Insulation
LSZH (Low Smoke Zero Halogen) cross-linked compound - Sheath
LSZH (Low Smoke Zero Halogen) cross-linked compound - Sheath Colour
Black

Application
H05RR-F cables are commonly used for connecting household appliances like washing machines, refrigerators, and power tools.
They are also suitable for indoor and outdoor use, provided they are protected from direct exposure to sunlight and other environmental factors that may damage the rubber sheath.
Feature

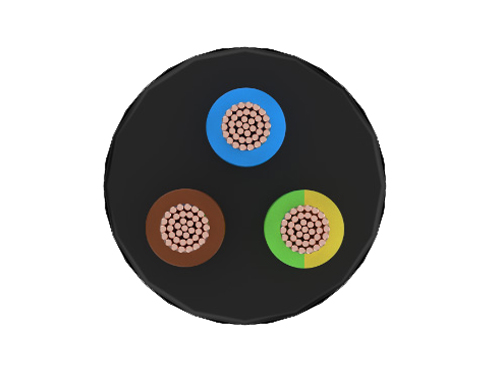

The cable consists of several conductors, typically copper, which are insulated with rubber and then covered with a rubber outer sheath.
The rubber insulation provides good flexibility and resistance to mechanical stress, making the cable suitable for applications that require frequent bending and movement.
Standard
IEC/VED/DIN/ASTM.

Number of cores and mm²per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
2 X 0.75 | 5.7 – 6.7 | 14.4 | 61 |
3 G 0.75 | 6.2 – 7.4 | 21.6 | 75 |
2 X 1.0 | 6.1 – 7.3 | 19.2 | 73 |
3 G 1.0 | 6.5 – 7.7 | 28.8 | 86 |
4 G 1.0 | 7.1 – 8.5 | 38.4 | 105 |
2 X 1.5 | 7.6 – 8.8 | 28.8 | 115 |
3 G 1.5 | 8.0 – 9.4 | 43.2 | 135 |
4 G 1.5 | 9.0 – 10.4 | 57.6 | 165 |
5 G 1.5 | 9.8 – 11.4 | 72 | 190 |
2 X 2.5 | 9.0 – 10.4 | 48 | 160 |
3 G 2.5 | 9.6 – 11.2 | 72 | 190 |
4 G 2.5 | 10.7 – 12.3 | 96 | 235 |
5 G 2.5 | 11.9 – 13.7 | 120 | 285 |
If this page does not have the model you want, or if you need custom cable service, please contact us and we will be happy to assist you.
