Instrumentation Cable

Instrumentation cable is a type of specialized electrical cable used in industrial settings to transmit signals and measurements between instrumentation and control devices.

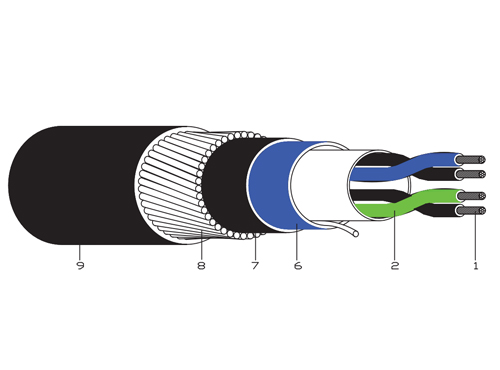

Overall Screen Instrumentation Cable

  • Voltage:
  • 300/500V
  • Conductor:
  • Circular stranded copper
  • Type:
  • Single pair or multi-pair
  • Insulated:
  • PE or PVC
  • Pairing:
  • Two insulated cores shall be uniformly twisted together to form a pair with a maximum lay length of 100mm
  • Cabling:
  • Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
  • Overall Screening:
  • Accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
  • Sheath:
  • PVC(Polyvinyl Chloride)

OS-img

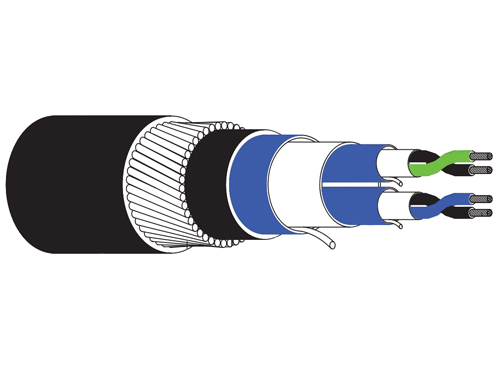

OS + IS Instrumentation Cable

  • Voltage:
  • 300/500V
  • Conductor:
  • Circular stranded copper
  • Type:
  • Multi-pair
  • Insulated:
  • PE or PVC
  • Pairing:
  • Two insulated cores shall be uniformly twisted together to form a pair with a maximum lay length of 100mm
  • Individual Screening:
  • Each pair screen with aluminum/mylar tape, helically applied with the meta side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
  • Cabling:
  • Twisted pairs are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.
  • Overall Screening:
  • Accumulated pairs screened with aluminum/mylar tape, helically applied with the metallic side down, in electrical contact with a tinned annealed copper drain wire of 0.5mm2
  • Sheath:
  • PVC(Polyvinyl Chloride)

OSIS-img

Application

Instrumentation cables are commonly used in industries such as oil and gas, petrochemical, power generation, manufacturing, and process control.

They are employed to connect various instruments and sensors, including temperature sensors, pressure transmitters, flow meters, level detectors, and control valves, to monitoring and control systems.

Features

Huadong’s instrumentation cables are protected against electromagnetic interference (EMI) and radio frequency interference (RFI). Have low capacitance to reduce signal attenuation and distortion. Are heat and chemical resistant and can withstand harsh environmental conditions.

Standard

BS 7917, IEC 60331-31.

OS Instrumentation Cable Specification

Size Number/Wire Diameter Nominal Insulated Thickness Nominal sheath thickness Nominal Overall Diameter Approx.Cable Weight
pair x mm2 No./mm mm mm mm Kg /Km
2x 0.5 7 / 0.3 0.6 0.8 7.5 75
3 x 0.5 7 / 0.3 0.6 1.1 10.2 119
4 x 0.5 7 / 0.3 0.6 1.1 11.1 129
5 x 0.5 7 / 0.3 0.6 1.1 12.1 156
6 x 0.5 7 / 0.3 0.6 1.2 I3.4 I80
7 x 0.5 7 / 0.3 0.6 1.2 I3.4 196
8 x 0.5 7 / 0.3 0.6 1.2 I4.5 220
9 x 0.5 7 / 0.3 0.6 1.2 15.6 243
10 x 0.5 7 / 0.3 0.6 1.2 17 282
11 x 0.5 7 / 0.3 0.6 1.2 17 297
12 x 0.5 7 / 0.3 0.6 1.2 17.5 317

OS + IS Instrumentation Cable Specification

Size Number/ Wire Diameter Nominal Insulation Thickness Nominal Bedding Thickness Nominal Overall Diameter Approx. Cable Weight
pair x mm2 No./mm mm mm mm /K / /Q
2 x 0.5 7 / 0.3 0.6 0.9 11.1 123
3 x 0.5 7 / 0.3 0.6 1.1 12.2 159
4 0.5 7 / 0.3 0.6 1.2 13.6 196
5 x 0.5 7 / 0.3 0.6 1.2 I4.9 236
6 x 0.5 7 / 0.3 0.6 1.2 16.2 263
7 x 0.5 7 / 0.3 0.6 1.2 16.2 288
8 0.5 7 / 0.3 0.6 1.2 17.6 330
9 x 0.5 7 / 0.3 0.6 1.2 19 376
10 x 0.5 7 / 0.3 0.6 1.2 20.7 409
11 x 0.5 7 / 0.3 0.6 1.2 20.7 434
12 x 0.5 7 / 0.3 0.6 1.3 21.6 457
13 x 0.5 7 / 0.3 0.6 1.3 21.7 48I
I4 0.5 7 / 0.3 0.6 1.3 21.7 506
15 x 0.5 7 / 0.3 0.6 1.3 22.9 544
16 x 0.5 7 / 0.3 0.6 1.3 22.9 569
17 x 0.5 7 / 0.3 0.6 1.3 24.2 597
I8 0.5 7 / 0.3 0.6 1.3 24.2 622
19 x 0.5 7 / 0.3 0.6 1.3 24.2 647
20 x 0.5 7 / 0.3 0.6 1.3 25.4 688
21 x 0.5 7 / 0.3 0.6 1.3 25.4 712
22 x 0.5 7 / 0.3 0.6 1.5 27.2 783
23 x 0.5 7 / 0.3 0.6 1.5 27.2 809
24 0.5 7 / 0.3 0.6 1.5 28.9 846
25 x 0.5 7 / 0.3 0.6 1.5 28.9 87I
26 x 0.5 7 / 0.3 0.6 1.5 28.9 896
27 x 0.5 7 / 0.3 0.6 1.5 29.6 910
28 0.5 7 / 0.3 0.6 1.5 30.7 943
29 x 0.5 7 / 0.3 0.6 1.5 30.7 967
30 x 0.5 7 / 0.3 0.6 1.5 30.7 992
31 x 0.5 7 / 0.3 0.6 1.7 32.3 1062
32 x 0.5 7 / 0.3 0.6 1.7 32.3 I086
33 x 0.5 7 / 0.3 0.6 1.7 32.3 1112
34 0.5 7 / 0.3 0.6 2 34.2 1190
35 x 0.5 7 / 0.3 0.6 2 34.2 1215
36 x 0.5 7 / 0.3 0.6 2 34.2 1239
