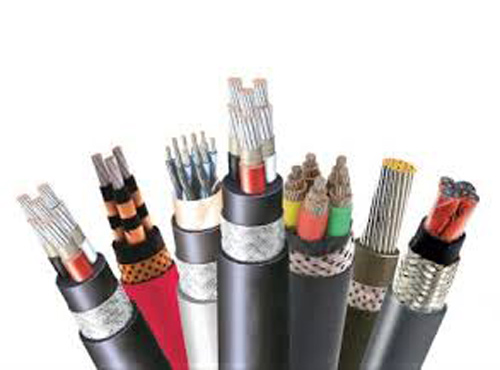

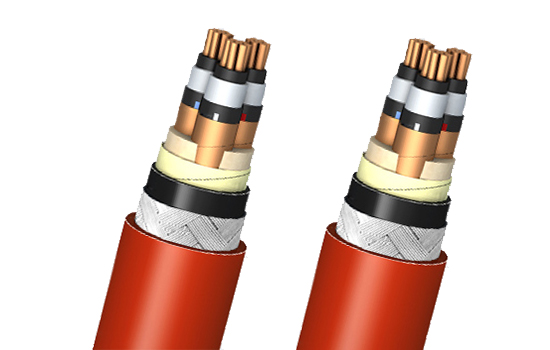

Shipboard Marine Power Cable
Marine cables are used in the marine environment, especially on ships and offshore platforms. These cables are designed to meet the stringent requirements and safety standards required for reliable operation in harsh marine conditions.
Share

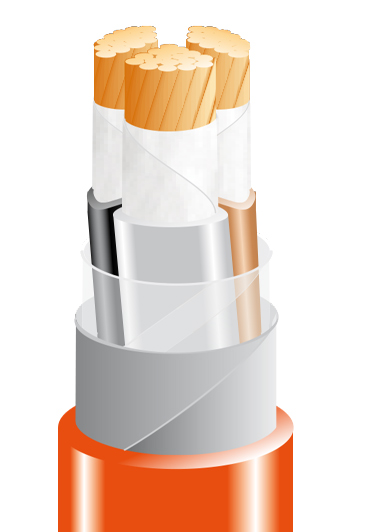

Fire Retardant Low Voltage Power Cable
- Conductor:
Stranded tinned annealed copper, IEC 60228 Class 2 - Insulation:
XLPE, IEC 60092-360 - Cabling:
Flame retardant & non-hygroscopic fillers can be used
Suitable tape(s) can be applied on the cabled core - Outer sheath:
Halogen-free flame retardant thermoplastic compound (SHF1)
Halogen-free flame retardant thermoset compound (SHF2) - Flammability:
LSHF Flame retardant
Fire Resistance Low Voltage Power Cable
- Conductor:
Stranded tinned annealed copper, IEC 60228 Class 2 - Fire Resistance:
Mica/glass tape - Insulation:
XLPE, IEC 60092-360 - Cabling:
Flame retardant & non-hygroscopic fillers can be used
Suitable tape(s) can be applied on the cabled core - Outer sheath:
Halogen-free flame retardant thermoplastic compound (SHF1)
Halogen-free flame retardant thermoset compound (SHF2) - Flammability:
LSHF Flame resistant

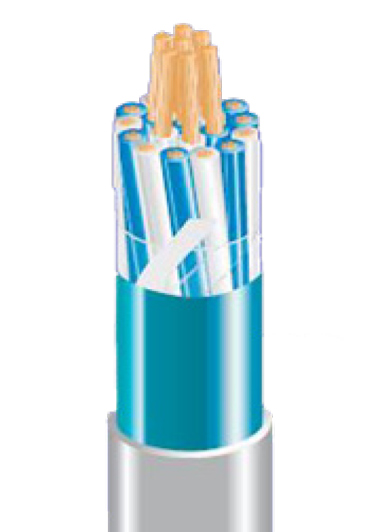

Flame Retardant Instrumentation Cable (Overall Screen)
- Conductor:
Stranded tinned annealed copper, IEC 60228 Class 2 - Insulation:
XLPE, IEC 60092-360 - Cabling:
Flame retardant & non-hygroscopic fillers can be used
Suitable tape(s) can be applied on the cabled core - Armor:
Tinned copper wire braid - Outer sheath:
Halogen-free flame retardant thermoplastic compound (SHF1)
Halogen-free flame retardant thermoset compound (SHF2) - Flammability:
LSHF Flame resistant

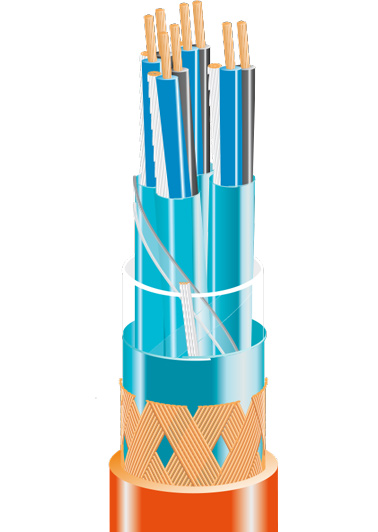

Flame Retardant Instrumentation Cable (Individual Screen)
- Conductor:
Stranded tinned annealed copper, IEC 60228 Class 2 - Insulation:
XLPE, IEC 60092-360 - Individual screen:
AL/PS tape with tinned copper drain wire
Each pair/triad is wrapped with polyester tape to prevent electrical contact with adjacent pairs/triads - Cabling:
Flame retardant & non-hygroscopic fillers can be used
Suitable tape(s) can be applied to the cabled core - Armor:
Tinned copper wire braid - Outer sheath:
Halogen-free flame retardant thermoplastic compound (SHF1)
Halogen-free flame retardant thermoset compound (SHF2) - Flammability:
LSHF Flame resistant

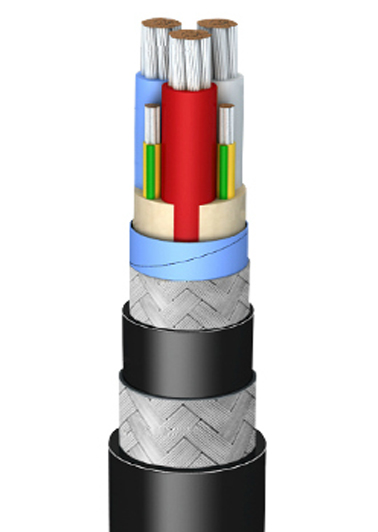

Flame Retardant VFD Cable
- Conductor:
Stranded tinned annealed copper, IEC 60228 Class 5 - Insulation:
XLPE, IEC 60092-360 - Cabling:
Flame retardant & non-hygroscopic fillers may be used
Suitable tape(s) may be applied to the cabled core - Collective screen:
CU/PS tape with tinned copper drain wire - Armor:
Tinned copper wire braid - Outer sheath:
Halogen-free flame retardant thermoplastic compound
Halogen-free flame retardant thermoset compound - Flammability:
LSHF Flame retardant

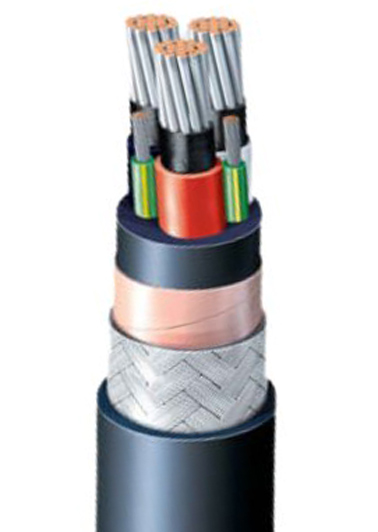

ERP Insulation Marine Flex Cable
- Conductor:
IEC 60228 Class 5
Stranded tinned annealed copper, IEC 60228 Class 5 - Insulation:
EPR, IEC 60092-360 - Laying up:
Cores are laid up together - Sheath:
PCP/PVC - Construction:
Flexible copper conductor
Black, if any - Flammability:
Flame retardant
If this page does not have the model you want, or if you need custom cable service, please contact us and we will be happy to assist you.
Manufacturing Process
Conductor Stranding
Extruded Insulation
Cabling
Armoured
Extruded Outer Sheath
Packing On Drum
