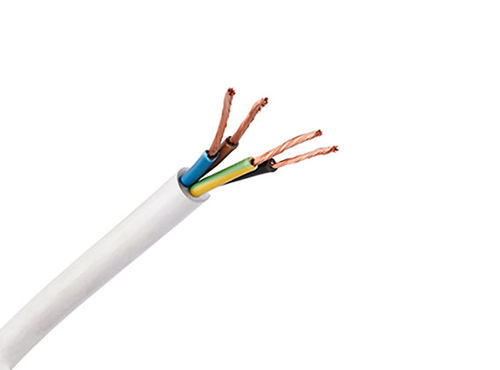

H07ZZ-F Low Smoke Zero Halogen LSZH Rubber Cable

H07ZZ-F Rubber Cable

H07ZZ-F cable is a Low Smoke Zero Halogen ( LSZH ) cable for use where fire, smoke emissions and toxic fumes pose a potential threat to life and equipment.

Share

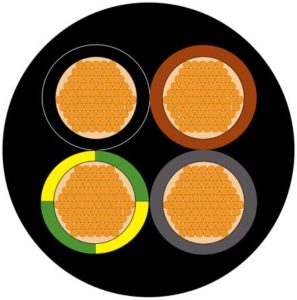

Construction

  • Voltage Rating
    300/500V
  • Conductor
    Class 5 flexible copper conductor
  • Insulation
    Rubber compound
  • Outer Sheath
    Rubber compound
  • Sheath Color
    White/Black



Application

For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Examples of use include supplying mobile power units, UPS installations, stage lighting and audio visual equipment.

This cable will withstand medium mechanical stresses and is suitable for both installation indoors and outdoors.

Feature

The H07ZZ-F cable is also available in 2-core, 3-core, 4-core, 5-core and up to 37 cores as standard. Please refer to our technical specification sheet for further information.

Standard

IEC/VED/DIN/ASTM.



Number of cores and mm² per conductor

Outer diameter [mm]

Copper index (kg/km)

Weight (kg/km)

3 G 1.5

9.2 – 11.9

43.2

125

4 G 1.5

10.2 – 13.1

57.6

155

5 G 1.5

11.2 – 14.4

72

190

14 G 1.5

18.8 – 21.3

201.6

570

18 G 1.5

20.7 – 26.3

259.2

750

3 G 2.5

10.9 – 14

72

185

4 G 2.5

12.1 – 15.5

96

235

5 G 2.5

13.3 – 17

120

290

7 G 2.5

17.1 – 21.8

168

520

14 G 2.5

22.2 – 25

336

860

4 G 4.0

14 – 17.9

153.6

325

5 G 4.0

15.6 – 19.9

192

410

4 G 6.0

15.7 – 20

230.4

440

5 G 6.0

17.5 – 22.2

288

550

4 G 10.0

20.9 – 26.5

384

770

5 G 10.0

22.9 – 29.1

480

950

4 G 16.0

23.8 – 30.1

614.4

1070

4 G 25.0

28.9 – 36.6

960

1570

4 G 35.0

32.5 – 41.1

1344

2040

4 G 50.0

37.7 – 47.5

1920

2810
