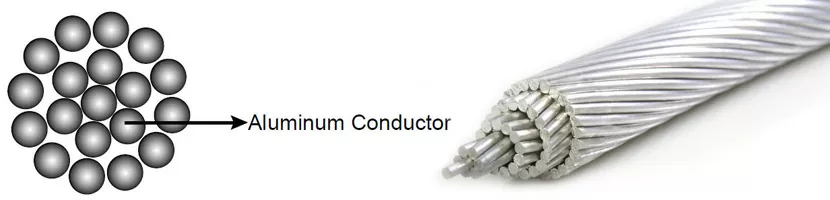

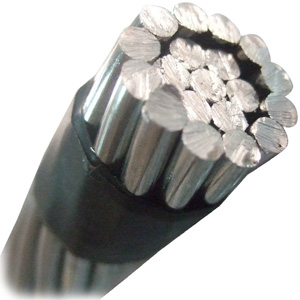

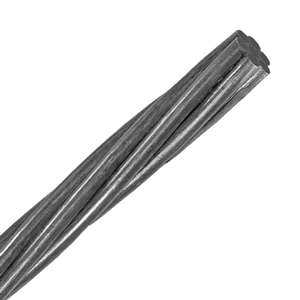

All Aluminum Conductor (AAC) is made up of one or more hard drawn 1350 aluminum alloy wires twisted together.
Share
Construction
Conductor
Hard drawn aluminium conductor
Application
AAAC aerial conductor has a high tensile strength, good corrosion resistance, light weight and comparable current carrying capacity.
It is designed for medium and long spans, can be used for LV and MV distribution networks.
Feature
AAAC aerial conductor has a high tensile strength, good corrosion resistance, light weight and comparable current carrying capacity.
It is designed for medium and long spans, can be used for LV and MV distribution networks.
Standard
ASTM B231
IEC 207
DIN 48201
BS 215/1
AS 1531
ASTM – B 231 AAC Conductor Specifications
Code Word | Size (AWG or kcmil) |
Stranding | Diameter (ins.) | Cross- Sectional Area (Sq. ins.) |
Weight Per 1000 ft. (lbs.) |
Rated Strength (lbs.) | Resistance OHMS/1000 ft. | Allowable Ampacity+ (Amps) | |||
No. of Wires | Class | Individual Wires | Complete Cable | DC @ 20°C | AC @ 75°C | ||||||
Peachbell | 6 | 7 | A | 0.0612 | 0.184 | 0.0206 | 25 | 563 | 0.658 | 0.805 | 103 |
Rose | 4 | 7 | A | 0.0772 | 0.232 | 0.0328 | 39 | 881 | 0.414 | 0.506 | 138 |
Iris | 2 | 7 | AA, A | 0.0974 | 0.292 | 0.0522 | 62 | 1350 | 0.260 | 0.318 | 185 |
Pansy | 1 | 7 | AA | 0.1093 | 0.328 | 0.0657 | 78 | 1640 | 0.207 | 0.252 | 214 |
Poppy | 1/0 | 7 | AA, A | 0.1228 | 0.368 | 0.0829 | 99 | 1990 | 0.164 | 0.200 | 247 |
Aster | 2/0 | 7 | AA, A | 0.1379 | 0.414 | 0.1045 | 125 | 2510 | 0.130 | 0.159 | 286 |
Phlox | 3/0 | 7 | AA, A | 0.1548 | 0.464 | 0.1317 | 157 | 3040 | 0.103 | 0.126 | 331 |
Oxlip | 4/0 | 7 | AA, A | 0.1739 | 0.522 | 0.1663 | 198 | 3830 | 0.0817 | 0.0999 | 383 |
Sneezewort | 250 | 7 | AA | 0.189 | 0.567 | 0.1964 | 234 | 4520 | 0.0691 | 0.0846 | 425 |
Valerian | 250 | 19 | A | 0.1147 | 0.574 | 0.1963 | 234 | 4660 | 0.0691 | 0.0846 | 426 |
Daisy | 266.8 | 7 | AA | 0.1952 | 0.586 | 0.2095 | 250 | 4830 | 0.0648 | 0.0793 | 443 |
Laurel | 266.8 | 19 | A | 0.1185 | 0.592 | 0.2095 | 250 | 4970 | 0.0648 | 0.0793 | 444 |
Peony | 300 | 19 | A | 0.1257 | 0.628 | 0.2358 | 281 | 5480 | 0.0576 | 0.0706 | 478 |
Tulip | 336.4 | 19 | A | 0.1331 | 0.665 | 0.2644 | 315 | 6150 | 0.0514 | 0.0630 | 513 |
Daffodil | 350 | 19 | A | 0.1357 | 0.679 | 0.2748 | 328 | 6390 | 0.0494 | 0.0605 | 526 |
Canna | 397.5 | 19 | AA, A | 0.1446 | 0.723 | 0.312 | 373 | 7110 | 0.0435 | 0.0534 | 570 |
Goldentuft | 450 | 19 | AA | 0.1539 | 0.769 | 0.3534 | 422 | 7890 | 0.0384 | 0.0472 | 616 |
Cosmos | 477 | 19 | AA | 0.1584 | 0.792 | 0.3744 | 447 | 8360 | 0.0362 | 0.0445 | 639 |
Syringa | 477.0 | 37 | A | 0.1135 | 0.795 | 0.3744 | 447 | 8690 | 0.0362 | 0.0445 | 639 |
Zinnia | 500 | 19 | AA | 0.1622 | 0.811 | 0.3926 | 469 | 8760 | 0.0346 | 0.0425 | 658 |
Hyacinth | 500 | 37 | AA | 0.1162 | 0.814 | 0.3924 | 469 | 9110 | 0.0346 | 0.0425 | 658 |
Dahlia | 556.5 | 19 | AA | 0.1711 | 0.856 | 0.4369 | 522 | 9750 | 0.0311 | 0.0382 | 703 |
Mistletoe | 556.5 | 37 | AA | 0.1226 | 0.858 | 0.4368 | 522 | 9940 | 0.0311 | 0.0382 | 704 |
Meadowsweet | 600 | 37 | AA | 0.1273 | 0.891 | 0.4709 | 562 | 10700 | 0.0228 | 0.0355 | 738 |
Orchid | 636.0 | 37 | AA, A | 0.1311 | 0.918 | 0.4995 | 596 | 11400 | 0.0272 | 0.0335 | 765 |
Heuchera | 650 | 37 | AA | 0.1325 | 0.928 | 0.5102 | 609 | 11600 | 0.0266 | 0.0328 | 775 |
Verbena | 700 | 37 | AA | 0.1375 | 0.963 | 0.5494 | 656 | 12500 | 0.0247 | 0.0305 | 812 |
Flag | 700 | 61 | A | 0.1071 | 0.964 | 0.5495 | 656 | 12900 | 0.0247 | 0.0305 | 812 |
Violet | 715.5 | 37 | AA | 0.1391 | 0.973 | 0.5623 | 671 | 12800 | 0.0242 | 0.0299 | 823 |
Nasturtium | 715.5 | 61 | AA | 0.1083 | 0.975 | 0.5619 | 671 | 13100 | 0.0242 | 0.0299 | 823 |
Petunia | 750.0 | 37 | AA | 0.1424 | 0.997 | 0.5893 | 703 | 13100 | 0.0230 | 0.0286 | 847 |
Cattail | 750 | 61 | AA | 0.1109 | 0.998 | 0.5892 | 703 | 13500 | 0.0230 | 0.0286 | 847 |
Arbutus | 795 | 37 | AA | 0.1466 | 1.026 | 0.6245 | 745 | 13900 | 0.0217 | 0.0270 | 878 |
Lilac | 795.0 | 61 | A | 0.1142 | 1.027 | 0.6248 | 745 | 14300 | 0.0217 | 0.0270 | 879 |
Cockscomb | 900 | 37 | AA | 0.156 | 1.092 | 0.7072 | 844 | 15400 | 0.0192 | 0.0239 | 948 |
Snapdragon | 900 | 61 | AA | 0.1215 | 1.093 | 0.7072 | 844 | 15900 | 0.0192 | 0.0239 | 948 |
Magnolia | 954.0 | 37 | AA | 0.1606 | 1.124 | 0.7495 | 894 | 16400 | 0.0181 | 0.0226 | 982 |
Goldenrod | 954.0 | 61 | A | 0.1251 | 1.125 | 0.7498 | 894 | 16900 | 0.0181 | 0.0226 | 983 |
Hawkweed | 1000 | 37 | AA | 0.1644 | 1.151 | 0.7854 | 937 | 17200 | 0.0173 | 0.0216 | 1010 |
Camellia | 1000 | 61 | AA | 0.128 | 1.152 | 0.7849 | 937 | 17700 | 0.0713 | 0.0216 | 1011 |
Bluebell | 1033.5 | 37 | AA | 0.1671 | 1.17 | 0.8114 | 969 | 17700 | 0.0167 | 0.0210 | 1031 |
Larkspur | 1033.5 | 61 | AA | 0.1302 | 1.171 | 0.8122 | 969 | 18300 | 0.0167 | 0.0210 | 1032 |
Marigold | 1113.0 | 61 | AA, A | 0.1351 | 1.216 | 0.8744 | 1043 | 19700 | 0.0155 | 0.0195 | 1079 |
Hawthorn | 1192.5 | 61 | AA, A | 0.1398 | 1.258 | 0.9363 | 1118 | 21100 | 0.0145 | 0.0183 | 1124 |
Narcissus | 1272.0 | 61 | AA, A | 0.1444 | 1.3 | 0.999 | 1192 | 22000 | 0.0136 | 0.0173 | 1169 |
Columbine | 1351.5 | 61 | AA, A | 0.1488 | 1.34 | 1.0608 | 1267 | 23400 | 0.0128 | 0.0163 | 1212 |
Carnation | 1431 | 61 | AA, A | 0.1532 | 1.378 | 1.1244 | 1341 | 24300 | 0.0121 | 0.0155 | 1253 |
Gladiolus | 1510.5 | 61 | A | 0.1574 | 1.416 | 1.1869 | 1416 | 25600 | 0.0144 | 0.0147 | 1294 |
Coreopsis | 1590.0 | 61 | AA | 0.1614 | 1.453 | 1.248 | 1490 | 27000 | 0.0109 | 0.0141 | 1333 |
Jessamine | 1750.0 | 61 | AA | 0.1694 | 1.524 | 1.3748 | 1640 | 29700 | 0.00988 | 0.0129 | 1408 |
Cowslip | 2000.0 | 91 | A | 0.1482 | 1.631 | 1.5697 | 1875 | 34200 | 0.00864 | 0.0115 | 1518 |
Sagebrush | 2250 | 91 | A | 0.1572 | 1.73 | 1.7662 | 2130 | 37500 | 0.00776 | 0.0105 | 1612 |
Lupine | 2500.0 | 91 | A | 0.1657 | 1.823 | 1.9623 | 2366 | 41900 | 0.00698 | 0.00969 | 1706 |
Bitterroot | 2750 | 91 | A | 0.1738 | 1.912 | 2.1589 | 2603 | 46100 | 0.00635 | 0.00900 | 1793 |
Trillium | 3000 | 127 | A | 0.1537 | 1.998 | 2.3564 | 2839 | 50300 | 0.00582 | 0.00834 | 1874 |
Bluebonnet | 3500 | 127 | A | 0.166 | 2.158 | 2.7486 | 3345 | 58700 | 0.00499 | 0.00756 | 2024 |
DIN 48201 All Aluminium Conductor Specifications
CODE | SECTION mm2 | STRANDING | OVERALL DIAMETER mm | RATED STRENGTH N | ELECTRICAL RESISTANCE ohms/km | CABLE WEIGHT kg/km | CURRENT CARRYING CAPACITY No Q mm (1) Amps | |
No | Q mm | |||||||
16 | 15.89 | 7 | 1.7 | 5.1 | 2840 | 1.8018 | 44 | 110 |
25 | 24.25 | 7 | 2.1 | 6.3 | 4170 | 1.1808 | 67 | 145 |
35 | 34.46 | 7 | 2.5 | 7.5 | 5740 | 0.8332 | 94 | 180 |
50 | 49.48 | 7 | 3 | 9 | 7950 | 0.5786 | 135 | 225 |
50 | 48.36 | 19 | 1.8 | 9 | 8440 | 0.595 | 133 | 225 |
70 | 65.82 | 19 | 2.1 | 10.5 | 11250 | 0.4371 | 181 | 270 |
95 | 93.27 | 19 | 2.5 | 12.5 | 15650 | 0.3085 | 256 | 340 |
120 | 117 | 19 | 2.8 | 14 | 18750 | 0.2459 | 322 | 390 |
150 | 147.1 | 37 | 2.25 | 15.7 | 25250 | 0.1961 | 406 | 455 |
185 | 181.6 | 37 | 2.5 | 17.5 | 30450 | 0.1587 | 501 | 520 |
240 | 242.5 | 61 | 2.25 | 20.2 | 39350 | 0.1192 | 670 | 625 |
300 | 299.4 | 61 | 2.5 | 22.5 | 47550 | 0.0965 | 827 | 710 |
400 | 400.1 | 61 | 2.89 | 26 | 60700 | 0.0722 | 1105 | 855 |
500 | 499.8 | 61 | 3.23 | 29.1 | 74500 | 0.0578 | 1381 | 990 |
625 | 626.3 | 91 | 2.96 | 32.6 | 95000 | 0.0462 | 1733 | 1140 |
800 | 802.1 | 91 | 3.35 | 36.8 | 118200 | 0.0361 | 2219 | 1340 |
1000 | 999.7 | 91 | 3.74 | 41.1 | 145500 | 0.029 | 2766 | 1540 |
BS 215 AAC Conductor Specifications
CODE | SECTION mm2 | STRANDING | OVERALL DIAMETER mm | RATED STRENGTH N | ELECTRICAL RESISTANCE ohms/km | CONDUCTOR WEIGHT kg/km | ||
Nominal | Teorica | No | Q mm | |||||
MIDGE | 22 | 23.33 | 7 | 2.06 | 6.18 | 3990 | 1.227 | 64 |
ANT | 50 | 52.83 | 7 | 3.1 | 9.3 | 8280 | 0.5419 | 145 |
FLY | 60 | 63.55 | 7 | 3.4 | 10.2 | 9900 | 0.4505 | 174 |
WASP | 100 | 106 | 7 | 4.39 | 13.17 | 16000 | 0.2702 | 290 |
HORNET | 150 | 157.6 | 19 | 3.25 | 16.25 | 25700 | 0.1825 | 434 |
CHARFER | 200 | 213.2 | 19 | 3.78 | 18.9 | 35400 | 0.1349 | 587 |
COCKROACH | 250 | 265.7 | 19 | 4.22 | 21.1 | 40400 | 0.1083 | 731 |
BUTTERFLY | 300 | 322.7 | 19 | 4.65 | 23.25 | 48750 | 0.08916 | 888 |
CENTIPEDE | 400 | 415.2 | 37 | 3.78 | 26.46 | 63100 | 0.06944 | 1145 |
