H03VV-F/H05VV-F/H07VV-F

h03vv-f
  • Voltage: 300/300V
  • Conductor: bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295 (nominal diameter 0,20 mm)
  • Insulation: PVC compound TI2 acc. to DIN VDE 0207 4. part / HD 21.1 S4, concentrically stranded cores color marked acc. to HRN HD 308 S2 / DIN VDE 0293-308, with or without yellow-green protective conductor
  • Sheath: PVC compound TM2 for flexible insulated conductors acc. to DIN VDE 0207 part 5 / HD 21.1 S4
  • Sheath color: white or black

H03VVH2-F

456
  • Voltage: 300/300V
  • Conductor: Class 5 Flexible Stranded Copper
  • Insulation: PVC (Polyvinyl Chloride)
  • OUTER SHEATH: PVC (Polyvinyl Chloride)
  • Sheath color: white or black

Application

H03VV-F is suitable for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending and twisting. Specially suitable for application in small devices with low mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc.

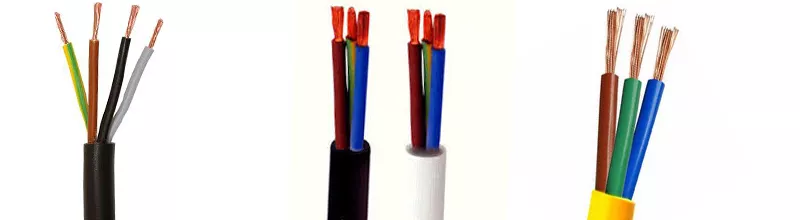

rubber-cable

h03vv-f-cable-parameter

Structure

  • Conductor: superfine copper strands acc. to VDE0295, class 5.
  • Insulation: mixed PVC/Rubber, resistant to oil, flame resistance and self-extinguishing, Color: acc. to 2271IEC(brown, blue, black, green/yellow), 5 cores or more with black number with white digital coding
  • Sheath: Butadiene-acrylonitrile rubber; resistant to oil, flame retardant and self- extinguishing
  • Color: black (RAL9005) or grey(RAL7001).
  • Standard: acc. to VDE0482,part 265-2-1 resp.EN50265-2-1 and IEC603321-1
  • Rated voltage: 300/500V, Test voltage:<=1.5mm 2500V >1.5mm:3000V
  • Minimum bending radius: 0.3m<L<0.6m
  • Burning vertically test: GB/T1 8380.1–2001,IEC60332–1:1993 test
  • Passedstandard: GB5023.6 ,IEC60227–6,EN50214. Used under the normal conditions, the temperature of conductors is lower than 70ºC
  • Temperature range: -15C to +40C
