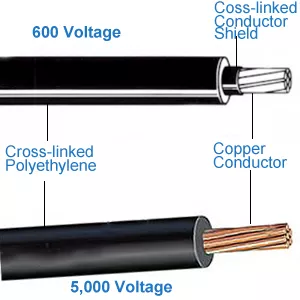

The Airport Lighting Cable Structure

• Voltage: 600V, 5kV
• Conductor: Stranded bare or tinned copper.
• Inner Semi-Conductor: Extruded semi-conducting compound.
• Insulation: XLPE.
• Outer Semi-Conductor: Semi conducting tape or extruded.
• Shield: Copper or brass tape(s). Tinned copper wire braid can be offered upon request.
• Sheath: PVC/ PE/XLPE can be offered upon request.
• Sheath Color: Black

Get a Quote Now

Application

Airport Lighting Cable is primarily used for series lighting circuits for runways, control systems, and other multi-purpose installations. It can be used for direct burial, conduit, or raceway. These cables are capable of operating continuously at a conductor temperature not in excess of 90°C for normal operation, 130°C for emergency overload conditions, and 250°C for short circuit conditions. Voltage rating for conductors is 5,000 volts

Standard

FAA Specification L-824, AC150/5345-7E, and ICEA S-66-524
