pi high temperature cable

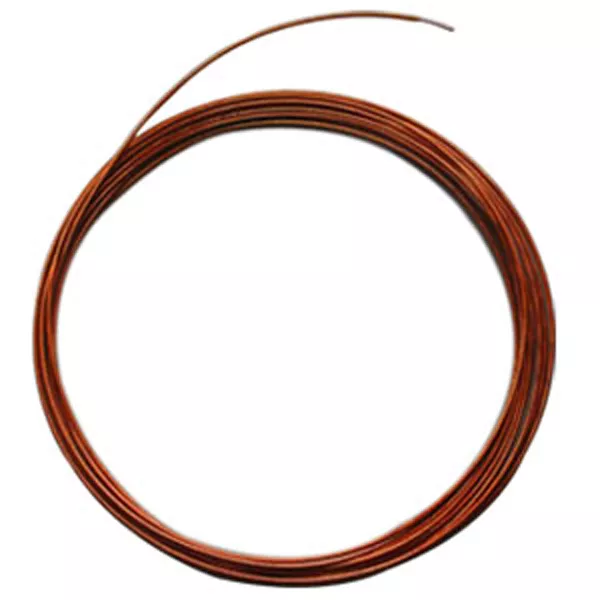

Polyimide Insulated High Temperature Wire

High temperature cable is designed to operate in environments with extreme temperatures. Huadong Cable offers high performance high temp cables for your choice.

Applications

Aerospace, energy chemical, oil exploration, mechanical and electrical equipment, high-frequency discharge lamp fields.

Features

Resistant to high temperature, low temperature, corrosion, oil, acid, alkali, oxidation, excellent electrical insulation, high voltage resistance, low high-frequency loss, moisture-proof, high insulation resistance, excellent flame retardancy, aging resistance, and long service life.

Standard

  • IEC
  • UL
  • ASTM

Construction

  • Rate Voltage: 600V
  • Testing Volta: 2000V
  • Temperature Rate: -80ºC~+250ºC
  • Conductor: Tinned, silver, or nickel copper
  • Insulation: Polyimide

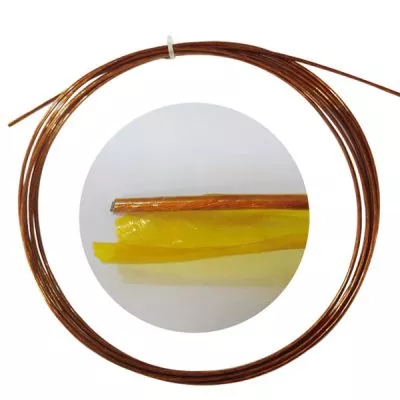

pi insulated high temp cable

Polyimide Insulated Wire Specification

Spec. Conductor Conductor OD Insulation thickness Wire OD Allowance
AWG No./mm mm mm mm mm
20 10/0.254 0.96 0.85 2.7 ±0.25
18 16/0.254 1.2 0.85 2.9 ±0.25
16 26/0.254 1.5 0.85 3.2 ±0.30
14 41/0.254 1.9 0.85 3.6 ±0.30
12 65/0.254 2.4 0.85 4.1 ±0.30
10 105/0.254 3.1 1.15 5.4 ±0.35
8 165/0.254 3.9 1.15 6.2 ±0.40
