ACSS/TW Wire

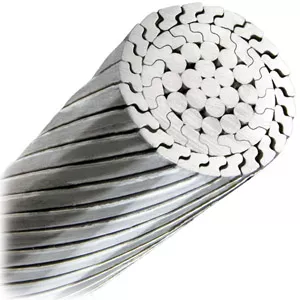

acss-tw-conductor-img

Construction:

Conductor: annealed 1350 aluminum with a conductivity of 63% IACS

Shape of aluminum wire: trapezoid

Sectional area: 240~1100mm2

Reinforced core: high tensile steel wire

Working temperature: 150°c

Standard packing length: 2500 meters

info@hlcables.com

Application

ACSS/TW-Al Conductor Steel Supported-Trapezoidal Wire used for overhead distribution and transmission lines.
Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductor, Steel-Supported (ACSS/TW) is a concentrically stranded conductor with one or more layers of trapezoidal shaped hard drawn and annealed 1350-0 aluminum wires on a central core of steel. Compared with the traditional ACSR conductorl of the same sectional area, ACSS/TW has smaller resistance and diameter. Besides, it can also increase the working temperature of power transmission lines.

Parameter

Code Name KCMI) Stranding Cross Sectional Area (in ) Stranding Diameter (in)
Linnet/ACSS/TW 336.4 16 0.2641 0.307 2 18 7 x 0.0884 0.2652 0.659
Oriole/ACSS/TW 336.4 23 0.2642 0.3258 2 16 7 x 0.1059 0.3177 0.693
Flicker/ACSS/TW 477 13 0.3747 0.4233 2 18 7 x 0.0940 0.282 0.776
Hawk/ACSS/TW 477 16 0.3746 0.4356 2 18 7 x 0.1053 0.3159 0.789
Hen/ACSS/TW 477 23 0.3747 0.4621 2 16 7 x 0.1261 0.3783 0.825
Parakeet/ACSS/TW 556.5 13 0.4371 0.4937 2 18 7 x 0.1015 0.3045 0.835
Dove/ACSS/TW 556.5 16 0.4371 0.5083 2 20 7 x 0.1138 0.3414 0.852
Rook/ACSS/TW 636 13 0.4995 0.5643 2 18 7 x 0.1085 0.3255 0.89
Grosbeak/ACSS/TW 636 16 0.4995 0.5808 2 20 7 x 0.1216 0.3648 0.908
Scoter/ACSS/TW 636 23 0.4995 0.616 2 18 7 x 0.1456 0.4368 0.953
Tern/ACSS/TW 795 7 0.6244 0.6675 2 17 7 x 0.0886 0.2658 0.96
Puffin/ACSS/TW 795 11 0.6244 0.6919 2 18 7 x 0.1056 0.3168 0.98
