300/500V CY/ SY/ YY (LSZH) PVC/PVC Control Cable

SY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.

SY-PVC-Control-Flexible-Cable

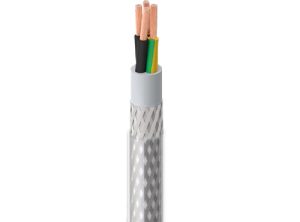

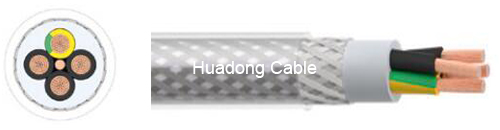

SY PVC Control Flexible Cable

Construction:
Conductor: Class 5 flexible copper conductor
Insulation: PVC (Polyvinyl Chloride) Type TI2
Bedding: PVC (Polyvinyl Chloride) Type TM2
Braiding: GSWB (Galvanized Steel Wire Braid) minimum coverage of braiding shall be 50%
Sheath: PVC (Polyvinyl Chloride) Type TM2

Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating: -15ºC to +70°C
Minimum Bending Radius: 10 x overall diameter
Core Identification:
2 core: Blue Brown
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
5 core: Blue Brown Black Grey Green/Yellow
Sheath Colour: Transparent

SY-LSZH-Control-Flexible-Cable

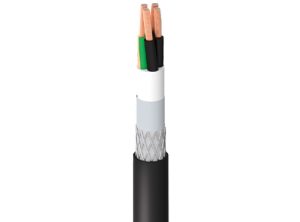

SY LSZH Control Flexible Cable

Construction:
Conductor: Class 5 flexible copper conductor
Insulation: LSZH (Low Smoke Zero Halogen) Type TI6
Bedding: LSZH (Low Smoke Zero Halogen) Type TM7
Braiding: GSWB (Galvanized Steel Wire Braid) minimum coverage of braiding shall be 50%
Sheath: LSZH (Low Smoke Zero Halogen) Type TM7
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
-15ºC to +70°C Minimum
Bending Radius: 10 x overall diameter
Core Identification:
2 core: Blue Brown
3 core: Blue Brown Green/Yellow
4 core: Brown Black Grey Green/Yellow
5 core: Blue Brown Black Grey Green/Yellow
Sheath Colour: Black

YY-PVC-Flexible-control-cable

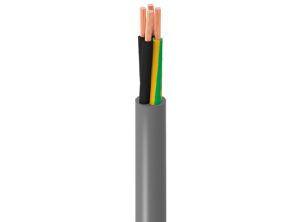

YY PVC Flexible Control Cable

Construction:
Conductor: Class 5 flexible copper conductor
Insulation: PVC (Polyvinyl Chloride) TI2 according to BS EN 50363
Sheath: PVC (Polyvinyl Chloride) TM2 according to BS EN 50363

Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -40°C to +70°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 12.5 x overall diameter

Core Identification Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
7 cores and above: Black with White numbers
(3 cores and above includes Green/Yellow)
Sheath Colour: Grey

YY-LSZH-Control-cable

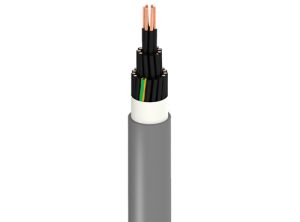

YY LSZH Control Flexible Cable

Construction:
Conductor: Class 5 flexible copper conductor
Insulation: Halogen-Free Compound Type TI6 according to BS EN 50363
Sheath: LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -40°C to +70°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 10 x overall diameter
Core Identification
Black with; White numbers (3 core and above includes Green/Yellow)
Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour: Grey

CY-PVC-Flexible-Control-Cable

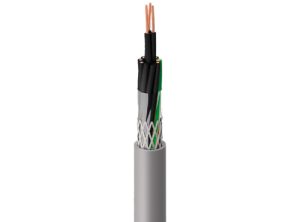

CY PVC Flexible Control Cable

Construction:
Conductor Class: 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
Insulation: PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363
Binding: Tape PET (Polyester Tape
Screen TCWB: (Tinned Copper Wire Braid)
Sheath: PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363
Character:
Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -30°C to +70°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 6x overall diameter
Flexed: 15 x overall diameter
Core Identification
Black with; White numbers (3 core and above includes Green/Yellow)
Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour: Grey

CY-LSZH-Control-Flexible-Cable

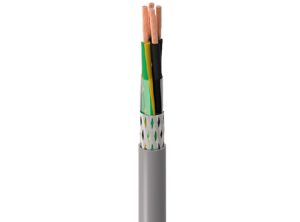

CY LSZH Control Flexible Cable

Construction:
Conductor: Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)
Insulation: Halogen Free Type TI6 according to BS EN 50363
Binding Tape: PET (Polyester Tape)
Screen: TCWB (Tinned Copper Wire Braid)
Sheath: LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363
Character:

Voltage Rating: (Uo/U) 300/500V
Temperature Rating:
Fixed: -15°C to +70°C
Flexed: -30°C to +70°C
Minimum Bending Radius
Fixed: 6x overall diameter
Flexed: 15 x overall diameter
Core Identification
Black with; White numbers (3 core and above includes Green/Yellow)
Coloured Cores:
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour: Grey
