URD Cable XLPE Underground (Direct Burial)

Designed for distributing power from a transformer to individual homes or buildings in underground electrical distribution systems. URD cables are commonly used in residential areas, commercial developments, and industrial complexes.

Application

URD cables are designed to be buried directly in the ground, providing a safe and reliable method for delivering power to homes and buildings. These cables are insulated and protected to withstand the environmental conditions encountered underground, including moisture, soil acidity, and physical stresses. It is commonly used to distribute electricity from transformers to residential areas and other low-voltage applications.

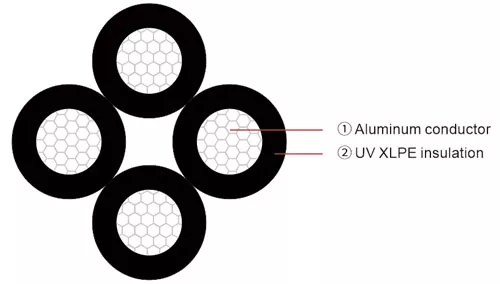

Construction

Conductors
Class B compressed concentric lay stranded 1350 aluminum alloy
Insulation
Phase conductors in black thermoset cross-linked polyethylene (XLPE).
Neutral conductor in black thermoset cross-linked polyethylene (XLPE) identified by yellow striping or full yellow jacket.

Feature

Huadong’s URD cables offer several advantages: reliability, reduced power loss, improved safety, and lower maintenance.

Type

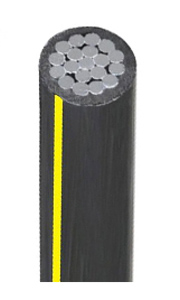

Single Aluminum Conductor Underground Direct Burial 1350 Series

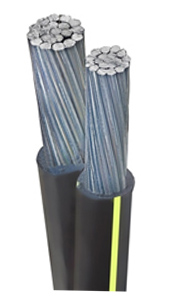

Duplex Aluminum Conductor Underground Direct Burial 1350 Series

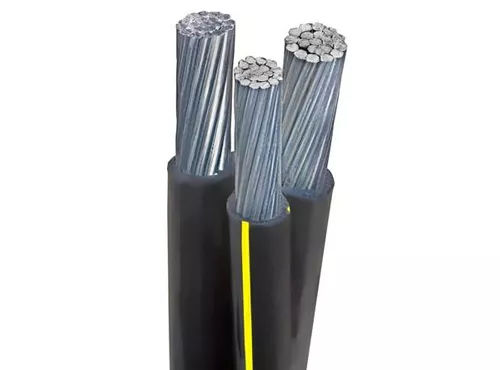

Triplex Aluminum Conductor Underground Direct Burial 1350 Series

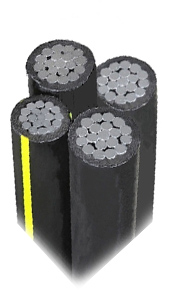

Quadruplex Aluminum Conductor Underground Direct Burial 1350 Series

Single Conductor URD Wire Specifications

Code Name	Phase Conductor			Neutral			Single Phase Conductor (in)	Outside diameter (in)	Weight Per 1000ft (lbls)	Ampacity
	Size AWG	Strand	Insulation Thickness (mls)	Size AWG	Strand	Insulation Thickness (mls)				Direct Burial	In Duct
Erksine	6	7/w	60	6	7/w	60	0.299	0.646	143	95	70
Vassar	4	7/w	60	4	7/w	60	0.345	0.754	203	125	90
Stephens	2	7/w	60	4	7/w	60	0.403	0.842	264	165	120
Ramapo	2	7/w	60	2	7/w	60	0.403	0.874	294	165	120
Brenau	1/0	19/w	80	2	7/w	60	0.522	1.064	408	215	160
Bergen	1/0	19/w	80	1/0	19/w	80	0.522	1.133	465	215	160
Converse	2/0	19/w	80	1/0	19/w	80	0.566	1.174	502	245	180
Hunter	2/0	19/w	80	2/0	19/w	80	0.566	1.228	560	245	180
Hollins	3/0	19/w	80	1/0	19/w	80	0.616	1.276	606	280	205
Rockland	3/0	19/w	80	3/0	19/w	80	0.616	1.336	678	280	205
Sweetbriar	4/0	19/w	80	2/0	19/w	80	0.672	1.389	730	315	240
Monmouth	4/0	19/w	80	4/0	19/w	80	0.672	1.457	828	315	240
Pratt	250	37/w	95	3/0	19/w	80	0.748	1.538	893	345	265
Wesleyan	350	37/w	95	4/0	19/w	80	0.851	1.736	1166	415	320
Holyoke	500	37/w	95	300	37/w	95	0.979	2.008	1607	495	395
Rider	500	37/w	95	350	37/w	95	0.979	2.035	1663	495	395
Fairfield	750	61/w	110	500	37/w	95	1.188	2.086	2304	615	525

Duplex URD Cable Specifications

Code Name	Phase Conductor			Neutral			Single Phase Conductor (in)	Outside diameter (in)	Weight Per 1000ft (lbls)	Ampacity
	Size AWG	Strand	Insulation Thickness (mls)	Size AWG	Strand	Insulation Thickness (mls)				Direct Burial	In Duct
Erksine	6	7/w	60	6	7/w	60	0.299	0.646	143	95	70
Vassar	4	7/w	60	4	7/w	60	0.345	0.754	203	125	90
Stephens	2	7/w	60	4	7/w	60	0.403	0.842	264	165	120
Ramapo	2	7/w	60	2	7/w	60	0.403	0.874	294	165	120
Brenau	1/0	19/w	80	2	7/w	60	0.522	1.064	408	215	160
Bergen	1/0	19/w	80	1/0	19/w	80	0.522	1.133	465	215	160
Converse	2/0	19/w	80	1/0	19/w	80	0.566	1.174	502	245	180
Hunter	2/0	19/w	80	2/0	19/w	80	0.566	1.228	560	245	180
Hollins	3/0	19/w	80	1/0	19/w	80	0.616	1.276	606	280	205
Rockland	3/0	19/w	80	3/0	19/w	80	0.616	1.336	678	280	205
Sweetbriar	4/0	19/w	80	2/0	19/w	80	0.672	1.389	730	315	240
Monmouth	4/0	19/w	80	4/0	19/w	80	0.672	1.457	828	315	240
Pratt	250	37/w	95	3/0	19/w	80	0.748	1.538	893	345	265
Wesleyan	350	37/w	95	4/0	19/w	80	0.851	1.736	1166	415	320
Holyoke	500	37/w	95	300	37/w	95	0.979	2.008	1607	495	395
Rider	500	37/w	95	350	37/w	95	0.979	2.035	1663	495	395
Fairfield	750	61/w	110	500	37/w	95	1.188	2.086	2304	615	525

Triplex URD Cable Specifications

Code Name	Phase Conductor			Neutral			Single Phase Conductor (in)	Outside diameter (in)	Weight Per 1000ft (lbls)	Ampacity
	Size AWG	Strand	Insulation Thickness (mls)	Size AWG	Strand	Insulation Thickness (mls)				Direct Burial	In Duct
Erksine	6	7/w	60	6	7/w	60	0.299	0.646	143	95	70
Vassar	4	7/w	60	4	7/w	60	0.345	0.754	203	125	90
Stephens	2	7/w	60	4	7/w	60	0.403	0.842	264	165	120
Ramapo	2	7/w	60	2	7/w	60	0.403	0.874	294	165	120
Brenau	1/0	19/w	80	2	7/w	60	0.522	1.064	408	215	160
Bergen	1/0	19/w	80	1/0	19/w	80	0.522	1.133	465	215	160
Converse	2/0	19/w	80	1/0	19/w	80	0.566	1.174	502	245	180
Hunter	2/0	19/w	80	2/0	19/w	80	0.566	1.228	560	245	180
Hollins	3/0	19/w	80	1/0	19/w	80	0.616	1.276	606	280	205
Rockland	3/0	19/w	80	3/0	19/w	80	0.616	1.336	678	280	205
Sweetbriar	4/0	19/w	80	2/0	19/w	80	0.672	1.389	730	315	240
Monmouth	4/0	19/w	80	4/0	19/w	80	0.672	1.457	828	315	240
Pratt	250	37/w	95	3/0	19/w	80	0.748	1.538	893	345	265
Wesleyan	350	37/w	95	4/0	19/w	80	0.851	1.736	1166	415	320
Holyoke	500	37/w	95	300	37/w	95	0.979	2.008	1607	495	395
Rider	500	37/w	95	350	37/w	95	0.979	2.035	1663	495	395
Fairfield	750	61/w	110	500	37/w	95	1.188	2.086	2304	615	525

Quadruplex URD Cable Specifications

DWC Part #	Phase Conductor AWG	Phase Conductor # of Strands	Phase Conductor Insulation Thickness (in)	Neutral AWG	Neutral # of Strands	Neutral Insulation Thickness (in)	Diameter Single Phase Conductor (in)	Diameter Complete Cable (in)	Weight (lbs / 1000ft)	Allowable Ampacities Direct Burial (amps)	Allowable Ampacities In Duct (amps)
Tulsa	4	7	0.06	4	7	0.06	0.345	0.831	259	119	85
Dyke	2	7	0.06	4	7	0.06	0.345	0.974	348	153	115
Wittenberg	2	7	0.06	2	7	0.06	0.403	0.974	378	153	115
Notre Dame	1/0	19	0.08	2	7	0.06	0.403	1.238	544	198	150
Purdue	1/0	19	0.08	1/0	19	0.08	0.512	1.238	600	198	150
Syracuse	2/0	19	0.08	1	19	0.08	0.473	1.341	660	225	170
Davidson	3/0	19	0.08	3/0	19	0.08	0.603	1.452	871	250	195
Wake Forest	4/0	19	0.08	2/0	19	0.08	0.555	1.586	981	290	225
Earlham	4/0	19	0.08	4/0	19	0.08	0.658	1.586	1063	290	225
Rust	250	37	0.095	3/0	19	0.08	0.76	1.76	1187	325	250
Slippery Rock	350	37	0.095	4/0	19	0.08	0.658	2.008	1540	385	305
Wofford	500	37	0.095	350	37	0.095	0.831	2.184	2183	465	370
