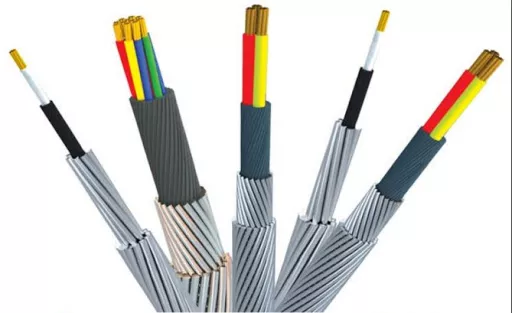

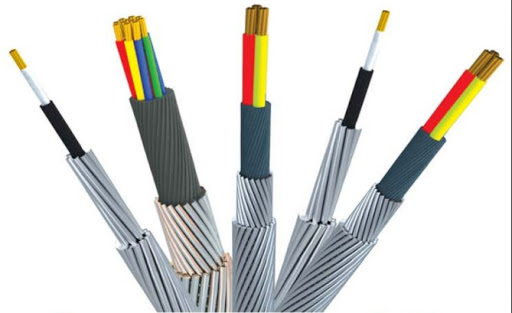

Well Logging Cable-Oil Well Load Bearable Detecting Cable

well logging cable

APPLICATION

For various types of oil, gas well logging, perforation, coring and other operations, can also be used for marine survey, river, harbor. The connection line between the ground system and the underground instrument is used as the link between the ground system and the underground instrument as the link between the ground system and the underground instrument.

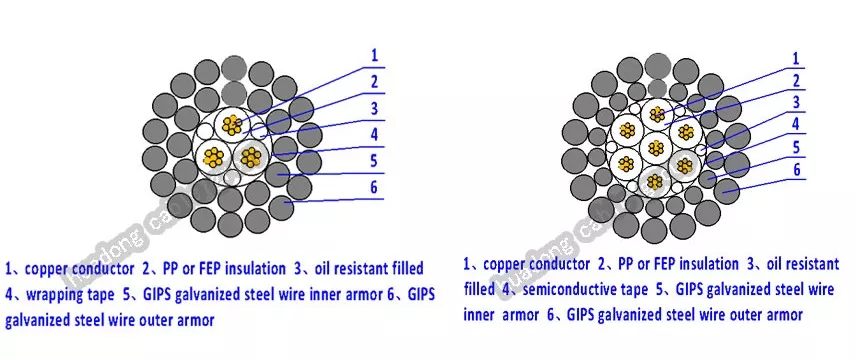

conductor composed of copper conductors,
insulating plastic and steel wire armor.
core single core, three core,
four core, seven core, etc.
Nominal size of diameter 4.70mm, 3.5mm, 5.60mm, 6.40mm,
8.00mm, 11.8mm, 12.60mm, 13.20mm.
Working temperature heat grade is divided into: room temperature cable (-30~150 C)；
high-temperature cable (-50~260 C).
Shielding total shielding and split phase Shielding plus total shielding.
Corrosion grade is divided into  ordinary steel and hydrogen sulfide type anti falls.
amoured double armoured
standard  Q/HN039-2014 SY/T6600-2004
package  Iron Or Wooden Drum

Core Description Cable Weight
°C mm mm Ω/Km pf/m mm Kg/Km
149 0.33 7x0.254 51.8 180 1.42 272 226
Temp Rating Plastic Type Insulation Thickness Copper Construction Res Typical Cap Typical O.D. Each Tape Type In Air In H2O Spec. Gravity
°F in in Ω/Kft pf/ft in lbs/Kft
300 Poly 0.013 7x0.0100 15.8 55 0.056 Dacron® 183 152
500 ETFE 0.013 7x0.0100 15.8 67 0.056 Dacron®* 188 157
260 0.33 7x0.254 51.8 220 1.42 280 234

Core Description Cable Weight
Temp Rating Plastic Type Insulation Thickness Copper Construction Res Typical Cap Typical O.D. Each Tape Type In Air In H2O Spec. Gravity
°F in in Ω/Kft pf/ft in lbs/Kft
°C mm mm Ω/Km pf/m mm Kg/Km
300* Poly 0.023 7x0.0152 7.1 47 0.096 Dacron® 233 49 N/A
149* 0.584 7x0.386 23.3 154 2.438 347 74

7/32” (5.69 mm) 5/16″ (8.18 mm) 9/32” (7.32 mm) monoconductor cable

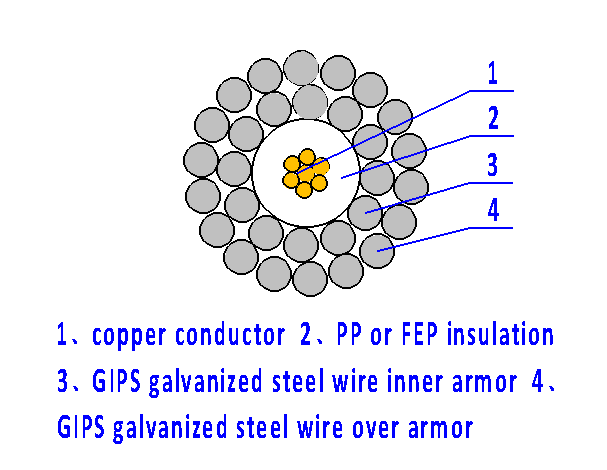

7/32” (5.69 mm) Monoconductor

logging-cable-001
  • Cable Diameter:
  • 0.224” +0.005” – 0.002” (5.69mm +0.13mm -0.05mm)
  • Minimum Sheave Diameter:
  • 14” (36cm)
  • Cable Stretch Coefficient:
  • 2.2 ft/kft/Klbs (2.5 m/Km/5KN)
  • Maximum Conductor Voltage:
  • 1,200 VDC
  • Conductor AWG Rating:
  • 16
  • Minimum Insulation Resistance:
  • 1,500 MegaΩ/Kft @ 1000VDC (457 Mega Ω/Km @ 1000VDC)
  • Armor Electrical Resistance:
  • 4.3 Ω/Kft (14.1 Ω/Km)

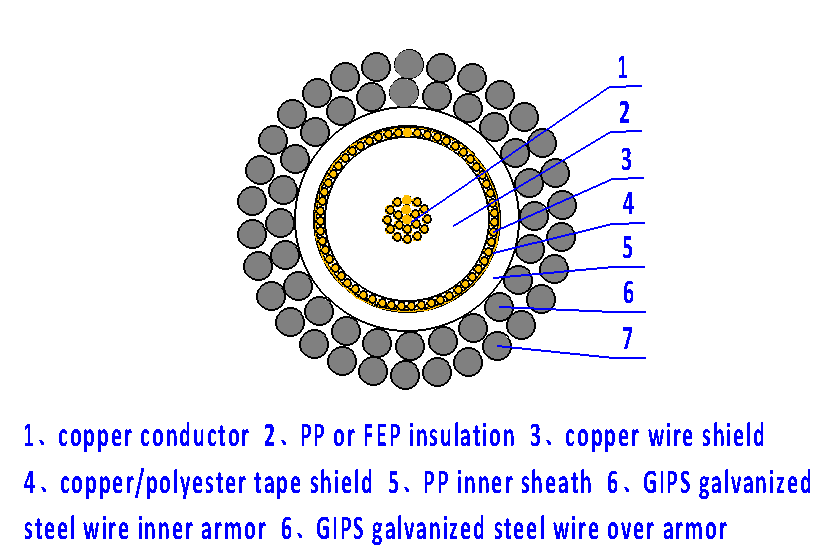

5/16″ (8.18 mm) Monoconductor

logging-cable-002
  • Cable Diameter:
  • 0.322″ +0.005″ – 0.002″ (8.18 mm +0.13 mm -0.05mm)
  • Minimum Sheave Diameter:
  • 18″ (46 cm)
  • Cable Stretch Coefficient:
  • 1.2 ft/Kft/Klbs (1.35 m/Km/5KN)
  • Maximum Conductor Voltage:
  • 1,500 VDC
  • Conductor AWG Rating:
  • 15
  • Minimum Insulation Resistance:
  • 1,500 MegaΩ/Kft @ 1,000 VDC (457 MegaΩ/Km @ 1000VDC)
  • Armor Electrical Resistance:
  • 2.1 Ω/Kft (6.9 Ω/Km)

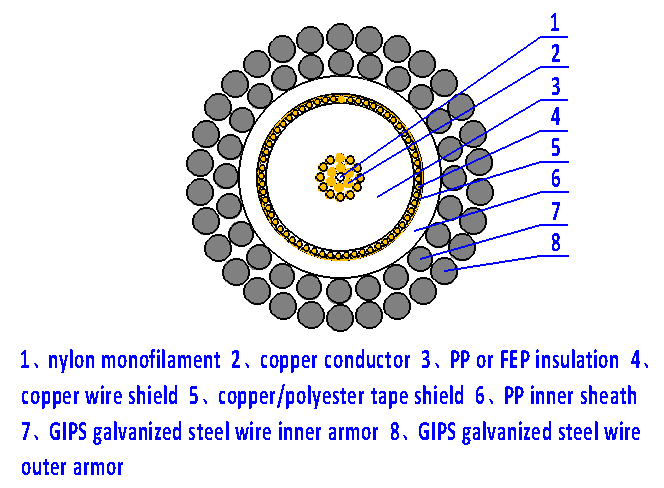

9/32” (7.32 mm) Monoconductor

logging-cable-monoconductor
  • Cable Diameter:
  • 0.288” +0.005” – 0.002” (7.32mm + 0.13mm -0.05mm)
  • Minimum Sheave Diameter:
  • 16” (41 cm)
  • Cable Stretch Coefficient:
  • 1.55 ft/Kft/Klbs (1.74 m/Km/5KN)
  • Maximum Conductor Voltage:
  • 1,500 VDC
  • Conductor AWG Rating:
  • 15
  • Minimum Insulation Resistance:
  • 1,500 MegaΩ/Kft @ 1000VDC (457 MegaΩ/Km @ 1000VDC)
  • Armor Electrical Resistance:
  • 2.8 Ω/Kft (9.2 Ω/Km)
7/32” (8.18 mm) Monoconductor
Core Description Cable Weight
Temp Rating Plastic Type Insulation Thickness Copper Construction Res Typical O.D. Each In Air In H2O
°F in in Ω/Kft in lbs/Kft
°C mm mm Ω/Km mm Kg/Km
300* Poly 0.042 19×0.0142 2.8 0.155 187 155
149* 1.067 19×0.361 9.2 3.937 278 230
7/32” (5.69 mm) Monoconductor
300* Poly 0.0245 19×0.0119 4.1 60 0.108 91
149* 0.622 19×0.302 13.5 197 2.743 136
420* ETFE 0.0115 19×0.0119 4.1 61 0.108 92
216* 0.292 19×0.302 13.5 200 2.743 137
7/32” (7.32 mm) Monoconductor
500* ETFE 0.019 19×0.0142 2.8 50 0.136 157
260* 0.483 19×0.361 9.2 180 3.454 234
500* FEP 0.0135 19×0.0142 2.8 50 0.098 157
260* 0.343 19×0.361 9.2 180 2.489 234
300* Poly 0.0325 19×0.0142 2.8 56 0.136 152
149* 0.826 19×0.361 9.2 184 3.454 226

Oil Well Double Armoured Cable for Harsh Environment Detecting

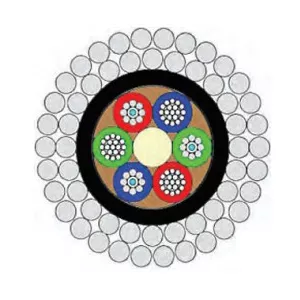

Electro-Optic Tow Cables depths up to 6,000 metersElectro-Optic-Tow-Cables-depths-up-to-6000-meters

The cable constructions are designed to endure the demands of the required tow strengths and communications while minimizing diameter requirements. solutions accommodate depths up to 6,000 meters for minesweeping, antisubmarine warfare, sonar, and geophysical applications.

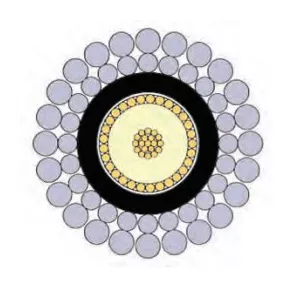

Single&Multi-core Instrumentation Oil Well CablesSingle-Multi-core-Instrument-tion-Oil-Well-Cables

These double-armored cables containing multiple conductors in various gauge sizes and constructions are customized for use in oceanographic exploration and are optimized for use in underwater instrumentation, signal transmission, and tow device
applications.

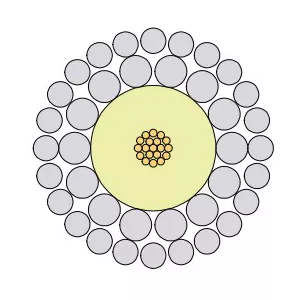

TV Inspection Cables Explore Subterranean Sewer linesTV-Inspection-Cables-Explore-Subterranean-Sewer-lines

These robust cables are used with mobile closed-circuit TV inspection systems to explore subterranean sewer lines and storm sewers and are offered in multiconductor and armored coaxial constructions.

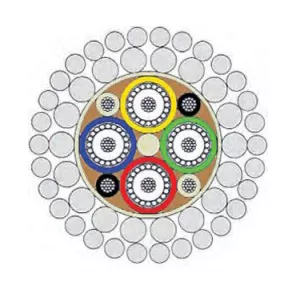

Single and Cabled Armoured Coaxial Oil Well CablesSingle-and-Cabled-Armoured-Coaxial-Oil-Well-Cables

Coaxial cables are integral for numerous oceanographic uses and provide various telemetry solutions. O’ering rugged, superior performance and strength without sacrificing flexibility, these cables are also designed for use in shallow and deep tow applications and for helicopter dipping sonar.

Electro-Optic Tow Cables Parameter Data

Diameter Breaking Strength Weight in Water Conductors DC Resistance Fibers
mm in kN lbf kg/km lb/kft Ω/km Ω/kft
17.3 1.111 205.205 46000 905 608 3 5.5 2.2 3 SMF
13.72 1.111 98.98 22000 571 384 3 12.12 4.4 3 MMF
18.26 1.111 214.214 48000 984 661 2 • • 1 SMF
11.07 0 64.64 14500 332 223 3 24.24 7.7 3 MMF

Multi-Conductor Instrumentation Oil Well Cables Parameter Data

Diameter Breaking Strength Weight in Air Conductors Voltage Rating
mm in kN lbf kg/km lb/kft
4.72 0 15.15 3300 89 60 4 400
6.35 0 26.26 5800 159 107 4 600
6.35 0 26.26 5800 161 108 7 500
9.45 0 57.57 12800 362 243 7 600

TV Inspection Cables Parameter Data

Diameter Breaking StrengthBreaking Strength Weight in Water Description
mm in kN lbf kg/km lb/kft
15.11 1.111 29.29 6600 454 305 Multiconductor
7.37 0 30.3 6800 198 133 Armored Coax
13.92 1.111 9.9 2000 270 181 Multiconductor
11.18 0 17.17 3800 189 127 Multiconducto
