25mm-630mm 11kv/12kv/15kv/33kv MV Medium Voltage Armoured XLPE Cable

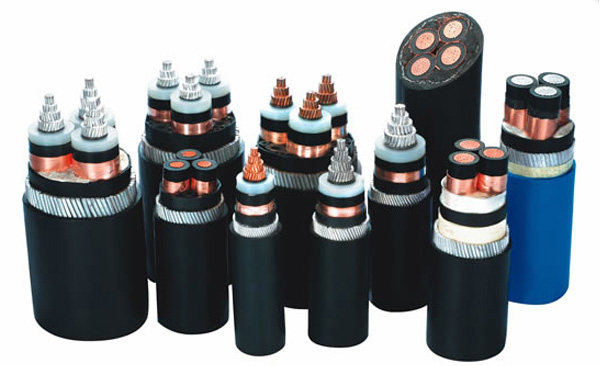

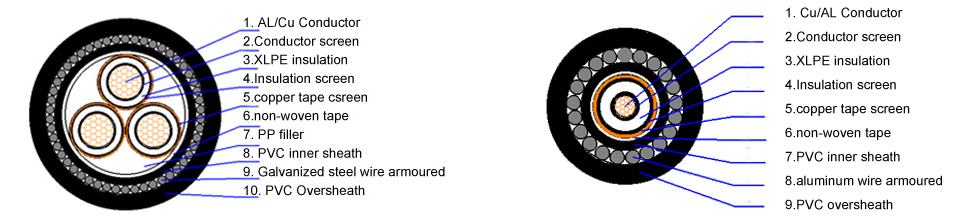

3-core-mv-cable-001

Applicaton: They use aluminium wire armour (AWA) for single core cables and steel wire armour (SWA) for multicore cables. The armouring on the cable provides robust mechanical protection making these 11kV cables suitable for direct burial in the ground.

1/35Kv Medium Voltage Armoured XLPE Cable Description

Armoured Medium Voltage power cables can be supplied with copper conductors or with aluminium conductors upon request to the same standard. The copper conductors are stranded (Class 2) whereas the aluminium conductors are compliant to the standard using both stranded and solid (Class 1) constructions.

Voltage:	0.6/1kv, 1.8/3KV, 3.6/6KV, 6/10KV, 10KV, 11KV, 15kv, 8.7/15KV, 18/30KV, 19/33KV, 26/35KV
Conductor:	Aluminum or Copper or Tinned Copper for class 2
Insulation:	XLPE
Size of area:	25mm2, 35mm2, 50mm, 70mm, 95mm2, 120mm2, 185mm, 240mm2, 300mm2 400mm2, 630mm etc.
Coroe:	Single Core or Three Core
Armour type:	1. Galvanized steel wires/steel tape for 3 core;
Armour type:	2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core Polyvinyl chloride (PVC) or PE, or HDPE.
International Standard:	Bs6622, Bs7835, Bs7870, ASTM, IEC Etc or according to your requirement.

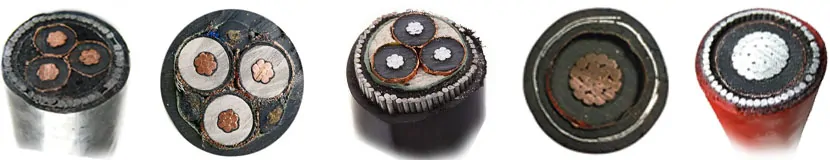

11kv-cable-001

25-630mm2 11kv/12/15kv/18/33kv Medium Voltage Power Cable

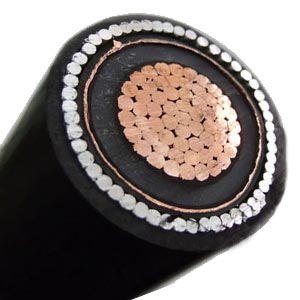

Single-core-mv-cable-001

1. Voltage: 1/35KV
2. Core: Single
3. Area: 25~800 mm2
4. Conductor: Aluminum / Copper / Tinned Class 2
5. Insulated: XLPE
6. Armoured: AWA
7. Jacket: PVC/PE

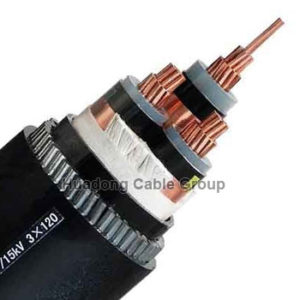

15kv-3-core-GSW-armoured-cable-001

1. Voltage: 11KV,12kv,15KV or other
2. Core: 3Core
3. Area: 25~630mm2
4. Conductor: Copper / Aluminum / Tinned Copper
5. Insulated: XLPE
6. Armoured: SWA/GSW
7. Sheath: PVC/PE

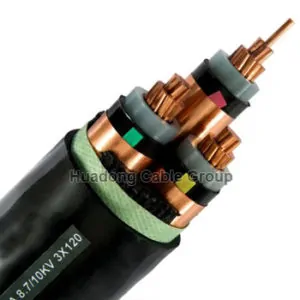

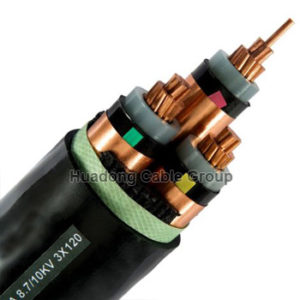

15kv-3-core-unarmoured-cable-001

1. Voltage: 11KV,12kv,15KV or other
2. Core: 3Core
3. Area: 25~630mm2
4. Conductor: Copper / Aluminum / Tinned Copper
5. Insulated: XLPE
6. Armoured: Non-armoured
7. Sheath: PVC/PE

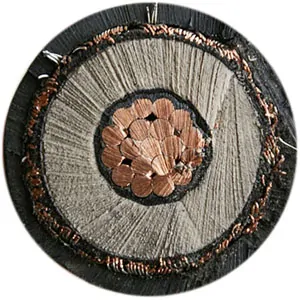

11kv-single-core-xlpe-power-cable-001

1. Voltage: 11KV, 15KV or other
2. Core: Single Core
3. Area: 25~630mm2
4. Conductor: Copper / Aluminum / Tinned Copper
5. Insulated: XLPE
6. Screen: CWS(Copper Wire Screen)
7. Sheath: PVC/PE

Medium Voltage Cable Single Core Parameter Data

ELECTRICAL DATA:
Maximum conductor operating temperature: 90°C
Maximum screen operating temperature: 80°C
Maximum conductor temperature during S.C: 250°C

CONDUCTOR SIZE	ONDUCTOR DC RESISTANCE AT (200 C Ω/Km)	CAPACITANCE mF/Km	CHARGING CURRENT (A/Km)	DIELECTRIC LOSSES (W/Km)	LAID IN GROUND A	LAID IN DUCT A	LAID IN FREE AIR A
70	0.268	0.303	0.605	15.35	277	227	313
95	0.193	0.332	0.662	16.81	329	277	376
120	0.153	0.362	0.723	18.37	370	308	430
150	0.124	0.397	0.793	20.15	412	345	484
185	0.0991	0.43	0.859	21.81	460	390	546
240	0.0754	0.483	0.964	24.47	520	451	629
300	0.0601	0.535	1.068	27.13	571	507	708
400	0.047	0.592	1.181	30	609	564	777
500	0.0366	0.666	33.76	33.76	661	631	863
630	0.0283	0.76	1.516	38.51	707	698	945
