11kv overhead Aerial Bunched (ABC) Cable
Professional cable & wire manufacturer from China, Meet your kinds of requirement abc cables, With over 30 years production experience and 15 years export experience, factory price without any third party.
The power cable size can be customized according to your requirement,on-time delivery.

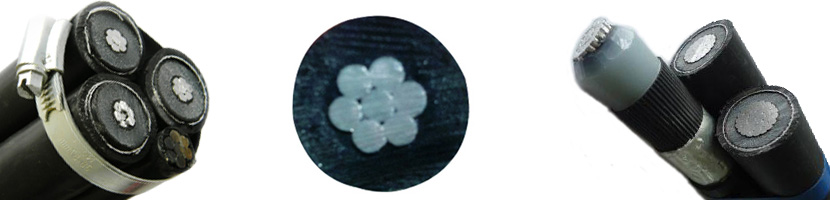

11kV ABC Cable Aerial Bundled Cable Construction
- Phase Conductor: Circular compacted stranded H68 aluminium to BS2627.
- Conductor Screen: Extruded semi-conductive layer.
- insulation: XLPE.
- insulation Screen: Extruded semi-conductive layer.
- metallic Screen(optional): Copper wire screen or copper tape screen.
- Separator: Semi-conductive swellable tape.
- outer Sheath: HDPE.
- Support Conductor: Galvanized steel wires.
- Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand
Send More details by Email: info@hlcables.com
11kV ABC Cable Aerial Bundled Cable Features
- Watertight construction (both radial and longitudinal).
- Available in long delivery lengths to reduce number of joints.
- Aluminum conductor up to 240mm².
- Different options for insulation (XLPE,LDPE, MDPE & HDPE).
- Weather resistant insulation and sheath material.
| number of cores x nominal cross section | Nominal conductor diameter | Nominal insulation thickness | Nominal insulation screen thickness | Nominal sheath thickness | AAAC/1120 support conductor size | Nominal overall diameter | Weight | Continuous current rating, A |
||
| Still air | 1m/s wind | 2m/s wind | ||||||||
| mm^2 | mm | mm | mm | mm | No/mm | mm | kg/km | A | A | A |
| 3×35 | 6.9 | 3.4 | 0.8 | 1.2 | 7/4.75 | 52.4 | 1370 | 110 | 155 | 185 |
| 3×50 | 8.1 | 3.4 | 0.8 | 1.2 | 7/4.75 | 54.6 | 1530 | 130 | 185 | 225 |
| 3×70 | 9.7 | 3.4 | 0.8 | 1.2 | 7/4.75 | 57.8 | 1790 | 160 | 235 | 280 |
| 3×95 | 11.4 | 3.4 | 0.8 | 1.2 | 7/4.75 | 61.3 | 2100 | 195 | 285 | 345 |
| 3×120 | 12.8 | 3.4 | 0.8 | 1.2 | 19/3.50 | 67.3 | 2540 | 230 | 335 | 405 |
| 3×150 | 14.2 | 3.4 | 0.8 | 1.2 | 19/3.50 | 70.1 | 2840 | 255 | 380 | 460 |
| 3×185 | 15.7 | 3.4 | 0.8 | 1.2 | 19/3.50 | 73.1 | 3190 | 295 | 440 | 530 |
