Overhead insulated Cable /MV covered Aerial Cable(Space cable Or Tree Wire) 15kV /25kv/35kv Tree Wire
(Alternative and Robust Design to Bare ACSR Conductors to Harden the Electrical Grids)
- Used for primary and secondary overhead distribution where limited space is available or desired for rights-of-way.
- • Tree Wire – Used for spans where trees crowd the right-of-way, such as in wooded residential areas.
- • Covered Aerial MV Cable – Installed with other Covered Aerial MV cables and a supporting messenger through a series of space- maintaining devices (spacers).
- • Covering Rated 90°C Normal and 130°C Emergency Operation

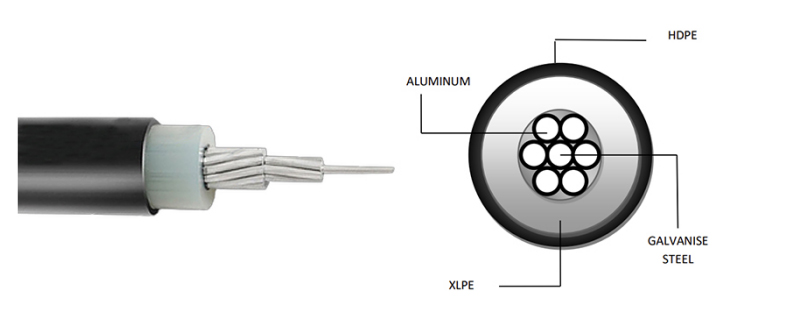

2-Layer 15kV ACSR/AAAC/AAC Tree Wire Spacer Cable
- CONSTRUCTION:
- 1. Conductor: ACSR
- 2. Insulation: Cross-linked polyethylene(XLPE)
- 3. Sheath: High-density track-resistant Polyethylene(HDPE)

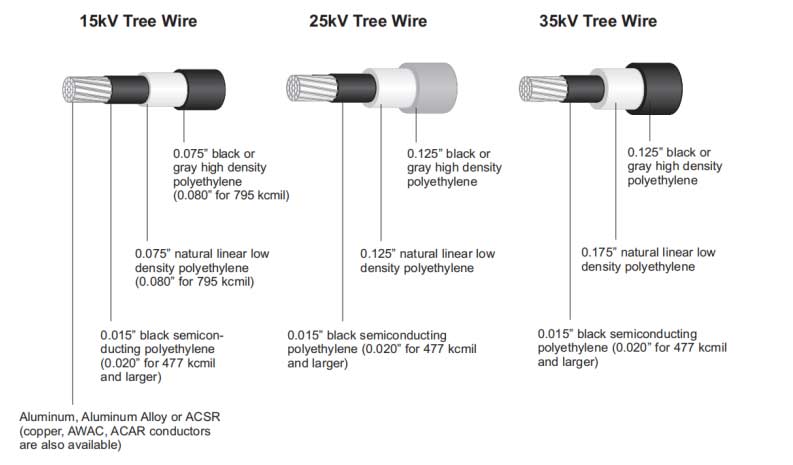

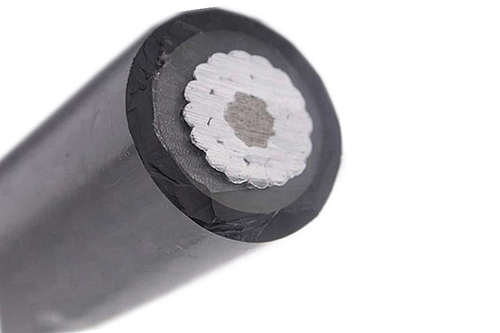

3-Layer 15kV/25kv/35kv ACSR/AAAC/AAC Tree Wire

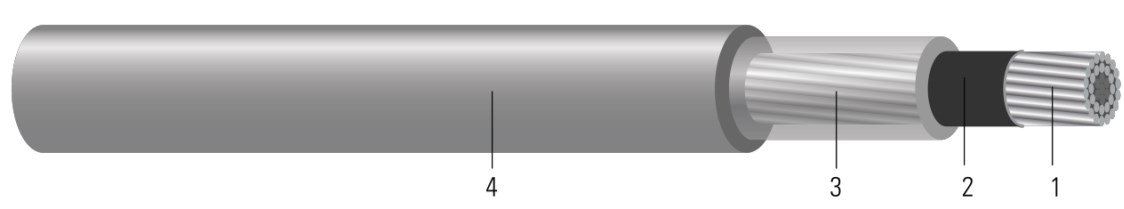

- CONSTRUCTION:
- Conductor: ACSR/AAAC/AAC
- StrandShield: Semi-conducting cross linked polymer
- InnerLayer: Low-Density Track-Resistant Crosslinked Polyethylene (HDTRXLPE)
- OuterLayer: High-Density Track-Resistant Crosslinked Polyethylene (HDTRXLPE)
Weights and Measurements
| Cond. Size | Diameter Over Conductor | Conductor Shield Thicknessv | Inner Layer Thickness | Outer Layer Thickness | Approx. OD | Approx. Weight | Rated Strength |
| AWG/ | |||||||
| Kcmil | inch | mil | mil | mil | inch | lb/1000ft | lb |
| 4 | 0.25 | 15 | 75 | 75 | 0.555 | 125 | 1767 |
| 2 | 0.316 | 15 | 75 | 75 | 0.646 | 202 | 2708 |
| 1/0 | 0.398 | 15 | 75 | 75 | 0.728 | 278 | 4161 |
| 2/0 | 0.447 | 15 | 75 | 75 | 0.777 | 330 | 5045 |
| 3/0 | 0.502 | 15 | 75 | 75 | 0.832 | 393 | 6289 |
| 4/0 | 0.563 | 15 | 75 | 75 | 0.893 | 471 | 7933 |
| 266.8 | 0.609 | 15 | 75 | 75 | 0.939 | 474 | 6536 |
| 266.8 | 0.642 | 15 | 75 | 75 | 0.972 | 553 | 10735 |
| 336.4 | 0.684 | 15 | 75 | 75 | 1.014 | 570 | 8246 |
| 336.4 | 0.72 | 15 | 75 | 75 | 1.05 | 669 | 13395 |
| 336.4 | 0.741 | 15 | 75 | 75 | 1.071 | 935 | 16435 |
| 397.5 | 0.743 | 15 | 75 | 75 | 1.073 | 653 | 9443 |
| 397.5 | 0.772 | 15 | 75 | 75 | 1.102 | 707 | 13870 |
| 397.5 | 0.783 | 15 | 75 | 75 | 1.113 | 770 | 15485 |
| 477 | 0.846 | 15 | 75 | 75 | 1.176 | 824 | 16340 |
| 477 | 0.858 | 15 | 75 | 75 | 1.188 | 899 | 18525 |
| 477 | 0.877 | 15 | 75 | 75 | 1.213 | 1037 | 22610 |
| 556.5 | 0.879 | 20 | 75 | 75 | 1.219 | 874 | 13015 |
| 556.5 | 0.914 | 20 | 75 | 75 | 1.254 | 949 | 18810 |
| 556.5 | 0.927 | 20 | 75 | 75 | 1.267 | 1274 | 21470 |
| 636 | 0.94 | 20 | 75 | 75 | 1.28 | 1200 | 14915 |
| 636 | 0.99 | 20 | 75 | 75 | 1.33 | 1373 | 23940 |
