2PNCT/3PNCT CRANE CABLE

CUR-2PNCT/CUR-2PNCT-SB (Festoon)

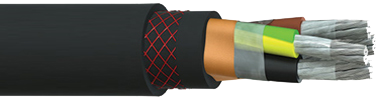

CUR-2PNCT-CUR-2PNCT-SB-Festoon-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Outer sheath: Chloroprene rubber
  • Rated Temperature: 80 degrees C
  • Feature: High flexibility
  • Application: Festoon System and Lift System

CUR-3PNCT/CUR-3PNCT-SB (Festoon)

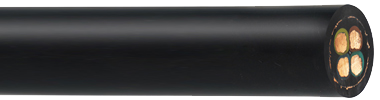

CUR-3PNCT-CUR-3PNCT-SB-Festoon-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Outer sheath: Chloroprene rubber
  • Reinforcement: Embedded yarn braid
  • Rated Temperature: 80 degrees C
  • Feature: High flexibility and impact resistance
  • Application: Festoon System and Lift System

Flat Type SK-2PNCT for Festoon System

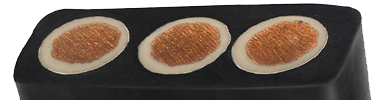

Flat-Type-SK-2PNCT-for-Festoon-System-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Outer sheath: Chloroprene rubber
  • Reinforcement: Embedded yarn braid
  • Rated Temperature: 80 degrees C
  • Feature: High flexibility
  • Application: Festoon System and Lift System

600V CUR-2PNCT Cable Parameter
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
12 0.75 30/0.18 1.1 0.8 2.1 17 335
1.25 50/0.18 1.5 0.8 2.2 18.5 440
2 37/0.26 1.8 0.8 2.3 20 560
3.5 45/0.32 2.5 0.8 2.5 24 845
16 0.75 30/0.18 1.1 0.8 2.2 18.5 415
1.25 50/0.18 1.5 0.8 2.3 21 550
2 37/0.26 1.8 0.8 2.4 22 705
3.5 45/0.32 2.5 0.8 2.7 26 1080
20 1.25 50/0.18 1.5 0.8 2.5 23 680
2 37/0.26 1.8 0.8 2.6 25 870
24 1.25 50/0.18 1.5 0.8 2.6 25 810
2 37/0.26 1.8 0.8 2.7 27 1050
3.5 45/0.32 2.5 0.8 3 32 1610
600V CUR-3PNCT Cable Parameter
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforcement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
5 2 37/0.26 1.8 1.2 0.5 3 18.5 420
3.5 45/0.32 2.5 1.2 0.5 3.1 21 565
5.5 70/0.32 3.1 1.2 0.5 3.2 23 720
10 2 37/0.26 1.8 1.2 1 3.4 27 790
3.5 45/0.32 2.5 1.2 1 3.6 30 1080
12 2 37/0.26 1.8 1.2 1 3.4 28 870
3.5 45/0.32 2.5 1.2 1 3.7 32 1230
16 2 37/0.26 1.8 1.2 1 3.6 30 1080
3.5 45/0.32 2.5 1.2 1 3.8 34 1520
20 2 37/0.26 1.8 1.2 1 3.8 34 1330
3.5 45/0.32 2.5 1.2 1 4 38 1850
24 2 37/0.26 1.8 1.2 1 3.9 36 1560
3.5 45/0.32 2.5 1.2 1 4.2 41 2200
30 2 37/0.26 1.8 1.2 1 4.1 39 1850
3.5 45/0.32 2.5 1.2 1 4.4 44 2620
Flat SK-2PNCT Cable Parmater
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
3 22 7/20/0.45 7 1.2 2.6 15.5X35 1160
38 7/34/0.45 9.1 1.2 2.9 18.0X42 1750
60 19/20/0.45 11.6 1.5 3.3 22 X52 2700
100 19/34/0.45 15.2 2 3.9 28 X66 4460
24 1.25 50/0.18 1.5 0.8 2.9 18.0X42 1230
32 1.25 50/0.18 1.5 0.8 3.3 19.0X55 1540
40 1.25 50/0.18 1.5 0.8 3.7 19.5X68 1980
48 1.25 50/0.18 1.5 0.8 2.9 18.0X84 2260
56 1.25 50/0.18 1.5 0.8 2.9 18.0X102 2730
64 1.25 50/0.18 1.5 0.8 3.3 19.0X109 3080
72 1.25 50/0.18 1.5 0.8 2.9 18.0X126 3390
80 1.25 50/0.18 1.5 0.8 3.7 19.5X135 3950

RE-2PNCT/RE-3PNCT for Reeling System

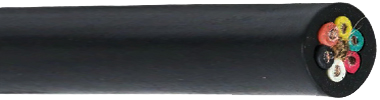

RE-2PNCTRE-3PNCT-for-Reeling-System-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Reinforcement: Embedded yarn braid
  • Outer sheath: Chloroprene rubber
  • Core identification: Color coding/tracer method
  • Feature: High resistance to lateral pressure and bending
  • Application: Suitable for the reel systems (manually wound) for crane travel

RE(V)-2PNCT-FR for Vertical Reeling

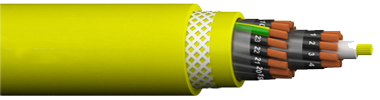

RE-V-2PNCT-FR-for-Vertical-Reeling-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Reinforcement: Embedded yarn braid
  • Outer sheath: Chloroprene rubber
  • Core identification: Color coding/tracer method
  • Feature: High resistance to lateral pressure and bending
  • Application:Vertical reel system used in landfills, etc.

Flat 2PNCT/3PNCT (Reeling System)

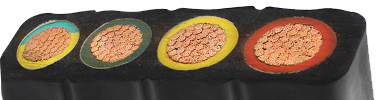

Flat-2PNCT-3PNT-Reeling-System-01

  • Voltage: 600V
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Outer sheath: Chloroprene rubber
  • Core identification:  For power or control core unit
  • 3-core (black, white, and red)
  • 4-core (black, white, red, and green)
  • Control cores
  • Feature: High resistance to lateral pressure and bending
  • Application:Reel system (Traveling).

RE-3PNCT Cable Parameter
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforcement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
3 14 88/0.45TA 4.9 1.2 1 3.3 26 940
22 7/20/0.45TA 7 1.6 1 3.7 32 1490
30 7/27/0.45TA 8.1 1.6 1 3.9 35 1830
4 38 7/34/0.45TA 9.1 1.6 1 4.2 40 2720
6 3.5 3/0.32TST+45/0.32TA 2.6 1.2 0.5 3.2 24 730
8 3/0.32TST+50/0.45TA 3.8 1.2 0.5 3.5 28 1180
10 3.5 3/0.32TST+45/0.32TA 2.6 1.2 1 3.7 32 1190
12 3.5 3/0.32TST+45/0.32TA 2.6 1.2 1 3.7 33 1320
16 3.5 3/0.32TST+45/0.32TA 2.6 1.2 1 3.9 36 1650
20 3.5 3/0.32TST+45/0.32TA 2.6 1.2 1 4.1 40 2000
24 3.5 3/0.32TST+45/0.32TA 2.6 1.2 1 4.4 44 2400
30 3.5 3/0.32TST+45/0.32TA 2.6 1.2 1 4.5 46 2830
RE(V)-2PNCT-FR Cable Parameter
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforcement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
7 3.5 3/0.32TST+45/0.32TA 2.6 0.8 0.5 3.1 22 670
5.5 3/0.32TST+70/0.32TA 3.2 1 0.5 3.4 26 990
10 3.5 3/0.32TST+45/0.32TA 2.6 0.8 1 3.4 27 1010
5.5 3/0.32TST+70/0.32TA 3.2 1 1 3.7 32 1480
13 3.5 3/0.32TST+45/0.32TA 2.6 0.8 1 3.7 32 1370
5.5 3/0.32TST+70/0.32TA 3.2 1 1 4 38 2020
Flat H-3PNCT Cable Parmater
No. of Cores Conductor Insulation Thickness (mm) Thickness of Reinforecement (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km) Max. Conductor Resistance
Size (mm2) Construction (No./mm) Outer Diameter (mm)
3 22 7/20/0.45 7 1.6 1 3.6 20X49 1640 0.892
30 7/27/0.45 8.1 1.6 1 3.7 21X52 1960 0.661
38 7/34/0.45 9.1 1.6 1 3.8 22X55 2290 0.525
50 19/16/0.45 10.4 2.1 1 4.2 26X63 2970 0.411
60 19/20/0.45 11.6 2.1 1 4.3 27X66 3440 0.329
80 19/27/0.45 13.5 2.1 1 4.5 29X72 4290 0.243
100 19/34/0.45 15.2 2.1 1 4.7 31X77 5100 0.193
125 19/42/0.45 16.9 2.7 1 5.1 35X86 6360 0.156
150 27/34/0.45 18.7 2.7 1 5.3 36X90 7110 0.136
200 37/34/0.45 21.2 3.3 1 5.8 41X104 9590 0.0993
250 37/42/0.45 23.6 3.3 1 6.2 45X113 11500 0.0803

CAR-2PNCT/CAR-3PNCT (Carrier Drum)

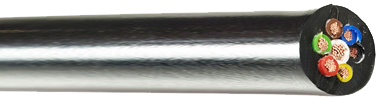

AR-2PNCT-CAR-3PNCT-Carrier-Drum-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Reinforcement: Embedded yarn braid
  • Outer sheath: Chloroprene rubber
  • Core identification: Color coding/tracer method
  • Feature: Lateral pressure resistance
  • Application: Traversing carrier roller system of overhead cranes and cable chain system.

TOR-2PNCT Cable (Torsion System)

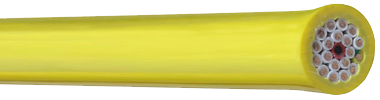

TOR-2PNCT-Cable-Torsion-System-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: EPR compound
  • Shield braid: Copper wire/Tinned Copper wire
  • Outer sheath: Chloroprene rubber
  • Core identification: Color coding/tracer method
  • Feature: High torsion resistance
  • Application: Suitable to the revolving parts of rotary cranes.
  • Standards: JIS C 3327 or other international standards

SPD-FHNCT for Spreader Basket

SPD-FHNCT-for-Spreader-Basket-01

  • Voltage: 600V
  • Test Voltage: 3000V /1 minute
  • Conductor: Copper /Tinned annealed copper
  • Insulation: ETFE insulation
  • Outer sheath: Chloroprene rubber
  • Core identification: Color coding/tracer method
  • Feature: Stable collecting performance into the basket, and high lateral pressure resistance
  • Application: Suitable for gravity collector basket system of the container crane at harbors (for Quayside cranes)..
  • Standards: JIS or other international standards

CAR-2PNCT Cable Parameter
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter(mm)
3 8 50/0.45 3.7 1 2.1 17 475
14 88/0.45 4.9 1 2.3 20 730
22 7/20/0.45 7 1.2 2.7 26 1180
4 38 7/34/0.45 9.1 1.2 3.2 34 2280
6 3.5 45/0.32 2.5 0.8 2.1 17 465
8 50/0.45 3.7 1 2.4 22 890
10 3.5 45/0.32 2.5 0.8 2.5 23 790
12 3.5 45/0.32 2.5 0.8 2.5 24 815
16 3.5 45/0.32 2.5 0.8 2.7 26 1080
20 3.5 45/0.32 2.5 0.8 2.8 29 1330
24 3.5 45/0.32 2.5 0.8 3 32 1630
30 3.5 45/0.32 2.5 0.8 3.2 36 2080
Tor-2PNCT Cable Parameter
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
14 88/0.45 4.9 1 2.3 20 725
22 7/20/0.45 7 1.2 2.7 26 1170
30 7/27/0.45 8.1 1.2 2.8 28 1460
4 38 7/34/0.45 9.1 1.2 3.2 34 2280
6 3.5 45/0.32 2.5 0.8 2.1 17 460
8 50/0.45 3.7 1 2.4 22 875
10 3.5 45/0.32 2.5 0.8 2.5 24 770
12 3.5 45/0.32 2.5 0.8 2.6 24 875
16 3.5 45/0.32 2.5 0.8 2.7 27 1110
20 3.5 45/0.32 2.5 0.8 2.9 30 1380
24 3.5 45/0.32 2.5 0.8 3.1 33 1660
30 3.5 45/0.32 2.5 0.8 3.2 35 1990
SPD-FHNCT/SPD (Y)-2PNCT Cable Parameter
600V SPD-FHNCT
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km) Max. Conductor Resistance (20 degrees C) (Ω/km)
30 3.5 45/0.32 2.5 0.4 6 42 2710 5.54
36 3.5 45/0.32 2.5 0.4 7 46 3090 5.54
42 3.5 45/0.32 2.5 0.4 7 50 3820 5.54
600V SPD (Y)-2PNCT
No. of Cores Conductor Insulation Thickness (mm) Sheath Thickness (mm) Approx. Overall Diameter (mm) Approx. Mass (kg/km) Max. Conductor Resistance (20 degrees C) (Ω/km)
Size (mm2) Construction (No./mm) Outer Diameter (mm)
30 3.5 3/0.32TST + 45/0.32TA 2.6 0.8 3.3 37 2130 5.54
36 3.5 3/0.32TST + 45/0.32TA 2.6 0.8 3.5 40 2520 5.54
42 3.5 3/0.32TST + 45/0.32TA 2.6 0.8 3.7 43 2930 5.54
