600V VCT-PVC Flexible Cable
VCT (Vinyl Cord Tough) cables consist of multiple copper conductors encased in PVC insulation, with an outer sheath that is also PVC.

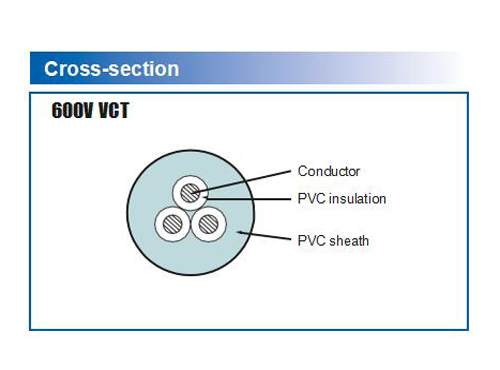

Construction
- Conductor:
- Copper/Tinned annealed copper
- Insulation:
- PVC
- Outer sheath:
- PVC
- Rated Voltage:
- AC600V
- Rated Temperature:
- 60℃
- Test Voltage:
- 3000V/1minute
Application
Lead wires for various mobile electrical equipments.
Feature
Light and easy-handling.
Core Identification
- 2-core(blackandwhite)
- 3-core(black,white,andred)
- 4-core(black,white,red,andgreen)
600V VCT Cable Specification
| No. of Cores | Conductor | Insulation Thickness (mm) | Sheath Thickness (mm) | Approx.Overall Diameter (mm) | Approx. Mass (kg/km) | ||
| Size (mm2) | Construction (No./mm) | Outer Diameter (mm) | |||||
| 2 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.7 | 8.8 | 95 |
| 1.25 | 50/0.18 | 1.5 | 0.8 | 1.7 | 9.6 | 120 | |
| 2 | 37/0.26 | 1.8 | 0.8 | 1.8 | 10.5 | 145 | |
| 3.5 | 45/0.32 | 2.5 | 0.8 | 1.8 | 12 | 205 | |
| 5.5 | 70/0.32 | 3.1 | 1 | 2 | 14.5 | 300 | |
| 8 | 50/0.45 | 3.7 | 1.2 | 2.1 | 16.5 | 405 | |
| 14 | 88/0.45 | 4.9 | 1.4 | 2.3 | 20 | 630 | |
| 3 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.7 | 9.3 | 110 |
| 1.25 | 50/0.18 | 1.5 | 0.8 | 1.7 | 10.5 | 135 | |
| 2 | 37/0.26 | 1.8 | 0.8 | 1.8 | 11 | 170 | |
| 3.5 | 45/0.32 | 2.5 | 0.8 | 1.9 | 13 | 250 | |
| 5.5 | 70/0.32 | 3.1 | 1 | 2 | 15 | 365 | |
| 8 | 50/0.45 | 3.7 | 1.2 | 2.2 | 18 | 505 | |
| 14 | 88/0.45 | 4.9 | 1.4 | 2.4 | 22 | 790 | |
| 4 | 0.75 | 30/0.18 | 1.1 | 0.8 | 1.7 | 9.9 | 130 |
| 1.25 | 50/0.18 | 1.5 | 0.8 | 1.8 | 11.5 | 170 | |
| 2 | 37/0.26 | 1.8 | 0.8 | 1.8 | 12 | 210 | |
| 3.5 | 45/0.32 | 2.5 | 0.8 | 2 | 14 | 315 | |
| 5.5 | 70/0.32 | 3.1 | 1 | 2.1 | 16.5 | 455 | |
| 8 | 50/0.45 | 3.7 | 1.2 | 2.3 | 19.5 | 630 | |
| 14 | 88/0.45 | 4.9 | 1.4 | 2.5 | 24 | 995 | |
