A2XY / 2XY – 1 Core
| Cable Construction |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 1 cores AL / CU conductor, XLPE insulated, unarmoured cables as per IS 7098 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact Cl. 2 as per IS 8130 |
| Insulation : Crosslinked polyethylene (XLPE) |
| Core Color : Red or yellow or blue or black or natural |
| Outer Sheath : PVC Type ST – 1 as per IS 5831 (Option : PVC Type ST – 2 as per IS 5831, FR Type / FRLS Type) |
| Cable Color : Black (Options : Any other color as per requirement) |

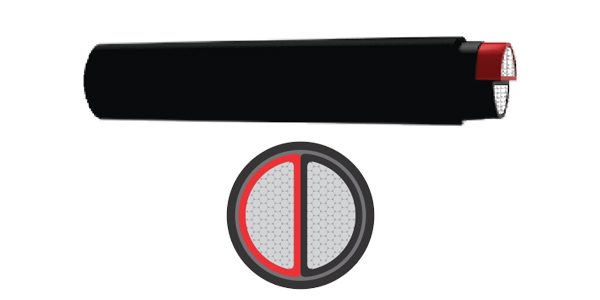

A2XY / 2XY – 2 Core
| Cable Construction |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 2 cores AL / CU conductor, XLPE insulated, unarmoured cables as per IS 7098 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact round or compact shape conductor Cl. 2 as per IS:8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded round Cl. 2 as per IS:8130. 10 Sq. mm conductor is stranded round or stranded compact conductor Cl. 2 as per IS 8130 |
| Above 10 Sq. mm conductor are stranded round or compact round or compacted shaped Cl. 2 as per : IS 8130 |
| Insulation : Crosslinked polyethylene (XLPE) |
| Core Color : Red, black |
| Inner Sheath : PVC / PVC tape as per IS 7098 (P – 1) |
| Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type) |
| Cable Color : Black (Options : Any other color as per requirement) |
A2XY / 2XY – 3 Core
| Cable Construction |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 3 Cores AL / CU conductor, XLPE insulated, unarmoured cables as per IS 7098 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl.1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2 round as per IS 8130. Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130 |
| Insulation : Crosslinked polyethylene (XLPE) |
| Core Color : Red, yellow, blue |
| Inner Sheath : PVC / PVC tape as per IS 7098 (P – 1) |
| Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type) |
| Cable Color : Black (Options : Any other color as per requirement) |

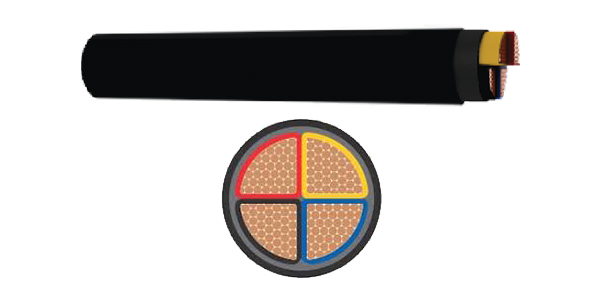

A2XY / 2XY – 4 Core
| Cable Construction |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 4 cores AL /CU conductor, XLPE insulated, unarmoured cables as per IS 7098 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl.2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2 round as per IS 8130. Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130 |
| Insulation : Crosslinked polyethylene (XLPE) |
| Core Color : Red, yellow, blue |
| Inner Sheath : PVC / PVC tape as per IS 7098 (P – 1) |
| Outer Sheath : PVC Type ST – 2 as per IS 5831 (Option : FR Type / FRLS Type) |
| Cable Color : Black (Options : Any other color as per requirement) |
