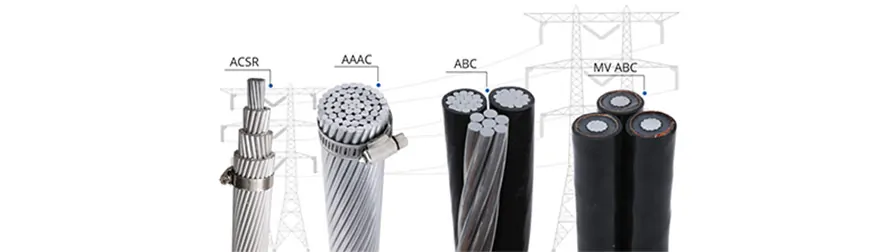

Overhead Coved Line Aluminum (Bare Conductor-AAC/AAAC/ACSR)

Huadong Cable (HDC) is professional Overhead line bare conductor manufacturer, the Aluminum bare conductor including: AAC/ AAAC/ACSR/ACS/GSW and insulation overhead ABC Cable. and can custom the size according to your requirement.

Click following Button to select your types

Overhead Line (AAC Conductor)-All Aluminum Conductor

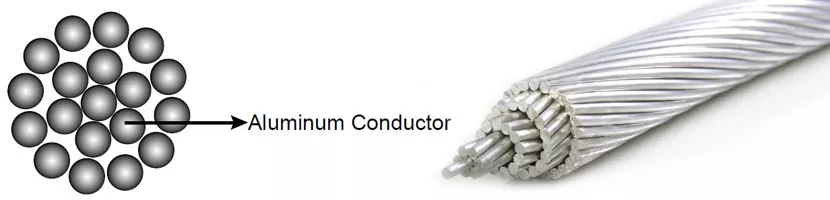

AAC-Conductor

Application: AAC used in overhead electric power transmission and distribution lines with various grade voltages. Mainly used in urban areas for electricity transfer where the spacing is short and the supports are closer together. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties.

AAC Conductor Parameter List

AAC Conductor Parameter-ASTM B-231B 231M
AAC conductor-ASTM B 231/B 231M
Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
AWG&MCM mm^2 No.xmm mm kg/km KN Ω/Km A
Peachbell 6 13.3 7/1.56 4.68 36.6 2.53 2.1477 75
Rose 4 21.1 7/1.96 5.88 58.2 3.91 1.3606 99
Iris 2 33.6 7/2.47 7.41 92.6 5.99 0.8567 132
Pansy 1 42.4 7/2.78 8.34 116.6 7.3 0.6763 153
Poppy 1/0.0 53.5 7/3.12 9.36 147.2 8.84 0.5369 176
Aster 2/0.0 67.4 7/3.50 10.5 185.7 11.1 0.4267 203
Phlox 3/0.0 85 7/3.93 11.79 233.9 13.5 0.3384 234
Oxlip 4/0.0 107.2 7/4.42 13.26 295.2 17 0.2675 270
Valerian 250 126.7 19/2.91 14.55 348.6 20.7 0.2274 299
Sneezewort 250 126.7 7/4.80 14.4 348.8 20.1 0.2269 299
Laurel 266.8 135.2 19/3.01 15.05 372.2 22.1 0.2125 312
Daisy 266.8 135.2 7/4.96 14.88 372.3 21.4 0.2125 311
Peony 300 152 19/3.19 15.95 418.3 24.3 0.1892 335
Tulip 336.4 170.5 19/3.38 16.9 469.5 27.3 0.1686 359
Daffodil 350 177.3 19/3.45 17.25 487.9 28.4 0.1618 369
Canna 397.5 201.4 19/3.67 18.35 554.9 31.6 0.143 397
Goldentuft 450 228 19/3.91 19.55 627.6 35 0.126 429
Syringa 477 241.7 37/2.88 20.16 664.8 38.6 0.1192 444
Cosmos 477 241.7 19/4.02 20.1 664.8 37 0.1192 444
Hyacinth 500 253.3 37/2.95 20.65 696.8 40.5 0.1136 458
Zinnia 500 253.3 19/4.12 20.6 697.1 38.9 0.1134 458
Dahlia 556.5 282 19/4.35 21.75 775.8 43.3 0.1018 489
Mistletoe 556.5 282 37/3.12 21.84 775.7 44.3 0.1016 490
Meadowsweet 600 304 37/3.23 22.61 836.3 47.5 0.0948 511
Orchid 636 322.3 37/3.33 23.31 886.9 50.4 0.0892 530
Heuchera 650 329.4 37/3.37 23.59 907.4 51.7 0.0871 538
Flag 700 354.7 61/2.72 24.48 975.8 57.1 0.0811 561
Varbena 700 354.7 37/3.49 24.43 975.7 55.4 0.0812 561
Nasturtium 715.5 362.6 61/2.75 24.75 998.5 58.4 0.0793 569
Violet 715.5 362.6 37/3.53 24.71 998.5 56.7 0.0794 568
Cattail 750 380 61/2.82 25.38 1046 60.3 0.0754 587
Petunia 750 380 37/3.62 25.34 1046 58.6 0.0755 586
Lilac 795 402.8 61/2.90 26.1 1110 63.8 0.0713 607
Arbutus 795 402.8 37/3.72 26.04 1109 61.8 0.0715 605
Snapdragon 900 456 61/3.09 27.81 1256 70.8 0.0628 654
Cockscomb 900 456 37/3.96 27.72 1256 68.4 0.0631 652
Goldenrod 954 483.4 61/3.18 28.62 1331 75 0.0593 677
Magnolia 954 483.4 37/4.08 28.56 1331 72.6 0.0594 676
Camellia 1000 506.7 61/3.25 29.25 1394 78.3 0.0568 695
Hawkweed 1000 506.7 37/4.18 29.26 1395 76.2 0.0566 696
Larkspur 1033.5 523.7 61/3.31 29.79 1442 81.3 0.0547 710
Bluebell 1033.5 523.7 37/4.25 29.75 1441 78.8 0.0547 710
Marigold 1113 564 61/3.43 30.87 1553 87.3 0.051 740
Hawthorn 1192.5 604.2 61/3.55 31.95 1662 93.5 0.0476 771
Narsissus 1272 644.5 61/3.67 33.03 1774 98.1 0.0445 802
Columbine 1351 694.8 61/3.78 34.02 1884 104 0.042 829
Carnation 1431 725.1 61/3.89 35.01 1997 108 0.0396 858
Gladiolus 1510.5 765.4 61/4.00 36 2108 114 0.0375 885
Coreopsis 1590 805.7 61/4.10 36.9 2216 120 0.0357 911
Jassamine 1750 886.7 61/4.30 38.7 2442 132 0.0324 962
Cowslip* 2000 1013 91/3.77 41.47 2787 153 0.0286 1032
Sagebrush* 2250 1140 91/3.99 43.89 3166 167 0.0255 1099
Lupine* 2500 1267 91/4.21 46.31 3519 186 0.0229 1163
Bitterrot* 2750 1393 91/4.42 48.62 3872 205 0.0208 1223
Trillium* 3000 1520 127/3.90 50.7 4226 223 0.0193 1271
Bluebonnet* 3500 1773 127/4.22 54.86 4977 261 0.0165 137
AAC Conductor Parameter-BS 215 Part 1 Standard
AAC Conductor-BS 215 Part 1
Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.xmm mm kg/km KN Ω/Km A
Midge 22 23.33 7/2.06 6.18 64 3.99 1.227 106
Gnat 25 26.8 7/2.21 6.6 73.8 4.83 1.0643 122
Mosquito 35 37 7/2.59 7.8 102.1 6.27 0.7749 141
Ladybird 40 42.8 7/2.79 8.4 117.9 7.28 0.6678 157
Ant 50 52.83 7/3.1 9.3 145 8.28 0.5419 175
Fly 60 63.55 7/3.4 10.2 174 9.9 0.4505 196
Wasp 100 106 7/4.39 13.17 290 16 0.2702 268
Hornet 150 157.6 19 / 3.25 16.25 434 25.7 0.1825 342
Charfer 200 213.2 19 / 3.78 18.9 587 35.4 0.1349 412
Cockroach 250 265.7 19/4.22 21.1 731 40.4 0.1083 471
Butterfly 300 322.7 19/4.65 23.25 888 48.75 0.08916 530
Centipede 400 415.2 37/3.78 26.46 1145 63.1 0.06944 616
Maybug 475 486,1 37/4,09 28,6 1342 0.05571 0,05900 740
Skorpion 500 529,8 37/4,27 29,9 1460 0.04916 0,05400 887
Cicada 600 628,3 37/4,65 32,6 1733 0.03423 0,04500 1056
AAC Conductor Parameter-BS EN 50182 Strandard
AAC conductor-BS EN 50182
Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.xmm mm kg/km KN Ω/Km A
Gnat 25 26.9 7/2.21 6.63 73 4.83 1.0643 115
Mosquito 35 36.9 7/2.59 7.77 101 6.27 0.7749 140
Ladybird 40 42.8 7/2.79 8.37 117 7.28 0.6678 154
Bluebottle 70 73.6 7/3.66 10.98 201 11.78 0.388 215
Earwig 75 78.6 7/3.78 11.34 215 12.57 0.3638 223
Grasshopper 80 84.1 7/3.91 11.73 230 13.45 0.34 233
Clegg 90 95.6 7/4.17 12.51 261 15.3 0.2989 252
Beetle 100 106.4 19/2.67 13.35 292 18.08 0.2701 269
Bee 120 132 7/4.90 14.7 361 21.12 0.2165 307
Caterpillar 180 185.9 19/3.53 17.65 511 29.75 0.1546 379
Spider 220 237.6 19/3.99 19.95 653 38.01 0.121 440
Moth 350 373.1 19/5.00 25 1025 59.69 0.077 579
Drone 350 372.4 37/3.58 25.06 1027 59.59 0.0774 577
Maybug 450 486.1 37/4.09 28.63 1341 77.78 0.0593 677
Scorpion 500 529.8 37/4.27 29.89 1461 84.77 0.0544 713
Cicada 600 628.3 37/4.65 32.55 1733 100.54 0.0459 788
AAC Conductor Paramter-IEC 61089 Standard
AAC Conductor-IEC 61089
Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
mm^2 No.xmm mm kg/km KN Ω/Km A
10 10 7/1.35 4.05 27.4 1.95 2.8633 62
16 16 7/1.71 5.13 43.8 3.04 1.7896 84
25 25 7/2.13 6.39 68.4 4.5 1.1453 110
40 40 7/2.70 8.1 109.4 6.8 0.7158 147
63 63 7/3.39 10.17 172.3 10.39 0.4545 195
100 100 19/2.59 12.95 274.8 17 0.2877 259
125 125 19/2.89 14.45 343.6 21.25 0.2302 297
160 160 19/3.27 16.35 439.8 26.4 0.1798 345
200 200 19/3.66 18.3 549.7 32 0.1439 396
250 250 19/4.09 20.45 687.1 40 0.1151 454
315 315 37/3.29 23.03 867.9 51.97 0.0916 522
400 400 37/3.71 25.97 1102 64 0.0721 603
450 450 37/3.94 27.58 1239.8 72 0.0641 647
500 500 37/4.15 29.05 1377.6 80 0.0577 688
560 560 37/4.39 30.73 1542.9 89.6 0.0515 736
630 630 61/3.63 32.67 1738.3 100.8 0.0458 789
710 710 61/3.85 34.65 1959.1 113.6 0.0407 845
800 800 61/4.09 36.81 2207.4 128 0.0361 905
900 900 61/4.33 38.97 2483.3 144 0.0321 967
1000 1000 61/4.57 41.13 2759.2 160 0.0289 1026
1120* 1120 91/3.96 43.56 3093.5 179.2 0.0258 1091
1250* 1250 91/4.18 45.98 3452.6 200 0.0231 1157
1400* 1400 91/4.43 48.73 3866.9 224 0.0207 1226
1500* 1500 91/4.58 50.38 4143.1 240 0.0193 1270
AAC Coductor Parameter- German- DIN 48201
AAC Coductor Technical characteristics / German Sizes – DIN 48201
Area Stranding and wire Diameter Overall Diameter mm Linear Mass kg/km Calculated Breaking Load daN Maximum D.C. Resistance at 20℃ Ω/km Current Rating A
Nominal cross-section mm2 Actual cross-section mm2
16 16.1616 7/1.70 5.55 44 290 2.22222 110
25 24.2424 7/2.10 6.66 67 425 1.11111 145
35 34.3434 7/2.50 8.88 94 585 1.11111 180
50 49.4949 7/3.00 9.99 135 810 1.11111 225
50 48.4848 19/1.80 9.99 133 860 1.11111 225
70 66.6666 19/2.10 10.1010 181 1150 0.00000 270
95 93.9393 19/2.50 12.1212 256 1595 0.00000 340
120 117.117117 19/2.80 14.1414 322 1910 0.00000 390
150 147.147147 37/2.25 15.1515 406 2570 0.00000 455
185 182.182182 37/2.50 18.1818 501 3105 0.00000 520
240 243.243243 61/2.25 20.2020 670 4015 0.00000 625
300 299.299299 61/2.50 22.2222 827 4850 0.00000 710
400 400.400400 61/2.89 26.2626 1105 6190 0.00000 855
500 500.500500 61/3.23 29.2929 1381 7600 0.00000 990
625 626.626626 91/2.96 33.3333 1733 9690 0.00000 1140
800 802.802802 91/3.35 37.3737 2219 12055 0.00000 1340
1000 1000.10001000 91/3.74 41.4141 2766 14845 0.00000 1540
AAC Conductor Parameter- Canadian- CSA C49 Standard
AAC Conductor Technical characteristics Canadian Sizes CSA C49-1965
Code Name Stranding and wire diameter Approximate Overall Diameter Linear Mass Nominal breaking Load Maximum Resistance at 20℃ Current Rating
mm2 mm mm Kg/km KN Ω/km A
Rose 21.2121 7/1.961 6.66 58 4.1 1.1111 104
Lily 27.2727 7/2.202 7.77 73 5 1.1111 124
Iris 34.3434 7/2.474 7.77 92 6.2 1.1111 136
Pansy 42.4242 7/2.776 8.88 116 7.6 1.1111 157
Poppy 53.5353 7/3.119 9.99 146 9.2 1.1111 180
Aster 67.6767 7/3.503 11.1111 184 11.6 0.0000 207
Phlox 85.8585 7/3.902 12.1212 232 14.1 0.0000 237
Oxlip 107.107107 7/4.417 13.1313 293 17.7 0.0000 273
Daisy 135.135135 7/4960 15.1515 369 22.4 0.0000 313
Valerian 127.127127 19/2.913 15.1515 348 22.3 0.0000 305
Laurel 135.135135 19/3.010 15.1515 372 23.8 0.0000 317
Peony 152.152152 19/3.193 16.1616 417 26.2 0.0000 340
Tulip 170.170170 19/3.381 17.1717 467 29.4 0.0000 364
Daffodil 177.177177 19/3.447 17.1717 488 30.6 0.0000 373
Canna 201.201201 19/3.673 18.1818 554 34 0.0000 401
203.203203 19/3.686 18.1818 558 34.2 0.0000 402
Goldentuft 228.228228 19/3.909 20.2020 626 37.7 0.0000 432
Cosmos 242.242242 19/4.023 20.2020 664 40 0.0000 447
Zinnia 253.253253 19/4.120 21.2121 695 41.9 0.0000 459
Dahlia 282.282282 19/4.346 22.2222 774 46.7 0.0000 489
279.279279 37/3.096 22.2222 768 48 0.0000 485
Meadowsweet 304.304304 37/3.233 23.2323 838 52.4 0.0000 513
Orchid 322.322322 37/3.330 23.2323 888 55.6 0.0000 531
Heuchera 329.329329 37/3.366 24.2424 908 56.8 0.0000 538
Varbena 355.355355 37/3.493 24.2424 978 61.1 0.0000 562
Violet 363.363363 37/3.533 25.2525 1000 62.5 0.0000 570
Patunia 380.380380 37/3.617 25.2525 1048 64.2 0.0000 585
Arbutus 403.403403 37/3.724 26.2626 1112 68.1 0.0000 605
405.405405 37/3.734 26.2626 1118 68.5 0.0000 608
Anemone 443.443443 37/3.904 27.2727 1222 73.3 0.0000 641
Cockscomb 456.456456 37/3.962 28.2828 1257 75.4 0.0000 657
Magnolia 483.483483 37/4.079 29.2929 1333 80 0.0000 675
Hawkweed 507.507507 37/4.176 29.2929 1396 83.8 0.0000 693
Bluebell 524.524524 37/4.244 30.3030 1445 86.6 0.0000 706
557.557557 61/3.411 31.3131 1539 96.1 0.0000 733
Marigold 564.564564 61/3.432 31.3131 1559 97.2 0.0000 738
Hawthorn 604.604604 61/3.551 32.3232 1670 104.1 0.0000 767
608.608608 61/3.564 32.3232 1679 102.7 0.0000 771
Narcissus 645.645645 61/3.668 33.3333 1781 108.8 0.0000 797
659.659659 61/3.708 33.3333 1818 112.2 0.0000 807
Columbine 685.685685 61/3.78 34.3434 1893 115.6 0.0000 825
709.709709 61/3.848 35.3535 1958 117.4 0.0000 842
Carnation 725.725725 61/3.891 35.3535 2004 119.9 0.0000 854
760.760760 61/3.983 36.3636 2098 125.7 0.0000 877
Gladiolus 765.765765 61/3.998 36.3636 2116 126.5 0.0000 881
Corepsis 806.806806 61/4.096 37.3737 2226 133.2 0.0000 907
811.811811 61/4.115 37.3737 2238 134.1 0.0000 910
861.861861 61/4.239 38.3838 2378 142.6 0.0000 842
912.912912 61/3.571 39.3939 2521 153.9 0.0000 975
AAC Conductor Parameter-China-GB1179 Standard
AAC Conductor-Technical characteristics -China standard-GB1179
Nominal Area Stranding Number Diameter Calculated Area Overall Diameter D,C. Resistance Calculated Breaking Calculated Weight Continuous Carrying Capacity(A)
mm2 No. mm mm2 mm Ω/km Load N kg/km 70 ℃ 80 ℃ 90 ℃
16 7/1.70 16.1616 5.55 2.22222 2840 44.44 84 100 112
25 7/2.15 25.2525 6.66 1.11111 4355 70.70 112 133 151
35 7/2.50 34.3434 8.88 1.11111 5760 94.94 135 161 183
50 7/3.00 49.4949 9.99 1.11111 7930 136.136 168 202 230
70 7/3.60 71.7171 11.1111 0.00000 10950 195.195 210 253 289
95 7/4.16 95.9595 12.1212 0.00000 14450 260.260 250 304 347
120 19/2.85 121.121121 14.1414 0.00000 19420 334.334 289 353 405
150 19/3.15 148.148148 16.1616 0.00000 23310 407.407 327 400 460
185 19/3.50 183.183183 18.1818 0.00000 28440 503.503 371 456 526
210 19/3.75 209. 85 19.1919 0.00000 32260 577.577 403 497 574
240 19/4.00 239.239239 20.2020 0.00000 36260 657.657 435 538 522
300 37/3.20 298.298298 22.2222 0.00000 46850 820.820 496 617 715
400 37/3.70 398.398398 26.2626 0.00000 61150 1097.1097 588 738 859
500 37/4.16 503.503503 29.2929 0.00000 76370 1387.1387 674 852 995
630 61/3.63 631.631631 33.3333 0.00000 91940 1744.1744 768 977 1145
800 61/4.10 805.805805 37.3737 0.00000 115900 2225.2225 880 1129 1328
AAC Conductor Parameter ASNZS 1531 Standard
Standard sizes to AS/NZS 1531
Conductor code name Stranding and wire diameter Nominal overall diameter Cross- sectional area Approximate mass Breaking load Modulus of elasticity Coefficient of linear expansion DC resist. at 20°C AC resist. at 50Hz
no/mm mm mm2 kg/km kN GPa x 10–6/°C Ω/km Ω/km
Leo 7/2.50 7.5 34.4 94.3 5.71 65 23 0.833 1.02
Leonids 7/2.75 8.25 41.6 113 6.72 65 23 0.689 0.842
Libra 7/3.00 9 49.5 135 7.98 65 23 0.579 0.707
Mars 7/3.75 11.3 77.3 211 11.8 65 23 0.37 0.452
Mercury 7/4.50 13.5 111 304 16.9 65 23 0.258 0.315
Moon 7/4.75 14.3 124 339 18.9 65 23 0.232 0.284
Neptune 19/3.25 16.3 158 433 24.7 65 23 0.183 0.224
Orion 19/3.50 17.5 183 503 28.7 65 23 0.157 0.192
Pluto 19/3.75 18.8 210 576 31.9 65 23 0.137 0.168
Saturn 37/3.00 21 262 721 42.2 64 23 0.11 0.135
Sirius 37/3.25 22.8 307 845 48.2 64 23 0.094 0.116
Taurus 19/4.75 23.8 337 924 51.3 65 23 0.0857 0.105
Triton 37/3.75 26.3 409 1120 62.2 64 23 0.0706 0.0872
Uranus 61/3.25 29.3 506 1400 75.2 64 23 0.0572 0.071
Ursula 61/3.50 31.5 587 1620 87.3 64 23 0.0493 0.0616
Venus 61/3.75 33.8 673 1860 97.2 64 23 0.0429 0.0539

Overhead Line (AAAC Conductor)-All Aluminum Conductor

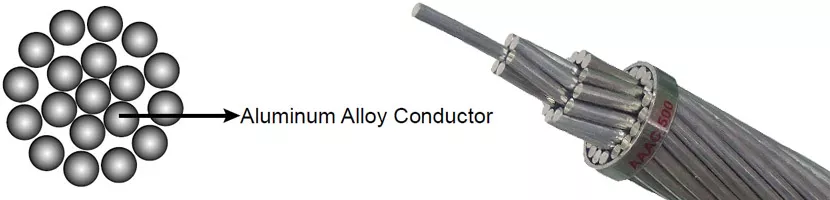

aaac-conductor-structure

Application: The aluminum alloy conductors are used in replace of single-layer ACSR conductors to reduce power loss in overhead distribution and transmission lines,when replacing the aluminum conductor steel reinforced , the AAAC can save 5-8% of the construction cost.

AAAC Conductor Parameter List

AAAC Conductor Parameter-ASTM B-399B 399M
AAAC conductor-ASTM B 399B 399M
Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
AWG&MCM mm^2 No.xmm mm kg/km KN Ω/Km A
6 13.2 7/1.55 4.65 36.2 4.18 2.5361 69
4 21.1 7/1.96 5.88 57.9 6.69 1.586 93
2 33.5 7/2.47 7.41 92 10.6 0.9987 123
0 53.5 7/3.12 9.36 146.8 17 0.62592 165
2/0 67.3 7/3.50 10.5 184.8 20.4 0.49738 190
3/0 84.9 7/3.93 11.79 233 25.7 0.3945 219
4/0 107 7/4.42 13.26 294.7 32.5 0.31188 253
250 126 19/2.91 14.55 346.7 38.8 0.26509 280
300 152 19/3.19 15.95 416.7 46.6 0.22059 313
350 178 19/3.45 17.25 487.3 52 0.1886 345
400 203 19/3.69 18.45 557.5 59.5 0.16486 375
450 228 19/3.91 19.55 626 66.8 0.14683 402
500 253 19/4.12 20.6 695 74.2 0.13224 429
550 279 37/3.10 21.7 766.2 83.9 0.11995 455
600 303 37/3.23 22.61 831.9 91 0.11049 478
650 330 37/3.37 23.59 905.5 94.9 0.1015 504
700 354 37/3.49 24.43 971.2 101 0.09464 525
750 381 37/3.62 25.34 1045 109 0.08796 549
800 404 37/3.73 26.11 1109 116 0.08285 569
900 456 37/3.96 27.72 1250 131 0.07351 612
1000 508 37/4.18 29.26 1393 146 0.06597 653
1250 631 61/3.63 32.67 1732 179 0.05306 743
1500 759 61/3.98 35.82 2082 215 0.04414 827
1750 886 61/4.30 38.7 2431 251 0.03781 904
AAAC Conductor Parameter-BS 3242
AAAC conductor-BS 3242
Code AL Nominal Area Cu Nominal Area Equivalent Total Area Stranding Overall Diameter Weight
mm^2 mm^2 mm^2 No.Ω/mm mm kg/km
– – 6.45 11.7 7/1.47 4.41 32.2
Box – 9.68 18.8 7/1.85 5.55 51.7
Acacia – 12.9 21.9 7/2.08 6.24 66.1
Almond 25 16.1 30.1 7/2.34 7.02 82.9
Ceda 30 19.4 35.5 7/2.54 7.62 97.8
– 40 22.6 42.2 7/2.77 8.31 116.4
Fir 50 25.8 47.8 7/2.95 8.85 131.8
Hazel 100 32.3 59.9 7/3.30 9.9 165
Pine – 38.7 71.7 7/3.61 10.83 197.7
– – 45.2 84.1 7/3.91 11.73 231.6
Willow 150 48.4 89.8 7/4.04 12.12 247.5
– 175 51.6 96.5 7/4.19 12.57 266.2
– 300 58.1 108.8 7/4.45 13.35 299.8
Oak – 64.5 118.9 7/4.65 13.95 327.8
– – 80.6 118.8 19/2.82 14.1 327.6
Mulberry – 96.8 151.1 19/3.18 15.9 416.7
Ash – 113 180.7 19/3.48 17.4 498.1
Elm – 129 211 19/3.76 18.8 582.1
Poplar – 145 239 37/2.87 20.09 658.8
– – 161 270.8 37/3.05 21.35 746.7
Sycamore – 194 303 37/3.23 22.61 834.9
Upas – 226 362.1 37/3.53 24.71 998.6
– – 258 421.8 37/3.81 26.47 1163
Yew – – 479.9 37/4.06 28.42 132
AAAC Conductor Parameter-BS EN 50182
AAAC conductor-BS EN 50182
Code Stranding Nominal Area Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
No.xmm mm^2 mm kg/km KN Ω/Km A
Box 7/1.85 18.8 5.55 51.4 5.55 1.748 87
Acacia 7/2.08 23.8 6.24 64.9 7.02 1.3828 101
Almond 7/2.34 30.1 7.02 82.2 8.88 1.0926 116
Cedar 7/2.54 35.5 7.62 96.8 10.46 0.9273 129
Deodar 7/2.77 42.2 8.31 115.2 12.44 0.7797 143
Fir 7/2.95 47.8 8.85 130.6 14.11 0.6875 155
Hazel 7/3.30 59.9 9.9 163.4 17.66 0.5494 178
Pine 7/3.61 71.6 10.83 195.6 21.14 0.4591 199
Holly 7/3.91 84.1 11.73 229.5 24.79 0.3913 219
Willow 7/4.04 89.7 12.12 245 26.47 0.3665 228
Oak 7/4.65 118.9 13.95 324.5 35.07 0.2767 272
Mulberry 19/3.18 150.9 15.9 414.3 44.52 0.2192 314
Ash 19/3.48 180.7 17.4 496.1 53.31 0.183 351
Elm 19/3.76 211 18.8 579.2 62.24 0.1568 386
Poplar 37/2.87 239.4 20.09 659.4 70.61 0.1387 416
Sycamore 37/3.23 303.2 22.61 835.2 89.4 0.1095 480
Upas 37/3.53 362.1 24.71 997.5 106.82 0.0917 535
Yew 37/4.06 479 28.42 1319.6 141.31 0.0693 633
Totara 37/4.14 498.1 28.98 1372.1 146.93 0.0666 648
Rubus 61/3.50 586.9 31.5 1622 173.13 0.0567 714
Sorbus 61/3.71 659.4 33.39 1822.5 194.53 0.0505 764
Araucaria 61/4.14 821.1 37.26 2269.4 242.24 0.0406 868
Redwood 61/4.56 996.2 41.04 2753.2 293.88 0.0334 970
AAAC Conductor Parameter-DIN 48201 Part 6
AAAC conductor-DIN 48201 Part 6
Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.xmm mm kg/km KN Ω/Km A
16 15.89 7/1.70 5.1 43 4.44 2.0742 78
25 24.25 7/2.10 6.3 66 6.77 1.3593 102
35 34.36 7/2.50 7.5 94 9.6 0.9591 126
50 49.48 7/3.00 9 135 13.82 0.666 158
50 48.35 19/1.80 9 133 13.5 0.6849 156
70 65.81 19/2.10 10.5 181 18.38 0.5032 189
95 93.27 19/2.50 12.5 256 26.05 0.3551 234
120 116.99 19/2.80 14 322 32.68 0.2831 269
150 147.11 37/2.25 15.8 406 41.09 0.2256 309
185 181.62 37/2.50 17.5 500 50.73 0.1828 352
240 242.54 61/2.25 20.3 670 67.74 0.1371 420
300 299.43 61/2.50 22.5 827 83.63 0.111 477
400 400.14 61/2.89 26 1104 111.76 0.0831 568
500 499.83 61/3.23 29.1 1379 139.6 0.0665 649
625* 626.2 91/2.96 32.6 1732 174.9 0.0531 742
800* 802.09 91/3.35 36.9 2218 224.02 0.0415 857
1000* 999.71 91/3.74 41.1 2767 279.22 0.0333 971
AAAC Conductor Parameter-IEC 61089
AAAC conductor-IEC 61089
Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
mm^2 No.xmm mm kg/km KN Ω/Km A
16 18.4 18.4 5.49 50.4 5.43 1.7896 86
25 28.8 28.8 6.87 78.7 8.49 1.1453 113
40 46 46 8.67 125.9 13.58 0.7158 151
63 72.5 72.5 10.89 198.3 21.39 0.4545 200
100 115 115 13.9 316.3 33.95 0.2877 266
125 144 144 15.5 395.4 42.44 0.2302 305
160 184 184 17.55 506.1 54.32 0.1798 355
200 230 230 19.65 632.7 67.91 0.1439 407
250 288 288 21.95 790.8 84.88 0.1151 466
315 363 363 24.71 998.9 106.95 0.0916 535
400 460 460 27.86 1268.4 135.81 0.0721 618
450 518 518 29.54 1426.9 152.79 0.0641 663
500 575 575 31.15 1585.5 169.76 0.0577 706
560 645 645 33.03 1778.4 190.14 0.0516 755
630 725 725 35.01 2000.7 213.9 0.0458 809
710 817 817 37.17 2254.8 241.07 0.0407 866
800 921 921 39.42 2540.6 271.62 0.0361 928
900* 1036 1036 41.91 2861.1 305.58 0.0321 992
1000* 1151 1151 44.11 3179 339.53 0.0289 1051
1120* 1289 1289 46.75 3560.5 380.27 0.0258 1118
1250* 1439 1439 49.39 3973.7 424.41 0.0231 1185
AAAC Conductor Parameter- China GB 9329 Standard
AAAC Technical characteristics of GB9329
Nominal Area Stranding Number Diameter Calculated Area Overall Diameter D,C. Resistance Calculated Breaking Load Calculated Weight Continuous Carrying Capacity(A)
mm2 No. mm mm2 mm Ω/km N kg/km 70 ℃ 80 ℃ 90 ℃
35 7/2.52 35.3535 8.88 1.11111 10.1010 96.96
50 7/3.02 50.5050 9.99 1.11111 14.1414 137.137 159 191 218
70 7/3.57 70.7070 11.1111 0.00000 20.2020 192.192 195 235 369
95 7/4.16 95.9595 12.1212 0.00000 27.2727 260.260 234 285 328
120 19/2.84 120.120120 14.1414 0.00000 34.3434 331.331 270 330 379
150 19/3.17 150.150150 16.1616 0.00000 42.4242 412.412 308 378 436
185 19/3.52 185.185185 18.1818 0.00000 52.5252 508.508 350 431 497
210 19/3.75 210.210210 19.1919 0.00000 59.5959 577.577 377 466 539
240 19/4.01 240.240240 20.2020 0.00000 67.6767 660.660 409 507 587
300 37/3.21 299.299299 22.2222 0.00000 84.8484 825.825 466 581 675
400 37/3.71 400.400400 26.2626 0.00000 112.112112 1102.1102 553 695 810
500 37/4.15 500.500500 29.2929 0.00000 140.140140 1379.1379 631 798 933
630 61/3.63 631.631631 33.3333 0.00000 176.176176 1742.1742 721 919 1078
800 61/4.09 801.801801 37.3737 0.00000 224.224224 2212.2212 826 1061 1249
1000 61/4.57 1001.10011001 41.4141 0.00000 279.279279 2761.2761 933 1209 1429

Overhead Line (ACSR Conductor)-All Aluminum Conductor

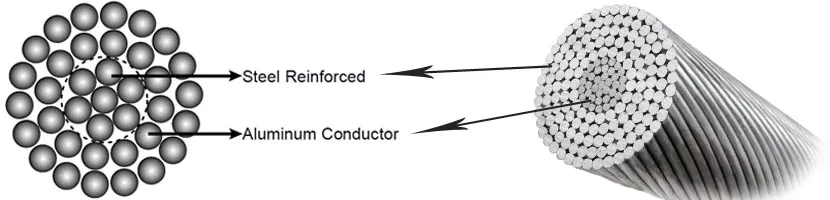

ACSR-Conductor

Application: Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

ACSR Conductor Technical Parameter

ACSR Conductor Parameter- U.S.A- ASTM B 232
ACSR conductor-ASTM B 232/B 232M
Code Stranding Stranding Overall Diameter Weight Breakign Load Electrical Resistance @20o Current Rating*
AL Steel AL Steel Total
No.xmm No.xmm mm^2 mm^2 mm^2 mm Kg/Km KN Ω/Km A
Turkey 13.3 2.22 6/1.68 1/1.68 5.04 15.52 53.6 4.98 2.1499 76
Swan 21.18 3.53 6/2.12 1/2.12 6.36 24.71 85.3 7.83 1.3501 101
Swanate 21.12 5.35 7/1.96 1/2.61 6.53 26.47 99.6 9.79 1.3539 102
Sparrow 33.59 5.6 6/2.67 1/2.67 8.01 39.19 135.7 11.92 0.8512 135
Sparate 33.54 8.55 7/2.47 1/3.30 8.24 42.09 158.7 15.08 0.8525 135
Robin 42.41 7.07 6/3.00 1/3.00 9 49.48 171.1 14.86 0.6742 156
Raven 53.52 8.92 6/3.37 1/3.37 10.11 62.44 216.1 18.33 0.5343 180
Quail 67.33 11.22 6/3.78 1/3.78 11.34 78.55 272 22.46 0.4247 207
Pigeon 85.12 14.19 6/4.25 1/4.25 12.75 99.31 343 28.02 0.3359 239
Penguin 107.22 17.87 6/4.77 1/4.77 14.31 125.09 432.7 35.36 0.2667 275
Waxwing 134.98 7.5 18/3.09 1/3.09 15.45 142.48 430.2 29.8 0.2129 313
Partridge 134.87 21.99 26/2.57 7/2.00 16.28 156.86 545.9 47.15 0.2141 316
Ostrich 152.19 24.71 26/2.73 7/2.12 17.28 176.9 613.4 53.38 0.1897 341
Merlin 170.22 9.46 18/3.47 1/3.47 17.35 179.68 542.8 37.36 0.1688 361
Linnet 170.55 27.83 26/2.89 7/2.25 18.31 198.38 687.5 59.16 0.1693 365
Oriole 170.5 39.78 30/2.69 7/2.69 18.83 210.28 783.3 72.06 0.1698 367
Chickadee 200.93 11.16 18/3.77 1/3.77 18.85 212.09 641.3 43.15 0.143 400
Brant 201.56 26.13 24/3.27 7/2.18 19.62 227.69 761 61.83 0.1433 403
Ibis 201.34 32.73 26/3.14 7/2.44 19.88 234.07 812.4 68.05 0.1434 404
Lark 200.9 46.88 30/2.92 7/2.92 20.44 247.78 925.2 84.07 0.1441 406
Pelican 242.31 13.46 18/4.14 1/4.14 20.7 255.77 769.7 51.15 0.1186 448
Flicker 241.58 31.4 24/3.58 7/2.39 21.49 272.98 913.5 72.06 0.1195 450
Hawk 241.65 39.19 26/3.44 7/2.67 21.77 280.84 975.1 81.84 0.1195 451
Hen 241.27 56.3 30/3.20 7/3.20 22.4 297.57 1110.6 98.3 0.12 453
Osprey 282.47 15.69 18/4.47 1/4.47 22.35 298.16 897.7 59.6 0.1017 492
Parakeet 282.31 36.6 24/3.87 7/2.58 23.22 318.91 1065.6 83.18 0.1023 495
Dove 282.59 45.92 26/3.72 7/2.89 23.55 328.51 1138.6 94.3 0.1022 497
Eagle 282.07 65.82 30/3.46 7/3.46 24.22 347.89 1295.6 114.76 0.1026 499
Peacock 306.13 39.78 24/4.03 7/2.69 24.19 345.91 1158.9 90.74 0.0943 520
Squab 305.83 49.81 26/3.87 7/3.01 24.51 355.64 1237 101.41 0.0944 521
Wood Duck 307.06 71.65 30/3.61 7/3.61 25.27 378.71 1408.4 121.43 0.0943 525
Teal* 307.06 69.62 30/3.61 19/2.16 25.24 376.68 1396.6 124.54 0.0943 525
Kingbird 323.01 17.95 18/4.78 1/4.78 23.9 340.96 1026.6 68.05 0.089 533
Swift 323.02 8.97 36/3.38 1 /3.38 23.66 331.99 956.5 60.05 0.089 532
Rook 323.07 41.88 24/4.14 7/2.76 24.84 364.95 1217.5 95.19 0.0894 537
Grosbeak 321.84 52.49 26/3.97 7/3.09 25.15 374.33 1300.8 104.97 0.0897 537
Scoter 322.56 75.26 30/3.70 7/3.70 25.9 397.82 1480.7 127.66 0.0897 541
Egret* 322.56 73.54 30/3.70 19/2.22 25.9 396.1 1469 130.77 0.0897 541
Flamingo 337.27 43.72 24/4.23 7/2.82 25.38 380.99 1276.6 99.64 0.0856 551
Gannet 338.26 54.9 26/4.07 7/3.16 25.76 393.16 1363.3 110.31 0.0854 553
Stilt 363.27 46.88 24/4.39 7/2.92 26.32 410.15 1370.4 107.2 0.0795 576
Starling 361.93 59.15 26/4.21 7/3.28 26.68 421.08 1463.7 118.32 0.0798 577
Redwing* 362.06 82.41 30/3.92 19/2.35 27.43 444.47 1650.6 143.23 0.0799 580
Coot 401.86 11.16 36/3.77 1/3.77 26.39 413.02 1195.8 73.39 0.0715 607
Tern 403.77 27.83 45/3.38 7/2.25 27.03 431.6 1331.8 94.3 0.0715 610
Condor 402.33 52.15 54/3.08 7/3.08 27.72 454.48 1520.7 118.32 0.0718 612
Cuckoo 402.33 52.15 24/4.62 7/3.08 27.72 454.48 1522.2 117.43 0.0718 612
Drake 402.56 65.44 26/4.44 7/3.45 28.11 468 1626.4 131.66 0.0717 615
Mallard* 403.84 91.78 26/4.44 7/3.45 28.96 495.62 1836 159.24 0.0717 619
Ruddy 455.5 31.67 45/3.59 7/2.40 28.74 487.17 1507.3 104.53 0.0634 656
Canary 456.28 59.15 54/3.28 7/3.28 29.52 515.43 1723.1 134.33 0.0633 660
Catbird 484.61 13.46 36/4.14 1/4.14 28.98 498.07 1434.4 86.74 0.0593 679
Rail 483.84 33.54 45/3.70 7/2.47 29.61 517.38 1598.1 110.76 0.0597 680
Cardinal 484.53 62.81 54/3.38 7/3.38 30.42 547.34 1825.9 142.34 0.0596 685
Cardinal 484.53 62.81 54/3.38 7/3.38 30.42 547.34 1825.9 142.34 0.0596 685
Tanager 522.79 14.52 36/4.30 1/4.30 30.1 537.31 1553.5 93.85 0.055 710
Orotlan 523.87 36.31 45/3.85 7/2.57 30.81 560.18 1730.5 118.32 0.0551 713
Curlew 522.51 67.73 54/3.51 7/3.51 31.59 590.24 1977.6 153.9 0.0553 716
Bluejay 565.49 38.9 45/4.00 7/2.66 31.98 604.39 1866 127.66 0.0511 745
Finch* 565.03 71.57 54/3.65 19/2.19 32.85 636.6 2127.8 164.58 0.0514 748
Bunting 605.76 41.88 45/4.14 7/2.76 33.12 647.64 1996.9 136.55 0.0477 776
Grackle* 602.79 76.89 54/3.77 19/2.27 33.97 679.68 2278.1 176.59 0.0481 777
Skylark 646.02 17.95 36/4.78 1/4.78 33.46 663.97 1913.6 115.65 0.0445 804
Bittern 644.4 44.66 45/4.27 7/2.85 34.17 689.06 2130.8 145.89 0.0448 805
Pheasant* 645.08 81.71 54/3.90 19/2.34 35.1 726.79 2431.4 183.26 0.045 808
Dipper 684.24 47.2 45/4.40 7/2.93 35.19 731.44 2263.2 154.79 0.0422 834
Martin* 685.39 86.67 54/4.02 19/2.41 36.17 772.06 2581.7 194.82 0.0423 838
Bobolink 725.27 50.14 45/4.53 7/3.02 36.24 775.41 2397.2 164.13 0.0398 862
Plover* 726.92 91.78 54/4.14 19/2.48 37.24 818.7 2734.9 206.39 0.0399 866
Nuthatch 764.2 52.83 45/4.65 7/3.10 37.2 817.03 2529.6 171.25 0.0378 888
Parrot* 766.06 97.03 54/4.25 19/2.55 38.25 863.09 2883.7 217.51 0.0379 892
Lapwing 807.53 55.6 45/4.78 7/3.18 38.22 863.13 2663.5 180.14 0.0358 916
Falcon* 806.23 102.43 54/4.36 19/2.62 39.26 908.66 3038.5 229.52 0.036 919
Chukar* 903.18 73.54 84/3.70 19/2.22 40.7 976.72 3083.1 217.51 0.0321 976
Bluebird* 1092.84 88.84 84/4.07 19/2.44 44.76 1181.68 3731.9 256.65 0.0266 1083
Kiwi* 1099.76 47.52 72/4.41 7/2.94 44.1 1147.28 3423.9 215.28 0.0264 1083
Thrasher* 1171.42 63.94 76/4.43 19/2.07 45.79 1235.36 3754.2 243.75 0.0248 1122
Grouse** 40.54 14.12 8/2.54 1/4.24 9.32 54.66 221.4 21.75 0.7089 153
Petrel** 51.61 30.1 12/2.34 7/2.34 11.7 81.71 377.7 42.08 0.5595 181
Minorca** 56.11 32.73 12/2.44 7/2.44 12.2 88.84 411.1 45.81 0.5146 191
Leghorn** 68.2 39.78 12/2.69 7/2.69 13.45 107.98 499.2 55.16 0.4234 215
Guinea** 80.36 46.88 12/2.92 7/2.92 14.6 127.24 589.7 64.94 0.3593 238
Dotterel** 89.41 52.15 12/3.08 7/3.08 15.4 141.56 656.1 70.28 0.323 254
Dorking** 96.51 56.3 12/3.20 7/3.20 16 152.81 707.8 75.62 0.2992 267
Cochin** 107.04 62.44 12/3.37 7/3.37 16.85 169.48 783.9 84.07 0.2698 284
Brahma*&** 102.79 91.78 12/3.37 7/3.37 18.12 194.57 1003.8 114.76 0.2809 283
ACSR Conductor Parameter- BS 215-2 Standard
ACSR conductor-BS 215-2
Code Nominal Area Stranding Overall Diameter Weight(CU) Rated Strength Electrical Resistance @20o
AL Steel Total AL Steel Core Total AL Steel Total
Nominal Teorical
mm^2 mm^2 mm^2 mm^2 No.xmm No.xmm mm mm Kg/Km Kg/Km Kg/Km KN Ω/Km
Mole 10 10.62 1.77 12.39 6/1.50 1/1.50 1.5 4.5 29 14 43 4.14 2.706
Squirrel 20 20.94 3.49 24.43 6/2.11 1/2.11 2.11 6.33 57 28 85 7.88 1.368
Gopher 25 26.24 4.38 30.62 6/2.36 1/2.36 2.36 7.08 71 35 106 9.61 1.093
Weasel 30 31.61 5.27 36.88 6/2.59 1/2.59 2.59 7.77 87 41 128 11.45 0.9077
Fox 35 36.66 6.11 42.77 6/2.79 1/2.79 2.79 8.37 101 48 149 13.2 0.7822
Ferret 40 42.41 7.07 49.48 6/3.00 1/3.00 3 9 117 55 172 15.2 0.6766
Rabbit 50 52.88 8.82 61.7 6/3.35 1/3.35 3.35 10.05 145 69 214 18.35 0.5426
Mink 60 63.18 10.53 73.71 6/3.66 1/3.66 3.66 10.98 171 84 255 2.18 0.4545
Shunk 60 63.27 37.03 100.3 12/2.59 7/2.59 7.77 12.95 178 287 465 5.3 0.4567
Beaver 70 74.82 12.47 87.29 6/3.99 1/3.99 3.99 11.97 203 99 302 2.57 0.3825
Horse 70 73.37 42.63 116.2 12/2.79 7/2.79 8.37 13.95 203 335 538 61.2 0.3936
Racoon 75 79.2 13.2 92.4 6/4.1 1/4.1 4.1 12.3 216 104 320 27.2 0.3622
Otter 80 83.88 13.98 97.86 6/4.22 1/4.22 4.22 13.98 226 113 339 28.8 0.3419
Cat 90 95.44 15.86 111.3 6/4.5 1/4.5 4.5 15.9 258 128 386 32.7 0.3007
Hare 100 105 17.5 122.5 6/4.72 1/4.72 4.72 17.5 284 141 425 36 0.2733
Dog 100 105 13.5 118.5 6/4.72 7/1.57 4.71 14.15 288 106 394 32.7 0.2733
Hyena 100 105.8 20.4 126.2 7/4.39 7/1.93 5.79 14.57 250 200 450 40.9 0.2712
Leoperd 125 131.3 16.8 148.1 8/5.28 7/1.75 5.25 15.81 310 182 492 40.7 0.2184
Coyotte 125 132.1 20.1 152.2 26/2.54 7/1.91 5.73 15.89 410 112 522 46.4 0.2187
Congar 125 130.3 7.2 137.5 18/3.05 1/3.05 3.05 15.25 361 58 419 29.8 0.2189
Tiger 125 131.1 30.6 161.7 30/2.36 7/2.36 7.08 16.52 365 237 602 58 0.2202
Wolf 150 158.1 36.8 194.9 30/2.59 7/2.59 7.77 18.13 441 285 726 69.2 0.1828
Dingo 150 158.7 8.8 167.5 18/3.35 1/3.35 3.35 16.75 437 69 506 35.7 0.1815
Lynx 175 183.4 42.8 226.2 30/2.79 7/2.79 8.37 19.53 507 335 842 79.8 0.1576
Caracal 175 184.3 10.2 194.5 18/3.61 1/3.61 3.61 18.05 507 80 587 41.1 0.1563
Panther 200 212.1 49.4 261.5 30/3.00 7/3.00 9 21 586 388 974 92.25 0.1363
Jaguar 200 210.6 11.7 222.3 18/3.86 1/3.86 3.86 19.3 580 91 671 46.55 0.1367
Lion 225 238.5 55.7 294.2 30/3.18 7/3.18 9.54 22.26 657 438 1095 100.6 0.1212
Bear 250 264 61.6 325.6 30/3.35 7/3.35 10.05 23.45 728 485 1213 111.1 0.109
Goat 300 324.3 75.7 400 30/3.71 7/3.71 11.13 25.79 894 595 1489 135.7 0.0891
Sheep 350 374.1 87.3 461.4 30/3.99 7/3.99 11.97 27.93 1031 687 1718 155.9 0.077
Antilope 350 373.1 48.4 421.5 54/2.97 7/2.97 8.91 26.73 1040 371 1411 118.2 0.0772
Bizon 350 381.8 49.5 431.3 54/3.00 7/3.00 9 27 1064 380 1444 120.9 0.7573
Zebra 400 428.9 55.6 484.5 54/3.18 7/3.18 9.54 28.62 1185 436 1621 131.9 0.0674
ACSR conductor-IEC 61089 Standard
ACSR conductor-IEC 61089
Code Nominal Area Stranding Overall Diameter Weight Breakign Load Electrical Resistance @20o Current Rating*
AL Steel Total AL Steel
mm^2 mm^2 mm^2 No.xmm No.xmm mm Kg/Km KN Ω/Km A
16 16 2.67 18.7 6/1.84 1/1.84 5.52 64.6 6.08 1.7934 85
25 25 4.17 29.2 6/2.30 1/2.30 6.9 100.9 9.13 1.1478 112
40 40 6.67 46.7 6/2.91 1/2.91 8.73 161.5 14.4 0.7174 150
63 63 10.5 73.5 6/3.66 1/3.66 10.98 254.4 21.63 0.4555 198
100 100 16.7 117 6/4.61 1/4.61 13.83 403.8 34.33 0.2869 263
125 125 6.94 132 18/2.97 1/2.97 14.85 397.9 29.17 0.2304 299
125 125 20.4 145 26/2.47 7/1.92 15.64 503.9 45.69 0.231 302
160 160 8.89 169 18/3.36 1/3.36 16.8 509.3 36.18 0.18 347
160 160 26.1 186 26/2.80 7/2.18 17.74 644.9 57.69 0.1805 351
200 200 11.1 211 18/3.76 1/3.76 18.8 636.7 44.22 0.144 398
200 200 32.6 233 26/3.13 7/2.43 19.81 806.2 70.13 0.1444 402
250 250 24.6 275 22/3.80 7/2.11 21.53 880.6 68.72 0.1154 458
250 250 40.7 291 26/3.50 7/2.72 22.16 1007.7 87.67 0.1155 461
315 315 21.8 337 45/2.99 7/1.99 23.91 1039.6 79.03 0.0917 526
315 315 51.3 366 26/3.93 7/3.05 24.87 1269.7 106.83 0.0917 530
400 400 27.7 428 45/3.36 7/2.24 26.88 1320.1 98.36 0.0722 607
400 400 51.9 452 54/3.07 7/3.07 27.63 1510.3 123.04 0.0723 610
450 450 31.1 481 45/3.57 7/2.38 28.56 1485.2 107.47 0.0642 651
450 450 58.3 508 54/3.26 7/3.26 29.34 1699.1 138.42 0.0643 655
500 500 34.6 535 45/3.76 7/2.51 30.09 1650.2 119.41 0.0578 693
500 500 64.8 565 54/3.43 7/3.43 30.87 1887.9 153.8 0.0578 697
560 560 38.7 599 45/3.98 7/2.65 31.83 1848.2 133.74 0.0516 741
560* 560 70.9 631 54/3.63 19/2.18 32.68 2103.4 172.59 0.0516 745
630 630 43.6 674 45/4.22 7/2.81 33.75 2079.2 150.45 0.0459 794
630* 630 79.8 710 54/3.85 19/2.31 34.65 2366.3 191.77 0.0459 798
710 710 49.1 759 45/4.48 7/2.99 35.85 2343.2 169.56 0.0407 851
710* 710 89.9 800 54/4.09 19/2.45 36.79 2666.8 216.12 0.0407 856
800* 800 34.6 835 72/3.76 7/2.51 37.61 2480.2 167.41 0.0361 910
800* 800 66.7 867 84/3.48 7/3.48 38.28 2732.7 205.33 0.0362 912
800* 800 101 901 54/4.34 19/2.61 39.09 3004.9 243.52 0.0362 916
900* 900 38.9 939 72/3.99 7/2.66 39.9 2790.2 188.33 0.0321 972
900* 900 75 975 84/3.69 7/3.69 40.59 3074.2 226.5 0.0322 974
1000* 1000 43.2 1043 72/4.21 7/2.80 42.08 3100.3 209.26 0.0289 1031
1120* 1120 47.3 1167 72/4.45 19/1.78 44.5 3464.9 234.53 0.0258 1096
1120* 1120 91.2 1211 84/4.12 19/2.47 45.31 3811.5 283.17 0.0258 1100
1250* 1250 102 1352 84/4.35 19/2.61 47.85 4253.9 316.04 0.0232 1165
1250* 1250 52.8 1303 72/4.70 19/1.88 47 3867.1 261.75 0.0231 1163
ACSR Condutor Parameter-Canadian Standards
ACSR Condutor-Canadian Standards
Code name Total Area Stranding and diameter Approximate overall diameter Linear mass Rated tensile strength Maximum D.C. Resistance at 20℃ Ω/km Cuttent Rating
Aluminum Steel Total Aluminum Steel Aluminum Steel Total.
mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km daN A
wren 8.88 1.11 10.1010 6/1.33 1/1.33 4.44 23.23) 11.11 34.34 308 3.33333 63
Warbler 11.1111 1.11 12.1212 6/1.5 1/1.50 4.44 29.29) 14.14 43.43 420 3.33333 67
Turkey 13.1313 2.22 15.1515 6/1.68 1/1.68 5.55 37.37) 17.17 54.54 524 2.22222 78
Swan 21.2121 4.44 25.2525 6/2.12 1/2.12 6.66 58.58) 27.27 85.85 832 1.11111 105
Swante 21.2121 5.55 26.2626 7/1.96 1/2.61 7.77 58.58) 42.42 100.100 1053 1.11111 104
Swallow 27.2727 4.44 31.3131 6/2.38 1/2.38 7.77 73.73) 35.35 108.108 1021 1.11111 126
Sparrow 34.3434 6.66 39.3939 6/2.67 1/2.67 8.88 92.92) 44.44 136.136 1270 1.11111 139
Sparate 34.3434 9.99 42.4242 7/2.47 1/3.30 8.88 92.92) 67.67 159.159 1611 1.11111 138
Robin 42.4242 7.77 49.4949 6/3.00 1/3.00 9.99 116.116) 55.55 171.171 1585 1.11111 160
Raven 53.5353 9.99 62.6262 6/3.37 1/3.37 10.1010 147.147) 69.69 216.216 1932 1.11111 183
Quail 67.6767 11.1111 79.7979 6/3.78 1/3.78 11.1111 185.185) 88.88 273.273 2362 0.00000 210
Pigeon 85.8585 14.1414 99.9999 6/4.25 1/4.25 13.1313 233.233) 110.110 343.343 2941 0.00000 241
Penguin 107.107107 18.1818 125.125125 6/4.77 1/4.77 14.1414 294.294) 139.139 433.433 3706 0.00000 276
Waxwing 135.135135 7.77 143.143143 18/3.09 1/3.09 15.1515 373.373) 58.58 431.431 3027 0.00000 319
Partridge 135.135135 22.2222 157.157157 26/2.57 7/2.00 16.1616 374.374) 172.172 546.546 5029 0.00000 323
Ostrich 152.152152 25.2525 177.177177 26/2.73 7/2.12 17.1717 421.421) 193.193 614.614 5652 0.00000 346
Merlin 170.170170 9.99 180.180180 18/3.47 1/3.47 17.1717 470.470) 74.74 544.544 3823 0.00000 364
Linnet 170.170170 28.2828 198.198198 26/2.89 7/2.25 18.1818 472.472) 217.217 689.689 6271 0.00000 371
Oriole 170.170170 40.4040 210.210210 30/2.69 7/2.69 19.1919 473.473) 311.311 784.784 7745 0.00000 372
Chickadee 201.201201 11. 16 213.213213 18/3.77 1/3.77 19.1919 555.555) 87.87 642.642 4399 0.00000 403
Brant 201.201201 26.2626 228.228228 24/3.27 7/2.18 20.2020 558.558) 204.204 762.762 6469 0.00000 405
Ibis 201.201201 33.3333 234.234234 26/3.14 7/2.44 20.2020 558.558) 256.256 814.814 7211 0.00000 403
Lark 201.201201 47.4747 248.248248 30/2.92 7/2.92 20.2020 560.560) 367.367 927.927 8869 0.00000 410
Pelican 242.242242 13.1313 255.255255 18/4.12 1/4.14 21.2121 666.666) 105.105 771.771 5216 0.00000 449
Flicker 242.242242 31.3131 273.273273 24/3.58 7/2.39 21.2121 670.670) 245.245 915.915 7666 0.00000 454
Hawk 242.242242 39.3939 281.281281 26/3.44 7/2.67 22.2222 670.670) 308.308 978.978 8665 0.00000 455
Hen 242.242242 56.5656 298.298298 30/3.20 7/3.20 22.2222 671.671) 441.441 1112.1112 10534 0.00000 457
Osprey 282.282282 16.1616 298.298298 18/4.47 1/4.47 22.2222 777.777) 122.122 899.899 6088 0.00000 492
Parakeet 282.282282 37.3737 319.319319 24/3.87 7/2.58 23.2323 781.781) 286.286 1067.1067 8822 0.00000 492
Dove 282.282282 46.4646 328.328328 26/3.72 7/2.89 24.2424 781.781) 359.359 1140.1140 10103 0.00000 499
Eagle 282.282282 66.6666 348.348348 30/3.46 7/3.46 24.2424 783.783) 515.515 1298.1298 13392 0.00000 500
Peacock 307.307307 40.4040 346.346346 24/4.03 7/2.69 24.2424 849.849) 311.311 1160.1160 9588 0.00000 522
Squab 307.307307 50.5050 357.357357 26/3.87 7/3.01 25.2525 850.850) 390.390 1240.1240 10841 0.00000 523
Wood duck 307.307307 72.7272 378.378378 30/3.16 7/3.61 25.2525 851.851) 560.560 1411.1411 12884 0.00000 523
Teal 307.307307 70.7070 376.376376 30/3.61 19/2.16 25.2525 851.851) 548.548 1399.1399 13359 0.00000 527
Kingbird 322.322322 18.1818 340.340340 18/4.78 1/4.78 24.2424 889.889) 139.139 1028.1028 6956 0.00000 530
Rook 322.322322 42.4242 364.364364 24/4.14 7/2.76 25.2525 893.893) 326.326 1219.1219 10083 0.00000 537
Grosbeak 322.322322 52.5252 375.375375 26/3.97 7/3.09 25.2525 893.893) 409.409 1302.1302 11180 0.00000 538
Scoter 322.322322 75.7575 394.394394 30/3.70 7/3.70 26.2626 895.895) 589.589 1484.1484 13544 0.00000 541
Egret 322.322322 74.7474 396.396396 30/3.70 19/2.22 26.2626 894.894) 576.576 1470.1470 14055 0.00000 542
Swift 322.322322 9.99 331.331331 36/3.38 1/3.38 24.2424 888.888) 70.70 958.958 6052 0.00000 542
Flamingo 338.338338 44.4444 382.382382 24/4.23 7/2.82 25.2525 936.936) 342.342 1278.1278 10566 0.00000 552
Gannet 338.338338 55.5555 393.393393 26/4.07 7/3.16 26.2626 936.936) 429.429 1365.1365 11733 0.00000 618
Stilt 363.363363 47.4747 410.410410 24/4.39 7/2.92 26.2626 1005.1005) 367.367 1372.1372 11335 0.00000 577
Starling 363.363363 59.5959 422.422422 26/4.21 7/3.28 27.2727 1005.1005) 461.461 1466.1466 12591 0.00000 578
Redwing 363.363363 83.8383 445.445445 30/3.92 19/2.35 27.2727 1006.1006) 647.647 1653.1653 15394 0.00000 581
Tern 403.403403 28.2828 431.431431 45/3.38 7/2.25 27.2727 1116.1116) 217.217 1333.1333 9737 0.00000 610
Condor 403.403403 52.5252 455.455455 54/3.08 7/3.08 28.2828 1116.1116) 408.408 1524.1524 12445 0.00000 614
Cuckoo 403.403403 52.5252 455.455455 24/4.62 7/3.08 28.2828) 1116.1116) 408.408 1522.1522 12394 0.00000 614
Drake 402.84 66.6666 468.468468 26/4.44 7/3.45 28.2828) 1116.1116) 518 1628 13992 0.07191 614
Coot 402.84 11.1111 414.414414 36/3.77 1/3.77 26.2626) 1110.1110) 88 1198 7485 0.07156 614
Mallard 403.403403 92.9292 485.485485 30/4.14 19/2.48 29.2929) 1119.1119) 719 1838 17118 0.07208 618
Ruddy 456.456456 32.3232 488.488488 45/3.59 7/2.40 29.2929) 1263.1263) 247 1510 10931 0.06351 656
Canary 456.456456 59.5959 515.515515 54/3.28 7/3.28 30.3030) 1263.1263) 461 1724 14095 0.06351 660
Rail 483.483483 33.3333 517.517517 45/3.70 7/2.47 30.3030) 1339.1339) 262 1601 11585 0.05992 679
Catbird 483.483483 13.1313 496. 84 36/4.14 1/4.14 29.2929) 1333.1333) 105 1438 8766 0.00000 679
Cardinal 483.483483 63.6363 546. 07 54/3.38 7/3.38 30.3030) 1339.1339) 490 1829 14936 0.00000 681
Ortolan 524.524524 36.3636 559. 87 45/3.85 7/2.57 31.3131) 1451.1451) 283 1734 12310 0.00000 712
Tanager 524.524524 15.1515 538.538538 36/4.30 1/4.30 30.3030) 1443.1443) 113 1556 9493 0.00000 710
Curlew 524.524524 68.6868 592.592592 54/3.52 7/3.52 32.3232) 1451.1451) 530 1981 16180 0.00000 715
Bluejay 564.564564 39.3939 603.603603 45/4.00 7/2.66 32.3232) 1563.1563) 385 1868 13263 0.00000 743
Finch. 564.564564 72.7272 635.635635 54/3.65 19/2.19 33.3333) 1570.1570) 580 2130 17441 0.00000 746
Bunting 604.604604 42.4242 646.646646 48/4.14 7/2.76 33.3333) 1674.1674) 327 2001 14179 0.00000 772
Grackle 604.604604 77.7777 681.681681 54/3.77 19/2.27 34.3434) 1682.1682) 600 2282 18678 0.00000 773
Bittern 645.645645 45.4545 689.689689 45/4.27 7/2.85 34.3434) 1785.1785) 349 2134 15148 0.00000 802
Pheasant 645.645645 82.8282 726.726726 54/3.90 19/2.34 35.3535) 1795.1795) 638 2433 19400 0.00000 807
Skylark 645.645645 18.1818 662.662662 36/4.78 1/4.78 33.3333) 1777.1777) 140 1917 11585 0.00000 810
Dipper 685.685685 47.4747 732.732732 45/4.40 7/2.92 35.3535) 1898.1898) 368 2266 16070 0.00000 831
Martin 685.685685 89.8989 772.772772 54/4.02 19/2.41 36.3636) 1906.1906) 679 2585 20605 0.00000 835
Bobolink 725.725725 50.5050 775.775775 45/4.53 7/3.02 36.3636) 2009.2009) 393 2402 17071 0.00000 859
Plover 725.725725 92.9292 817.817817 54/4.14 19/2.48 37.3737) 2019.2019) 719 2738 21824 0.00000 862
Nuthatch 765.765765 53.5353 818.818818 45/4.65 7/3.10 37.3737) 2120.2120) 414 2534 17789 0.00000 886
Parrot 765.765765 97.9797 862.862862 54/4.25 19/2.55 38.3838) 2131.2131) 759 2890 23020 0.00000 890
Lapwing 806.806806 55.5555 861.861861 45/4.77 7/3.18 38.3838) 2232.2232) 435 2667 18702 0.00000 911
Falcon 806.806806 102.102102 908.908908 54/4.36 19/2.62 39.3939) 2243.2243) 799 3042 24255 0.00000 917
Chukar 903.903903 74.7474 903.903903 84/3.70 19/2.22 41.4141) 2511.2511) 575 3086 22685 0.00000 975
BlueBird 1092.10921092 89.8989 1092.10921092 84/4.07 19/2.44 45.4545) 3036.3036) 697 3733 26830 0.00000 1180
Kiwi 1100.11001100 48.4848 1099.10991099 72/4.41 7/2.94 44.4444) 3057.3057) 370 3427 22160 0.00000 1180
Thrasher 1171.11711171 65.6565 1171.11711171 76/4.43 19/2.09 46.4646) 3256.3256) 511 3767 25300 0.00000 1200
Grouse 41.4141 14.1414 55.5555 8/2.54 1/4.24 9.99) 112.112) 110 222 2360 1.11111 155
Petrel 52.5252 30.3030 82.8282 12/2.34 7/2.34 12.1212) 143.143) 235 378 4715 1.11111 187
Minorca 56.5656 33.3333 89.8989 12/2.44 7/2.44 12.1212) 156.156) 256 412 5125 1.11111 197
Leghorn 68.6868 40.4040 108.108108 12/2.69 7/2.69 13.1313) 189.189) 311 500 6170 0.00000 221
Guinea 81.8181 47.4747 128.128128 12/2.92 7/2.92 15.1515) 223.223) 367 590 7255 0.00000 244
Dotterel 89.8989 52.5252 142.142142 12/3.08 7/3.08 15.1515) 248.248) 409 657 7850 0.00000 260
Dorking 97.9797 56.5656 153.153153 12/3.20 7/3.20 16.1616) 268.268) 441 709 8480 0.00000 272
Brahma 103.103103 92.9292 195.195195 16/2.86 19/2.48 18.1818) 285.285) 722 1007 12880 0.00000 288
Auk 103.103103 92.9292 195.195195 8/4.05 7/2.25 15.1515) 283.283) 217.3 500 8740 0.00000 276
Cochin 107.107107 62.6262 170.170170 12/3.37 7/3.37 17.1717) 297.297) 488 765 9390 0.00000 287
ACSR Conductor Parameter- DIN 48204 Standard
ACSR Technical characteristics / DIN 48204
Area Standing and wire diameter Overall diameter Nominal breaking load Maximum resistance at 20°C Current Rating
Nominal. Actual Total.
Al/Steel– Al Steel Total Aluminum Steel
mm2 mm2 mm2 mm mm mm kg/km daN Ω/km A
16/2.5 15.1515 2.22 18.1818 6/1.80 1/1.80 5.55 62 595 2.22222 105
25/4.0 24.2424 4.44 28.2828 6/2.25 1/2.5 7.77 97 920 1.11111 140
35/6.0 34.3434 6.66 40.4040 6/2.70 1/2.70 8.88 140 1265 1.11111 170
44/32.0 44.4444 32.3232 76.7676 14/2.00 7/2.40 11.1111 372 4500 1.11111 220
50/8.0 48.4848 8.88 56.5656 6/3.20 1/3.20 10.1010 196 1710 1.11111 210
50/30 51.5151 30.3030 81.8181 12/2.33 7/2.33 12.1212 378 4380 1.11111 223
70/12 70.7070 11.1111 81.8181 26/1.85 7/1.44 12.1212 284 2680 0.00000 290
95/15 94.9494 15.1515 110.110110 26/2.15 7/1.67 14.1414 383 3575 0.00000 350
95/55 96.9696 56.5656 153.153153 12/3.20 7/3.20 16.1616 712 7935 0.00000 352
105/75 106.106106 76.7676 182.182182 14/3.10 9/2.25 18.1818 891 10845 0.00000 385
120/20 121.121121 20.2020 141.141141 26/2.44 7/1.90 16.1616 494 4565 0.00000 410
120/70 122.122122 71.7171 193.193193 12/3.60 7/3.60 18.1818 90 10000 0.00000 410
125/30 128.128128 30.3030 158.158158 30/2.33 7/2.33 16.1616 591 5760 0.00000 425
150/25 149.149149 24.2424 173.173173 26/2.70 7/2.10 17.1717 605 5525 0.00000 470
170/40 172.172172 40.4040 212.212212 30/2.70 7/2.70 19.1919 794 7675 0.00000 520
185/30 184.184184 30.3030 214.214214 26/3.00 7/2.33 19.1919 746 6620 0.00000 535
210/35 209.209209 34.3434 243.243243 26/3.20 7/2.49 20.2020 850 7490 0.00000 590
210/50 212.212212 50.5050 262.262262 30/3.00 7/3.00 21.2121 981 9390 0.00000 610
230/30 231.231231 30.3030 261.261261 24/3.50 7/2.33 21.2121 877 7310 0.00000 630
240/40 243.243243 40.4040 282.282282 26/3.45 7/2.68 22.2222 987 8640 0.00000 645
265/35 264.264264 34.3434 298.298298 24/3.74 7/2.49 22.2222 1002 8305 0.00000 680
300/50 304.304304 50.5050 354.354354 26/3.86 7/3.00 24.2424 1236 10700 0.00000 740
305/40 305.305305 40.4040 344.344344 54/2.68 7/2.68 24.2424 1160 9940 0.00000 740
340/30 339.339339 30.3030 369.369369 48/3.00 7/2.33 25.2525 1180 9290 0.00000 790
380/50 382.382382 50.5050 432.432432 54/3.00 7/3.00 27.2727 1453 12310 0.00000 840
385/35 386.386386 34.3434 420.420420 48/3.20 7/2.49 27.2727 1344 10480 0.00000 850
435/55 434.434434 59.5959 491.491491 54/3.20 7/3.20 29.2929 1653 13645 0.00000 900
450/40 449.449449 40.4040 488.488488 48/3.45 7/2.68 29.2929 1561 12075 0.00000 920
490/65 490.490490 64.6464 554.554554 54/3.40 7/3.40 31.3131 1866 15310 0.00000 960
495/35 494.494494 34.3434 528.528528 45/3.74 7/2.49 30.3030 1646 12180 0.00000 968
510/45 510.510510 45.4545 556.556556 48/3.68 7/2.87 31.3131 1778 13665 0.00000 980
550/70 550.550550 71.7171 621.621621 54/3.60 7/3.60 32.3232 2092 17060 0.00000 1020
560/50 562.562562 50.5050 611.611611 48/3.86 7/3.00 32.3232 1954 14895 0.00000 1040
570/40 566.566566 40.4040 610.610610 45/4.00 7/2.68 32.3232 1888 13900 0.00000 1040
650/45 698.698698 45.4545 653.653653 45/4.30 7/2.87 34.3434 2163 15552 0.00000 1280
680/85 679.679679 86.8686 765.765765 54/4.00 19/2.40 36.3636 2570 21040 0.00000 1150
1045/45 1046.10461046 45.4545 1091.10911091 72/4.30 7/2.87 43.4343 3249 21787 0.00000 1570
ACSR Conductor- GB1179-83 Standard
ACSR Technical characteristics GB1179-83 Standard
Nominal Area Aluminum/Steel mm2 Stranding No./Dia. No./mm Calculated Area mm2 Overall Diameter mm D.C. Resistance Ω/km Calculated Breaking Load N Calculated Weight kg/km Continuous Carrying Capacity(A)
Aluminum Steel Aluminum Steel Total 70 ℃ 80 ℃ 90 ℃
10/2 6/1.50 1/1.50 11.1111 2.22 12.1212 4.44 3.33333 4120 43.43 66 78 87
16/3 6/1.85 1/1.85 16.1616 3.33 19.1919 6.66 2.22222 6130 65.65 85 100 113
25/4 6/2.32 1/2.32 25.2525 4.44 30.3030 7.77 1.11111 9290 103.103 111 131 149
35/6 6/2.72 1/2.72 35.3535 6.66 41.4141 8.88 1.11111 12630 141.141 134 158 180
50/8 6/3.20 1/3. 20 48.4848 8.88 56.5656 10.1010 1.11111 16870 195.195 161 191 218
50/30 12/2.32 7/2.32 51.5151 30.3030 80.8080 12.1212 1.11111 42620 372.372 166 195 218
70/10 6/3.80 1/3.80 68.6868 11.1111 79.7979 11.1111 0.00000 23390 275.275 194 232 266
70/40 12/2.72 7/2.72 70.7070 41.4141 110.110110 14.1414 0.00000 58300 511.511 196 230 257
95/15 26/2.15 7/1.67 94.9494 15.1515 110.110110 14.1414 0.00000 35000 381.381 252 306 351
95/20 7/4.16 7/1.85 95.9595 19.1919 114.114114 14.1414 0.00000 37200 409.409 253 277 319
95/55 12/3.20 7/3.20 97.9797 56.5656 153.153153 16.1616 0.00000 78110 708.708 250 270 301
120/7 18/2.90 1/2.90 119.119119 7.77 126.126126 14.1414 0.00000 27570 379.379 287 350 401
120/20 26/2.38 7/1.85 116.116116 19.1919 134.134134 15.1515 0.00000 41000 467.467 285 348 399
120/25 7/4.72 7/2.10 122.122122 24.2424 150.150150 16.1616 0.00000 47880 527.527 265 315 385
120/70 12/3.60 7/3.60 122.122122 71.7171 193.193193 18.1818 0.00000 98370 896.896 258 301 335
150/8 18/3.20 1/3.20 145.145145 8.88 153.153153 16.1616 0.00000 32860 461.461 323 395 454
150/20 24/2.78 7/1.85 146.146146 19.1919 164.164164 17.1717 0.00000 46630 549.549 326 400 461
150/25 26/2.70 7/2.10 149.149149 24.2424 173.173173 17.1717 0.00000 54110 601.601 331 407 469
150/35 30/2.50 7/2.50 147.147147 34.3434 182.182182 18.1818 0.00000 65020 676.676 331 407 469
18/10 18/3.60 1/3.60 183.183183 10.1010 193.193193 18.1818 0.00000 40880 584.584 372 458 528
185/25 24/3.15 7/2.10 187.187187 24.2424 211.211211 19.1919 0.00000 59420 706.706 379 468 540
185/30 26/2.98 7/2.32 181.181181 30.3030 211.211211 19.1919 0.00000 64320 733.733 373 480 531
185/45 30/2.80 7/2.80 185.185185 43.4343 228.228228 20.2020 0.00000 80190 848.848 379 489 541
210/10 18/3.80 1/3.80 204.204204 11.1111 215.215215 19.1919 0.00000 45140 651.651 397 490 565
210/25 24/3.33 7/2.22 209.209209 27.2727 236.236236 20.2020 0.00000 65990 789.789 405 501 579
210/35 26/3.22 7/2.50 212.212212 34.3434 246.246246 20.2020 0.00000 74250 854.854 409 507 586
210/50 30/2 98 7/2.98 209.209209 49.4949 258.258258 21.2121 0.00000 90830 961.961 409 507 586
240/30 24/3.60 7/2.40 244.244244 32.3232 276.276276 22.2222 0.00000 75620 922.922 445 552 639
240/40 26/3.42 7/2.66 239.239239 39.3939 278.278278 22.2222 0.00000 83370 964.964 440 546 633
240/55 30/3.20 7/3.20 241.241241 56.5656 298.298298 22.2222 0.00000 102100 1108.1108 445 554 641
300/15 42/3.00 7/1.67 297.297297 15.1515 312.312312 23.2323 0.00000 68060 940.940 495 615 711
300/20 45/2.93 7/1.95 303.303303 21.2121 324.324324 23.2323 0.00000 75650 1002.1002 502 624 722
300/25 48/2.85 7/2.22 306.306306 27.2727 333.333333 24.2424 0.00000 83410 1058.1058 505 628 726
300/40 24/3.99 7/2.66 300.300300 39.3939 339.339339 24.2424 0.00000 92220 1133.1133 503 628 728
300/50 26/3.83 7/2.98 300.300300 49.4949 348.348348 24.2424 0.00000 103400 1210.1210 504 629 730
300/70 30/3.60 7/3.60 305.305305 71.7171 377.377377 25.2525 0.00000 128000 1402.1402 512 641 745
400/20 42/3.51 7/1.95 406.406406 21.2121 427.427427 27.2727 0.00000 88850 1286.1286 595 746 884
400/25 45/3.33 7/2.22 392.392392 27.2727 419.419419 27.2727 0.00000 95940 1295.1295 584 730 845
400/35 48/3.22 7/2.50 391.391391 34.3434 425.425425 27.2727 0.00000 103900 1349.1349 583 729 844
400/50 54/3.07 7/3.07 400.400400 52.5252 452.452452 28.2828 0.00000 123400 1511.1511 592 741 857
400/65 26/4.42 7/3.44 399.399399 65.6565 464.464464 28.2828 0.00000 135200 1611.1611 597 752 876
400/95 30/4.16 19/2.50 408.408408 93.9393 501.501501 29.2929 0.00000 171300 1860.1860 608 767 895
500/35 45/3.75 7/2.50 497.497497 34.3434 531.531531 30.3030 0.00000 119500 1642.1642 670 842 977
500/45 48/3.60 7/2.80 489.489489 43.4343 532.532532 30.3030 0.00000 128100 1688.1688 664 834 967
500/65 54/3.44 7/3.44 502.502502 65.6565 567.567567 31.3131 0.00000 154000 1897.1897 667 850 983
630/45 45/4.2 7/2.80 623.623623 43.4343 667.667667 34.3434 0.00000 148700 2060.2060 763 964 1120
630/55 48/4.12 7/3.20 640.640640 56.5656 696.696696 34.3434 0.00000 164400 2209.2209 775 979 1136
630/80 54/3.87 19/2.32 635.635635 80.8080 716.716716 35.3535 0.00000 192900 2388.2388 774 977 1131
720/50 45/4.53 36.24 0.0249 170600 2397 830 1040 1220
800/55 45/4.80 7/3.20 814.814814 56.5656 871.871871 38.3838 0.00000 191500 2690.2690 887 1126 1310
800/70 48/4.63 7/3.60 808.808808 71.7171 879.879879 39.3939 0.00000 207000 2791.2791 884 1121 1301
800/100 54/4.33 19/2.60 795.795795 101.101101 896.896896 39.3939 0.00000 241100 2991.2991 878 1113 1288
1400/120 84/4.60 50.8 0.02072 355000 4781 1270 1580 1805
1400/135 88/4.50 51 0.02067 375300 4927 1272 1583 1808
ACSR Conductor- ASNZS 3607 Standard
ACSR/GZ – Aluminium conductors, galvanised steel reinforced AS/NZS 3607
Product Strand/wire Cross sectional area Nominal Approximate Calculated Calculated Coefficient
O.D. mass minimum  breaking load final modulus of elasticity of linear
mm kg/km kN GPa expansion
code Alum Steel Alum Steel Total /°C x 10-6
No/mm No/mm mm2 mm2 mm2
QUINCE 3/1.75 4/1.75 7.2 9.6 16.8 5.3 96 12.7 136 13.9
RAISIN 3/2.50 4/2.50 14.7 19.6 34.3 7.5 193 24.4 136 13.9
SUPER SULTANA 3/3.00 4/3.00 21.2 28.3 49.5 9 280 35 136 13.9
SULTANA 4/3.00 3/3.00 28.3 21.2 49.5 9 242 28.3 119 15.2
WALNUT 4/3.75 3/3.75 44.2 33.1 77.3 11.3 379 43.9 119 15.2
ALMOND 6/2.50 1/2.50 29.2 4.9 34.4 7.5 119 10.5 83 19.3
APRICOT 6/2.75 1/2.75 35.6 5.9 41.5 8.3 144 12.6 83 19.3
APPLE 6/3.00 1/3.00 42.4 7.1 49.5 9 171 14.9 83 19.3
BANANA 6/3.75 1/3.75 66.3 11 77.3 11.3 268 22.8 83 19.3
CHERRY 6/4.75 7/1.60 106 14.1 120 14.3 404 33.2 80 19.9
GRAPE 30/2.50 7/2.50 147 34.4 182 17.5 677 63.5 88 18.4
LEMON 30/3.00 7/3.00 212 49.5 262 21 973 90.4 88 18.4
LYCHEE 30/3.25 7/3.25 249 58.1 307 22.8 1140 105 88 18.4
LIME 30/3.50 7/3.50 289 67.3 356 24.5 1320 122 88 18.4
MANGO 54/3.00 7/3.00 382 49.5 431 27 1440 119 78 19.9
ORANGE 54/3.25 7/3.25 448 58.1 506 29.3 1690 137 78 19.9
OLIVE 54/3.50 7/3.50 519 67.3 587 31.5 1960 159 78 19.9
PAW PAW 54/3.75 19/2.25 596 75.5 672 33.8 2240 178 77 20
PEACH 54/4.75 19/2.85 957 121 1078 42.8 3600 284 77 20

    SEND US A MESSAGE

    If this page does not have the model you want, or if you need custom cable service, please contact us and we will be happy to assist you.
