WP (Weather Proof) Aluminum Cable
Covered aluminum conductors (AAC, ACSR, and AAAC-6201-T81) Aluminum conductor covered with polyethylene (PE) or cross-linked polyethylene (XLPE). Manufacturer in China.
Construction

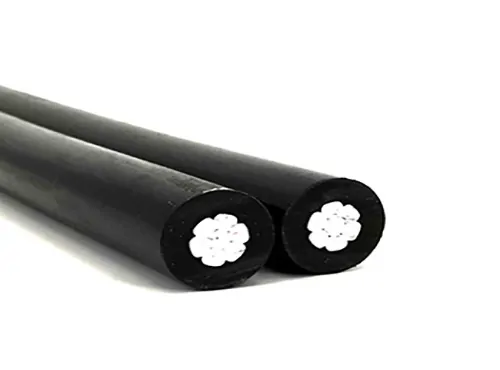

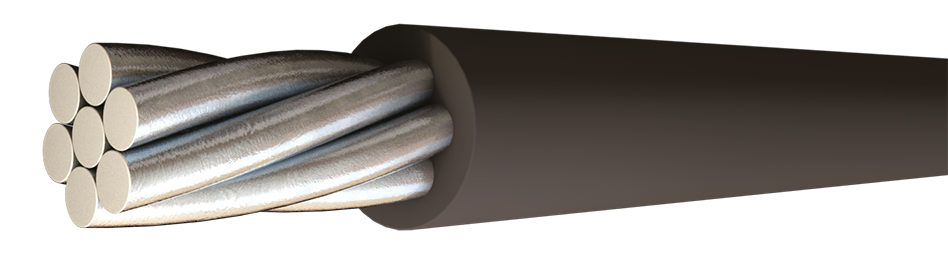

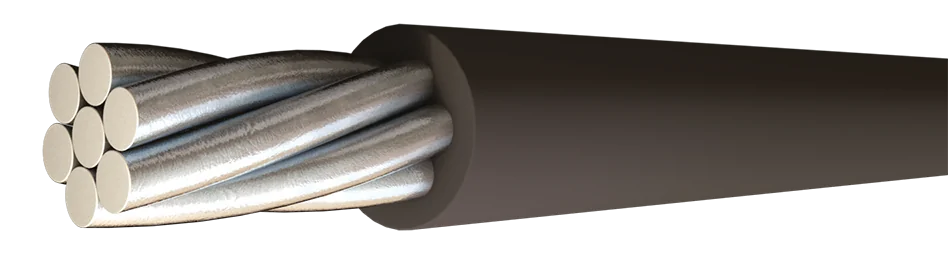

Coated aluminum conductors can be AAC, ACSR, or AAAC-6201-T81 types. These conductors are coated with a uniform layer of PE Carbon Black or XLPE, which can also be black, moisture-proof, heat-resistant, and weather resistant (sunlight, wind, etc.). Its packaging form is made into rolls of length according to customer requirements.
Application program
Coated aluminum conductors, can be solid or braided AA and A grades, used for transmission and distribution lines in primary and secondary networks; They are installed on insulators, just like bare conductors.
Specifications
- ASTM B230: 1350-H19 alloy aluminum wire for electrical purposes.
- ASTM B231: Concentric layer 1350-H19 type aluminum stranded wire.
- ASTM B232: ACSR steel reinforced aluminum stranded wire.
- ASTM B398: 6201-T81 aluminum alloy wire for electrical purposes.
- ASTM B399: 6201-T81 aluminum alloy braided conductor with concentric layers.
- ANSI/NEMA WC-70 ICEA S-70-547: Weather resistant conductor covered with polyethylene.
Parameter
| Code | Caliber (AWG o kcmil) | part Horizontal (mm) | No. Hilos | Diam. Conduc | Deck thickness (mm) | External diameter Appro. (mm) | Total weight (kg/km) | Breaking load (kgf) | Current capacity (A) |
| AAC | |||||||||
| Apple | 6 | 13,3 | 1 | 4,12 | 0,76 | 5,64 | 46,72 | 202 | 105 |
| Plum | 6 | 13,3 | 7 | 4,67 | 0,76 | 6,19 | 51,41 | 255 | 105 |
| Pear | 4 | 21,15 | 1 | 5,19 | 0,76 | 6,71 | 70,32 | 321 | 135 |
| Apricot | 4 | 21,15 | 7 | 5,88 | 0,76 | 7,40 | 77,33 | 399 | 140 |
| Cherry | 2 | 33,62 | 1 | 6,54 | 1,14 | 8,82 | 116,34 | 503 | 180 |
| Peach | 2 | 33,62 | 7 | 7,42 | 1,14 | 9,70 | 128,01 | 612 | 180 |
| Nectarine | 1 | 42,41 | 7 | 8,33 | 1,14 | 10,61 | 157,04 | 744 | 210 |
| Quince | 1/0 | 53,49 | 7 | 9,36 | 1,52 | 12,40 | 206,63 | 902 | 240 |
| Orange | 2/0 | 67,44 | 7 | 10,5 | 1,52 | 13,54 | 252,94 | 1138 | 280 |
| Fig | 3/0 | 85,02 | 7 | 11,80 | 1,52 | 14,84 | 310,72 | 1378 | 320 |
| Olive | 4/0 | 107,2 | 7 | 13,25 | 1,52 | 16,29 | 382,78 | 1737 | 370 |
| Pomegranate | 4/0 | 107,2 | 19 | 13,40 | 1,52 | 16,44 | 373,39 | 1823 | 370 |
| Mulberry | 266,8 | 135,2 | 19 | 15,05 | 1,52 | 18,09 | 460,88 | 2254 | 430 |
| Anona | 336,4 | 170,5 | 19 | 16,90 | 1,52 | 19,94 | 570,11 | 2789 | 495 |
| Molles | 397,5 | 201,4 | 19 | 18,37 | 2,03 | 22,43 | 698,04 | 3224 | 545 |
| Huckleberry | 477 | 241,7 | 37 | 20,19 | 2,03 | 24,25 | 814,83 | 3941 | 610 |
| Paw Paw | 556,5 | 282,0 | 37 | 21,81 | 2,03 | 25,87 | 938,24 | 4508 | 670 |
| Breadfruit | 636 | 322,3 | 61 | 23,35 | 2,41 | 28,17 | 1081,53 | 5300 | 720 |
| Persimmon | 795 | 402,8 | 61 | 26,10 | 2,41 | 30,92 | 1325,90 | 6497 | 825 |
| Grapefruit | 1033,5 | 523,7 | 61 | 29,75 | 2,41 | 34,57 | 1689,08 | 8028 | 970 |
| ACSR | |||||||||
| Walnut | 6 | 13,3 | 6/1 | 5,04 | 0,76 | 6,56 | 69,99 | 540 | 105 |
| Butternut | 4 | 21,15 | 6/1 | 6,36 | 0,76 | 7,88 | 106,66 | 843 | 135 |
| Pignut | 2 | 33,62 | 6/1 | 8,01 | 1,14 | 10,29 | 174,80 | 1292 | 180 |
| Chestnut | 1 | 42,41 | 6/1 | 9,00 | 1,14 | 11,28 | 215,87 | 1610 | 210 |
| Almond | 1/0 | 53,49 | 6/1 | 10,11 | 1,52 | 13,15 | 281,38 | 1986 | 235 |
| Pecan | 2/0 | 67,44 | 6/1 | 11,35 | 1,52 | 14,39 | 346,72 | 2404 | 270 |
| Filbert | 3/0 | 85,02 | 6/1 | 12,75 | 1,52 | 15,79 | 428,56 | 3002 | 305 |
| Buckeye | 4/0 | 107,2 | 6/1 | 14,31 | 1,52 | 17,35 | 530,57 | 3786 | 345 |
| Hackberry | 266,8 | 135,19 | 18/1 | 15,46 | 1,52 | 18,50 | 522,11 | 3120 | 435 |
| AAAC | |||||||||
| Hornbeam | 4 | 24,67 | 7 | 6,36 | 0,76 | 7,88 | 88,44 | 798 | 145 |
| Linden | 2 | 39,25 | 7 | 8,01 | 1,14 | 10,29 | 146,02 | 1270 | 190 |
| Oilnut | 1/0 | 62,47 | 7 | 10,11 | 1,52 | 13,15 | 235,57 | 1936 | 250 |
| Waterash | 2/0 | 78,74 | 7 | 11,35 | 1,52 | 14,39 | 288,97 | 2444 | 290 |
| Shellbark | 3/0 | 99,16 | 7 | 12,74 | 1,52 | 15,78 | 355,24 | 3079 | 335 |
| Planetree | 4/0 | 125,1 | 7 | 14,31 | 1,52 | 17,35 | 438,55 | 3882 | 385 |
