16-800mm2 SWA/SWT/ATA/AWA Armoured Cable
Professional cable & wire manufacturer from China, Meet your kinds of requirement cables(include: 0.6/1kv,,1/35kv power cable, ABC Cable, instrument cable, control cable, building wire, rubber cable, ). With over 30 years production experience and 15 years export experience, factory price without any third party.
The power cable size can be customized according to your requirement,on-time delivery.

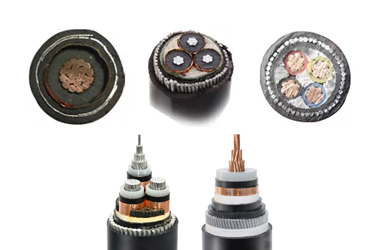

SWA/SWT, ATA /AWA ,GSWArmoured Power Cable
- Productor Feature
- Voltage: 0.6/1KV, 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/15KV, 18/30KV etc.
- Armoured: SWA/STA Armoured Or 1. Galvanized steel wires/steel tape ; 2. Stainless steel wire/Steel tape or Aluminium wire/tape)
- Insulation: PVC/LSF/Fire Resistant /XLPE (Cross-linked Polyethylene)
- Section Area: 1.5mm2-800mm2
- Packaging: Iron Or Wooden Drum
- Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on
Send More details by Email: info@hlcables.com

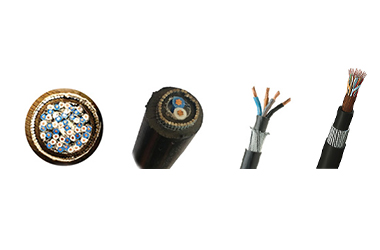

Armoured Instrument & Control Cable & Telephone Cable
- Product Feature
- Voltage: 300/500V
- Insulation: PE/PVC/XLPE
- Conductor: Copper/Tinned Copper
- Shield: Copper Wire Braid, Al-foil Individual and Overall Screen
- Inner Cover: PVC
- Paires: 1-48 Paires
- Armour: Steel Wire Armored/galvanized steel wire armoured
- Sheath: PVC / ZR-PVC / PE / LSZH
Send More details by Email: info@hlcables.com
Armored Fiber Optic/Armored Fiber Optic Submarine Cable

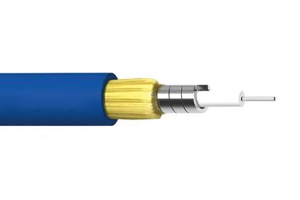

- Indoor Fiber Optic Armored Cable
- Model: GJSFJV, GJAFKV, GJASFKV, GJFJH53
- Type: singlemode/multimode
- Number of cores: 2-244
- Armor: stainless steel tube and steel wire
- Coating: fitted tube
- Deck: PVC/LSZH
- Indoor armored fiber optic cables are divided into armored single layer optical fiber cables and armored double layer optical fibers. The single layer of armor refers to the stainless steel braided wires. Armored double layer refers to stainless steel tube and stainless steel braided wires. indoor armored optical cable has high resistance to traction and compression and to rodents.

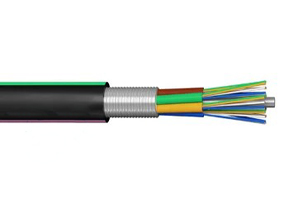

- Outdoor Armored Fiber Optic
- Model: GYTS, WITH, TOGETHER, GYTY53, GYTA53, GYFTA53
- Type: singlemode/multimode
- Number of cores: 2-244
- Armor: threaded armor, interlocking armor
- Coating: loose tube
- Deck: PVC/LSZH
- To avoid harsh environment or external damage, aerial and directly buried fiber optic cables outdoors are usually protected by metal armor. Outdoor fiber optic armored cables can be divided into light and heavy armored fiber. Light armor refers to steel or aluminum tape. Heavy armor refers to the addition of steel wire on the outside of the light type. outdoor fiber optics are protected from environmental damage, it is easy to build and saves maintenance costs.

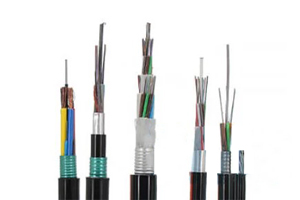

- Armored Fiber Optic Submarine Cable
- Type: monomodo
- Number of cores: 12/24/36/48/72…
- Armor: copper or aluminum tube and steel wire
- Deck: PE
- In the case of submarine cables, the armor layer varies depending on the depth of the seawater. The reinforced layer of deep-sea optical fibers must be resistant to damage and tears caused by marine animals. Submarine armored cables used close to shore must be able to prevent tugboats from damaging the cables. offers a wide range of armed submarine optical fibers that adapt to the needs of customers.
