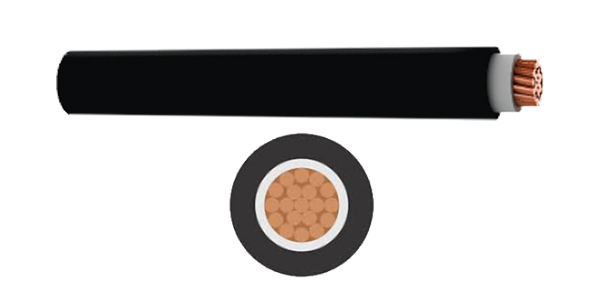

AYY / YY – 1 Core
| Cable Construction: |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 1 cores AL / CU conductor, PVC insulated, unarmoured cables as per IS 1554 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl.1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl.1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm & above stranded round or stranded compact Cl. 2 as per IS 8130 |
| Insulation : PVC Type – A, as per IS 5831. (Option : HR PVC Type – C, as per IS 5831) |
| Core Color : Red or yellow or blue or black or natural |
| Outer Sheath : PVC Type ST-1 as per IS 5831. (Option : PVC Type – ST 2 as per IS 5831 / FR Type / FRLS Type ) |
| Cable Color : Black (Options : Any other color as per requirement) |
AYY / YY – 2 Core
| Cable Construction |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 2 cores AL / CU conductor, PVC insulated, unarmoured cables as per IS 1554 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded round or compact round or Compact shape conductor Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded round Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded round or stranded compact conductor Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded round Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded round or stranded compact conductor Cl. 2 as per IS 8130 |
| Above 10 Sq. mm conductor are stranded round or compact round or compacted shaped Cl. 2 as per IS 8130 |
| Insulation : PVC Type – A, as per IS 5831.(Option : HR PVC Type – C, as per IS 5831) |
| Core Color : Red, black |
| Inner Sheath : PVC / PVC tape as per IS 1554 (P – 1) |
| Outer Sheath : PVC Type ST – 1 as per IS 5831 (Option : PVC Type – ST – 2 as per IS 5831 / FR Type / FRLS Type) |
| Cable Color : Black (Options : Any other color as per requirement) |
AYY / YY – 3 Core
| Cable Construction |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 3 cores AL / CU conductor, PVC insulated, unarmoured cables as per IS 1554 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2 round as per IS 8130. Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130 |
| Above 10 Sq. mm conductor are stranded round or compact round or compacted shaped Cl. 2 as per IS 8130 |
| Insulation : PVC Type – A, as per IS 5831.(Option : HR PVC Type – C, as per IS 5831) |
| Core Color : Red, yellow, blue |
| Inner Sheath : PVC / PVC tape as per IS 1554 (P – 1) |
| Outer Sheath : PVC Type ST – 1 as per IS 5831 (Option : PVC Type – ST – 2 as per IS 5831, FR Type / FRLS Type) |
| Cable Color : Black (Options : Any other color as per requirement) |
AYY / YY – 3.5 Core
| Cable Construction |
| 1.1 kV (A.C) & 1.5 kV (D.C ) to Earth |
| 4 cores AL / CU conductor, PVC insulated, unarmoured cables as per IS 1554 Part – 1. |
| Conductor : AL up to 10 Sq. mm conductor are solid Cl. 1 as per IS 8130. And above 10 Sq. mm conductor are stranded compacted shape Cl. 2 as per IS 8130 |
| In CU 4 & 6 Sq. mm conductor are solid Cl. 1 or stranded Cl. 2 as per IS 8130. 10 Sq. mm conductor is stranded Cl. 2 round as per IS 8130. Above 10 Sq. mm conductor are stranded compacted shaped Cl. 2 as per IS 8130 |
| Insulation : PVC Type – A, as per IS 5831. (Option : HR PVC Type – C, as per IS 5831) |
| Core Color : Red, yellow, blue, black |
| Inner Sheath : PVC/PVC tape as per IS 1554 (P-1) |
| Outer Sheath : PVC Type ST – 1 as per IS 5831 (Option : PVC Type – ST – 2 as per IS 5831, FR Type / FRLS Type) |
| Cable Color : Black (Options : Any other color as per requirement) |
