NF C 33-226 Cables/FR-N20XA8E & FR-N30XA8E -R/AR, Al/XLPE/HDPE Hta Cis Direct Burial Aluminum Power and HTA ABC Cable
Application and Design
These power cables are the new generation of cables forpublic medium voltage distribution–HTA. Used for direct installation on the ground, water, outdoors, indoors and in cable ducts.
The cable is made of 1 or 3 bunched cores. Aluminium screen is made to ground short-circuit currents of EdF network, up to 1000 A for 1 s for underground networks. They are AD7 following NF C 13-200 with a water pressure < 0,2 bar.

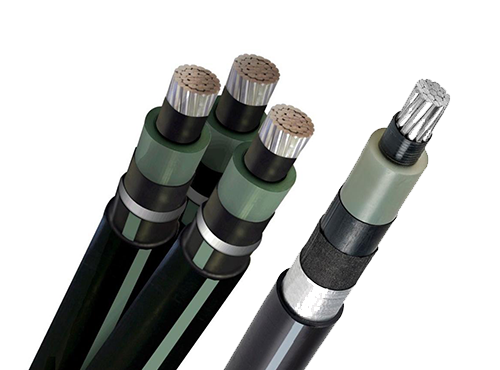

NFC 33-226 12/20 (24)kV and 19/33(36)kV TORSADE+EDR HDPE sheath HTA ABC Cable 1 core or 3 cores
- Construction
1 Conductor : Aluminum or copper, class 2,circular compacted conductors
2 Conductor screen: Non-metallic,semi-conducting compound
3 Insulation:Cross-linked polyethylene(XLPE)
4 Insulation screen:Non-metallic,semi-conducting compound,extruded strippable grooved elastomer
5 Longitudinal water tightness: Swelling powder
6 Metallic screen: Aluminium plastic tape (AL/PET)
7 Outer sheath: Polyethylene (PE) - Specification
IEC 60228 Conductors of insulated cables. - NFC 33-226 Insulated cables and their accessories for power networks Cables with rated voltages from 6/10(12) kV to 18/30(36) kV, insulated with fixed-gradient cross-linked polyethylene, for distribution networks.
- IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) – Part 2:Cables for rated voltages of 6kV(Um=7.2kV) and 30 kV(Um=36kV).
Send More Specification By Email: info@hlcables.com
| ALUMINIUM PRODUCTS | |||||
| conductor cores | Cross section [mm²] | Approx. weight [kg/km] | Max. DC Resist. Cond. 20°C [Ohm/km] | A.C. Conductor resist. at 90 °C – flat formation [Ohm/km] | Perm. current rating open |
| 1 | 150 | 1211 | 0.206 | 0.265 | 360 |
| 1 | 240 | 1550 | 0.125 | 0.161 | 490 |
| 1 | 240 | 1550 | 0.125 | 0.161 | 490 |
| 1 | 400 | 1211 | 0.0776 | 0.103 | 649 |
| 1 | 630 | 1550 | 0.0469 | 0.062 | 892 |
| 1 | 630 | 1550 | 0.0469 | 0.062 | 892 |
| 3 | 150 | 1211 | 0.206 | 0.265 | 360 |
| 3 | 240 | 1550 | 0.125 | 0.161 | 490 |
| 3 | 240 | 1550 | 0.125 | 0.161 | 490 |
| COPPER PRODUCTS | |||||
| conductor cores | Cross section [mm²] | Approx. weight [kg/km] | Max. DC Resist. Cond. 20°C [Ohm/km] | A.C. Conductor resist. at 90 °C – flat formation [Ohm/km] | Perm. current rating open |
| 1 | 70 | 1550 | 0.0469 | 0.062 | 892 |
| 1 | 95 | 1550 | 0.0469 | 0.062 | 892 |
| 1 | 185 | 1550 | 0.0469 | 0.062 | 892 |
| 1 | 185 | 1550 | 0.0469 | 0.062 | 892 |
| 1 | 24 | 1550 | 0.0469 | 0.062 | 892 |
| 3 | 95 | 1550 | 0.0469 | 0.062 | 892 |
