Crane Pendant Hoist Cable for Heavy Industry

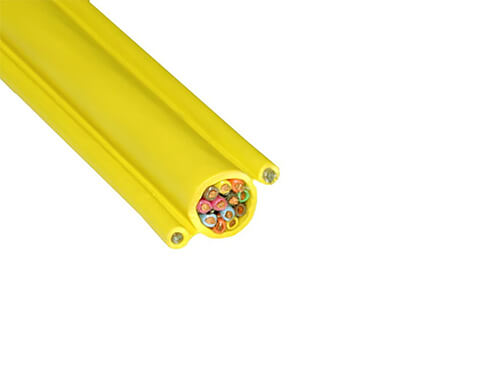

Dual External Strain Relief UL Pendant Cable / Type MTW / CSA AWM / 600V 105˚C / VW1 / FT1
- Construction:
- Flexible Stranded Bare Copper Conductors, PVC/Nylon Insulation, Color Coded Wires, Oil Resistant Yellow PVC Jacket. Two 1/16” (7×7) External Galvanized Steel Messengers
- Approvals:
- (UL) Pendant 600V 105°C; (UL)
- Type MTW; CSA AWM 600V 105°C
- Technical Details:
- Temperature:
- -40˚C to 105˚C (static)
- -10˚C to 70˚C (dynamic)
- AC Voltage Rating:
- 600V
- Color Code:
- Per ICEA Method 1, Table E-2 with one Green/Yellow ground conductor
| Conductor AWG | No. of Conductors | Conductor Stranding | Insulation Thickness Inch (mm) | Jacket Thickness Inch (mm) | Dimensions Inch (mm) | Cable Wt lbs/Mft (Kg/Km) |
| Flat Pendant With Dual Steel Messengers | ||||||
| 16 | 8 | 65/34 | 0.021 (0.53) | 0.053 (1.35) | 0.490 (12.45) | 216 (321) |
| 16 | 12 | 65/34 | 0.021 (0.53) | 0.063 (1.60) | 0.566 (14.38) | 260 (387) |
| 16 | 16 | 65/34 | 0.021 (0.53) | 0.063 (1.60) | 0.624 (15.85) | 315 (469) |
| 16 | 24 | 65/34 | 0.021 (0.53) | 0.080 (2.03) | 0.789 (20.04) | 475 (707) |
| Sample Print (Flat): Pendant Cable (UL) E98199 8/C 16 AWG 105C 600V or TYPE MTW VW-1 – – – CSA LL41103 AWM I/II A/B 105C 600V FT1 | ||||||

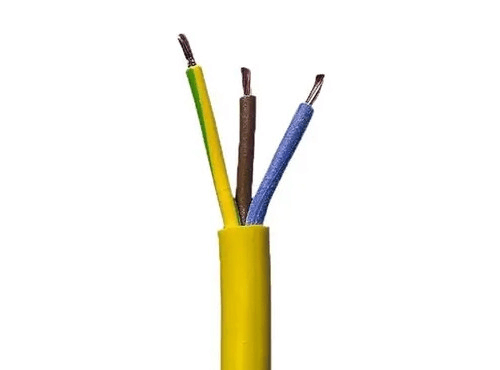

Steel Core Strain Relief UL Type STOOW Cable / CSA STOOW / 600V 105°C / FT1
- Construction:
- Flexible Stranded Bare Copper Conductors, PVC Insulation, Color Coded Wires, Oil Resistant Yellow PVC Jacket. A 1/16” (7×7) Internal Galvanized Steel Messenger.
- Approvals:
- (UL) STOOW 600V 105°C
- CSA STOOW 105°C; FT1
- Technical Details:
- Temperature:
- -40˚C to 105˚C (static)
- -10˚C to 70˚C (dynamic)
- AC Voltage Rating:
- 600V
- Color Code:
- Yellow, Blue, Brown, Red, Orange, White, and Purple
| Conductor AWG | No. of Conductors | Conductor Stranding | Insulation Thickness Inch (mm) | Jacket Thickness Inch (mm) | Dimensions Inch (mm) | Cable Wt lbs/Mft (Kg/Km) |
| STOOW | ||||||
| 16 | 3 | 65/34 | 0.032 (0.81) | 0.065 (1.65) | 0.514 (13.06) | 100 (149) |
| 16 | 5 | 65/34 | 0.032 (0.81) | 0.085 (2.16) | 0.554 (14.07) | 173 (257) |
| 16 | 7 | 65/34 | 0.032 (0.81) | 0.085 (2.16) | 0.592 (15.04) | 185 (275) |
| Sample Print: E82930 3/C 16 AWG (1.31MM2) (UL) TYPE STOOW 105C 600V – – – LL41103 CSA TYPE STOOW 105C 600V FT1 – Metal support member | ||||||
UL Type MTW /CSA AWM / 600V 105˚C / VW1 / FT1
- Construction:
- Flexible Stranded Bare Copper Conductors, PVC/Nylon Insulation, Color Coded Wires, Oil Resistant Yellow PVC Jacket.
- Approvals:
- (UL) Type MTW;
- CSA AWM 600V 105°C
- Technical Details:
- Temperature:
- -40˚C to 105˚C (static)
- -10˚C to 70˚C (dynamic)
- AC Voltage Rating:
- 600V
- Color Code:
- Per ICEA Method 1, Table E-2 with one Green/Yellow ground conductor
| Conductor AWG | No. of Conductors | Conductor Stranding | Insulation Thickness Inch (mm) | Jacket Thickness Inch (mm) | Dimensions Inch (mm) | Cable Wt lbs/Mft (Kg/Km) |

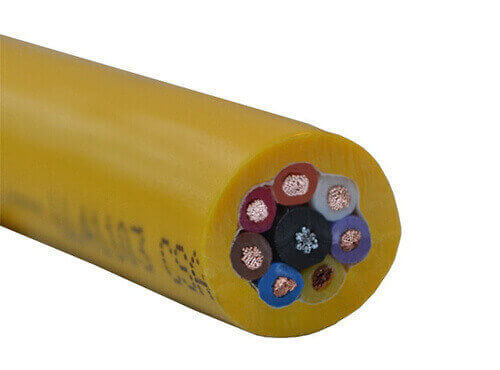

| Round Pendant – No Steel Messengers | ||||||
| 16 | 8 | 65/34 | 0.021 (0.53) | 0.048 (1.22) | 0.479 (12.17) | 158 (235) |
| 16 | 12 | 65/34 | 0.021 (0.53) | 0.063 (1.60) | 0.566 (14.38) | 218 (324) |
| 16 | 16 | 65/34 | 0.021 (0.53) | 0.063 (1.60) | 0.624 (15.85) | 276 (411) |
| 16 | 24 | 65/34 | 0.021 (0.53) | 0.063 (1.60) | 0.755 (19.18) | 410 (610) |
| Sample Print (Round): Pendant Cable (UL) E98199 8/C 16 AWG 600V TYPE MTW VW-1 – – – CSA LL41103 AWM I/II A/B 105C 600V FT1 | ||||||
