Gantry Crane Spreader Cable /Vertical Reeling Cable/Festoon Cable/Spreader Cable for Basket/Energy Chain Cable/(N)SHTOU-O/J PUR  (N)SHTOU-V Reeling Cable

crane cable

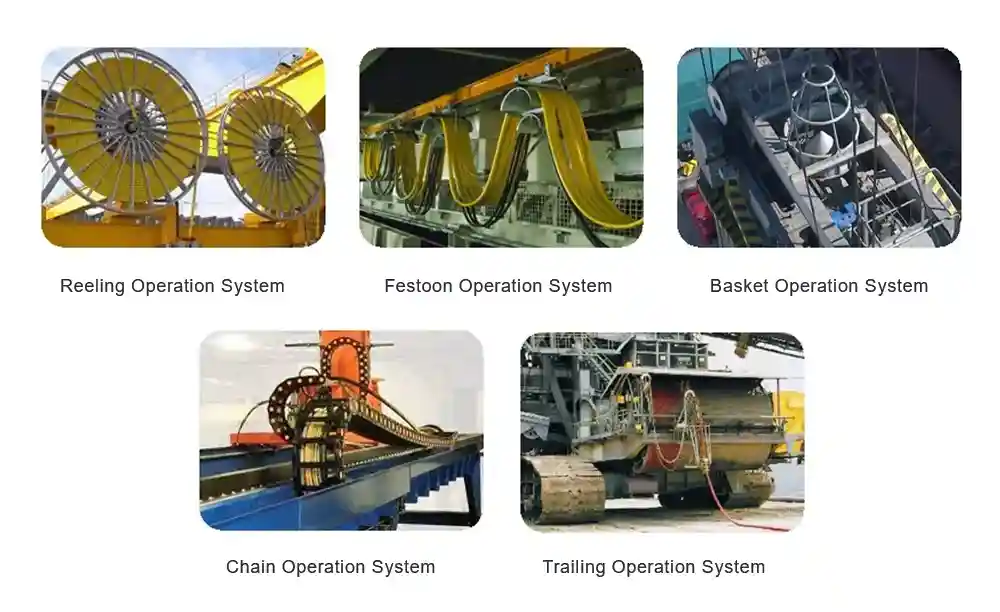

Huadong offers a variety of crane cables, including flexible reeling cables, festoon cables, basket cables and chain cables. They are sturdy, durable, and perform exceptionally well. For cranes and material handling equipment, heavy industry including mining and marine. Cables are typically covered with a robust rubber sheath to prevent constant reeling and movement, and to provide protection against oils and grease. They may also be provided with sheaths made of polyethylene (PUR) and PVC.

Flexible Reeling Cable

Low Voltage (N)SHTÖU Cable

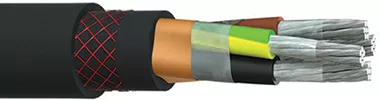

LV-Round-EPR-PUR-Reeling-Cable-NSHTOEU

  • Voltage Rating
  • 0.6/1kV
  • Conductor
  • Class 5 Flexible Tinned Copper
  • Insulation
  • Rubber compound
  • Inner Sheath
  • Rubber compound
  • Anti-Twisting Element
  • Polyester Braid
  • Outer Sheath
  • Rubber compound

Low Voltage (N)SHTÖU PUR Cable

LV-Round-EPR-PUR-Reeling-Cable-NSHTOEU

  • Voltage Rating
  • 0.6/1kV
  • Conductor
  • Class 5 Flexible Tinned Copper
  • Insulation
  • Rubber compound
  • Inner Sheath
  • Halogen free PUR (Polyurethane)
  • Anti-twisting Element
  • Polyester Braid
  • Outer Sheath
  • Halogen free PUR (Polyurethane)
6/10kV Flat Reeling Cable Parameter
cores x cross section Conductor diameter max. mm Min.Height mm Max.Height mm Min.Width mm Max.Width mm Bending radius free moving min. mm Weight (ca.) kg/km Permissible tensile force max. N
3×25+3×25/3E 6.9 25 27.5 66.7 69.7 413 2860 1125
3×35+3×25/3E 8.3 25.5 28.5 68.2 72.2 428 3260 1575
4×35+4×25/4E 8.3 25.5 28.5 86.7 91.7 428 4110 2100
3×50+3×25/3E 9.8 28.1 31.1 74.6 78.6 467 4030 2250
3×70+3×35/3E 11.4 29.7 32.7 79.2 83.2 491 4850 3150
4×70+4×35/4E 11.4 29.5 32.5 100.9 105.9 488 6240 4200
3×95+3×50/3E 13.3 31.7 34.7 84.7 89.7 521 5920 4275
3×120+3×70/3E 15.1 35.1 38.1 92.9 97.9 572 7420 5400
Construction Table
nshtou-j-fo-cable-cross-section
(N)SHTÖU-J + FO 0.6/1kV		 cs-n-shtou-o-j-pur-0-6-1kv-cable
NSHTÖU- O/J 0.6/1kV		 cs-n-shtou-o-j-pur-0-6-1kv-cable
(N)SHTOU-O/J PUR 0.6/1kV		 nshtou-cable-cs
(N)SHTOU-V Vertical Reeling		 nshtou-cable-cs
(N)SHTÖU-K 0.6/1kV		 nshtou-fo-lwl-cable-cs
(N)SHTOU-FO L~WL Reeling
VOLTAGE 0.6/1kV
SEPARATOR –
CONDUCTOR Class 5 Flexible Stranded Tinned or Bare Copper Class 5 Flexible Stranded Tinned Copper Class 5 tinned Copper Class 5 flexible stranded tinned Copper
CONDUCTOR SCREEN –
INSULATION Rubber Compound HEPR (Hard Ethylene Propylene Rubber)
INSULATION SCREEN –
INDIVIDUAL SCREEN –
EARTH CONDUCTOR Tinned Copper Conductor, Rubber Insulated –
FIBRE OPTIC MODULE A-D(ZN)13Y 6, 12, 18 or 24 fibres G50/125, G62,5/125 or E9/125 –
INNER SHEATH Rubber Compound Halogen Free PUR (Polyurethane) Rubber compound
BRAID Anti-Twist Polyester Anti-torsion textile braid embedded in sheath
OUTER SHEATH Rubber Halogen-Free PUR (Polyurethane) Rubber compound
OUTER SHEATH COLOUR Yellow –
OPTICAL FIBRES – 6, 12, 18 or 24 fibres laid up around a central support element

Rond Medium Voltage (N)TSKCGEWÖU Cable

NTSCGEWÖU cable

  • Voltage Rating
  • 3.6/30kV
  • Phase Conductor
  • Class 5 flexible stranded tinned copper
  • Insulation
  • Rubber compound
  • Semi-Conductive Layers
  • Semi-conductive tape over the conductor and inner and outer
    Semi-conductive rubber layer on the insulation
  • Earth Conductor
  • Class 5 tinned copper conductor
  • Central Filler
  • Semi-conductive compound on a textile polyester support
  • Inner Sheath
  • Rubber compound
  • Anti-Torsion Braid
  • Polyester
  • Outer Sheath
  • Rubber compound

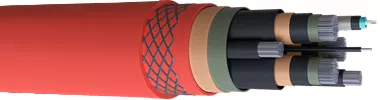

MV Round EPR/PCP Reeling Cable with Fiber Optic-TSKCGEWOEU

MV-Round-EPR-PCP-Reeling-Cable-with-Fiber-Optic-TSKCGEWOEU

  • Voltage: 3. 6/6kV, 6/10kV, 8. 7/15kV, 12/ 20 kV
  • Conductor: Plain copper, fine stranded class 5
  • Insulation: EPR
  • Electrical field control: Inner and outer layer of semi-conductive rubber compound
  • Optical Fiber: 12 fibers, 50/125µ or 62.5/125µ or E9/125µ, within protection jacket
  • Core arrangement: Cores layed up around conductive filler with aramid rope in the center
  • Inner Sheath: rubber (5GM3)
  • Reinforcement: Polyester anti-torsion braid
  • Outer Sheath: PCP(5GM5)
  • Marking: TSKCGEWOEU (number of cores)x(cross-section) (rated voltage)
8.7/15kV Reeling Cable with Fiber Opitc Parameter
Number of cores x cross section Conductor diameter max. mm Outer diameter min. mm Outer diameter max. mm Bending radius free moving min. mm Weight (ca.) kg/km Conductor resis- tance at 20°C max.
3×25 + 2×25/2 +1x(12G62,5) 6.2 42 45 450 2700 0.78
3×35 + 2×25/2 +1x(12G62,5) 7.7 45 49 490 2960 0.55
3×50 + 2×25/2 +1x(12G62,5) 9.3 50 54 540 3960 0.39
3×70 + 2×35/2 +1x(12G62,5) 11.5 53 57 570 4760 0.27
3×95 + 2×50/2 +1x(12G62,5) 12.8 58 62 620 5760 0.21
3×120 + 2×70/2 +1x(12G62,5) 14.9 64 68 680 7265 0.16
3×150 + 2×70/2 +1x(12G62,5) 16.5 68 72 720 8500 0.13
3×185 + 2×95/2 +1x(12G62,5) 18.5 72 77 770 9900 0.11

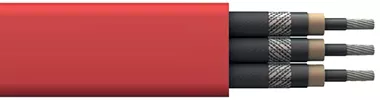

Flat Medium Voltage (N)TSFLCGEWÖU Cable

MV-Flat-EPR-PCP-Reeling-Cable-NTSFLCGEWOEU

  • Voltage: 1.8/3kV, 3. 6/6kV, 6/10kV, 8. 7/15kV, 12/ 20 kV
  • Conductor: Copper tinned, finely stranded, class F
  • Insulation: EPR
  • Electrical field control: Inner semi-conductive layer of EPR, outer semi conductive layer of modified NBR.
  • Core arrangement: Three-core design, with earth conductor split into 3 parts positioned in the intersticess
  • Sheath: EPR
  • Anti-torsion braid: Reinforced braid made of polyester threads
  • Outer Sheath: PCP
  • Marking: (number of cores)x(cross-section) (rated voltage)
  • Data transmission: A special cable design with fibre-optics can be customized
6/10kV Flat Reeling Cable Parameter
cores x cross section Conductor diameter max. mm Min.Height mm Max.Height mm Min.Width mm Max.Width mm Bending radius free moving min. mm Weight (ca.) kg/km Permissible tensile force max. N
3×25+3×25/3E 6.9 25 27.5 66.7 69.7 413 2860 1125
3×35+3×25/3E 8.3 25.5 28.5 68.2 72.2 428 3260 1575
4×35+4×25/4E 8.3 25.5 28.5 86.7 91.7 428 4110 2100
3×50+3×25/3E 9.8 28.1 31.1 74.6 78.6 467 4030 2250
3×70+3×35/3E 11.4 29.7 32.7 79.2 83.2 491 4850 3150
4×70+4×35/4E 11.4 29.5 32.5 100.9 105.9 488 6240 4200
3×95+3×50/3E 13.3 31.7 34.7 84.7 89.7 521 5920 4275
3×120+3×70/3E 15.1 35.1 38.1 92.9 97.9 572 7420 5400

Festoon Cable

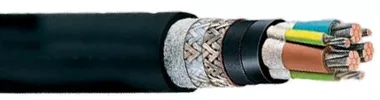

LV Festoon Cable for Energy Chain-(N) GRDGCGOEU

LV-Festoon-Cable-for-Energy-Chain-N-GRDGCGOEU

  • Voltage: 0.6/1kV
  • Conductor: Bare electrolytic copper, finely stranded, class 5
  • Insulation: EPR(3GI3), Alternative for control cables: ETFE
  • Core identification: Light colored insulation with numbers printed in black for power and control cables, earth conductor green/ yellow
  • Core arrangement: Up to 10mm²: 4-core design; from 16mm² : 3-energy cores and splitted earth conductor into three parts.
  • Screen: Braid screen made of tinned copper wires
  • Inner Sheath: EPR(GM1B) Black
  • Outer Sheath: EVA
  • Marking: (N)GRDGOEU (number of cores)x(cross section)

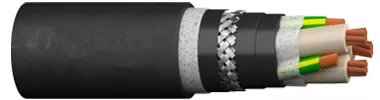

LV Round Screen Screen Festoon Cable – (N)GRDGCGOEU-J

LV-Round-Screen-Screen-Festoon-Cable-NGRDGCGOEUJ

  • Voltage: 0.6/1kV
  • Conductor: copper, class5
  • Insulation: EPR(3GI3)
  • Core identification: Light colored insulation with numbers printed in black for power and control cables, earth conductor green/ yellow
  • Core arrangement: Up to 10mm²: 4-core design; from 16mm² on: three main conductors, earth conductor splitted into three parts and placed into the interstices
  • Inner Sheath: EPR(Black)
  • Screen: Braid screen made of tinned copper wires
  • Outer Sheath: PCP (5GM3)
  • Marking: NSHTOEU-J (number of cores) x (cross-section)

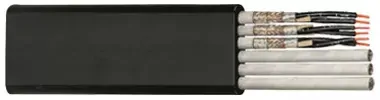

Flat Low Voltage (N)GFLGÖU Cable

flat-rubber-festoon-cable-ngflgoeu-j

  • Voltage Rating
  • 0.6/1kV
  • Conductor
  • Up to 25mm2: Class 6 electrolytic annealed, plain copper
  • 25mm2 an above: Class 5 electrolytic annealed, plain copper
  • Insulation
  • EPR (Ethylene Propylene Rubber)
  • Screen
  • TCWB (Tinned copper wires braiding)
  • Sheath
  • CR (Chloroprene Rubber) type 5GM3
0.6/1kV Basket Spreader Cable Parameter
Number of cores x cross section Conductor diameter max. mm Min.Height mm Max.Height mm Min.Width mm Max.Width mm Bending radius free moving min. mm Weight (ca.) kg/km Permissible tensile force max. N
NGFLGOEU-J control cables
10×1,5 1.5 6.2 6.7 35.5 37 20 440 225
12×1,5 1.5 6.3 6.8 42 43.5 20 530 270
24×1,5 1.5 11.5 12.3 51 53.2 62 1040 540
42×1,5 1.5 15.1 16.1 70.2 72.3 81 1920 945
4×2,5 2 6.8 7.3 18.5 19.5 22 260 150
5×2,5 2 6.6 7.4 22.9 24.6 22 320 188
7×2,5 2 6.8 7.4 31 32.8 22 440 263
10×2,5 2 7.4 8 43 45.3 24 660 375
12×2,5 2 7.4 8 50.6 53.5 24 780 450
NGFLGOEU-J power cables
4×16 5.6 12.1 12.9 36 37.5 65 1060 960
4×25 6.6 13.6 14.4 41.9 43.4 72 1500 1500
4×35 8.1 14.8 16.7 47 49.9 84 2040 2100
5×4 2.8 8.5 9 28.9 31.2 36 510 300
5×6 3.5 9.1 9.6 31.8 34.1 38 640 450
5×10 4.5 10.5 11.3 39.2 41.6 45 960 750
5×16 5.6 12.2 12.7 45.1 47.6 64 1360 1200
0.6/1kV Round Screen Festoon Cable Parameter
Number of cores x cross section Conductor diameter max. mm Outer diameter min. mm Outer diameter max. mm Bending radius min. mm Weight (ca.) kg/km Nom.operating capaci- tance µF/km Inductance nom. mH/ km Current carrying capacity for install.
(N)GRDGCGOEU- J screened power cables
4×2,5 2 13 15 75 340 0.17 0.58 32
4×4 2.5 14.8 17.8 89 480 0.18 0.55 43
4×6 3 16.2 19.2 96 640 0.19 0.53 56
4×10 4 19.6 22.6 113 890 0.23 0.51 78
3×16+3×2,5 5.7 22.4 25.4 127 1150 0.225 0.48 104
3×25+3×4 6.8 25.4 28.4 142 1590 0.275 0.45 138
3×35+3×6 8.1 29.3 32.3 162 2160 0.325 0.43 170
3×50+3×10 9.6 35.4 38.4 192 3060 0.4 0.41 212
3×70+3×10 11.5 40.8 43.8 219 3960 0.475 0.39 263
3×95+3×16 12.9 43.4 46.4 232 4840 0.6 0.375 316
3×120+3×16 14.6 47.8 50.8 254 5910 0.7 0.36 370
0.6/1kV Chain Reeling Cable Parmater
Number of cores x cross section Conductor diameter max. mm Outer diameter min. mm Outer diameter max. mm Bending radius min. mm Weight (ca.) kg/km Permissible tensile force max. N Conductor resis- tance at 20°C max.
(N)GRDGOEU-J multicore power cables
4×4 2.9 12.7 14.7 74 320 240 4.95
4×6 3.6 14.2 16.2 81 430 360 3.3
4×10 4.6 16.7 18.7 94 670 600 1.91
4×16 5.9 21.2 23.2 116 1020 960 1.21
4×25 7.2 26.5 29.5 148 1600 1500 0.78
3×35+3×16/3 8.1 26.4 29.4 147 1770 1570 0.55
3×50+3×25/3 10 31.5 34.5 173 2560 2250 0.39
3×70+3×35/3 11.9 37.6 40.6 203 3550 3150 0.27
(N)GRDGCGOEU- J multicore power cables, overall screened
4×2,5C 1.9 11.2 13.2 66 310 150 7.98
4x4C 2.9 15.2 17.2 86 490 240 4.95
4x6C 3.6 17 19 95 650 360 3.3
4x10C 4.6 19.2 21.2 106 870 600 1.91
3×16+3×2,5C 5.9 20.3 22.3 112 1050 720 1.21
3×25+3x4C 7.2 25.7 28.7 144 1610 1120 0.78
3×35+3x6C 8.1 28.4 31.4 157 2140 1570 0.55
3×50+3×25/3 10 34.9 37.9 190 3080 2250 0.39
3×70+3×35/3 11.8 39.8 42.8 214 4090 3150 0.27

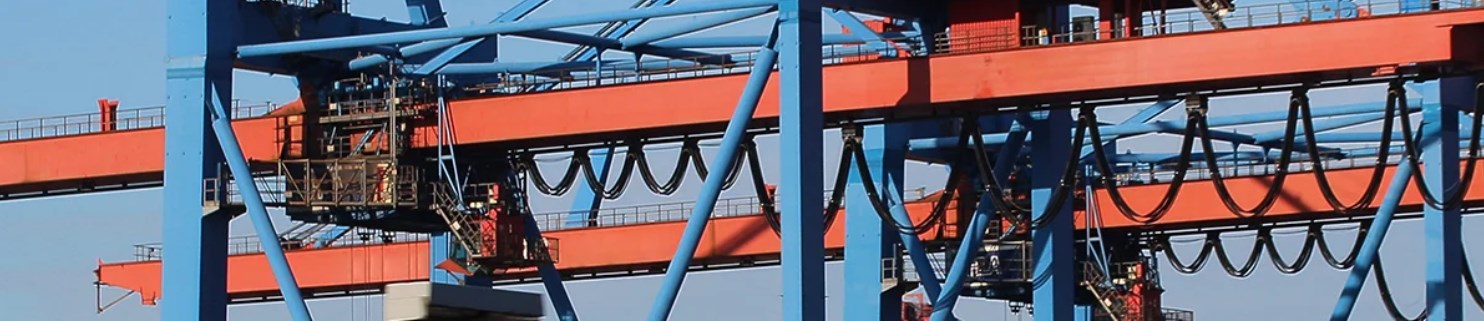

Spreader CableFor Basket Cable/Vertical Reeling

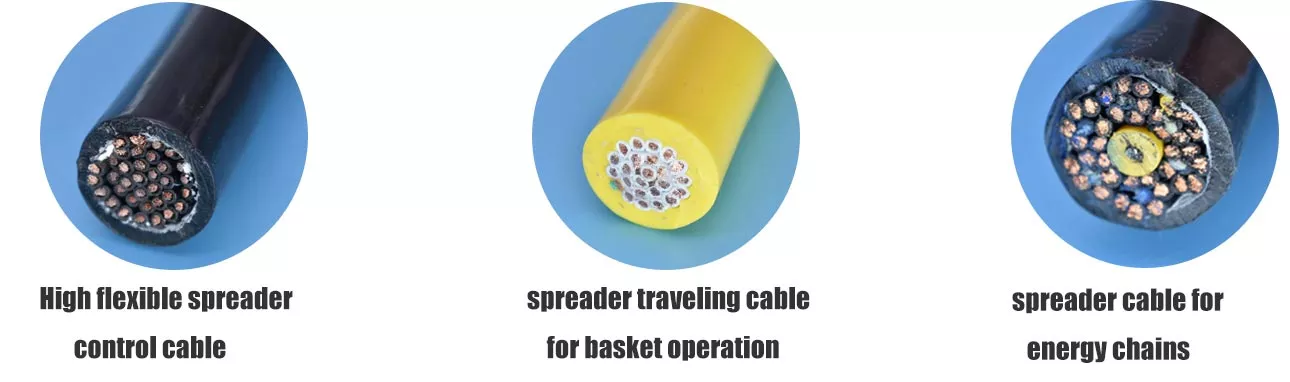

spread-cable

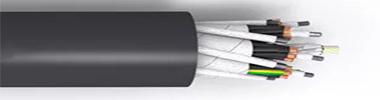

Low Voltage YSLTOE-J Cable

basket cable

  • Voltage Rating
  • 0.6/1kV
  • Central Support Element
  • Lead balls ropes stranded around, round rubber filler with Aramid support
  • Conductor
  • Class 5 Bare Flexible Copper
  • Insulation
  • Thermoplastic compound
  • Outer Sheath
  • Halogen free PUR (Polyurethane)

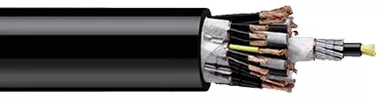

LV Spreader EPR/PUR Cable for Basket-3GSLTOE-J

LV-Spreader-EPR-PUR-Cable-for-Basket-3GSLTOE-J

  • Voltage: 0.6/1kV
  • Conductor: Bare electrolytic copper, finely stranded, class 5
  • Insulation: EPR(3GI3), Alternative for control cables: ETFE
  • Core identification: Optimal identification as a result of light colored insulation with numbers printed in black; protective earth conductor green/yellow
  • Individual Screen: Braid screen made of tinned copper wires
  • Core arrangement: Core assembly: cores laid-up into bundles;
  • Bundle assembly: bundles laid-up around the central support element.
  • Outer Sheath: PUR (Black)
  • Marking: 3GSLTOE-J (number of cores) x (cross-section)

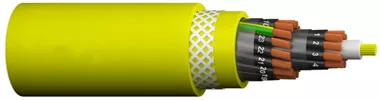

LV Spreader EPR/PCP Cable for Vertical Reeling

LV-Spreader-EPR-PCP-Cable-for-Vertical-Reeling

  • Voltage: 0.6/1kV
  • Conductor: Bare electrolytic copper, finely stranded, class 5
  • Insulation: ETFE
  • Core identification: Best identification as a result of black colored insulation with light printed numbers, earth conductor green-yellow
  • Individual Screen: Braid screen made of tinned copper wires
  • Support element: Central aramide support element to increase the loading capability.
  • Inner sheath: PCP rubber
  • Core arrangement: Laid-up in a maximum of 3 layers
  • Outer Sheath: PCP rubber
  • Marking: (N)SHTOEU-J/-O (number of cores)x(cross-section)

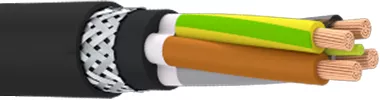

LV Lift Trailing PUR-HF Cable for Vertical Reeling

LV-Lift-Trailing-PUR-HF-Cable-for-Vertical-Reeling

  • Voltage: 0.6/1kV
  • Conductor: Class 5 or Class 6 flexible stranded Copper
  • Cores: 3core, 4 core, 5core
  • Cross-sectional area: 10mm2~35mm2
  • Insulation: XLPE (Cross-linked Polyethylene)
  • Inner Sheath: PUR-HF (Polyurethane Halogen Free Flame Retardant)
  • Braid: Anti-twist aramid yarns
  • Outer Sheath: PUR-HF (Polyurethane Halogen Free Flame Retardant)
  • Application: For use as vertical reeling cable under high mechanical stresses,torsion, tension and torque.
0.6/1kV Basket Spreader Cable Parameter
Number of cores x cross section Conductor diameter max. mm Outer diameter min. mm Outer diameter max. mm Bending radius free moving min. mm Weight(ca.) kg/km Conductor resis- tance at 20°C max.
3GSLTOE-J control cables
24×2,5 2 29.1 32.1 161 1780 7.98
30×2,5 2 31.1 34.1 171 2260 7.98
36×2,5 2 34.5 37.5 188 2780 7.98
42×2,5 2 36.8 39.8 199 3490 7.98
48×2,5 2 41.3 44.3 222 4040 7.98
24×3,5 2.4 32 35 175 2350 5.55
30×3,5 2.4 34.3 37.3 187 2970 5.55
36×3,5 2.4 37.9 40.9 205 3750 5.55
42×3,5 2.4 42.4 45.4 227 4510 5.55
3GSLTOE-J control cables with bus element
24×2,5+1x(2×1)C 2 31.1 34.1 171 2200 7.98
24×2,5+4x(2×1)C 2 41.2 44.2 221 3600 7.98
36×2,5+2x(2×1)C 2 41.3 44.3 222 3830 7.98
42×2,5+2x(2×1)C 2 43.5 46.5 233 3600 7.98
0.6/1kV Spreader Vertical Reeling Cable Parameter
Number of cores x cross section Conductor diameter max. mm Outer diameter min. mm Outer diameter max. mm Bending radius free moving min. mm Weight (ca.) kg/km Permissible tensile force max. N
(N)SHTOEU-J control cables
12×2,5 2 22 25 125 870 2700
24×2,5 2 26.2 29.2 146 1300 3600
30×2,5 2 29.4 32.4 162 1630 4100
44×2,5 2 34.1 37.1 186 2200 5100
(N)SHTOEU-J control cables with fiber optical
22×2,5+4x(3G50) 2 28.2 31.2 156 1390 3450
22×2,5+2x(3G62,5) 2 26.2 29.2 146 1260 3450
24×2,5+6x(2G62,5) 2 29.4 32.4 162 1510 3600
28×2,5+2x(3G62,5) 2 29.4 32.4 162 1590 3900
28×2,5+2x(3G50) 2 29.4 32.4 162 1590 3900
36×2,5+8x(1G62,5) 2 34.1 37.1 186 2050 4500
38×2,5+6x(2G62,5) 2 34.1 37.1 186 2090 4650
41×2,5+3x(2G62,5) 2 34.1 37.1 186 2150 4875
41×2,5+3x(2G50) 2 34.1 37.1 186 2160 4875
0.6/1kV Lift Vertical Reeling Cable Parmater
NO. OF CORES NOMINAL CROSS SECTIONAL AREA NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
mm
mm2 Minimum Maximum kg/km
4 10 17.4 18.9 610
4 16 20 22.1 852
4 25 22.9 25.3 1228
4 35 28.5 30.2 1760
5 10 18.7 20.5 724
5 16 21.7 24.2 1030
5 25 30 36 2570

Chain Cable

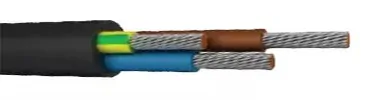

Rond Low Voltage (N)GRDGÖU Cable For Chain

(N)GRDGÖU Cable

  • Voltage Rating
  • 0.6/1kV
  • Conductor
  • Class 5 Bare Flexible Copper
  • Insulation
  • Rubber Compound
  • Inner Sheath
  • EPR Rubber Compound (Ethylene Propylene Rubber)
  • Outer Sheath
  • Rubber Compound

    SEND US A MESSAGE

    If this page does not have the model you want, or if you need custom cable service, please contact us and we will be happy to assist you.
