DLO Cable, Diesel Locomotive Cable
DLO Cable Description:

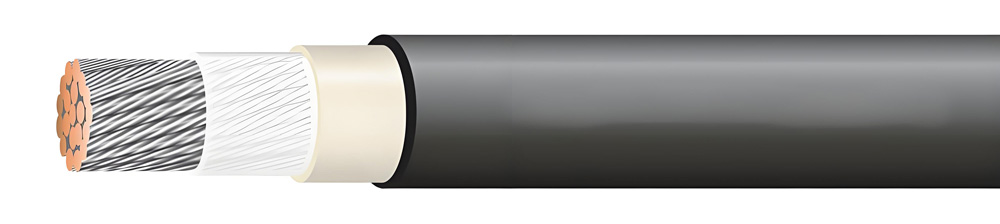

DLO cable, also called diesel locomotive cable, designed for use in diesel-electric locomotive engines, is a flexible cable with a dual-extruded product consisting of ethylene propylene rubber (EPR) insulation and a thermoset chlorinated polyethylene rubber (TS-CPE) jacket. The voltage rating for DLO cable is 2000 volts. DLO cable is suitable for use in conduit, ducts, troughs and electrical tray. It can be used in wet or dry areas. The maximum continuous conductor temperature for normal operations is 90°C in dry locations and 75°C for wet locations and is resistant to oils, acids, alkalies, heat, and flame. Designed for diesel-electric locomotives, mining equipment, motor leads, shipyards, and generator systems.
UL Listed as 2kV Heavy Duty Flexible Power Cable (HDFPC) DLO, Rated 90°C Dry or Wet. 2kV Type RHH/RHW 2 Flexible Power Cable Rated 90°C Dry or Wet. CSA Listed as 2kV Type RW90. Composite Thermoset Wall EPDM/CPE Insulation/Jacket. Sizes 1/0 and Larger Rated TC-ER, FT4, for Use in Cable Trays
Send More details by Email: info@hlcables.com
CONSTRUCTION
- 1. Conductors: Flexible Stranded Rope-Lay Class I Tinned Copper per ASTM B33 and B172
- 2. Binder Tape: Mylar Tape
- 3. Insulation: 2 layer Thermoset Ethylene Propylene Diene Monomer / Thermoset Chlorinated
- Polyethylene (EPDM/CPE)
- Application:Drilling rigs, railroad and transit car wiring, mining and other industrial equipment, and as flexible motor leads and wind turbine applications.
SPECIFICATIONS
- • ASTM B3 – Soft or Annealed Copper
- • ASTM B33 – Tinned Soft or Annealed Copper
- • B172 – Rope-Lay-Stranded Copper Conductors Having Bunch Stranded Members
- • UL Subject 2806 – Type HDFPC-DLO
- • UL 44 – Type RHH/RHW-2
- • CSA C22.2 No. 38 – Type RW90. (#12 and #10 AWG are not RW90)
- • MSHA – P-07-KA100013
- • IEEE 1202/FT4 – Flame Test (70,000 Btu/hr Vertical Tray Test). #8 and larger CSA. 1/0 and larger UL
- • UL 1685 – Vertical-Tray Fire-Propagation and Smoke-Release Test
- • ICEA S-95-658 (NEMA WC70) Power cables rated 2000 volts or less for the distribution of electrical energy.
| 2kV HDFPC-DLO, RHH/RHW-2 & RW90 | |||

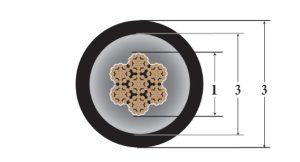

| Conductor Strands | Nominal Overall Diameter Inches (3) | ||
| Size AWG/kcmil | No./inch or awg | Bend Radius Inches | |
| 12-1/C | 19/.0185 | 0.21 | 1.68 |
| 10-1/C | 26/#24 | 0.265 | 2.12 |
| 8-1/C | 41/#24 | 0.33 | 2.63 |
| 6-1/C | 63/#24 | 0.37 | 2.98 |
| 4-1/C | 105/#24 | 0.44 | 3.37 |
| 2-1/C | 161/#24 | 0.495 | 4.03 |
| 1-1/C | 210/#24 | 0.56 | 4.48 |
| 1/0-1/C | 266/#24 | 0.645 | 5.52 |
| 2/0-1/C | 342/#24 | 0.69 | 5.76 |
| 3/0-1/C | 418/#24 | 0.76 | 5.81 |
| 4/0-1/C | 532/#24 | 0.815 | 6.47 |
| 262-MCM | 649/#24 | 0.915 | 7.73 |
| 313-MCM | 775/#24 | 0.98 | 8.36 |
| 373-MCM | 925/#24 | 1.04 | 8.71 |
| 444-MCM | 1100/#24 | 1.105 | 9.32 |
| 535-MCM | 1325/#24 | 1.205 | 9.6 |
| 646-MCM | 1600/#24 | 1.29 | 10.28 |
| 777-MCM | 1924/#24 | 1.38 | 10.91 |
| 929-MCM | 2300/#24 | 1.471 | 11.77 |
| 1111-MCM | 2750/#24 | 1.73 | 14.08 |
