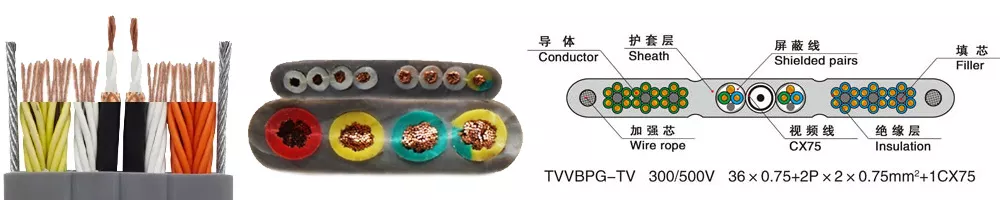

lift-elevator-cable

Application

The elevator traveling cable is a vital link between the elevator car and the controller. In conventional elevators, all signal information is transmitted through the traveling cable.

Feature

  • – Elevator Cable Application: ETT Steel Center & Jute Center traveling cable for elevators or lifts.
  • – ETP single and stranded types, adding Shielded Pairs, Coaxial, etc for options.
    – Elevator Cable with steel wires for high traveling speed.
  • – Elevator Cable Types: H05VVH6-F, TVVB flat traveling cable for elevators or lifts.
  • – Elevator Cable with steel wires for high trolley traveling speed.
  • – Shielded Pairs, Coaxial can be added.

Lift/Flat Elevator Traveling Control Cable

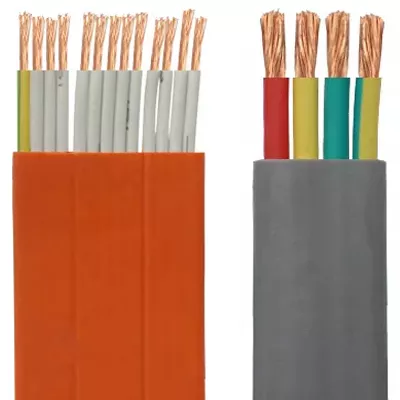

elevator-shield-cable
  • Rate voltage: 300/500V
  • Test voltage: 2500V
  • Conductor: fine strands of bare copper wire
  • Insulation: special PVC
  • Colour: yellow, white, orange with black numbers with white digital coding
  • Bearing: steel rope
  • Outer sheath: flexible PVC, cold resistance, flame resistance
  • Colour: grey
  • Minimum bending radius: 0.3m<L<0.6m
  • Standards: GB5023.6, IEC 60227-6, EN50214

Application

As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundleds.It can be installed in dry and damp rooms.

Properties

This cable adopts a new type of cold-resistant flexible special outer sheath, which can remain flexible at – 15 ° C. Due to the weight of the cable itself and the tension it needs to bear, its cable structure must be specially designed when it is suspended in large length. High-strength aviation galvanized steel wire is used for bearing, which extends the service life

Lift/Flat Elevator Traveling Shield Cable

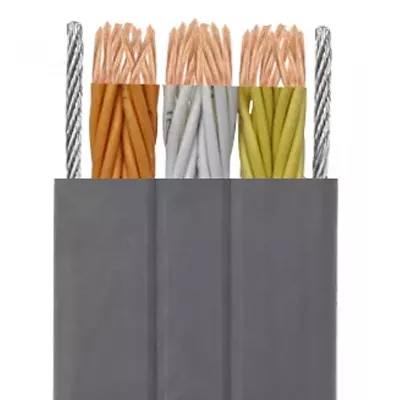

lift-control-cable
  • Rate voltage: 300/500V
  • Test voltage: 2500V
  • Conductor: fine strands of bare copper wire
  • Insulation: special PVC
  • Colour: yellow, white, orange with a black numbers with white digital coding
  • Bearing: steel rope(optional)
  • Coax: (Optional)
  • Shielding: aluminum foil/bare copper/ aluminum foil+bare copper
  • Sheath: flexible PVC, cold resistance, flame resistance
  • Colour: grey
  • Minimum bending radius: 0.3m<L<0.6m
  • Standards: GB5023.6, IEC 60227-6, EN50214

Used under the normal conditional the temperature of the conductor is lower than 70°C, Temperature range: -15°C to +40°C

TVVB(intertwist) free suspension length must not exceed 80 meters, and the lift speed must not exceed 4m/s.

Application

As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundleds.It can be installed in dry and damp rooms. The copper shielded single or respectively bundled cores make this cable ideally suit for the situations where there are electromagnetic compatibiliy interference(EMC).

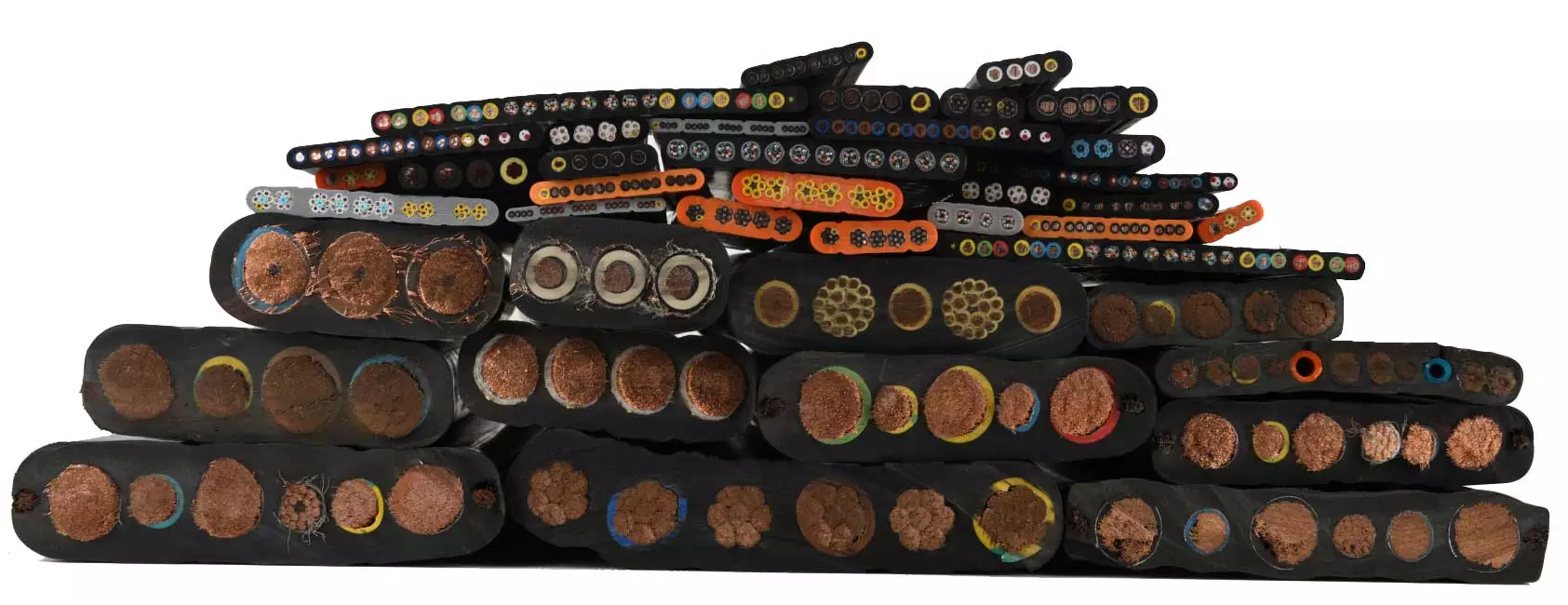

press-flat-traveling-cable

Low voltage lift control cable LYSLTK information

cores NO.×cross section conductor diamater max.mm outer diameter min. mm outer diameter max.mm bending radius free moving min.m permissible tensile force max.N weight kg/km conduator resistance max /km carrying capacity
4×25 7.3 28.5 31.5 158 3000 1850 0.8 131
5×16 5.6 26.1 29.1 146 2400 1500 1.24 99
5×25 7.3 33.7 36.7 184 3750 2340 0.8 131
36×1.5 1.6 26.5 29.5 148 1620 1290 13.7 23
12×1(c) 1.3 22.9 25.9 130 360 880 20 18
