300/500V H05RN-F, H05RR-F H05BQ-F 450/750V H07BQ-F, H07RN-F Fexible Rubber Cable
The 300/500V h05RN-F cable, H05RR-F, H05BQ-F cable and 3450/750V h07RN-F cable, H07RR-F, H07BQ-F cable are mainly used the for Suitable for all kinds of handling equipment, mobile power supplies, worksites, port areas etc. they are conductor design as flexible copper class 5, insulation is EPR rubber. The feature resistance to sunlight, Wear-resistant, torsion etc

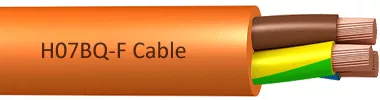

3 Core H07BQ-F EPR/PUR Rubber Cable
- Voltage: 450/750V
- Core: 3Core
- Conductor: Class 5 flexible copper
- Insulation: EPR
- Sheath: PUR
- SheatSheath color: Black
- Core Identification
- 3core: Green/Yellow Blue Brown
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

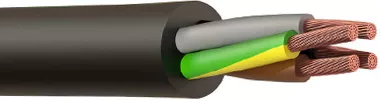

4 Core H07RN-F EPR/PCP Rubber Cable
- Voltage: 450/750V
- Core: 4Core
- Conductor: Class 5 flexible Stranded copper
- Insulation: EPR
- Sheath: PCP
- SheatSheath color: Black
- 4core: Green/Yellow Brown Black Grey
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

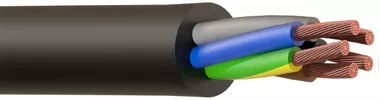

5 Core H07RN-F EPR/PCP Rubber Cable
- Voltage: 450/750V
- Core: 5Core
- Conductor: Class 5 flexible Stranded copper
- Insulation: EPR
- Sheath: PCP
- SheatSheath color: Black
- Core Identification
- 5core: Green/Yellow Brown Black Grey Blue
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

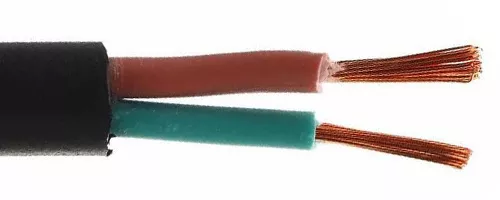

2 Core H05RN-F EPR/PCP Rubber Cable
- Voltage: 300/500V
- Core: 2Core
- Conductor: Class 5 flexible Stranded copper
- Insulation: EPR
- Sheath: PCP
- SheatSheath color: Black
- Core Identification
- 2core: Blue Brown
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

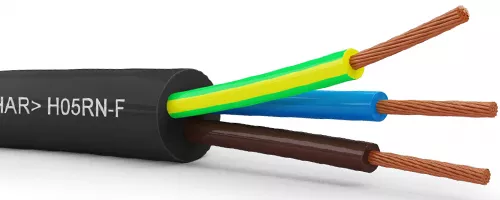

3 Core H05RN-F EPR/PCP Rubber Cable
- Voltage: 300/500V
- Core: 3Core
- Conductor: Class 5 flexible Stranded copper
- Insulation: EPR
- Sheath: PCP
- SheatSheath color: Black
- Core Identification
- 3core: Green/Yellow Blue Brown
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

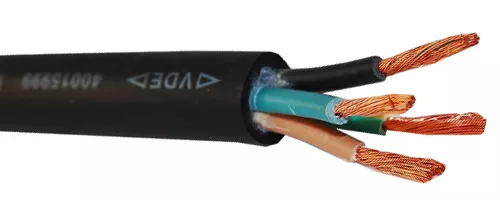

4 Core H05RN-F EPR/PCP Rubber Cable
- Voltage: 300/500V
- Core: 4Core
- Conductor: Class 5 flexible Stranded copper
- Insulation: EPR
- Sheath: PCP
- SheatSheath color: Black
- Core Identification
- 4core: Green/Yellow Blue Brown Grey
- Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized
H07RN-F Cable Parameter
| Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| 4 G 1.5 | 10.2 – 11.7 | 57.6 | 200 |
| 5 G 1.5 | 11.2 – 12.8 | 72 | 240 |
| 7 G 1.5 | 14.7 – 16.5 | 100.8 | 385 |
| 12 G 1.5 | 17.6 – 19.8 | 172.8 | 516 |
| 2 X 2.5 | 10.2 – 11.7 | 48 | 195 |
| 3 G 2.5 | 10.9 – 12.5 | 72 | 235 |
| 4 G 2.5 | 12.1 – 13.8 | 96 | 290 |
| 5 G 2.5 | 13.3 – 15.1 | 120 | 294 |
| 7 G 2.5 | 17.1 – 19.3 | 168 | 520 |
| 12 G 2.5 | 20.6 – 23.1 | 288 | 810 |
| 19 G 2.5 | 25.5 – 31 | 456 | 1200 |
| 2 X 4.0 | 11.8 – 13.4 | 76.8 | 270 |
| 3 G 4.0 | 12.7 – 14.4 | 115.2 | 320 |
| 4 G 4.0 | 14.0 – 15.9 | 153.6 | 395 |
| 5 G 4.0 | 15.6 – 17.6 | 192 | 485 |
| 7 G 4.0 | 20.1 – 22.4 | 268.8 | 681 |
| 3 G 6.0 | 14.1 – 15.9 | 172.8 | 360 |
| 4 G 6.0 | 15.7 – 17.7 | 230.4 | 475 |
| 5 G 6.0 | 17.5 – 19.6 | 288 | 760 |
| 3 G 10.0 | 19.1 – 21.3 | 288 | 880 |
| 4 G 10.0 | 20.9 – 23.3 | 384 | 1060 |
| 5 G 10.0 | 22.9 – 25.6 | 480 | 1300 |
| 3 G 16.0 | 21.8 – 24.3 | 460.8 | 1090 |
| 4 G 16.0 | 23.8 – 26.4 | 614.4 | 1345 |
| 5 G 16.0 | 26.4 – 29.2 | 768 | 1680 |
| 4 G 25.0 | 28.9 – 32.1 | 960 | 1995 |
| 5 G 25.0 | 32.0 – 35.4 | 1200 | 2470 |
| 3 G 35.0 | 29.3 – 32.5 | 1008 | 1910 |
| 4 G 35.0 | 32.5 – 36.0 | 1344 | 2645 |
| 5 G 35.0 | 35.7 – 39.5 | 1680 | 2810 |
| 4 G 50.0 | 37.7 – 41.5 | 1920 | 3635 |
| 5 G 50.0 | 41.8 – 46.6 | 2400 | 4050 |
| 4 G 70.0 | 42.7 – 47.1 | 2688 | 4830 |
| 4 G 95.0 | 48.4 – 53.2 | 3648 | 6320 |
H05RN-F Cable Parameter
| Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| 2 X 0.75 | 5.7 – 6.7 | 14.4 | 55 |
| 3 G 0.75 | 6.2 – 7.4 | 21.6 | 68 |
| 4 G 0.75 | 6.8 – 7.9 | 28.8 | 81 |
| 2 X 1.0 | 6.1 – 7.3 | 19.2 | 63 |
| 3 G 1.0 | 6.5 – 7.7 | 28.8 | 78 |
H05RR-F Cable Parameter
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER |
| mm2 | mm | mm | |
| 2 | 0.75 | 0.6 | 6.1 |
| 2 | 1 | 0.6 | 6.6 |
| 2 | 1.5 | 0.8 | 7.8 |
| 2 | 2.5 | 0.9 | 9.2 |
| 2 | 4 | 1 | 10.8 |
| 3 | 0.75 | 0.6 | 6.6 |
| 3 | 1 | 0.6 | 7 |
| 3 | 1.5 | 0.8 | 8.4 |
| 3 | 2.5 | 0.9 | 9.9 |
| 3 | 4 | 1 | 11.7 |
| 3 | 6 | 1 | 13.3 |
| 4 | 0.75 | 0.6 | 7.3 |
| 4 | 1 | 0.6 | 7.6 |
| 4 | 1.5 | 0.8 | 9.4 |
| 4 | 2.5 | 0.9 | 11.1 |
| 4 | 4 | 1 | 13 |
| 4 | 6 | 1 | 14.5 |
| 5 | 0.75 | 0.6 | 8.1 |
| 5 | 1 | 0.6 | 8.4 |
| 5 | 1.5 | 0.8 | 10.3 |
| 5 | 2.5 | 0.9 | 12.4 |
| 5 | 4 | 1 | 14.5 |
