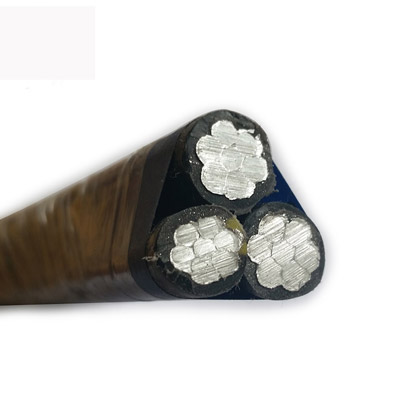

ABC Cable HD 626 S1 standard
AS/NZS 3560.1 is an Australian and New Zealand standard that specifies requirements for low voltage (LV) aerial bundled cables (ABC) used in overhead power distribution. These cables are designed for applications up to 0.6/1 kV (1.2 kV) and are characterized by their bundled construction of insulated aluminum conductors.

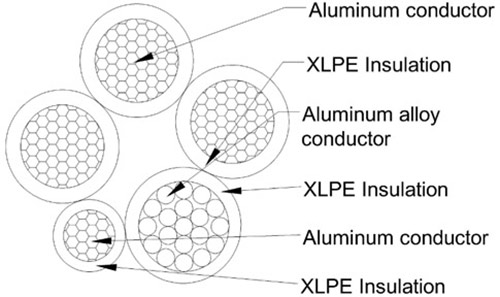

Construction
- Rated Voltage
- 0.6/1KV
- Conductor
- Aluminium conductor, round stranded compressed (RM)
- Insulation
- XLPE
Application
The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 and insulated with XLPE. Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000 V incl.
Standard
HD 626 S1 Standard.
Technical Data
| Rated voltage | kV | 0.6/1 |
| Test voltage | Veff kV/Hz | 4/50 |
| Laying temperature | °C | min. -20 |
| Operating temperature | °C | -30 bis +80 |
| Conductor temperature | °C | max. +80 |
| Short-circuit temperature | °C/s | max. +130 /5 |
| Bending radius (min.) | mm | 18 × Ø of cable |
ABC Cable HD 626 S1Standard Specification
| Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
| mm² | kN | A | mm | kg/km |
| 2x 16 RM | 1,910 | 2,5 | 72 | 147 |
| 2x 25 RM | 1,200 | 4,0 | 107 | 208 |
| 2x 35 RM | 0,868 | 5,5 | 132 | 277 |
| 2x 50 RM | 0,641 | 8,0 | 165 | 361 |
| 4x 16 RM | 1,910 | 2,5 | 72 | 286 |
| 4x 25 RM | 1,200 | 4,0 | 107 | 430 |
| 4x 35 RM | 0,868 | 5,5 | 132 | 553 |
| 4x 50 RM | 0,641 | 8,0 | 165 | 746 |
| 4x 70 RM | 0,443 | 10,7 | 205 | 1009 |
| 4x 95 RM | 0,320 | 13,7 | 240 | 1332 |
| 4x 120 RM | 0,253 | 18,6 | 290 | 1632 |
| 4x 35 + 1x 35 RM | 0,868/0,868 | 5,5/5,5 | 132/132 | 694 |
| 4x 50 + 1x 25 RM | 0,641/1,200 | 8,0/4,0 | 165/107 | 814 |
| 4x 50 + 1x 35 RM | 0,641/0,868 | 8,5/5,5 | 165/132 | 845 |
| 4x 70 + 1x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 1105 |
| 4x 70 + 2x 25 RM | 0,443/1,200 | 10,7/4,0 | 205/107 | 1217 |
| 4x 70 + 1x 35 RM | 0,443/0,868 | 10,7/5,5 | 205/132 | 1150 |
| 4x 70 + 2x 35 RM | 0,443/0,868 | 10,7/5,5 | 205/132 | 1289 |
| 4x 95 + 1x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 1438 |
| 4x 95 + 1x 35 RM | 0,320/0,868 | 13,7/5,5 | 240/132 | 1467 |
| 4x 95 + 2x 25 RM | 0,320/1,200 | 13,7/4,0 | 240/107 | 1544 |
