ABC Cable IEC 60502 & TNB standard
IEC 60502 & TNB Cable signifies power cables that are designed and tested according to the IEC 60502 standard and are also suitable for use within the specific requirements and applications defined by Tenaga Nasional Berhad (TNB) in Malaysia.

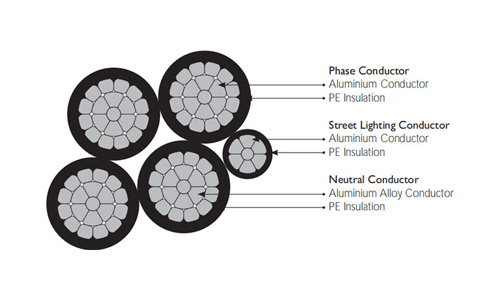

Construction
- Rated Voltage
- 0.6/1KV
- Phase Conductor
- H68 condition aluminium conductor, round stranded compressed
- Neutral Conductor
- Alloy aluminium conductor, round stranded compressed.
- Insulation
- PE
Application

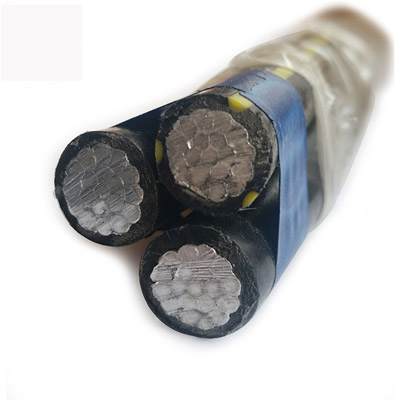

The aerial bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulation aluminium phase conductors are helically wound over it. Can be used for fixed installation as overhead power lines up to 1000 V incl.
Standard
IEC 60502 & TNB Standard.
ABC Cable IEC 60502 & TNB Standard Specification
| Number of cores x nominal cross section | min. breaking load of conductor strand | Current rating in the air | Outer diameter | Total weight |
| mm^2 | kN | A | mm | kg/km |
| 1×16+1x 25 RM | 6.4 | 61 | 15.3 | 160 |
| 3×16+1x 25 RM | 6.4 | 61 | 19 | 290 |
| 3×25+1x 25 RM | 6.4 | 84 | 23.2 | 400 |
| 3×35+1x 25 RM | 6.4 | 104 | 25.6 | 500 |
| 3×50+1x 35 RM | 8.9 | 129 | 30 | 680 |
| 3×70+1x 50 RM | 12.1 | 167 | 34.9 | 920 |
| 3×95+1x 70 RM | 18 | 209 | 40.6 | 1270 |
| 3×120+1x 70 RM | 18 | 246 | 44.1 | 1510 |
| 3×150+1x 95 RM | 24.2 | 283 | 49.2 | 1870 |
| 3×185+1×120 RM | 30.8 | 332 | 54.9 | 2340 |
| 3×25+1×25+1×16 RM | 6.4 | 84 | 23.2 | 470 |
| 3×35+1×25+1×16 RM | 6.4 | 104 | 25.6 | 560 |
| 3×50+1×35+1×16 RM | 8.9 | 129 | 30 | 740 |
| 3×70+1×50+1×16 RM | 12.1 | 167 | 34.9 | 980 |
| 3×95+1×70+1×16 RM | 18 | 209 | 40.6 | 1330 |
| 3×120+1×70+1×16 RM | 18 | 246 | 44.1 | 1580 |
| 3×150+1×95+1×16 RM | 24.2 | 283 | 49.2 | 1940 |
| 3×185+1×120+1×16 RM | 30.8 | 332 | 54.9 | 2410 |
