Lead Sheathed low Voltage Power Cable & Control cable
XLPE INSULATED, LEAD COVERED, PVC SHEATHED POWER CABLES
CONFORMING TO IEC 60502-1

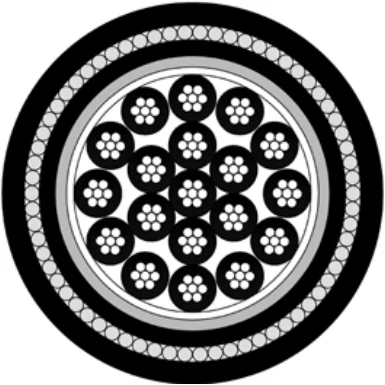

XLPE INSULATED, LEAD COVERED, PVC SHEATHED, CONTROL CABLES
CONFORMING TO IEC-60502-1 (600/1000 VOLTS)
CU or AL/XLPE/LC/PVC – IEC 60502-1, CU or AL CONDUCTOR, XLPE INSULATED, LEAD COVERED, PVC SHEATHED (UNARMOURED)
| Nominal Area of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Lead Sheath | Nominal Thickness of Separation Sheath | Nominal Diameter of Armour Wire | Nominal Thickness of Outer Sheath | Approx. Overall Diameter | Approx. Cable Weight | Packing Length (Standard) | |||
| Phase | Neutral | Phase | Neutral | CU Cable | AL Cable | ||||||
| mm² | mm² | mm | mm | mm | mm | mm | mm | mm | kg/km | kg/km | mtrs. |
| 25 | 16 | 0.9 | 0.7 | 1.2 | 1.0 | 1.60 | 1.9 | 30.5 | 2835 | 2280 | 1000 |
| 35 | 16 | 0.9 | 0.7 | 1.3 | 1.0 | 1.60 | 2.0 | 33.0 | 3425 | 2690 | 500 |
| 50 | 25 | 1.0 | 0.9 | 1.4 | 1.1 | 2.00 | 2.1 | 37.0 | 4455 | 3440 | 500 |
| 70 | 35 | 1.1 | 0.9 | 1.5 | 1.2 | 2.00 | 2.3 | 42.0 | 5725 | 4275 | 500 |
| 95 | 50 | 1.1 | 1.0 | 1.6 | 1.3 | 2.50 | 2.5 | 47.0 | 7520 | 5510 | 500 |
| 120 | 70 | 1.2 | 1.1 | 1.7 | 1.4 | 2.50 | 2.6 | 52.5 | 9220 | 6635 | 500 |
| 150 | 70 | 1.4 | 1.1 | 1.8 | 1.4 | 2.50 | 2.7 | 57.0 | 10715 | 7615 | 500 |
| 185 | 95 | 1.6 | 1.1 | 2.0 | 1.5 | 2.50 | 2.9 | 62.5 | 13090 | 9155 | 250 |
| 240 | 120 | 1.7 | 1.2 | 2.1 | 1.6 | 2.50 | 3.1 | 68.5 | 16020 | 10855 | 250 |
| 300 | 150 | 1.8 | 1.4 | 2.3 | 1.8 | 3.15 | 3.4 | 76.5 | 20210 | 13745 | 250 |
| 400 | 185 | 2.0 | 1.6 | 2.5 | 1.9 | 3.15 | 3.7 | 85.5 | 24830 | 16570 | 250 |
CU or AL/XLPE/LC/AWA/PVC – IEC 60502-1,CU or AL CONDUCTOR, XLPE INSULATED, LEAD COVERED, AL-WIRE ARMOURED,PVC SHEATHED
| No. of Cores | Nominal Thickness of Insulation | Nominal Thickness of Lead Sheath | Nominal Thickness of Separation Sheath | Nominal Diameter of Armour Wire | Nominal Thickness of Outer Sheath | Approx. Overall Diameter | Approx. Cable Weight | Packing Length (Standard) |
| Nos. | mm | mm | mm | mm | mm | mm | kg/km | mtrs. |
| 6 | 0.7 | 1.2 | 1.0 | 1.25 | 1.8 | 21.5 | 1220 | 1000 |
| 7 | 0.7 | 1.2 | 1.0 | 1.25 | 1.8 | 21.5 | 1230 | 1000 |
| 9 | 0.7 | 1.2 | 1.0 | 1.60 | 1.8 | 24.0 | 1570 | 1000 |
| 12 | 0.7 | 1.2 | 1.0 | 1.60 | 1.8 | 25.5 | 1750 | 1000 |
| 19 | 0.7 | 1.2 | 1.0 | 1.60 | 1.8 | 28.0 | 2125 | 1000 |
| 21 | 0.7 | 1.2 | 1.0 | 1.60 | 1.8 | 29.0 | 2235 | 1000 |
| 27 | 0.7 | 1.2 | 1.0 | 1.60 | 1.9 | 32.0 | 2595 | 500 |
| 37 | 0.7 | 1.3 | 1.1 | 2.00 | 2.0 | 35.5 | 3365 | 500 |

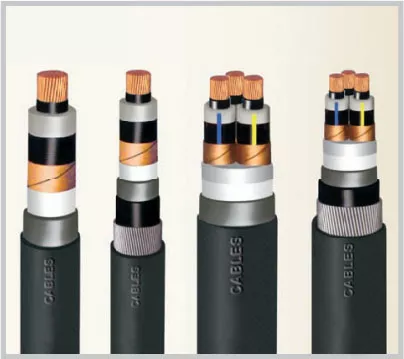

Lead sheathed Medium Voltage cable
- Voltage Grade : 3.6/6/7.2 kv To 18/30/36 kv (uo/u/um) As Per Iec-60502-2 (Equivalent 3.8/6.6/7.2 kv To 19/33/36 kv – (uo/u/um) As Per Bs 6622)
- Conductor : Copper or Aluminium
- Conductor Size : 25 To 1000 Sq. mm
- Specification : Iec 60502 Part 2, Bs 6622, or Any Other International specification covering above voltage range
- uo : Nominal Phase To Earth Voltage
- u : Nominal Phase To Phase Voltage
- um : Maximum Phase To Phase Voltage
6/10 (12) kV Three Core Copper Conductor XLPE Insulated Steel Wire Armoured To IEC 60502-2 (Suitable for 6.35/11 kV Earthed System)
| Sr. No. | Nominal Area of Conductor | mm2 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 |
| (A) | Manufacturing Dimensions | ||||||||||||
| 1 | Conductor diameter (Approximate) | mm | 5.9 | 6.9 | 8.1 | 9.7 | 11.4 | 12.9 | 14.3 | 16 | 18.4 | 20.6 | 23.3 |
| 2 | Insulation thickness (Nominal) | mm | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| 3 | Lead sheath thickness (Nominal) | mm | 1.7 | 1.8 | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | 2.5 | 2.6 | 2.8 |
| 4 | Separation sheath thickness (Nominal) | mm | 1.4 | 1.4 | 1.5 | 1.5 | 1.6 | 1.7 | 1.7 | 1.8 | 1.9 | 2 | 2.1 |
| 5 | Armour wire diameter (Nominal) | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3.15 | 3.15 | 3.15 | 3.15 | 3.15 |
| 6 | Outer sheath thickness (Nominal) | mm | 2.6 | 2.7 | 2.8 | 2.9 | 3 | 3.2 | 3.3 | 3.5 | 3.6 | 3.8 | 4.1 |
| 7 | Cable overall diameter (Approximate) | mm | 50.5 | 53 | 56 | 60 | 64 | 68 | 73 | 77.5 | 83 | 89 | 96.5 |
| 8 | Cable weight (Approximate) | kg/km | 6575 | 7340 | 8315 | 9670 | 11255 | 12800 | 15205 | 17255 | 20315 | 23325 | 27905 |
| 9 | Standard drum length (±5% Tolerance) | m | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 250 | 250 | 250 | 250 |
