LSZH TYPE ACIC Armoured Control, Multi-Conductor, 1000V

LSZH AIA Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.

Voltage

1000 V
Optional: 300 V, 600 V

Product Construction

Insulation:
XLPE (RW90 rated) rated: 90°C wet / dry
Shielding (foil-free edge):
OS (optional)
Jacket:
LSZH inner / outer black jacket rated: 90°C
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Available In:
Composite constructions
Custom insulation/jacket colours

Certifications/Compliances

IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet/dry
UV sunlight resistant “SUN RES” (all colours)
Direct burial rated
-40°C cold bend rated-25°C cold impact rated
Halogen-free rated
Rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
Zone 2 (Class I, Division 2)
Zone 22 (Class II & III, Division 2)

Colour Coding

2C – Black & white
3C – Black, red & blue
4C – Black, red, blue & white
5C and greater – Black, number-coded with white ink

Applications

Transit
Water/Waste Water Treatment
Transit
Communication Power & Control
Civil Construction Projects
Industrial
Petrochem/Pulp & Paper
Commercial Construction Projects
Mining

Properties

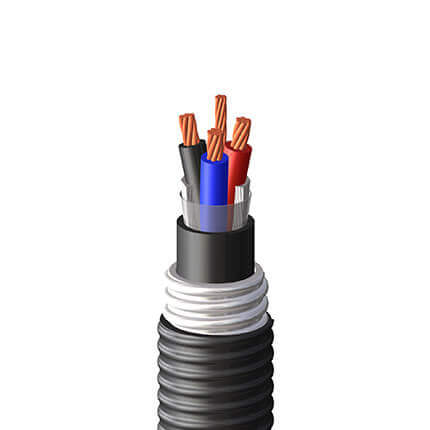

1. Bonding Conductor
2. Stranded Bare (ASTM B8) Annealed Copper Conductors
3. XLPE (RW90 Rated) Insulated Conductors
4. Polypropylene Fillers
5. Fiberglass Tape
6. LSZH Inner Protective Jacket
7. Aluminum Interlocked Armour (AIA)
8. LSZH Outer Protective Jacket

LSZH-Type-ACIC-Armoured-Control-Multi-conductor-1000-V

Number of Conductors	Conductor Size	Bonding Conductor Size	Nominal Diameter			Cable Weight	Ampacity*	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb/1000ft \| kg/km	30°C ambient	lb \| kg	in. \| mm
2	16	16	0.406 \| 10.3	0.646 \| 16.4	0.758 \| 19.3	238 \| 354	10	41 \| 19	13.6 \| 347
3	16	16	0.44 \| 11.2	0.680 \| 17.3	0.792 \| 20.1	265 \| 395	10	62 \| 28	14.3 \| 362
4	16	16	0.478 \| 12.1	0.718 \| 18.2	0.830 \| 21.2	295 \| 438	8	82 \| 37	14.9 \| 379
5	16	16	0.511 \| 13.0	0.751 \| 19.1	0.863 \| 21.9	323 \| 480	8	103 \| 47	15.5 \| 395
6	16	16	0.586 \| 14.9	0.826 \| 21.0	0.938 \| 23.8	381 \| 568	8	124 \| 56	16.9 \| 429
7	16	16	0.631 \| 16.0	0.871 \| 22.1	0.983 \| 25.0	417 \| 621	7	144 \| 65	17.7 \| 449
8	16	16	0.677 \| 17.2	0.917 \| 23.3	1.029 \| 26.2	454 \| 675	7	165 \| 75	18.5 \| 471
10	16	16	0.736 \| 18.7	0.976 \| 24.8	1.088 \| 27.6	502 \| 747	7	206 \| 93	19.6 \| 497
12	16	16	0.759 \| 19.3	0.998 \| 25.4	1.110 \| 28.2	539 \| 803	7	247 \| 112	20.0 \| 508
15	16	16	0.819 \| 20.8	1.058 \| 26.9	1.170 \| 29.7	652 \| 970	7	309 \| 140	21.1 \| 535
20	16	16	0.971 \| 24.7	1.211 \| 30.8	1.323 \| 33.6	831 \| 1237	7	412 \| 187	23.8 \| 605
25	16	16	1.076 \| 27.3	1.316 \| 33.4	1.428 \| 36.3	960 \| 1428	6	515 \| 234	25.7 \| 653
30	16	16	1.138 \| 28.9	1.378 \| 35.0	1.490 \| 37.8	1056 \| 1572	6	618 \| 280	26.8 \| 681
40	16	16	1.271 \| 32.3	1.511 \| 38.4	1.623 \| 41.2	1273 \| 1894	6	824 \| 374	29.2 \| 742
50	16	16	1.412 \| 35.9	1.652 \| 42.0	1.784 \| 45.3	1522 \| 2265	5	1030 \| 467	32.1 \| 816
2	14	14	0.432 \| 11.0	0.672 \| 17.1	0.784 \| 19.9	263 \| 391	25	66 \| 30	14.1 \| 358
3	14	14	0.470 \| 11.9	0.710 \| 18.0	0.822 \| 20.9	296 \| 440	25	99 \| 45	14.8 \| 376
4	14	14	0.510 \| 13.0	0.750 \| 19.1	0.862 \| 21.9	331 \| 492	20	132 \| 60	15.5 \| 394
5	14	14	0.576 \| 14.7	0.816 \| 20.7	0.928 \| 23.6	392 \| 583	20	165 \| 75	16.7 \| 424
6	14	14	0.625 \| 15.9	0.865 \| 22.0	0.977 \| 24.8	434 \| 645	20	197 \| 90	17.6 \| 447
7	14	14	0.674 \| 17.1	0.914 \| 23.2	1.026 \| 26.1	476 \| 708	17.5	230 \| 104	18.5 \| 469
8	14	14	0.724 \| 18.4	0.964 \| 24.5	1.076 \| 27.3	520 \| 775	17.5	263 \| 119	19.4 \| 492
10	14	14	0.788 \| 20.0	1.028 \| 26.1	1.140 \| 29.0	625 \| 930	17.5	329 \| 149	20.5 \| 521
12	14	14	0.813 \| 20.6	1.052 \| 26.7	1.164 \| 29.6	673 \| 1002	17.5	395 \| 179	21.0 \| 532
15	14	14	0.918 \| 23.3	1.158 \| 29.4	1.270 \| 32.3	812 \| 1209	17.5	494 \| 224	22.9 \| 581
20	14	14	1.040 \| 26.4	1.280 \| 32.5	1.392 \| 35.4	974 \| 1449	17.5	658 \| 298	25.1 \| 636
25	14	14	1.154 \| 29.3	1.394 \| 35.4	1.506 \| 38.3	1135 \| 1689	15	823 \| 373	27.1 \| 689
30	14	14	1.221 \| 31.0	1.461 \| 37.1	1.573 \| 40.0	1257 \| 1871	15	987 \| 448	28.3 \| 719
40	14	14	1.366 \| 34.7	1.606 \| 40.8	1.738 \| 44.1	1572 \| 2339	15	1316 \| 597	31.3 \| 794
50	14	14	1.519 \| 38.6	1.759 \| 44.7	1.891 \| 48.0	1843 \| 2742	12.5	1645 \| 746	34.0 \| 865
2	12	14	0.468 \| 11.9	0.708 \| 18.0	0.820 \| 20.8	293 \| 436	30	104 \| 47	14.8 \| 375
3	12	14	0.510 \| 13.0	0.750 \| 19.0	0.862 \| 21.9	337 \| 502	30	157 \| 71	15.5 \| 394
4	12	14	0.585 \| 14.9	0.825 \| 21.0	0.937 \| 23.8	409 \| 609	24	209 \| 95	16.9 \| 428
5	12	14	0.625 \| 15.9	0.865 \| 22.0	0.980 \| 24.8	455 \| 677	24	261 \| 118	17.6 \| 446
6	12	14	0.679 \| 17.3	0.919 \| 23.3	1.031 \| 26.2	508 \| 757	24	313 \| 142	18.6 \| 471
7	12	14	0.733 \| 18.6	0.973 \| 24.7	1.085 \| 27.6	563 \| 837	21	365 \| 166	19.5 \| 496
8	12	14	0.789 \| 20.1	1.029 \| 26.1	1.141 \| 29.0	664 \| 988	21	418 \| 189	20.5 \| 522
10	12	14	0.900 \| 22.9	1.140 \| 29.0	1.252 \| 31.8	797 \| 1186	21	522 \| 237	22.5 \| 572
12	12	14	0.927 \| 23.6	1.167 \| 29.7	1.279 \| 32.5	865 \| 1287	21	626 \| 284	23.0 \| 585
15	12	14	1.000 \| 25.4	1.240 \| 31.5	1.352 \| 34.3	987 \| 1469	21	783 \| 355	24.3 \| 618
20	12	14	1.135 \| 28.9	1.375 \| 34.9	1.487 \| 37.8	1197 \| 1782	21	1044 \| 474	26.8 \| 680
25	12	14	1.262 \| 32.1	1.502 \| 38.2	1.614 \| 41.0	1408 \| 2096	18	1305 \| 592	29.1 \| 738
30	12	14	1.336 \| 34.0	1.576 \| 40.0	1.708 \| 43.4	1616 \| 2405	18	1566 \| 710	30.7 \| 781
40	12	14	1.497 \| 38.0	1.737 \| 44.1	1.869 \| 47.5	1989 \| 2960	18	2088 \| 947	33.7 \| 855
50	12	14	1.667 \| 42.4	1.972 \| 50.1	2.105 \| 53.5	2448 \| 3644	15	2610 \| 1184	37.9 \| 962
2	10	12	0.518 \| 13.2	0.758 \| 19.3	0.870 \| 22.1	346 \| 515	40	166 \| 75	15.7 \| 398
3	10	12	0.595 \| 15.1	0.836 \| 21.2	0.948 \| 24.1	432 \| 643	40	249 \| 113	17.1 \| 433
4	10	12	0.647 \| 16.4	0.887 \| 22.5	0.999 \| 25.4	495 \| 736	32	332 \| 151	18.0 \| 457
5	10	12	0.692 \| 17.6	0.932 \| 23.7	1.044 \| 26.5	558 \| 830	32	415 \| 188	18.8 \| 477
6	10	12	0.754 \| 19.2	0.994 \| 25.3	1.106 \| 28.1	629 \| 936	32	498 \| 226	19.9 \| 506
7	10	12	0.816 \| 20.7	1.056 \| 26.8	1.168 \| 29.7	746 \| 1111	28	581 \| 264	21.0 \| 534
8	10	12	0.920 \| 23.4	1.160 \| 29.5	1.271 \| 32.3	875 \| 1303	28	664 \| 301	22.9 \| 581
10	10	12	1.000 \| 25.4	1.240 \| 31.5	1.352 \| 34.3	991 \| 1475	28	830 \| 376	24.3 \| 618
12	10	12	1.031 \| 26.2	1.271 \| 32.3	1.383 \| 35.1	1088 \| 1619	28	996 \| 452	24.9 \| 632
15	10	12	1.113 \| 28.3	1.353 \| 34.4	1.465 \| 37.2	1256 \| 1869	28	1245 \| 565	26.4 \| 670
20	10	12	1.268 \| 32.2	1.508 \| 38.3	1.620 \| 41.2	1543 \| 2297	28	1660 \| 753	29.2 \| 741
25	10	12	1.412 \| 35.9	1.652 \| 42.0	1.784 \| 45.3	1871 \| 2784	24	2075 \| 941	32.1 \| 816
30	10	12	1.496 \| 38.0	1.737 \| 44.1	1.868 \| 47.5	2114 \| 3146	24	2490 \| 1129	33.6 \| 854
40	10	12	1.680 \| 42.7	1.985 \| 50.4	2.117 \| 53.8	2730 \| 4063	24	3320 \| 1506	38.1 \| 968
50	10	12	1.933 \| 49.1	2.239 \| 56.9	2.371 \| 60.2	3396 \| 5053	20	4150 \| 1882	42.7 \| 1084
