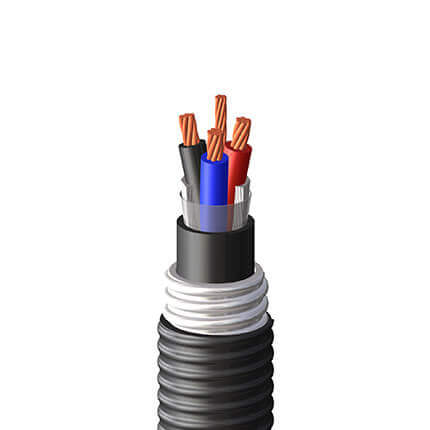

LSZH TYPE ACIC Armoured Control, Multi-Conductor, 600V

LSZH AIA Control cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.

Voltage

600 V
Optional: 300 / 1000 V

Product Construction

Insulation:
XLPE (RW90 rated) rated: 90°C wet / dry
Shielding (foil-free edge):
OS (optional)
Jacket:
LSZH inner / outer black jacket rated: 90°C
Armour:
Aluminum Interlocked Armour (AIA) (standard)
Steel Interlocked Armour (SIA) (optional)
Available In:
Composite constructions
Custom insulation/jacket colours

Certifications/Compliances

IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet / dry
UV sunlight resistant “SUN RES” (all colours)
Direct burial rated
-40°C cold bend rated/-25°C cold impact rated
Halogen-free rated
Rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
Zone 2 (Class I, Division 2)
Zone 22 (Class II & III, Division 2)

Colour Coding

2C – Black & white
3C – Black, red & blue
4C – Black, red, blue & white
5C and greater – Black, number-coded with white ink

Applications

OEM
Transit
Utility

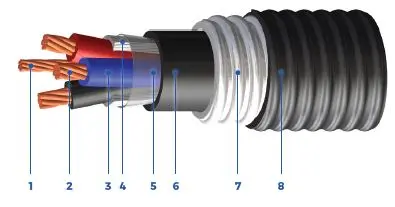

Properties

1. Bonding Conductor
2. Stranded Bare (ASTM B8) Annealed Copper Conductors
3. XLPE (RW90 Rated) Insulated Conductors
4. Polypropylene Fillers
5. Fiberglass Tape
6. LSZH Inner Protective Jacket
7. Aluminum Interlocked Armour (AIA)
8. LSZH Outer Protective Jacket

LSZH-Type-ACIC-Armoured-Control-Multi-conductor-600-V

Number of Conductors	Conductor Size	Ground Conductor Size	Nominal Diameter			Cable Weight	Ampacity*	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	AWG	Over Inner Jacket in. \| mm	Over Armour in. \| mm	Overall Cable in. \| mm	lb/1000ft \| kg/km	30°C ambient	lb \| kg	in. \| mm
2	14	14	0.372 \| 9.5	0.612 \| 15.5	0.724 \| 18.4	235 \| 349	25	66 \| 30	13.0 \| 331
3	14	14	0.403 \| 10.2	0.643 \| 16.3	0.755 \| 19.2	263 \| 391	25	99 \| 45	13.6 \| 345
4	14	14	0.436 \| 11.1	0.676 \| 17.2	0.788 \| 20.0	292 \| 435	20	132 \| 60	14.2 \| 360
5	14	14	0.465 \| 11.8	0.705 \| 17.9	0.817 \| 20.8	321 \| 477	20	165 \| 75	14.7 \| 374
6	14	14	0.505 \| 12.8	0.745 \| 18.9	0.857 \| 21.8	354 \| 527	20	197 \| 90	15.4 \| 392
7	14	14	0.575 \| 14.6	0.815 \| 20.7	0.927 \| 23.6	413 \| 615	17.5	230 \| 104	16.7 \| 424
8	14	14	0.616 \| 15.7	0.856 \| 21.8	0.968 \| 24.6	449 \| 669	17.5	263 \| 119	17.4 \| 443
10	14	14	0.668 \| 17.0	0.908 \| 23.1	1.020 \| 25.9	501 \| 746	17.5	329 \| 149	18.4 \| 466
12	14	14	0.688 \| 17.5	0.928 \| 23.6	1.040 \| 26.4	540 \| 804	17.5	395 \| 179	18.7 \| 476
15	14	14	0.741 \| 18.8	0.981 \| 24.9	1.093 \| 27.8	615 \| 915	17.5	494 \| 224	19.7 \| 500
20	14	14	0.841 \| 21.4	1.081 \| 27.5	1.193 \| 30.3	786 \| 1170	17.5	658 \| 298	21.5 \| 545
25	14	14	0.974 \| 24.7	1.214 \| 30.8	1.326 \| 33.7	970 \| 1443	15	823 \| 373	23.9 \| 606
30	14	14	1.028 \| 26.1	1.269 \| 32.2	1.381 \| 35.1	1077 \| 1603	15	987 \| 448	24.9 \| 631
40	14	14	1.147 \| 29.1	1.387 \| 35.2	1.499 \| 38.1	1307 \| 1945	15	1316 \| 597	27.0 \| 685
50	14	14	1.272 \| 32.3	1.512 \| 38.4	1.624 \| 41.2	1535 \| 2284	12.5	1645 \| 746	29.2 \| 742
2	12	14	0.408 \| 10.4	0.648 \| 16.5	0.760 \| 19.3	265 \| 394	30	104 \| 47	13.7 \| 347
3	12	14	0.443 \| 11.3	0.683 \| 17.3	0.795 \| 20.2	303 \| 450	30	157 \| 71	14.3 \| 363
4	12	14	0.480 \| 12.2	0.721 \| 18.3	0.833 \| 21.2	342 \| 508	24	209 \| 95	15.0 \| 381
5	12	14	0.514 \| 13.1	0.754 \| 19.1	0.866 \| 22.0	380 \| 566	24	261 \| 118	15.6 \| 396
6	12	14	0.589 \| 15.0	0.829 \| 21.1	0.941 \| 23.9	451 \| 671	24	313 \| 142	16.9 \| 430
7	12	14	0.634 \| 16.1	0.874 \| 22.2	0.986 \| 25.1	498 \| 741	21	365 \| 166	17.8 \| 451
8	12	14	0.681 \| 17.3	0.921 \| 23.4	1.033 \| 26.2	545 \| 811	21	418 \| 189	18.6 \| 472
10	12	14	0.740 \| 18.8	0.980 \| 24.9	1.092 \| 27.7	615 \| 915	21	522 \| 237	19.7 \| 499
12	12	14	0.763 \| 19.4	0.982 \| 25.0	1.095 \| 27.8	713 \| 1060	21	626 \| 284	19.7 \| 500
15	12	14	0.823 \| 20.9	1.063 \| 27	1.175 \| 29.9	818 \| 1218	21	783 \| 355	21.2 \| 537
20	12	14	0.976 \| 24.8	1.216 \| 30.9	1.328 \| 33.7	1052 \| 1565	21	1044 \| 474	23.9 \| 607
25	12	14	1.082 \| 27.5	1.322 \| 33.6	1.434 \| 36.4	1234 \| 1836	18	1305 \| 592	25.8 \| 656
30	12	14	1.144 \| 29.1	1.384 \| 35.2	1.496 \| 38.0	1384 \| 2060	18	1566 \| 710	26.9 \| 684
40	12	14	1.278 \| 32.5	1.518 \| 38.6	1.630 \| 41.4	1708 \| 2542	18	2088 \| 947	29.3 \| 745
50	12	14	1.420 \| 36.1	1.660 \| 42.2	1.792 \| 45.5	2065 \| 3073	15	2610 \| 1184	32.3 \| 819
2	10	12	0.458 \| 11.6	0.698 \| 17.7	0.810 \| 20.6	317 \| 471	40	166 \| 75	14.6 \| 370
3	10	12	0.498 \| 12.7	0.739 \| 18.8	0.851 \| 21.6	370 \| 550	40	249 \| 113	15.3 \| 389
4	10	12	0.572 \| 14.5	0.813 \| 20.6	0.925 \| 23.5	450 \| 670	32	332 \| 151	16.6 \| 423
5	10	12	0.611 \| 15.5	0.851 \| 21.6	0.963 \| 24.5	506 \| 753	32	415 \| 188	17.3 \| 440
6	10	12	0.664 \| 16.9	0.904 \| 23.0	1.016 \| 25.8	568 \| 845	32	498 \| 226	18.3 \| 465
7	10	12	0.717 \| 18.2	0.957 \| 24.3	1.069 \| 27.2	631 \| 940	28	581 \| 264	19.2 \| 489
8	10	12	0.771 \| 19.6	0.991 \| 25.2	1.103 \| 28.0	737 \| 1096	28	664 \| 301	19.9 \| 504
10	10	12	0.840 \| 21.3	1.080 \| 27.4	1.192 \| 30.3	842 \| 1254	28	830 \| 376	21.5 \| 545
12	10	12	0.906 \| 23.0	1.147 \| 29.1	1.258 \| 32.0	979 \| 1456	28	996 \| 452	22.7 \| 575
15	10	12	0.977 \| 24.8	1.217 \| 30.9	1.329 \| 33.8	1131 \| 1684	28	1245 \| 565	23.9 \| 608
20	10	12	1.109 \| 28.2	1.349 \| 34.3	1.461 \| 37.1	1388 \| 2066	28	1660 \| 753	26.3 \| 668
25	10	12	1.232 \| 31.3	1.472 \| 37.4	1.584 \| 40.2	1646 \| 2449	24	2075 \| 941	28.5 \| 724
30	10	12	1.304 \| 33.1	1.544 \| 39.2	1.676 \| 42.6	1903 \| 2832	24	2490 \| 1129	30.2 \| 766
40	10	12	1.461 \| 37.1	1.701 \| 43.2	1.833 \| 46.6	2372 \| 3530	24	3320 \| 1506	33.0 \| 838
50	10	12	1.626 \| 41.3	1.931 \| 49.1	2.063 \| 52.4	2926 \| 4354	20	4150 \| 1882	37.1 \| 943
2	16	16	0.346 \| 8.8	0.346 \| 8.8	0.698 \| 17.7	211 \| 314	10	41 \| 19	12.6 \| 319
3	16	16	0.374 \| 9.5	0.374 \| 9.5	0.726 \| 18.4	233 \| 347	10	62 \| 28	13.1 \| 332
4	16	16	0.404 \| 10.3	0.404 \| 10.3	0.756 \| 19.2	256 \| 381	8	82 \| 37	13.6 \| 346
5	16	16	0.430 \| 10.9	0.430 \| 10.9	0.782 \| 19.9	279 \| 415	8	103 \| 47	14.1 \| 358
6	16	16	0.466 \| 11.8	0.466 \| 11.8	0.818 \| 20.8	305 \| 453	8	124 \| 56	14.7 \| 374
7	16	16	0.502 \| 12.8	0.502 \| 12.8	0.854 \| 21.7	331 \| 493	7	144 \| 65	15.4 \| 390
8	16	16	0.569 \| 14.5	0.569 \| 14.5	0.921 \| 23.4	386 \| 575	7	165 \| 75	16.6 \| 421
10	16	16	0.616 \| 15.7	0.616 \| 15.7	0.968 \| 24.6	425 \| 632	7	206 \| 93	17.4 \| 443
12	16	16	0.634 \| 16.1	0.634 \| 16.1	0.986 \| 25.1	455 \| 677	7	247 \| 112	17.8 \| 451
15	16	16	0.682 \| 17.3	0.682 \| 17.3	1.034 \| 26.3	508 \| 756	7	309 \| 140	18.6 \| 473
20	16	16	0.772 \| 19.6	0.772 \| 19.6	1.104 \| 28.0	646 \| 962	7	412 \| 187	19.9 \| 505
25	16	16	0.896 \| 22.8	0.896 \| 22.8	1.248 \| 31.7	802 \| 1193	6	515 \| 234	22.5 \| 571
30	16	16	0.945 \| 24.0	0.945 \| 24.0	1.297 \| 32.9	879 \| 1308	6	618 \| 280	23.3 \| 593
40	16	16	1.052 \| 26.7	1.052 \| 26.7	1.404 \| 35.7	1058 \| 1574	6	824 \| 374	25.3 \| 642
50	16	16	1.165 \| 29.6	1.165 \| 29.6	1.517 \| 38.5	1229 \| 1828	5	1030 \| 467	27.3 \| 693
2	18	18	0.322 \| 8.2	0.322 \| 8.2	0.674 \| 17.1	191 \| 285	5	26 \| 12	12.1 \| 308
3	18	18	0.338 \| 8.6	0.338 \| 8.6	0.690 \| 17.5	205 \| 306	5	39 \| 18	12.4 \| 316
4	18	18	0.366 \| 9.3	0.366 \| 9.3	0.719 \| 18.3	224 \| 333	4	52 \| 24	12.9 \| 329
5	18	18	0.398 \| 10.1	0.398 \| 10.1	0.749 \| 19.0	246 \| 366	4	65 \| 29	13.5 \| 343
6	18	18	0.430 \| 10.9	0.430 \| 10.9	0.782 \| 19.9	267 \| 397	4	78 \| 35	14.1 \| 358
7	18	18	0.462 \| 11.7	0.462 \| 11.7	0.814 \| 20.7	289 \| 430	3.5	91 \| 41	14.7 \| 372
8	18	18	0.496 \| 12.6	0.496 \| 12.6	0.848 \| 21.5	311 \| 462	3.5	104 \| 47	15.3 \| 388
10	18	18	0.568 \| 14.4	0.568 \| 14.4	0.920 \| 23.4	367 \| 546	3.5	130 \| 59	16.6 \| 421
12	18	18	0.584 \| 14.8	0.584 \| 14.8	0.936 \| 23.8	389 \| 579	3.5	156 \| 71	16.9 \| 428
15	18	18	0.627 \| 15.9	0.627 \| 15.9	0.979 \| 24.9	429 \| 639	3.5	195 \| 88	17.6 \| 448
20	18	18	0.708 \| 18.0	0.708 \| 18.0	1.061 \| 26.9	507 \| 755	3.5	260 \| 118	19.1 \| 485
25	18	18	0.784 \| 19.9	0.784 \| 19.9	1.136 \| 28.9	626 \| 931	3	325 \| 147	20.4 \| 519
30	18	18	0.828 \| 21.0	0.828 \| 21.0	1.181 \| 30.0	681 \| 1014	3	390 \| 177	21.2 \| 540
40	18	18	0.964 \| 24.5	0.964 \| 24.5	1.316 \| 33.4	866 \| 1289	3	520 \| 236	23.7 \| 602
50	18	18	1.066 \| 27.1	1.066 \| 27.1	1.418 \| 36.0	998 \| 1485	2.5	650 \| 295	25.5 \| 648
