LSZH Type CIC TC Tray Instrumentation, 300V

LSZH Tray Instrumentation cables are used to convert analogue or digital signals. Used when there is a possibility for crosstalk between pairs / triads. Cable can be installed in raceways, direct burial applications and in outdoor exposed Industrial applications

Voltage

300 V
Optional: 600 / 1000 V

Product Construction

Insulation:
XLPE (RW90 rated)rated: 90°C wet / dry
Shielding (foil-free edge):
ISOS (standard)
OS (optional)
Jacket:
LSZH outer black jacket rated: 90°C
Available in:
Custom insulation / jacket colours
Composite constructions

Certifications/Compliances

IEEE 383/1202 (70,000 BTU / hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet / dry
UV sunlight resistant “SUN RES” (all colours)
Direct burial rated
-30°C cold bend/-25°C impact rated
Halogen-free rated
Rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
Zone 2 (Class I, Division 2) (Div 2)
Zone 22 (Class II & III, Division 2)

Colour Coding

Pairs – Black & white, number-coded with black ink printed on white conductor (standard)
Triads – Black, white & red, number-coded with black ink printed on white conductor (standard)

Applications

Transit
OEM
Transit
Industrial Construction/Automation
Industrial
Utility

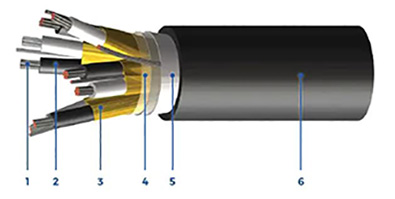

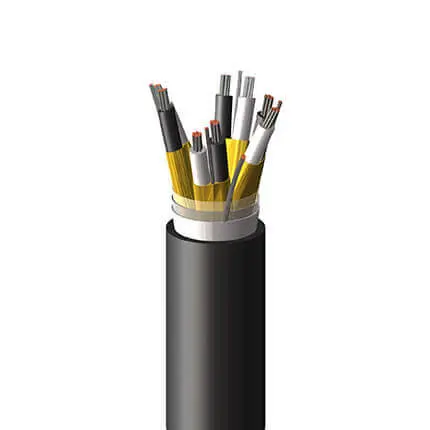

Properties

1. Stranded Bare Copper Conductors (Tin-coated Available)
2. Halogen Free XLPE (RW90 Rated) Insulated Conductors
3. Individual Shielded Pairs/Triads with Tin-coated Copper Drain Wire
4. Fiberglass Tape
5. Overall Aluminum/Mylar Shield with Tin-coated Copper Drain Wire
6. LSZH Outer Protective Jacket

PAIRS

Number of Pairs	Conductor Size	Nominal Diameter Overall Cable	Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	in. \| mm	lb/1000ft \| kg/km	lb \| kg	in. \| mm
1	16	0.327 \| 8.3	58 \| 86	41 \| 19	5.9 \| 150
2	16	0.479 \| 12.2	118 \| 175	82 \| 37	8.6 \| 219
4	16	0.588 \| 14.9	186 \| 277	165 \| 75	10.6 \| 269
6	16	0.700 \| 17.8	261 \| 388	247 \| 112	12.6 \| 320
8	16	0.758 \| 19.3	319 \| 475	330 \| 150	13.7 \| 347
12	16	0.961 \| 24.4	487 \| 725	494 \| 224	17.3 \| 440
16	16	1.068 \| 27.1	607 \| 903	659 \| 299	19.2 \| 488
24	16	1.319 \| 33.5	866 \| 1289	989 \| 449	23.7 \| 603
36	16	1.516 \| 38.5	1206 \| 1795	1483 \| 673	27.3 \| 693
2	18	0.439 \| 11.2	97 \| 145	52 \| 24	7.9 \| 201
4	18	0.510 \| 13.0	134 \| 199	104 \| 47	9.2 \| 233
6	18	0.640 \| 16.3	207 \| 308	156 \| 71	11.5 \| 293
8	18	0.692 \| 17.6	250 \| 372	208 \| 94	12.5 \| 316
12	18	0.837 \| 21.3	348 \| 517	312 \| 142	15.1 \| 383
16	18	0.972 \| 24.7	472 \| 703	416 \| 189	17.5 \| 444
24	18	1.196 \| 30.4	670 \| 998	624 \| 283	21.5 \| 547
36	18	1.372 \| 34.9	921 \| 1371	936 \| 425	24.7 \| 627
1	20	0.283 \| 7.2	41 \| 61	16 \| 7	5.1 \| 129
2	20	0.406 \| 10.3	81 \| 121	32 \| 15	7.3 \| 186
4	20	0.470 \| 11.9	109 \| 163	64 \| 29	8.5 \| 215
6	20	0.590 \| 15.0	171 \| 254	96 \| 44	10.6 \| 270
8	20	0.636 \| 16.2	204 \| 304	128 \| 58	11.5 \| 291
12	20	0.767 \| 19.5	281 \| 418	192 \| 87	13.8 \| 351
16	20	0.892 \| 22.7	382 \| 569	256 \| 116	16.1 \| 408
24	20	1.093 \| 27.8	537 \| 799	384 \| 174	19.7 \| 500
36	20	1.251 \| 31.8	729 \| 1084	576 \| 261	22.5 \| 572

TRIADS

Number of Pairs	Conductor Size	Nominal Diameter Overall Cable	Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	in. \| mm	lb/1000ft \| kg/km	lb \| kg	in. \| mm
1	16	0.343 \| 8.7	71 \| 106	62 \| 28	6.2 \| 157
2	16	0.572 \| 14.5	170 \| 254	124 \| 56	10.3 \| 262
4	16	0.665 \| 16.9	244 \| 364	247 \| 112	12.0 \| 304
6	16	0.795 \| 20.2	347 \| 516	371 \| 168	14.3 \| 364
8	16	0.903 \| 22.9	469 \| 697	494 \| 224	16.3 \| 413
12	16	1.093 \| 27.8	660 \| 982	742 \| 336	19.7 \| 500
16	16	1.217 \| 30.9	823 \| 1224	989 \| 449	21.9 \| 556
24	16	1.509 \| 38.3	1186 \| 1766	1483 \| 673	27.2 \| 690
1	18	0.317 \| 8.1	57 \| 85	39 \| 18	5.7 \| 145
2	18	0.496 \| 12.6	121 \| 180	78 \| 35	8.9 \| 227
4	18	0.608 \| 15.4	191 \| 284	156 \| 71	10.9 \| 278
6	18	0.724 \| 18.4	268 \| 399	234 \| 106	13.0 \| 331
8	18	0.784 \| 19.9	327 \| 487	312 \| 142	14.1 \| 359
12	18	0.993 \| 25.2	503 \| 748	468 \| 212	17.9 \| 454
16	18	1.104 \| 28.0	623 \| 927	624 \| 283	19.9 \| 505
24	18	1.364 \| 34.7	889 \| 1323	936 \| 425	24.6 \| 624
1	20	0.296 \| 7.5	48 \| 71	24 \| 11	5.3 \| 135
2	20	0.458 \| 11.6	101 \| 150	48 \| 22	8.2 \| 209
8	20	0.721 \| 18.3	261 \| 388	192 \| 87	13.0 \| 330
12	20	0.913 \| 23.2	401 \| 597	288 \| 131	16.4 \| 417
16	20	1.012 \| 25.7	492 \| 732	384 \| 174	18.2 \| 463
24	20	1.247 \| 31.7	696 \| 1036	576 \| 261	22.4 \| 570

Number of Pairs	Conductor Size	Nominal Diameter Overall Cable	Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	in. \| mm	lb/1000ft \| kg/km	lb \| kg	in. \| mm
1	16	0.327 \| 8.3	58 \| 86	41 \| 19	5.9 \| 150
2	16	0.479 \| 12.2	118 \| 175	82 \| 37	8.6 \| 219
4	16	0.588 \| 14.9	186 \| 277	165 \| 75	10.6 \| 269
6	16	0.700 \| 17.8	261 \| 388	247 \| 112	12.6 \| 320
8	16	0.758 \| 19.3	319 \| 475	330 \| 150	13.7 \| 347
12	16	0.961 \| 24.4	487 \| 725	494 \| 224	17.3 \| 440
16	16	1.068 \| 27.1	607 \| 903	659 \| 299	19.2 \| 488
24	16	1.319 \| 33.5	866 \| 1289	989 \| 449	23.7 \| 603
36	16	1.516 \| 38.5	1206 \| 1795	1483 \| 673	27.3 \| 693
2	18	0.439 \| 11.2	97 \| 145	52 \| 24	7.9 \| 201
4	18	0.510 \| 13.0	134 \| 199	104 \| 47	9.2 \| 233
6	18	0.640 \| 16.3	207 \| 308	156 \| 71	11.5 \| 293
8	18	0.692 \| 17.6	250 \| 372	208 \| 94	12.5 \| 316
12	18	0.837 \| 21.3	348 \| 517	312 \| 142	15.1 \| 383
16	18	0.972 \| 24.7	472 \| 703	416 \| 189	17.5 \| 444
24	18	1.196 \| 30.4	670 \| 998	624 \| 283	21.5 \| 547
36	18	1.372 \| 34.9	921 \| 1371	936 \| 425	24.7 \| 627
1	20	0.283 \| 7.2	41 \| 61	16 \| 7	5.1 \| 129
2	20	0.406 \| 10.3	81 \| 121	32 \| 15	7.3 \| 186
4	20	0.470 \| 11.9	109 \| 163	64 \| 29	8.5 \| 215
6	20	0.590 \| 15.0	171 \| 254	96 \| 44	10.6 \| 270
8	20	0.636 \| 16.2	204 \| 304	128 \| 58	11.5 \| 291
12	20	0.767 \| 19.5	281 \| 418	192 \| 87	13.8 \| 351
16	20	0.892 \| 22.7	382 \| 569	256 \| 116	16.1 \| 408
24	20	1.093 \| 27.8	537 \| 799	384 \| 174	19.7 \| 500
36	20	1.251 \| 31.8	729 \| 1084	576 \| 261	22.5 \| 572

Number of Pairs	Conductor Size	Nominal Diameter Overall Cable	Cable Weight	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	in. \| mm	lb/1000ft \| kg/km	lb \| kg	in. \| mm
1	16	0.343 \| 8.7	71 \| 106	62 \| 28	6.2 \| 157
2	16	0.572 \| 14.5	170 \| 254	124 \| 56	10.3 \| 262
4	16	0.665 \| 16.9	244 \| 364	247 \| 112	12.0 \| 304
6	16	0.795 \| 20.2	347 \| 516	371 \| 168	14.3 \| 364
8	16	0.903 \| 22.9	469 \| 697	494 \| 224	16.3 \| 413
12	16	1.093 \| 27.8	660 \| 982	742 \| 336	19.7 \| 500
16	16	1.217 \| 30.9	823 \| 1224	989 \| 449	21.9 \| 556
24	16	1.509 \| 38.3	1186 \| 1766	1483 \| 673	27.2 \| 690
1	18	0.317 \| 8.1	57 \| 85	39 \| 18	5.7 \| 145
2	18	0.496 \| 12.6	121 \| 180	78 \| 35	8.9 \| 227
4	18	0.608 \| 15.4	191 \| 284	156 \| 71	10.9 \| 278
6	18	0.724 \| 18.4	268 \| 399	234 \| 106	13.0 \| 331
8	18	0.784 \| 19.9	327 \| 487	312 \| 142	14.1 \| 359
12	18	0.993 \| 25.2	503 \| 748	468 \| 212	17.9 \| 454
16	18	1.104 \| 28.0	623 \| 927	624 \| 283	19.9 \| 505
24	18	1.364 \| 34.7	889 \| 1323	936 \| 425	24.6 \| 624
1	20	0.296 \| 7.5	48 \| 71	24 \| 11	5.3 \| 135
2	20	0.458 \| 11.6	101 \| 150	48 \| 22	8.2 \| 209
8	20	0.721 \| 18.3	261 \| 388	192 \| 87	13.0 \| 330
12	20	0.913 \| 23.2	401 \| 597	288 \| 131	16.4 \| 417
16	20	1.012 \| 25.7	492 \| 732	384 \| 174	18.2 \| 463
24	20	1.247 \| 31.7	696 \| 1036	576 \| 261	22.4 \| 570
