LSZH TYPE CIC TC Tray Power, Multi-Conductor, 1000V

LSZH Tray Power cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (-40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.

Voltage

1000 V
Optional: 600 V

Product Construction

Insulation:
XLPE (RW90 rated) rated: 90°C wet/dry
Shielding (foil-free edge):
OS (optional)
Jacket:
LSZH outer black jacket rated: 90°C
Available in:
Custom insulation/jacket colours
Composite constructions

Certifications/Compliances

IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
XLPE (RW90 rated), 90°C wet/dry
UV sunlight resistant “SUN RES” (all colours)
Direct burial rated
-30°C cold bend rated/ -25°C cold impact rated
Halogen-free rated
Rated for use in hazardous locations:
Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
Zone 2 (Class I, Division 2)
Zone 22 (Class II & III, Division 2)

Colour Coding

2C – Black & white
3C – Black, red & blue
4C – Black, red, blue & white
5C and greater – Black, number-coded with white ink

Applications

Industrial Construction/Automation
Industrial
Commercial Construction Projects

Properties

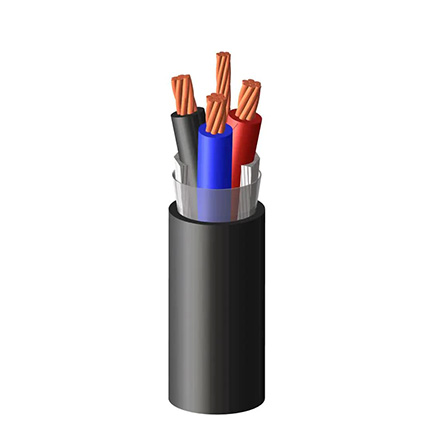

1. Bonding Conductor
2. Stranded Bare (ASTM B8) Annealed Copper Conductors
3. XLPE (RW90 Rated) Insulated Conductors
4. Polypropylene Fillers
5. Fiberglass Tape
6. LSZH Protective Jacket

LSZH-Type-CIC-TC-Tray-Power-Multi-conductor-1000-V

Number of Conductors	Conductor Size	Bonding Conductor Size	Nominal Diameter Overall Cable	Cable Weight	Ampacity*	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	AWG	in. \| mm	lb/1000ft \| kg/km	30°C ambient	lb \| kg	in. \| mm
2	14	14	0.432 \| 11.0	104 \| 155	25	66 \| 30	3.9 \| 99
2	12	14	0.468 \| 11.9	128 \| 190	30	104 \| 47	4.2 \| 107
2	10	12	0.518 \| 13.2	170 \| 253	40	166 \| 75	4.7 \| 118
2	8	10	0.606 \| 15.4	257 \| 382	55	265 \| 120	5.5 \| 139
2	6	8	0.744 \| 18.9	382 \| 568	75	419 \| 190	6.7 \| 170
2	4	8	0.838 \| 21.3	513 \| 764	95	668 \| 303	7.5 \| 192
2	3	6	0.932 \| 23.7	673 \| 1001	115	842 \| 382	8.4 \| 213
2	2	6	0.994 \| 25.3	783 \| 1165	130	1062 \| 482	8.9 \| 227
2	1	6	1.152 \| 29.3	977 \| 1454	145	1339 \| 607	10.4 \| 263
2	1/0	6	1.232 \| 31.3	1145 \| 1704	170	1690 \| 766	11.1 \| 282
2	2/0	6	1.318 \| 33.5	1364 \| 2030	195	2130 \| 966	11.9 \| 301
2	3/0	4	1.420 \| 36.1	1675 \| 2492	225	2671 \| 1212	12.8 \| 325
2	4/0	4	1.532 \| 38.9	2015 \| 2999	260	3386 \| 1536	13.8 \| 350
3	14	14	0.470 \| 11.9	126 \| 188	25	99 \| 45	4.2 \| 107
3	12	14	0.510 \| 13.0	159 \| 237	30	157 \| 71	4.6 \| 117
3	10	12	0.595 \| 15.1	234 \| 349	40	249 \| 113	5.4 \| 136
3	8	10	0.660 \| 16.8	325 \| 484	55	397 \| 180	5.9 \| 151
3	6	8	0.813 \| 20.7	490 \| 730	75	629 \| 285	7.3 \| 186
3	4	8	0.930 \| 23.6	710 \| 1056	95	1002 \| 454	8.4 \| 213
3	3	6	0.988 \| 25.1	862 \| 1283	115	1263 \| 573	8.9 \| 226
3	2	6	1.055 \| 26.8	1022 \| 1521	130	1593 \| 723	9.5 \| 241
3	1	6	1.225 \| 31.1	1278 \| 1901	145	2009 \| 911	11.0 \| 280
3	1/0	6	1.311 \| 33.3	1516 \| 2256	170	2534 \| 1150	11.8 \| 300
3	2/0	6	1.403 \| 35.7	1819 \| 2707	195	3194 \| 1449	12.6 \| 321
3	3/0	4	1.513 \| 38.4	2257 \| 3359	225	4007 \| 1818	13.6 \| 346
3	4/0	4	1.633 \| 41.5	2745 \| 4085	260	5078 \| 2304	14.7 \| 373
4	14	14	0.510 \| 13.0	150 \| 223	25	132 \| 60	4.6 \| 117
4	12	14	0.585 \| 14.9	213 \| 317	30	209 \| 95	5.3 \| 134
4	10	12	0.647 \| 16.4	284 \| 423	40	332 \| 151	5.8 \| 148
4	8	10	0.719 \| 18.3	397 \| 590	55	529 \| 240	6.5 \| 164
4	6	8	0.929 \| 23.6	646 \| 962	75	839 \| 380	8.4 \| 212
4	4	8	1.045 \| 26.6	888 \| 1322	95	1336 \| 606	9.4 \| 239
4	3	6	1.112 \| 28.3	1084 \| 1614	115	1684 \| 764	10.0 \| 254
4	2	6	1.189 \| 30.2	1295 \| 1928	130	2124 \| 964	10.7 \| 272
4	1	6	1.351 \| 34.3	1622 \| 2414	145	2678 \| 1215	12.2 \| 309
4	1/0	6	1.448 \| 36.8	1924 \| 2863	170	3379 \| 1533	13.0 \| 331
4	2/0	6	1.551 \| 39.4	2351 \| 3499	195	4259 \| 1932	14.0 \| 355
4	3/0	4	1.674 \| 42.5	2889 \| 4299	225	5343 \| 2423	15.1 \| 383
4	4/0	4	1.869 \| 47.5	3663 \| 5451	260	6771 \| 3071	16.8 \| 427

Number of Conductors	Conductor Size	Bonding Conductor Size	Nominal Diameter Overall Cable	Cable Weight	Ampacity*	Max. Pulling Tension (Pulling Eye)	Min. Bend Radius (Pull)
	AWG	AWG	in. \| mm	lb/1000ft \| kg/km	30°C ambient	lb \| kg	in. \| mm
2	14	14	0.432 \| 11.0	104 \| 155	25	66 \| 30	3.9 \| 99
2	12	14	0.468 \| 11.9	128 \| 190	30	104 \| 47	4.2 \| 107
2	10	12	0.518 \| 13.2	170 \| 253	40	166 \| 75	4.7 \| 118
2	8	10	0.606 \| 15.4	257 \| 382	55	265 \| 120	5.5 \| 139
2	6	8	0.744 \| 18.9	382 \| 568	75	419 \| 190	6.7 \| 170
2	4	8	0.838 \| 21.3	513 \| 764	95	668 \| 303	7.5 \| 192
2	3	6	0.932 \| 23.7	673 \| 1001	115	842 \| 382	8.4 \| 213
2	2	6	0.994 \| 25.3	783 \| 1165	130	1062 \| 482	8.9 \| 227
2	1	6	1.152 \| 29.3	977 \| 1454	145	1339 \| 607	10.4 \| 263
2	1/0	6	1.232 \| 31.3	1145 \| 1704	170	1690 \| 766	11.1 \| 282
2	2/0	6	1.318 \| 33.5	1364 \| 2030	195	2130 \| 966	11.9 \| 301
2	3/0	4	1.420 \| 36.1	1675 \| 2492	225	2671 \| 1212	12.8 \| 325
2	4/0	4	1.532 \| 38.9	2015 \| 2999	260	3386 \| 1536	13.8 \| 350
3	14	14	0.470 \| 11.9	126 \| 188	25	99 \| 45	4.2 \| 107
3	12	14	0.510 \| 13.0	159 \| 237	30	157 \| 71	4.6 \| 117
3	10	12	0.595 \| 15.1	234 \| 349	40	249 \| 113	5.4 \| 136
3	8	10	0.660 \| 16.8	325 \| 484	55	397 \| 180	5.9 \| 151
3	6	8	0.813 \| 20.7	490 \| 730	75	629 \| 285	7.3 \| 186
3	4	8	0.930 \| 23.6	710 \| 1056	95	1002 \| 454	8.4 \| 213
3	3	6	0.988 \| 25.1	862 \| 1283	115	1263 \| 573	8.9 \| 226
3	2	6	1.055 \| 26.8	1022 \| 1521	130	1593 \| 723	9.5 \| 241
3	1	6	1.225 \| 31.1	1278 \| 1901	145	2009 \| 911	11.0 \| 280
3	1/0	6	1.311 \| 33.3	1516 \| 2256	170	2534 \| 1150	11.8 \| 300
3	2/0	6	1.403 \| 35.7	1819 \| 2707	195	3194 \| 1449	12.6 \| 321
3	3/0	4	1.513 \| 38.4	2257 \| 3359	225	4007 \| 1818	13.6 \| 346
3	4/0	4	1.633 \| 41.5	2745 \| 4085	260	5078 \| 2304	14.7 \| 373
4	14	14	0.510 \| 13.0	150 \| 223	25	132 \| 60	4.6 \| 117
4	12	14	0.585 \| 14.9	213 \| 317	30	209 \| 95	5.3 \| 134
4	10	12	0.647 \| 16.4	284 \| 423	40	332 \| 151	5.8 \| 148
4	8	10	0.719 \| 18.3	397 \| 590	55	529 \| 240	6.5 \| 164
4	6	8	0.929 \| 23.6	646 \| 962	75	839 \| 380	8.4 \| 212
4	4	8	1.045 \| 26.6	888 \| 1322	95	1336 \| 606	9.4 \| 239
4	3	6	1.112 \| 28.3	1084 \| 1614	115	1684 \| 764	10.0 \| 254
4	2	6	1.189 \| 30.2	1295 \| 1928	130	2124 \| 964	10.7 \| 272
4	1	6	1.351 \| 34.3	1622 \| 2414	145	2678 \| 1215	12.2 \| 309
4	1/0	6	1.448 \| 36.8	1924 \| 2863	170	3379 \| 1533	13.0 \| 331
4	2/0	6	1.551 \| 39.4	2351 \| 3499	195	4259 \| 1932	14.0 \| 355
4	3/0	4	1.674 \| 42.5	2889 \| 4299	225	5343 \| 2423	15.1 \| 383
4	4/0	4	1.869 \| 47.5	3663 \| 5451	260	6771 \| 3071	16.8 \| 427
