LV Aerial Bundled Conductor (ABC) Cables

Standard

Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards

Construction

Conductor

Aluminium conductor, round stranded compressed (RM).

Insulation

XPLE compound, UV-resistant.

Core Identification

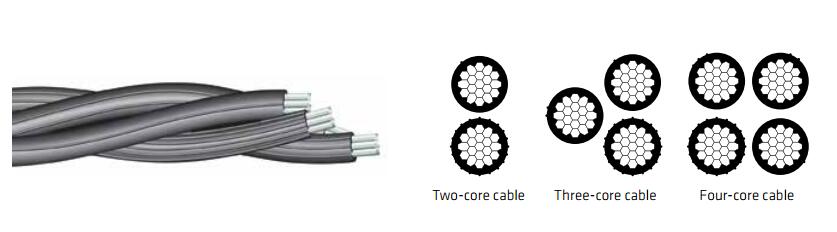

1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm² and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the surface of the protective core should be smooth.

Application

overhead distribution lines

Electrical Properties

Rated Voltage 0.6/1kV
Test Voltage 4 Veff kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Minimum Bending Radius 18×OD

Construction Parameters

0.6/1 KV ABC – Aerial Bundled Cables – BS 7870-5 (AL/XLPE)
Number of Cores x Nominal Cross Section Overall Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
No.×mm² mm Kg/Km Ω/Km KN A
1×16 RM 8.0 74 1.910 2.5 72
1×25 RM 9.0 106 1.200 4.0 107
1×35 RM 10.5 138 0.868 5.5 132
1×50 RM 11.8 182 0.641 8.0 165
1×70 RM 13.0 252 0.443 10.7 205
1×95 RM 15.4 333 0.320 13.7 240
1×120 RM 17.0 408 0.253 18.6 290
1×150 RM 19.0 502 0.206 23.2 334
1×185 RM 21.0 611 0.164 28.7 389
1×240 RM 24.0 801 0.125 37.2 467
2×16 RM 15.6 147 1.910 2.5 72
2×25 RM 18.0 208 1.200 4.0 107
2×35 RM 20.0 277 0.868 5.5 132
2×50 RM 23.5 361 0.641 8.0 165
2×70 RM 25.4 505 0.443 10.7 205
2×95 RM 30.3 666 0.320 13.7 240
2×150 RM 38.0 1004 0.206 23.2 334
4×16 RM 18.8 286 1.910 2.5 72
4×25 RM 21.2 430 1.200 4.0 107
4×35 RM 24.1 553 0.868 5.5 132
4×50 RM 27.8 746 0.641 8.0 165
4×70 RM 31.8 1009 0.443 10.7 205
4×95 RM 37.8 1332 0.320 13.7 240
4×120 RM 54.4 1632 0.253 18.6 290
4×50 + 1×25 RM 31.9 814 0.641/1.200 8.0/4.0 165/107
4×50 + 1×35 RM 31.9 845 0.641/0.868 8.5/5.5 165/132
4×70 + 1×25 RM 36.0 1105 0.443/1.200 10.7/4.0 205/107
4×70 + 2×25 RM 40.0 1217 0.443/1.200 10.7/4.0 205/107
4×95 + 1×25 RM 41.8 1438 0.320/1.200 13.7/4.0 240/107
4×95 + 2×25 RM 42.0 1544 0.320/1.200 13.7/4.0 240/107
4×120 + 1×25 RM 59.0 2050 0.253/1.200 18.6/4.0 290/107
0.6/1 KV ABC-Aerial Bundle Cable- IEC 60502 & TNB-(AL/PE)
Number of Cores x Nominal Cross Section Overal Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
No.×mm² mm Kg/Km Ω/Km KN A
1×16+1×25 RM 15.3 160 1.910 2.5 72
3×16+1×25 RM 19.0 290 1.200 4.0 107
3×25+1×25 RM 23.2 400 0.868 5.5 132
3×35+1×25 RM 25.6 500 0.641 8.0 165
3×50+1×35 RM 30.0 680 0.443 10.7 205
3×70+1×50 RM 34.9 920 0.320 13.7 240
3×95+1×70 RM 40.6 1270 0.253 18.6 290
3×120+1×70 RM 44.1 1510 0.206 23.2 334
3×150+1×95 RM 49.2 1870 0.164 28.7 389
3×185+1×120 RM 54.9 2340 0.125 37.2 467
3×25+1×25+1×16 RM 23.2 470 1.910 2.5 72
3×35+1×25+1×16 RM 25.6 560 1.200 4.0 107
3×50+1×35+1×16 RM 30.0 740 0.868 5.5 132
3×70+1×50+1×16 RM 34.9 980 0.641 8.0 165
3×95+1×70+1×16 RM 40.6 1330 0.443 10.7 205
3×120+1×70+1×16 RM 44.1 1580 0.320 13.7 240
3×150+1×95+1×16 RM 49.2 1940 0.206 23.2 334
3×185+1×120+1×16 RM 54.9 2410 0.106 30.8 332
0.6/1 KV-ABC -Aerial Bundle Cable- HD 626 S1 (AL/XLPE)
number of cores x nominal cross section outer diameter total weight max. conductor- resistance min. breaking load of conductor strand current rating in the air 1)
mm2 ca. mm ca. kg/km Ohm/km kN A
2×16 RM 14.2 72 147 1.910 2,5
2×25 RM 17.2 107 208 1.200 4.0
2×35 RM 19.6 132 277 0.868 5.5
2×50 RM 22.4 165 361 0.641 8.0
4×16 RM 17.6 72 286 1.910 2.5
4×25 RM 20.3 107 430 1.200 4.0
4×35 RM 23.7 132 553 0.868 5.5
4×50 RM 27.1 165 746 0.641 8.0
4×70 RM 30.6 205 1009 0.443 10.7
4×95 RM 36.1 240 1332 0.320 13.7
4×120 RM 51.2 290 1632 0.253 18.6
4×35 + 1×35 RM 27.4 132/132 694 0.868/0.868 5.5/5.5
4×50 + 1×25 RM 30.5 165/107 814 0.641/1.200 8.0/4.0
4×50 + 1×35 RM 30.7 165/132 845 0.641/0.868 8.5/5.5
4×70 + 1×25 RM 34.8 205/107 1105 0.443/1.200 10.7/4.0
4×70 + 2×25 RM 38.7 205/107 1217 0.443/1.200 10.7/4.0
4×70 + 1×35 RM 36.0 205/132 1150 0.443/0.868 10.7/5.5
4×70 + 2×35 RM 38.2 205/132 1289 0.443/0.868 10.7/5.5
4×95 + 1×25 RM 40.2 240/107 1438 0.320/1.200 13.7/4.0
4×95 + 1×35 RM 42.1 240/132 1467 0.320/0.868 13.7/5.5
4×95 + 2×25 RM 40.9 240/107 1544 0.320/1.200 13.7/4.0
0.6/1 KV ABC –Aerial Bundled Cables – NFC 33-209 (AL/XLPE)
Number of Cores x Nominal Cross Section Overal Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
No.×mm² mm Kg/Km Ω/Km KN A
2×10 RM 12.8 93 3.080 1.5 38
4×10 RM 15.4 183 3.080 1.5 38
2×16 RM 14.8 129 1.910 2.3 72
2×16 RN + 2×1.5 RE 14.8 176 1.910/12.100 2.3 72
4×16 RM 17.8 257 1.910 2.3 72
4×16 RN + 2×1.5 RE 17.8 304 1.910/12.100 2.3 72
2×25 RM 18.0 202 1.200 3.8 107
2×25 RM + 2×1.5 RE 18.0 249 1.200/12.100 3.8 107
4×25 RM 21.7 404 1.200 3.8 107
4×25 RM + 2×1.5 RE 21.7 451 1.200/12.100 3.8 107
2×35 RM 20.8 269 0.868 5.2 132
2×35 RM + 2×1.5 RE 20.8 316 0.868/12.100 5.2 132
4×35 RM 25.1 539 0.868 5.2 132
4×35 RM + 2×1.5 RE 25.1 586 0.868/12.100 5.2 132
2×50 RM 23.4 352 0.641 7.6 165
2×50 RM + 2×1.5 RE 23.4 399 0.641/12.100 7.6 165
1×54.6 RM + 3×25 RM 21.7 507 0.630/1.200 3.8 107
1×54.6 RM + 3×25 RM + 1×16 RM 24.3 573 0.630/1.200/1.910 3.8/2.3 107/72
1×54.6 RM + 3×25 RM + 2×16 RM 29.7 639 0.630/1.200/1.910 3.8/2.3 107/72
1×54.6 RM + 3×25 RM + 3×16 RM 31.1 705 0.630/1.200/1.910 3.8/2.3 107/72
1×54.6 RM + 3×35 RM 25.1 615 0.630/0.868 5.2 132
1×54.6 RM + 3×35 RM + 1×16 RM 28.1 680 0.630/0.868/1.910 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 2×16 RM 34.3 748 0.630/0.868/1.910 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 3×16 RM 35.9 814 0.630/0.868/1.910 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 1×25 RM 28.1 714 0.630/0.868/1.200 5.2/3.8 132/107
1×54.6 RM + 3×50 RM 28.2 741 0.630/0.641 7.6 165
1×54.6 RM + 3×50 RM + 1×16 RM 31.6 806 0.630/0.641/1.910 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 2×16 RM 38.6 875 0.630/0.641/1.910 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 3×16 RM 40.4 940 0.630/0.641/1.910 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 1×25 RM 31.6 841 0.630/0.641/1.200 7.6/3.8 165/107
1×54.6 RM + 3×70 RM 33.0 950 0.630/0.443 10.2 205
1×54.6 RM + 3×70 RM + 1×16 RM 37.0 1014 0.630/0.443/1.910 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 2×16 RM 45.2 1083 0.630/0.443/1.910 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 3×16 RM 47.3 1148 0.630/0.443/1.910 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 1×25 RM 37.0 1048 0.630/0.443/1.200 10.2/3.8 205/107
1×54.6 RM + 3×70 RM + 2×25 RM 45.2 1150 0.630/0.443/1.200 10.2/3.8 205/107
1×54.6 RM + 3×70 RM + 3×25 RM 47.3 1250 0.630/0.443/1.200 10.2/3.8 205/107
1×54.6 RM + 3×95 RM 37.4 1176 0.630/0.320 13.5 240
1×54.6 RM + 3×95 RM + 1×16 RM 41.9 1243 0.630/0.320/1.910 13.5/2.3 240/72
0.6/1 KV ABC (Aerial Bundle) Cable- AS/NZS 3560.1 (AL/XLPE)
Number of Cores x Nominal Cross Section Overall Diameter Weight Minimum Breaking Load Current Rating
No.×mm² mm Kg/Km KN A
2×16 RM 15.0 140 4.4 78
2×25 RM 17.6 210 7.0 105
2×35 RM 19.6 270 9.8 125
2×50 RM 22.8 370 11.4 150
2×95 RM 30.6 680 15.3 230
3×25 RM 19.0 310 8.8 97
3×35 RM 21.1 410 9.8 120
3×50 RM 24.6 550 11.4 140
4×16 RM 18.1 290 8.8 74
4×25 RM 21.2 410 14.0 97
4×35 RM 23.7 550 19.6 120
4×50 RM 27.5 740 28.0 140
4×70 RM 31.9 1000 39.2 175
4×95 RM 36.9 1370 53.2 215
4×120 RM 40.6 1690 67.2 250
4×150 RM 43.9 2020 84.0 280
