AAAC Aluminium MVCC Covered Conductor (11 KV and 33 KV), For Overhead, Round
Outdoor conditions & per- formance requirements of medium voltage power cables. The material has an excellent resistance to arc, corrosion inhibitor, fungicide activity, Oil resistance, weather cond itions like humidity, pollution, presence of sa in atmosphere etc.
| Material | Aluminium |
| Conductor Type | AAAC |
| Product Type | AAAC / XLPE Insulation |
| Usage/Application | Overhead |
| Shape | Round |

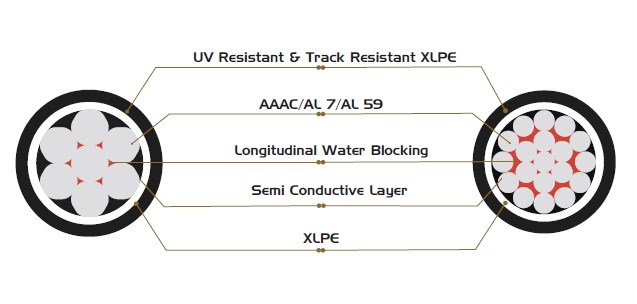

Dimensions of MVCC
| Cross Section (Sq mm) | Construction | Type |
| 50 | 7 Strands | AAAC / AL-7 / AL -59 |
| 55 | 7 Strands | AAAC / AL-7 / AL -59 |
| 70 | 7 Strands | AAAC / AL-7 / AL -59 |
| 80 | 7 Strands | AAAC / AL-7 / AL -59 |
| 90 | 7 Strands | AAAC / AL-7 / AL -59 |
| 100 | 7 Strands | AAAC / AL-7 / AL -59 |
| 120 | 19 Strands | AAAC / AL-7 / AL -59 |
| 125 | 19 Strands | AAAC / AL-7 / AL -59 |
| 148 | 19 Strands | AAAC / AL-7 / AL -59 |
| 159 | 19 Strands | AAAC / AL-7 / AL -59 |
| 160 | 19 Strands | AAAC / AL-7 / AL -59 |
| 232 | 19 Strands | AAAC / AL-7 / AL -59 |
| 241 | 19 Strands | AAAC / AL-7 / AL -59 |

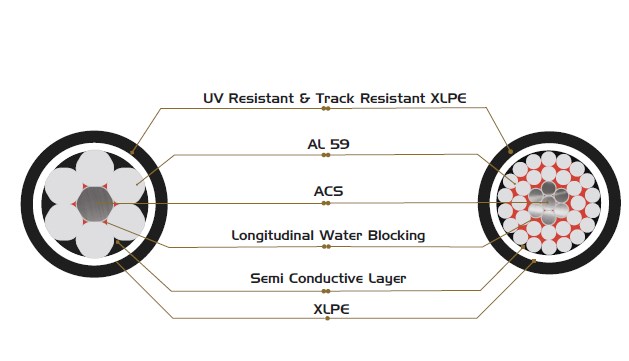

| Cross Section (Sq mm) | Construction | Type | |
| ACS | AL-59 | ||
| 31.6 | 1 Strands | 6 Strands | AL-59 ACS |
| 52.88 | 1 Strands | 6 Strands | AL-59 ACS |
| 78.82 | 1 Strands | 6 Strands | AL-59 ACS |
| 104.98 | 1 Strands | 6 Strands | AL-59 ACS |
| 120 | 7 Strands | 26 Strands | AL-59 ACS |
| 160 | 7 Strands | 30 Strands | AL-59 ACS |
| 241 | 7 Strands | 30 Strands | AL-59 ACS |

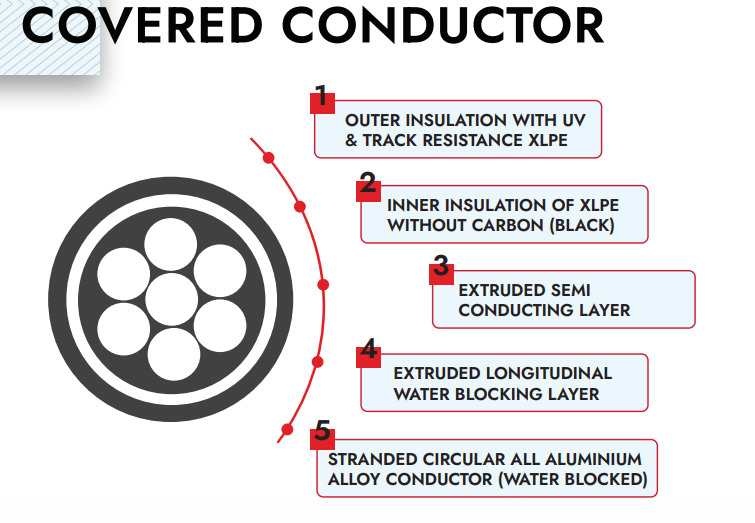

| Sr.NO | Cable Attributes | UOM | Nominal Thickness | ||
| 11 KV | 22 KV | 33 KV | |||
| 1 | Aluminium Alloy Wire | Sq.mm | As Per Requirement | ||
| 2 | Extruded Longitudinal Water Blocking Layer | mm | As Required to make Water Blocked Arragement | ||
| 3 | Extruded Semi Conductive Layer | mm | 0.3 | 0.3 | 0.4 |
| 4 | Inner Insulation of XLPE Without Carbon Black | mm | 1.2 | 1.32 | 2.43 |
| 5 | Outer Insulaton with UV & Track Resistant XLPE | mm | 1.1 | 1.1 | 1.2 |
