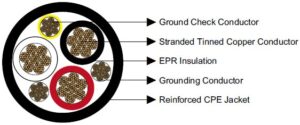

MSHA Approved-4/0 3C 2000V Type G-GC Mining Power Cable

Type G-GC cables are suitable for use in industrial and light- to medium-duty mining applications, heavy-duty service as power supply cable, power cable for mobile and portable electrical equipment at a continuous conductor temperature of 90°C. Type G-GC cables may be used in marina (wet) applications.

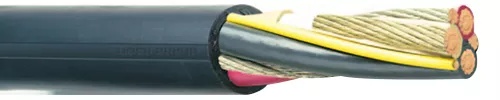

type-G-GC-cable-from-Huadong-Cable-Group

Conductors: Soft drawn flexible stranded tinned copper wires
Separator: Tape separator between conductor and insulation
Insulation: Ethylene-propylene rubber (EPR)
Grounding conductors: Soft drawn flexible stranded tinned copper. Green EPR insulation over conductors
Ground check conductor: Soft drawn flexible stranded tinned copper. Yellow: EPR insulation over conductor
Color Code: Black, white, red
Assembly: Power, ground check and grounds cores cabled together to form a round core.
Reinforcement: Single faced rubber filled binder tape over core.
Jacket: Black heavy duty, integral-filled CPE thermosetting compound.
Bending radius: Minimum 6 x outer diameter.
Type: Flat or Round
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customizede

MSHA Approved –Type G/ Type G-GC Mining Cable

G-type cable and G-GC type cable, only a slight difference in construction. G-type has four copper conductors and four ground wires. G-GC type cable has three conductors, two ground wires and an additional ground check wire to check the continuity of the ground loop.

Copper conductors, Ethylene Propylene Rubber (EPR) insulation, Extra Heavy Duty Two Layer Chlorinated Polyethylene (CPE) Jacket with Optional Reflective Stripes

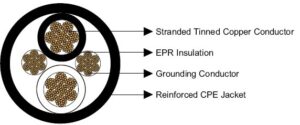

type-G-cable-price-from-Huadong-Cable-Group

Voltage: 2kV, 5kV
Core: 3 Core
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Insulation Shielding: Tinned copper and color-coded nylon braid
Ground Conductor: Flexible tinned copper located in the center of cable
Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

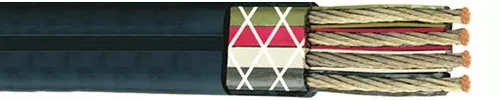

MSHA Approved-Type W Mining Cable

Voltage: 600/2000V
Type: Round or Flat
Core: 2 Core, 3 Core, 4 Core
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Reinforcement: Synthetic yarn over assembly
Jacket: Mold-cured thermoset
Jacket Color: Black
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

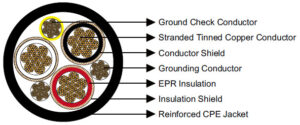

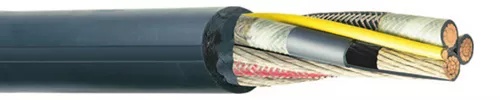

CSA Approved-Type SHD-GC Mining Cable

Heavy-duty high-voltage portable power cable for mining applications.

Voltage: 2kV, 5kV, 8kV, 15kV, 25kV
Type: Flat or Round
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Insulation Shielding: Tinned copper and color-coded nylon braid
Ground Check Conductor: Flexible tinned copper with yellow XLPE insulation
Ground Wires: Flexible tinned copper
Jacket: CPE or TPU
Standard: IEC, BS, DIN, VDE, ASTM, CSA or Customized

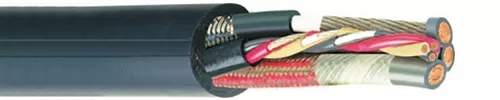

Type SHD-PCG Mining Cable

Voltage: 2kV, 5kV
Core: 3 Core
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Insulation Shielding: Tinned copper and color coded nylon braid
Ground Conductor: Flexible tinned copper located in the center of the cable
Control Ground Conductor: Tinned Copper Conductor/EPR Insulation
Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

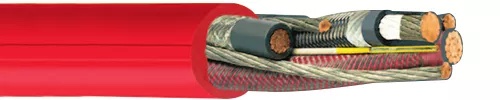

Type SHD-CGC Mining Cable

Voltage: 2kV, 5kV
Core: 3 Core
Conductor: Flexible tinned copper
Insulation: EPR (90°C)
Insulation Shielding: Tinned copper and color coded nylon braid
Ground Wires: Flexible tinned copper
Control Check Conductor: Tinned copper with yellow insulation located in the central of the cable
Separator Tape: Non-conducting
Jacket: CPE (Blue, Green, Yellow, Orange, Red, Black)

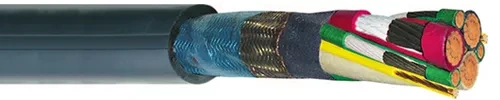

Type VFD Mining Cable

Voltage: 2000V
Core: 3C conductor + 3C ground wire
Conductor: Tinned copper
Ground Conductor: flexible tinned copper
Power Conductor: Extra flexible tinned rope stranded
Ground Check Wire Optional: Flexible tinned copper with yellow insulation.
Insulation: EPR (90°C)
Shield: Overall tinned copper braid plus aluminum/polyester tape providing 100% coverage
Jacket: CPE (Black)

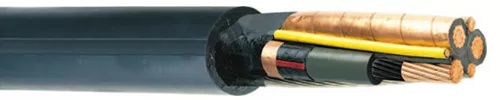

CSA Approved-Type MP Mining Cable

Voltage: 5/15kV
Conductor: Copper
Core: 3Core
Strand Shield: Semi-conducting layer
Insulation: EPR
Insulation Shield: Semi-conducting layer under copper tape
Ground Wires: Tinned copper
Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
Jacket: CPE

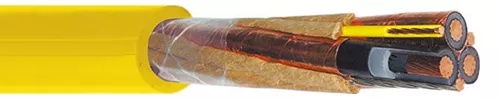

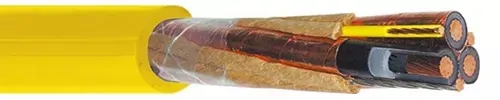

Type MP-GC Mining Cable

Voltage: 25/35kV
Conductor: Copper
Core: 3Core
Strand Shield: Semi-conducting layer
Insulation: XLPE, EPR
Insulation Shield: Semi-conducting layer under copper tape
Ground Wires: Tinned copper
Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
Jacket: PVC

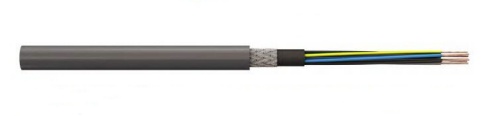

Mining control cable L-2YY(Z)Y KF 40

Voltage: 100/100V (<300/300V)
Conductor: Copper
Insulation: Thermoplastistic compound (PE)
Core identification First Quad Layer:
1. Strain: Red-Yellow, 2. Strain: Blue-Green
Quad:
1. Strain: Natural Color-Yellow, 2. Strain: Blue-Green
Core arrangement Four cores stranded as Star Quad (Twisted-Quad). These quads are subsequently stranded as cable core arrangement.
Inner sheath Thermoplastic compund (PVC)
Reinforcement Braiding of steel wires between inner and outer sheath
Outer sheath Thermoplastic compound (PVC), Color: Grey, Cold resitant

TYPE 241 1.1kV ~ 11kV Rubber Screened Mining Cable

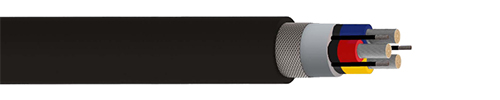

Type-241-Flexible-Rubber-Screened-Mining-Cable

Voltage: Type 241.1 – 1.1kV ; Type 241.3 – 3.3kV ; Type 241.6 – 6.6kV ; Type 241.11 – 11kV
Conductor: Tinned annealed copper wires
Core: 3Core
Separator/Screen: 1.1kV: Paper separator; For other nominal voltages semi-conductive thermosetting compound over conductors
Insulation: EPR type R-EP-90
Insulation Screen: Semi-conductive thermosetting compound
Cable Assembly: Three screened power and three earth cores laid up with right hand direction on cradle separator with central pilot core
Inner Sheath: Semi-conductive thermosetting compound
Earth Covering: Semi-conductive thermosetting compound
Cradle Separator: Semi-conductive thermosetting compound
Reinforcing Braid : Polyamide Yarns
Sheath: CSP (Chlorosulfonated polyethylene) thermosetting compound; HD-90 – extra heavy duty, oil resistance and flame retardant

TYPE 240 1.1kV ~ 11kV Screened Mining Cable

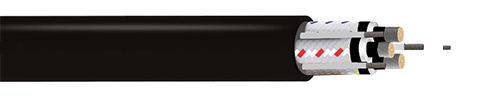

Type-240-Flexible-Copper-Screened-Mining-Cable-With-Three-Pilots

Voltage: Type 240.1 – 1.1kV ; Type 240.3 – 3.3kV ; Type 240.6 – 6.6kV ; Type 240.11 – 11kV
Conductor: Tinned annealed copper wires
Separator/Screen: 1.1kV: Paper separator; Other voltages: semi-conductive thermosetting compound
Insulation: EPR type R-EP-90
Insulation Screen: 1.1kV: Synthetic tape; From 3.3kV: Semi-conductive thermosetting compound
Screen: Tinned copper/polyamide braid
Interstitial Pilots: EPR covered flexible stranded tinned Copper
Cable Assembly: 3x screened power cores with right hand lay up on cradle separator with 3x pilot cores
Cradle Separator: Semi-conductive thermosetting compound
Sheath: HD-PCP (Heavy Duty Polychloroprene) – extra heavy duty, oil resistance and flame retardant.
Optional open polyamide braid between layer of sheathing
Sheath Colour: Black

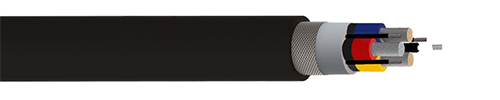

TYPE 245 1.1kV ~ 6.6kV Flexible Rubber Mining Cable

Voltage: Type 245.1 – 1.1kV ; Type 245.3 – 3.3kV ; Type 245.6 – 6.6kV
Conductor: Flexible stranded tinned annealed copper
Conductor Screen: Semi-conductive compound for cables having a voltage rating of 3.3kV and above
Insulation: EPR (Ethylene Propylene Rubber)
Insulation Screen: Semi-conductive elastomer
Cradle Separator: Semiconductive PCP (Polychloroprene)
Central Extensible Pilot: EPR covered flexible stranded tinned copper
Overall Core Screen: Semiconductive PCP (Polychloroprene) filling and covering
Interstitial Earth Conductor: Semi-conductive PCP (Polychloroprene) covered flexible stranded tinned copper
Reinforcing Braid: Open-weave yarns
Sheath: Heavy duty PCP (Polychloroprene). (CPE/CSP sheath can be offered upon request)
Sheath Colour: Black
