(2-24cores)-Control Cables
The size( 2-30 core) for control cables we can customize according to your requirement.

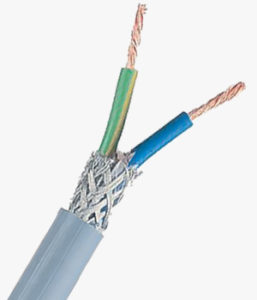

2 Core Control Cable
Conductor: Copper
Core: 2 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield
3 Core Control Cable
Conductor: Copper
Core: 3 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield

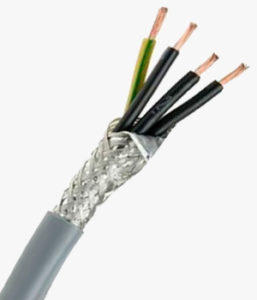

4 Core Control Cable
Conductor: Copper
Core: 4 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield

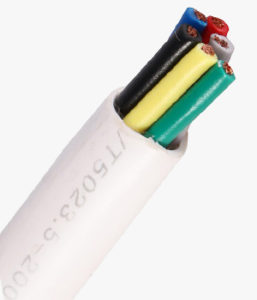

5 Core Control Cable
Conductor: Copper
Core: 5 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield.

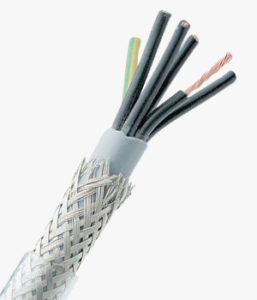

6 Core Control Cable
Conductor: Copper
Core: 6 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield.

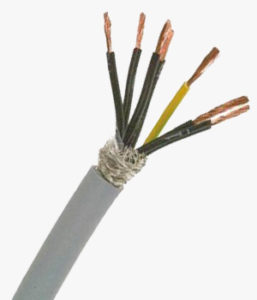

7 Core Control Cable
Conductor: Copper
Core: 7 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield.

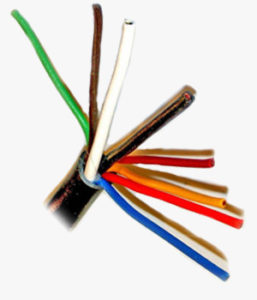

8 Core Control Cable
Conductor: Copper
Core: 8 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield.

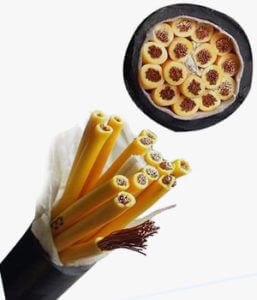

16 Core Control Cable
Conductor: Copper
Core: 16 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield.

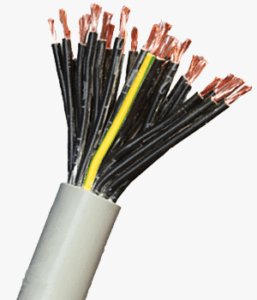

Multi Core Control Cable
Conductor: Copper
Core: 2-24 Core
Insulation: PVC
Inner sheath: PVC Black color
Shield: Unshield or Annealed copper tape shield.
Muilti-Core 0.6/1kv (CVV) Unshielded Control Cable
4 Core CVV 0.6/1KV Control Cable
5 Core CVV 0.6/1KV Control Cable
6 Core CVV 0.6/1KV Control Cable
7 Core CVV 0.6/1KV Control Cable
8 Core CVV 0.6/1KV Control Cable
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
4
0.5
7/0.30
0.8
1.8
11
36
0.0162
130
500/D
0.75
7/0.37
0.8
1.8
11.5
24.5
0.0142
150
500/D
1
7/0.40
0.8
1.8
11.5
18.1
0.0135
160
500/D
1.5
7/0.50
0.8
1.8
12.5
12.1
0.0115
195
500/D
2.5
7/0.67
0.8
1.8
14
7.41
0.0093
265
500/D
4
7/0.85
1
1.8
16.5
4.61
0.0092
390
500/D
6
7/1.04
1
1.8
17
3.08
0.0078
510
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
5
0.5
7/0.30
0.8
1.8
11.5
36
0.0162
150
500/D
0.75
7/0.37
0.8
1.8
12.5
24.5
0.0142
175
500/D
1
7/0.40
0.8
1.8
12.5
18.1
0.0135
190
500/D
1.5
7/0.50
0.8
1.8
13.5
12.1
0.0115
230
500/D
2.5
7/0.67
0.8
1.8
15
7.41
0.0093
320
500/D
4
7/0.85
1
1.8
18
4.61
0.0092
470
500/D
6
7/1.04
1
1.8
19.5
3.08
0.0078
620
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
6
0.5
7/0.30
0.8
1.8
12.5
36
0.0162
165
500/D
0.75
7/0.37
0.8
1.8
13
24.5
0.0142
190
500/D
1
7/0.40
0.8
1.8
13.5
18.1
0.0135
205
500/D
1.5
7/0.50
0.8
1.8
14.5
12.1
0.0115
255
500/D
2.5
7/0.67
0.8
1.8
16
7.41
0.0093
355
500/D
4
7/0.85
1
1.8
19.5
4.61
0.0092
525
500/D
6
7/1.04
1
1.8
21
3.08
0.0078
690
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
7
0.5
7/0.30
0.8
1.8
12.5
36
0.0162
170
500/D
0.75
7/0.37
0.8
1.8
13
24.5
0.0142
200
500/D
1
7/0.40
0.8
1.8
13.5
18.1
0.0135
215
500/D
1.5
7/0.50
0.8
1.8
14.5
12.1
0.0115
270
500/D
2.5
7/0.67
0.8
1.8
16
7.41
0.0093
380
500/D
4
7/0.85
1
1.8
19.5
4.61
0.0092
570
500/D
6
7/1.04
1
1.8
21
3.08
0.0078
795
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
8
0.5
7/0.30
0.8
1.8
13.5
36
0.0162
195
500/D
0.75
7/0.37
0.8
1.8
14
24.5
0.0142
230
500/D
1
7/0.40
0.8
1.8
14.5
18.1
0.0135
250
500/D
1.5
7/0.50
0.8
1.8
15.5
12.1
0.0115
310
500/D
2.5
7/0.67
0.8
1.8
17.5
7.41
0.0093
440
500/D
4
7/0.85
1
1.8
21
4.61
0.0092
660
500/D
6
7/1.04
1
1.8
23
3.08
0.0078
875
500/D
Multi-Core 0.6/1KV (CVV-S) Screened Control Cable
4 Core CVV-S 0.6/1KV Control Cable
5 Core CVV-S 0.6/1KV Control Cable
6 Core CVV-S 0.6/1KV Control Cable
7 Core CVV-S 0.6/1KV Control Cable
8 Core CVV-S 0.6/1KV Control Cable
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness of inner sheath
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of outer sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
4
0.5
7/0.30
0.8
1
1.8
13.5
36
0.0162
220
500/D
0.75
7/0.37
0.8
1
1.8
14
24.5
0.0142
245
500/D
1
7/0.40
0.8
1
1.8
14.5
18.1
0.0135
260
500/D
1.5
7/0.50
0.8
1
1.8
15.5
12.1
0.0115
300
500/D
2.5
7/0.67
0.8
1
1.8
16.5
7.41
0.0093
385
500/D
4
7/0.85
1
1
1.8
19
4.61
0.0092
530
500/D
6
7/1.04
1
1
1.8
20.5
3.08
0.0078
660
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness of inner sheath
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of outer sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
5
0.5
7/0.30
0.8
1
1.8
14.5
36
0.0162
250
500/D
0.75
7/0.37
0.8
1
1.8
15
24.5
0.0142
280
500/D
1
7/0.40
0.8
1
1.8
15.5
18.1
0.0135
295
500/D
1.5
7/0.50
0.8
1
1.8
16.5
12.1
0.0115
345
500/D
2.5
7/0.67
0.8
1
1.8
18
7.41
0.0093
445
500/D
4
7/0.85
1
1
1.8
20.5
4.61
0.0092
620
500/D
6
7/1.04
1
1
1.8
22.5
3.08
0.0078
780
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness of inner sheath
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of outer sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
6
0.5
7/0.30
0.8
1
1.8
15.5
36
0.0162
270
500/D
0.75
7/0.37
0.8
1
1.8
16
24.5
0.0142
305
500/D
1
7/0.40
0.8
1
1.8
16.5
18.1
0.0135
320
500/D
1.5
7/0.50
0.8
1
1.8
17.5
12.1
0.0115
375
500/D
2.5
7/0.67
0.8
1
1.8
19
7.41
0.0093
290
500/D
4
7/0.85
1
1
1.8
22
4.61
0.0092
685
500/D
6
7/1.04
1
1
1.8
24
3.08
0.0078
865
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness of inner sheath
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of outer sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
7
0.5
7/0.30
0.8
1
1.8
15.5
36
0.0162
275
500/D
0.75
7/0.37
0.8
1
1.8
16
24.5
0.0142
315
500/D
1
7/0.40
0.8
1
1.8
16.5
18.1
0.0135
330
500/D
1.5
7/0.50
0.8
1
1.8
17.5
12.1
0.0115
395
500/D
2.5
7/0.67
0.8
1
1.8
19
7.41
0.0093
520
500/D
4
7/0.85
1
1
1.8
22
4.61
0.0092
730
500/D
6
7/1.04
1
1
1.8
24
3.08
0.0078
930
500/D
No. of core
Nominal cross-sectional area
No.& dia.
Thickness
Thickness of inner sheath
Thickness
Overall diameter (Approx.)
Maximum conductor resistance
Minimum insulation resistance
Cable
Standard Length
of wires
of insulation
of outer sheath
(at20C)
(at70C)
weight (Approx.)
mm2
No./mm
mm
mm
mm
mm
Ohm/km
Ohm/km
kg/km
m
8
0.5
7/0.30
0.8
1
1.8
16
36
0.0162
310
500/D
0.75
7/0.37
0.8
1
1.8
17
24.5
0.0142
350
500/D
1
7/0.40
0.8
1
1.8
17
18.1
0.0135
370
500/D
1.5
7/0.50
0.8
1
1.8
18.5
12.1
0.0115
445
500/D
2.5
7/0.67
0.8
1
1.8
20
7.41
0.0093
590
500/D
4
7/0.85
1
1
1.8
23.5
4.61
0.0092
835
500/D
6
7/1.04
1
1
1.8
25.5
3.08
0.0078
1070
500/D
Multi-Core 0.6/1KV (CVV-SWA) Armoure Control Cable
