Fire Resistance BFOU, BFOU(i/c), FROU, FROU(i/c) Offshore Marine Instrument/Control Wind Cable

BFOU-RFOU-Offshore-cables

Huadong Cable Group‘s marine Cables are proven effective, safe, long-lasting, and reliable in various challenging conditions such as corrosion, moisture, salty water, oil, heat, etc. All cables we designed to meet all product quality and safety requirements such as JIS C3410, IEC 60092, and NEK606 standards. It passed ABS, CCC, UL classifications. Being a professional marine cable manufacturer, Huadong cable can manufacture a wide range of cables for your specific requirements.

Offshore Cable Type Conductor Insulation Screen Amroured Outer Sheath
BU Cable Tinned Copper Class 5 or 2 Mica tape + Halogen Free EPR Non Non low smoke and halogen free
RU Cable EPR Non Non
RFOU Mica tape + Halogen Free EPR TCWB Armored TCWB Armored
BFOU Mica tape + Halogen Free EPR
RFOU(i) Tinned Copper Class 2 EPR individually screened
RFOU(c) EPR collectively screened
BFOU(i) Mica tape + Halogen Free EPR individually screened
BFOU(c) Mica tape + Halogen Free EPR collectively screened

0.6/1kV BFOU P5/P12 Fire Resistant Offshore Power Cable

BFOU-P5-P2

  • Voltage: 0.6/1kV
  • Conductor: Tinned Copper class 2 or 5
  • Insulation Mica tape + Halogen Free EPR
  • 2 conductors ……………………. blue + brown
  • 3 conductors ……………………. brown + black + grey
  • 4 conductors ……………………. brown + black + grey + blue
  • 5 or more conductors ……….white numbered.
  • Filling sheath: Flame retardant and halogen free compound
  • Screen: Tinned annealed copper wire braid
  • Outer sheath: low smoke and halogen free SHF MUD.
  • Applicaiton: BFOU P5/P12 is used for permanent installation in the control circuits and lights and emergency lighting and critical oƋshore units where there are demands for Żre safety.

250V BFOU(c) Fire Resistant Instrument Offshore Cable

BFOUc

  • Voltage: 250V
  • Conductor: Tinned Copper class 2
  • Insulation: Mica tape + Halogen Free EPR
  • Filling sheath: Flame retardant and halogen free compound
  • Collective screen: Pairs/triples are laid-up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire.
  • Armoured: Tinned annealed copper wire braid
  • Outer sheath: Flame retardant, halogen free and mud resistant thermoset compound, Grey.
  • Applicaiton: BFOU(C) S4/S8 is used in fixed installations for control, instrumentation and telecommunication in both explosion and safe areas, in emergency and critical systems where requirement for fire resistance exists.

250V BFOU(i) Fire Resistant Instrument Offshore Cable

BFOUi

  • Voltage: 250V
  • Conductor: Tinned Copper class 2
  • Insulation: Mica tape + Fire resistance EPR
  • Filling sheath: Flame retardant and halogen free compound
  • Screen: Every pair/triple is screened with copper backed polyester tape in contact with a stranded tinned copper drain wire, wrapped with polyester tape.
  • Armoured: Tinned annealed copper wire braid
  • Outer sheath: Flame retardant, halogen free and mud resistant thermoset compound, Grey.
  • Applicaiton: BFOU(I) S3/S7 is used in fixed installations for control, instrumentation and telecommunication in both explosion and safe areas, in emergency and critical systems where requirement for fire resistance exists

0.6/1kV RFOU P1/P8 Fire Resistant Offshore Power Cable

BFOU-P5-P2

  • Voltage: 0.6/1kV
  • Conductor: Tinned Copper class 2
  • Insulation: Ethylene propylene rubber (EPR)
  • 2 conductors ……………………. blue + brown
  • 3 conductors ……………………. brown + black + grey
  • 4 conductors ……………………. brown + black + grey + blue
  • 5 or more conductors ……….white numbered.
  • Filling sheath: Flame retardant and halogen free compound
  • Screen: Tinned annealed copper wire braid
  • Outer sheath: Flame retardant, halogen free and mud resistant thermoset compound black.
  • Applicaiton: RFOU P1/P8 is used in fixed installations for control, instrumentation and telecommunication in both explosion and safe areas, in emergency and critical systems.

250V RFOU(c) Fire Resistant Instrument Offshore Cable

BFOUc

  • Voltage: 250V
  • Conductor: Tinned Copper class 2
  • Insulation: EPR
  • Filling sheath: Flame retardant and halogen free compound
  • Common screen: Pair/triple are laid up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire.
  • Armoured: Tinned annealed copper wire braid
  • Outer sheath: Flame retardant, halogen free and mud resistant thermoset compound, grey.
  • Applicaiton: RFOU(C) S2/S6 is used in fixed installations for control, instrumentation and telecommunication in both explosion and safe areas, in emergency and critical systems.

250V RFOU(i) Fire Resistant Instrument Offshore Cable

BFOUi

  • Voltage: 250V
  • Conductor: Tinned Copper class 2
  • Insulation: Ethylene propylene rubber (EPR)
  • Filling sheath: Flame retardant and halogen free compound
  • Screen: Every pair/triple is screened with copper backed polyester tape in contact with a stranded tinned copper drain wire, wrapped with polyester tape.
  • Armoured: Tinned annealed copper wire braid
  • Outer sheath: Flame retardant, halogen free and mud resistant thermoset compound, grey.
  • Applicaiton: RFOU(I) S1/S5 is used in fixed installations for control, instrumentation and telecommunication in both explosion and safe areas, in emergency and critical systems where requirement for fire resistance exists.
BFOU P5/P12 Offshore Cable
Cross section (mm2) Diameter (mm) Weight (Kg/km) Open Air 45ºC (A) Voltage drop (V/A·km) Max conduc or resistanc at 20ºC (Ohm/Km)
4G4 17,0 460 34 11,24 50,900
4G6 19,1 650 42 7,48 33,900
4G10 21,5 960 57 4,30 19,500
4G16 24,6 1.4 77 2,74 12,400
4G25 29,0 1.9 100 1,76 0,7950
4G35 32,6 2.25 120 1,25 0,5650
4G50 38,9 3.1 145 0,87 0,3930
4G70 41,2 4 180 0,61 0,2770
4G95 48,0 5.05 225 0,46 0,2100
4G120 52,8 6.3 260 0,36 0,1640
4G150 57,3 7.6 300 0,29 0,1320
4G185 62,7 9 340 0,24 0,1080
4G240 69,4 10.4 400 0,18 0,0817
4 x 1,5/4 15,6 385 18 30,30 137,000
4 x 2,5/6 16,5 440 25 18,10 82,100
4 x 4/6 17,3 480 34 11,24 50,900
4 x 6/6 19,2 680 42 7,48 33,900
4 x 10/10 21,6 1 57 4,30 19,500
4 x 16/16 24,6 1.45 77 2,74 12,400
4 x 25/16 29,0 1.95 100 1,76 0,7950
4 x 35/16 32,6 2.5 120 1,25 0,5650
4 x 50/25 38,9 3.3 145 0,87 0,3930
4 x 70/35 41,2 4.2 180 0,61 0,2770
4 x 95/50 48,0 5.3 225 0,46 0,2100
4 x 120/60 52,8 6.6 260 0,36 0,1640
4 x 150/75 57,3 8 300 0,29 0,1320
RFOU P1/P8 Offshore Cable
Cross section (mm2) Diameter (mm) Weight (Kg/km) Open Air 45ºC (A) Voltage drop (V/A·km) Max conduc or resistanc at 20ºC (Ohm/Km)
4G4 16,77 380 34 11,24 50,900
4G6 18,20 590 42 7,48 33,900
4G10 20,67 880 57 4,30 19,500
4G16 23,28 1.25 77 2,74 12,400
4G25 27,96 1.72 100 1,76 0,7950
4G35 30,82 2.2 120 1,25 0,5650
4G50 36,37 2.9 145 0,87 0,3930
4G70 40,28 3.7 180 0,61 0,2770
4G95 46,44 4.65 225 0,46 0,2100
4G120 50,34 5.7 260 0,36 0,1640
4G150 56,24 7 300 0,29 0,1320
4G185 61,70 8.3 340 0,24 0,1080
4G240 68,99 9.75 400 0,18 0,0817
4 x 1,5/4 14,44 300 18 30,30 137,000
4 x 2,5/6 15,52 340 25 18,10 82,100
4 x 4/6 17,05 400 34 11,24 50,900
4 x 6/6 18,37 610 42 7,48 33,900
4 x 10/10 20,67 900 57 4,30 19,500
4 x 16/16 23,28 1.3 77 2,74 12,400
4 x 25/16 27,96 1.765 100 1,76 0,7950
4 x 35/16 30,82 2.3 120 1,25 0,5650
4 x 50/25 36,37 3 145 0,87 0,3930
4 x 70/35 40,28 3.8 180 0,61 0,2770
4 x 95/50 46,44 4.8 225 0,46 0,2100
4 x 120/60 50,34 20.264 260 0,36 0,1640
BFOU(c) Instrument Offshore Cable
Cross section (mm2) Diameter (mm) Weight (Kg/km) Open Air 45ºC (A) Voltage drop (V/A·km) Max conduc or resistanc at 20ºC (Ohm/Km)
1 x 2 x 0,75 11,8 180 17,1 62,5 28,3
2 x 2x 0,75 18,2 375 13,7 62,5 28,3
4 x 2 x 0,75 20,0 460 11,2 62,5 28,3
8 x 2 x 0,75 25,6 600 8,9 62,5 28,3
12 x 2 x 0,75 30,6 730 7,7 62,5 28,3
16 x 2 x 0,75 33,7 1.1 7,0 62,5 28,3
19 x 2 x 0,75 35,4 1.51 6,5 62,5 28,3
24 x 2 x 0,75 41,6 2.05 6,5 62,5 28,3
1 x 2 x 1,5 13,0 230 23,0 32,0 14,5
2 x 2x 1,5 20,4 480 18,4 32,0 14,5
4 x 2 x 1,5 22,1 655 15,0 32,0 14,5
7 x 2 x 1,5 27,5 955 12,4 32,0 14,5
8 x 2 x 1,5 29,0 1.05 12,0 32,0 14,5
12 x 2 x 1,5 33,4 1.25 10,3 32,0 14,5
16 x 2 x 1,5 38,0 1.7 9,4 32,0 14,5
19 x 2 x 1,5 39,8 2.15 9,0 32,0 14,5
24 x 2 x 1,5 46,9 2.7 8,5 32,0 14,5
BFOU(i) Instrument Offshore Cable
Cross section (mm2) Inner Diameter (mm) Outer Diameter (mm) Weight (Kg/km) Open Air 45ºC (A) Voltage drop (V/A·km) Max conduc or resistanc at 20ºC (Ohm/Km)
1 x 2 x 0,75 7,5 11,3 170 17,1 62,5 28,3
2 x 2x 0,75 12,7 17,3 355 13,7 62,5 28,3
4 x 2 x 0,75 15,0 19,6 500 11,2 62,5 28,3
8 x 2 x 0,75 19,3 24,3 790 8,9 62,5 28,3
12 x 2 x 0,75 22,6 28,0 1.02 7,7 62,5 28,3
16 x 2 x 0,75 26,4 32,2 1.35 7,0 62,5 28,3
19 x 2 x 0,75 28,5 34,5 1.75 6,5 62,5 28,3
4 x 2 x 0,75 32,0 38,6 2.2 6,5 62,5 28,3
1 x 2 x 1,5 8,5 12,3 210 23,0 32,0 14,5
2 x 2x 1,5 14,1 18,7 440 18,4 32,0 14,5
4 x 2 x 1,5 17,4 22,4 675 15,0 32,0 14,5
7 x 2 x 1,5 19,5 24,5 950 12,4 32,0 14,5
8 x 2 x 1,5 20,3 25,3 1.06 12,0 32,0 14,5
12 x 2 x 1,5 23,9 29,7 1.475 10,3 32,0 14,5
16 x 2 x 1,5 28,0 34,0 1.85 9,4 32,0 14,5
19 x 2 x 1,5 32,0 38,5 2.4 9,0 32,0 14,5
24 x 2 x 1,5 36,5 43,2 3 8,5 32,0 14,5
1 x 3 x 1,5 8,9 12,7 230 23,0 32,0 14,5

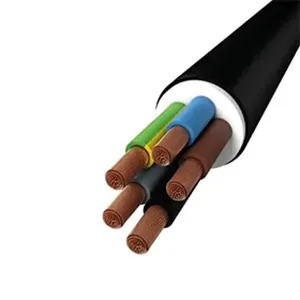

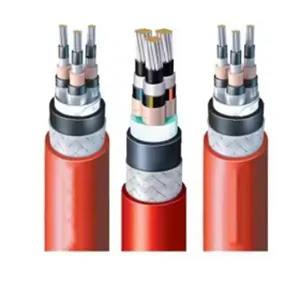

Related product recommendation
