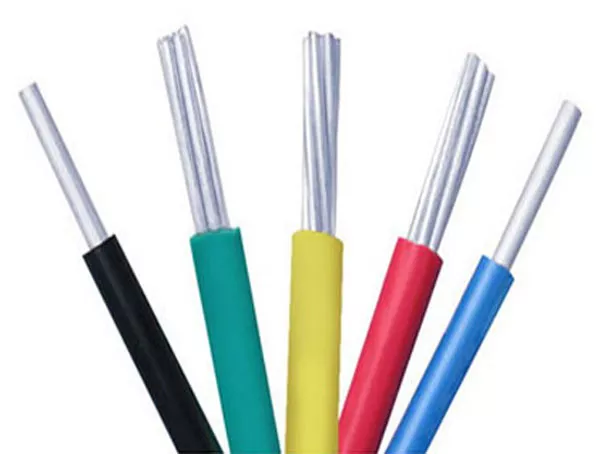

PTFE-Insualted-300x227

Heat Resistant 200~260°C PTFE / FEP/ PFA / Silicone Insulated Wire

Huadong Cable supplies a range of high-temperature wire&cable that are manufactured in accordance with various International Standards, including UL Standard, BS, IEC etc. Such as,200°C~260°C FEP/PFA/PTFE/Silicone rubber/Polyimide(PI)Insulation (fiberglass Braided shielded) high-temperature cable.

Applications

Aircraft wiring,electrical appliances, telecommunications equipment and instrumentation lines, electrodeless lamp.

Features

Resistant to high temperature, low temperature, corrosion, oil, acid, alkali, oxidation, excellent electrical insulation, high voltage resistance, low high-frequency loss, moisture-proof, high insulation resistance, excellent flame retardancy, aging resistance, and long service life.

Standard

  • IEC
  • UL
  • ASTM

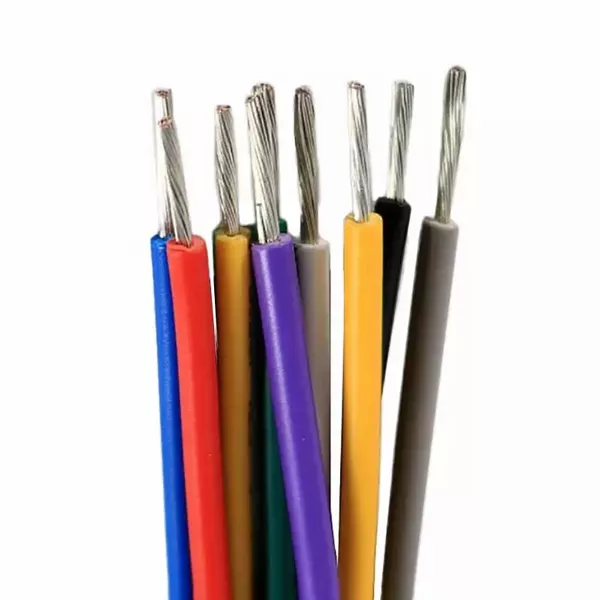

200~260°C FEP/PFA/PTFE Insulation Wire

high temperature cable
  • Rate Voltage: 150V, 300V, 600V
  • Testing Volta: 2000V
  • Temperatrure Range: -80℃ ~ +150℃/+200℃ or -80℃ ~ +250℃
  • Conductor: Tinned, silver, or nickel copper
  • AWG: 20, 22, 24, 26, 28, 30, 32. we accept customer’s OEM requirement for any wire and cable.
  • Insulation: PTFE / FEP / PFA
  • Application: This insulated wire and cable caters for the use of electrical appliance working in the environment of high temperature, such as the cooker, air conditioner, oven, furnace, aviation device, military equipment, ocean ship, lighting, transformer, etc.

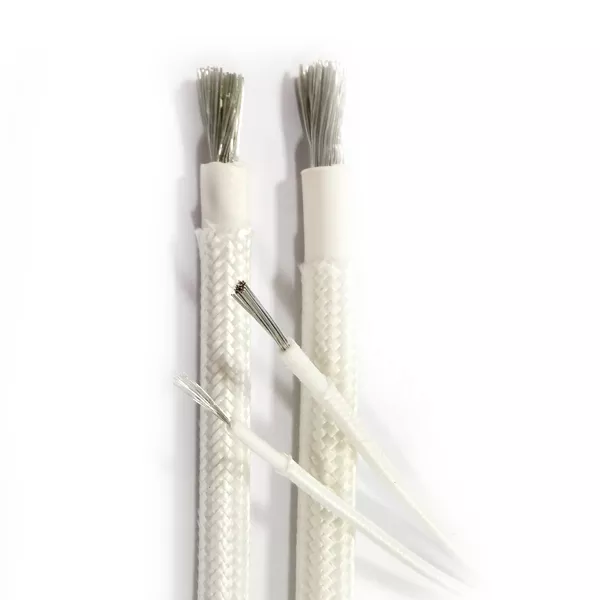

200℃ Silicone Rubber & Glassfiber Braided Insulated

silicone fiberglass braiding wire
  • Rate Voltage: 600V
  • Temperature Rate: -60℃ ~ +150/200℃ (UL3071) -60℃ ~ +200℃
  • Conductor: Tinned Copper
  • Insulation: Silicone Rubber
  • Pleach: Silicone + Fiberglass
  • Color: White, Blue, Red, Black, Brown, Yellow, Green, Transarent, Yellow/Green
  • UL3605 AWG: 20, 18,17, 16, 14, 12, 11, 10, 8, 7, 5, 3, 2, 1/0, 2/0.
  • UL3071 AWG: 14,16, 17, 18.
  • Application: Used for heating source for lighting, electric machinery, air condiioning, oven, drying path, auto ignition, and household appliances etc.

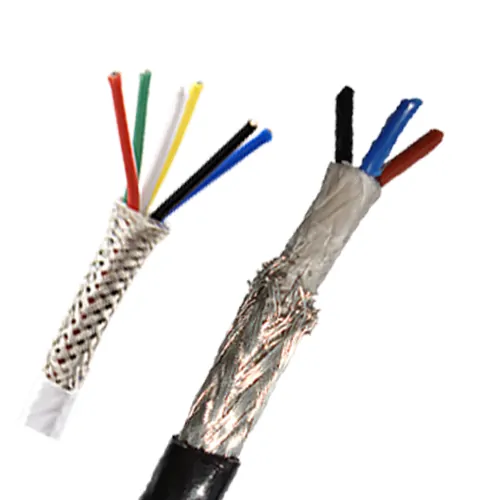

Multi-cores Shielded High-Temp Wire

milti-core-high-temperature-cable
  • Construction
  • Rate Voltage: 600V
  • Conductor:  Tin/Sliver-plated copper/Nickel plated copper
  • Core: Multi-core, 16-4/0 AWG PEP wire
  • Insulation: PFA, ETFE, PTFE,  Silicone Rubber
  • Temperature Range: 130°C-150°C,180°C~ +200°C, 230°C~ +260°C
  • Braid: Tinned copper wire
  • Jacket: PTFE/PFA
  • Color: white, blue, red, black, brown, yellow/green, Transparent, etc
  • Type of thermocouple: S, R, B, K, E, J, T.
  • Application: they are the same with the temperature connect wire for headlamp, Home application industrial machine, electrothermal products
