10mm2~1000mm2 Aluminum and copper PVC/XLPE Armored and unarmored Cable Manufactuer

Product Feature
Voltage: 0.6/1KV
Conductor: Aluminum or Copper
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured
Insulation: PVC/LSF/Fire Resistant
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-300mm2
Standard: IEC 60502, BS 7870, GB/T12706, iram 2178, or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
Send More details by Email: info@hlcables.com

Product Feature
Voltage: 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/10KV, 10KV, 11KV, 8.7/15KV, 18/30KV,33KV, 26/35KV
Conductor: Aluminum or Copper
Armoured: Unarmoured or Armoured(1.Galvanized steel wires/steel tape for 3 core; 2. Stainless steel wire/Steel tape or Aluminium wire/tape for single core)
Insulation: XLPE (Cross-linked Polyethylene)
Size: Up to 1000mm2 for 1 core, up to 800mm2 for 3 cores
Standard: IEC 60502, BS 7870, GB/T12706, iram 2178 or other.
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
Send More details by Email: info@hlcables.com

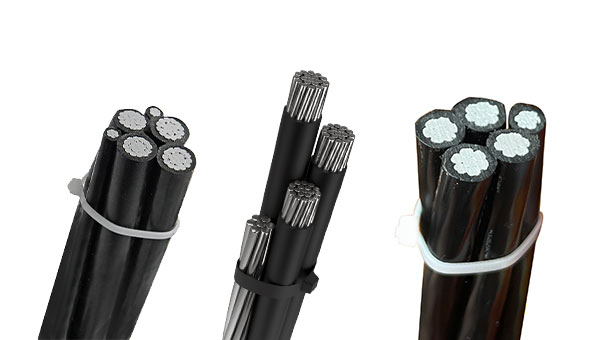

Productor Feature
Voltage: 0.6/1KV or Over 1KV
Conductor: All Aluminium/AAAC/ACSR etc.
Insulation: PE/XLPE
Section Area: 1.5mm2-120mm2
Application: Building, Overhead in air, substation, Overhead between villages and so on.
Send More details by Email: info@hlcables.com

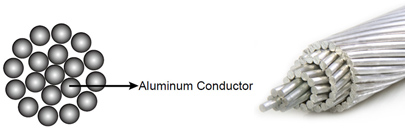

Conductor: AAC/ACSR/AAAC/ACAR etc.
Standard: ASTM/IEC/ BS/China/Canadian Etc.
Applicaton: Bare aluminum cable is widely used in the overhead power transimission lines and distribution system,and it is one of the main products to form electrified wire network.
Send More details by Email: info@hlcables.com

Medium Voltage Cable Single Core Parameter Data

CONDUCTOR SIZE	ONDUCTOR DC RESISTANCE AT (200 C Ω/Km)	CAPACITANCE mF/Km	CHARGING CURRENT (A/Km)	DIELECTRIC LOSSES (W/Km)	LAID IN GROUND A	LAID IN DUCT A	LAID IN FREE AIR A
70	0.268	0.303	0.605	15.35	277	227	313
95	0.193	0.332	0.662	16.81	329	277	376
120	0.153	0.362	0.723	18.37	370	308	430
150	0.124	0.397	0.793	20.15	412	345	484
185	0.0991	0.43	0.859	21.81	460	390	546
240	0.0754	0.483	0.964	24.47	520	451	629
300	0.0601	0.535	1.068	27.13	571	507	708
400	0.047	0.592	1.181	30	609	564	777
500	0.0366	0.666	33.76	33.76	661	631	863
630	0.0283	0.76	1.516	38.51	707	698	945
