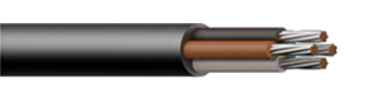

RU 0,6/1kV EPR/EVA power Cable （Flame retardant halogen-free power cable. Mud resistant
- Voltage: 0.6/1KV
- Operating temperature: 90°C
- Conductor: Tinned annealed stranded circular copper (STCC), IEC 60228 class 2
- Insulation: EP-rubber, IEC 60092-360 (EPR)
- Lay up / Shielding: Cores laid up in concentric layers
- Inner covering: No inner covering. (Additional tapes may be applied)
- Armour/screen: No armour
- Outer sheath: Flame retardant, halogen-free and mud resistant thermoset compound, SHF2 (IEC 60092-360)
- Outer sheath colour: Black
- Application: Fixed installation for power,control and lighting in both EX- and safe areas, general purposes. For installation in areas exposed to MUD and drilling/cleaning fluids. Meets the OIL & MUD resistance requirement in NEK TS 606:2009. These cables are double-insulated and Single core cables are used as battery cables.

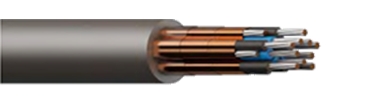

RU(i) 150/250V EPR/EVA Instrument Cable（Flame retardant halogen-free instrumentation cable. Mud resistant
- Voltage: 150/250(300)V
- Operating temperature: 90°C
- Conductor: Tinned annealed stranded circular copper (STCC), IEC 60228 class 2
- Insulation: EP-rubber, IEC 60092-360 (EPR)
- Pair / Triple / Quad twisting: Color coded cores twisted together.
- Lay up / Shielding: Individually shielded pairs/triples/quads are laid up in concentric layers and wrapped with a PETP tape.
- Inner covering: No inner covering. (Additional tapes may be applied)
- Armour/screen: No armour
- Outer sheath: Flame retardant, halogen-free and mud resistant thermoset compound, SHF2 (IEC 60092-360)
- Outer sheath colour: Grey or Blue
- Application: Fixed installation for instrumentation, communication, Control and alarm systems in both EX- (Zone 2) and safe areas. Meets the mud resistant requirements in NEK TS 606:2009
RU(c) 150/250V EPR/EVA Instrument Cable （Flame retardant halogen-free instrumentation cable. Mud resistant
- Voltage: 150/250(300)V
- Operating temperature: 90°C
- Conductor: Tinned annealed stranded circular copper (STCC), IEC 60228 class 2
- Insulation: EP-rubber, IEC 60092-360 (EPR)
- Pair / Triple / Quad twisting: Color coded cores twisted together and wrapped with polyester tape.
- Inner covering: No inner covering. (Additional tapes may be applied)
- Armour/screen: No armour
- Outer sheath: Flame retardant, halogen-free and mud resistant thermoset compound, SHF2 (IEC 60092-360)
- Outer sheath colour: Grey or Blue
- Application: Fixed installation for instrumentation, communication, Control and alarm systems in both EX- (Zone 2) and safe areas. Meets the mud resistant requirements in NEK TS 606:2009.
Data Sheet
RU Power Cable
| Number of elements | Cross section core, mm² | Conductor Diameter, mm | Weight of Cable Approx. (Kg/Km) |
| 1 | 25 | 6.45 | 340 |
| 1 | 50 | 9 | 610 |
| 1 | 70 | 10.9 | 820 |
| 1 | 95 | 12.6 | 1110 |
| 1 | 120 | 14.2 | 1370 |
| 1 | 150 | 15.9 | 1710 |
| 1 | 185 | 17.7 | 2090 |
| 1 | 240 | 20.15 | 2680 |
| 1 | 300 | 22.6 | 3370 |
| 2 | 1.5 | 1.6 | 135 |
| 3 | 1.5 | 1.6 | 160 |
| 4 | 1.5 | 1.6 | 190 |
| 5 | 1.5 | 1.6 | 240 |
| 7 | 1.5 | 1.6 | 280 |
| 12 | 1.5 | 1.6 | 460 |
| 19 | 1.5 | 1.6 | 680 |
| 24 | 1.5 | 1.6 | 890 |
| 3G | 1.5 | 1.6 | 160 |
| 4G | 1.5 | 1.6 | 190 |
| 5G | 1.5 | 1.6 | 240 |
| 7G | 1.5 | 1.6 | 280 |
| 2 | 2.5 | 2 | 170 |
| 3 | 2.5 | 2 | 205 |
| 4 | 2.5 | 2 | 250 |
| 5 | 2.5 | 2 | 320 |
| 7 | 2.5 | 2 | 390 |
| 3G | 2.5 | 2 | 205 |
| 4G | 2.5 | 2 | 255 |
| 5G | 2.5 | 2 | 320 |
| 2 | 4 | 2.55 | 220 |
| 3 | 4 | 2.55 | 275 |
| 4 | 4 | 2.55 | 340 |
| 3G | 4 | 2.55 | 275 |
| 4G | 4 | 2.55 | 340 |
| 5G | 4 | 2.55 | 410 |
| 2 | 6 | 3.15 | 290 |
| 3 | 6 | 3.15 | 360 |
| 4 | 6 | 3.15 | 450 |
| 3G | 6 | 3.15 | 360 |
| 4G | 6 | 3.15 | 450 |
| 5G | 6 | 3.15 | 550 |
| 2 | 10 | 4.05 | 410 |
| 3 | 10 | 4.05 | 530 |
| 4 | 10 | 4.05 | 652 |
RU(i) Instrument Cable
| Number of elements | No of cores in element | Cross section core, mm² | Conductor Diameter, mm |
| 1 | 2 | 0.75 | 1.1 |
| 1 | 2 | 0.75 | 1.1 |
| 2 | 2 | 0.75 | 1.1 |
| 2 | 2 | 0.75 | 1.1 |
| 4 | 2 | 0.75 | 1.1 |
| 8 | 2 | 0.75 | 1.1 |
| 12 | 2 | 0.75 | 1.1 |
| 16 | 2 | 0.75 | 1.1 |
| 24 | 2 | 0.75 | 1.1 |
| 1 | 3 | 0.75 | 1.1 |
| 2 | 3 | 0.75 | 1.1 |
| 4 | 3 | 0.75 | 1.1 |
| 8 | 3 | 0.75 | 1.1 |
| 12 | 3 | 0.75 | 1.1 |
| 16 | 3 | 0.75 | 1.1 |
| 24 | 3 | 0.75 | 1.1 |
| 1 | 2 | 1.5 | 1.6 |
| 1 | 2 | 1.5 | 1.6 |
| 2 | 2 | 1.5 | 1.6 |
| 2 | 2 | 1.5 | 1.6 |
| 4 | 2 | 1.5 | 1.6 |
| 8 | 2 | 1.5 | 1.6 |
| 12 | 2 | 1.5 | 1.6 |
| 16 | 2 | 1.5 | 1.6 |
| 24 | 2 | 1.5 | 1.6 |
| 1 | 3 | 1.5 | 1.6 |
| 2 | 3 | 1.5 | 1.6 |
| 4 | 3 | 1.5 | 1.6 |
| 8 | 3 | 1.5 | 1.6 |
| 16 | 3 | 1.5 | 1.6 |
| 24 | 3 | 1.5 | 1.6 |
RU(c) Instrument Cable
| Number of elements | No of cores in element | Cross section core, mm² | Conductor Diameter, mm |
| 2 | 2 | 0.75 | 1.1 |
| 4 | 2 | 0.75 | 1.1 |
| 4 | 2 | 0.75 | 1.1 |
| 8 | 2 | 0.75 | 1.1 |
| 12 | 2 | 0.75 | 1.1 |
| 16 | 2 | 0.75 | 1.1 |
| 19 | 2 | 0.75 | 1.1 |
| 24 | 2 | 0.75 | 1.1 |
| 2 | 3 | 0.75 | 1.1 |
| 4 | 3 | 0.75 | 1.1 |
| 4 | 3 | 0.75 | 1.1 |
| 8 | 3 | 0.75 | 1.1 |
| 16 | 3 | 0.75 | 1.1 |
| 24 | 3 | 0.75 | 1.1 |
| 2 | 2 | 1.5 | 1.6 |
| 4 | 2 | 1.5 | 1.6 |
| 8 | 2 | 1.5 | 1.6 |
| 12 | 2 | 1.5 | 1.6 |
| 12 | 2 | 1.5 | 1.6 |
| 16 | 2 | 1.5 | 1.6 |
| 24 | 2 | 1.5 | 1.6 |
| 2 | 3 | 1.5 | 1.6 |
| 4 | 3 | 1.5 | 1.6 |
| 8 | 3 | 1.5 | 1.6 |
| 12 | 3 | 1.5 | 1.6 |
| 16 | 3 | 1.5 | 1.6 |
| 24 | 3 | 1.5 | 1.6 |
