Trailing/Reeling/Festoon/ Neoprene, CPE, EPR, TPU Rubber Cable for Mining/Crane Mobile Equipment

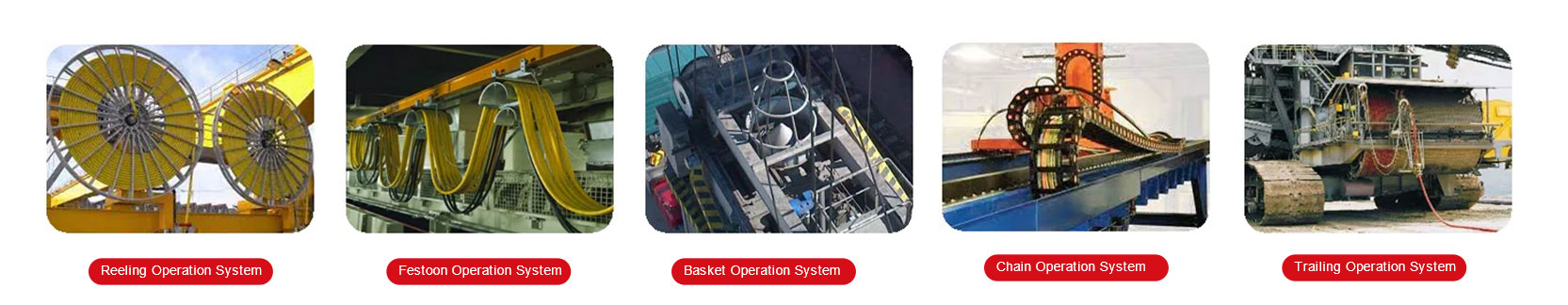

These flexible rubber cables produced by Huadong Cable Group are suitable for a wide range of applications including mobile power supplies, light and heavy duty equipment, and submersible pumps, as welding cables providing power from the machine to the tool, for audio visual equipment, and equipment on construction sites. Such as: Mobile, welding, mining, Special machine, Drum, reeling, Crane, Hoist, hoppers, Stacker Reclaime, Elevator, Marine.

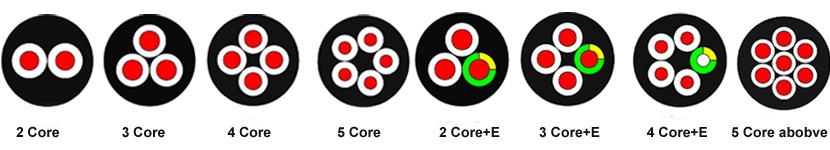

Types of rubber cable: PNCT Cable, H05RR-F, H07RN-F, H07ZZ-F, H01N2-D, NSHXAFO, NSGAFOU, H07N8-F, SJ/SJO/SJOOW/SOOW Resistance oil rubber cable, mining rubber cable,PVC/PVC Insulated flexible Cable.
Rubber cables for large machinery
(N)TSCGEWÖU Cable for Material Handling Equipment
- Voltage: 1.8/3kV, 3. 6/6kV, 6/10kV, 8. 7/15kV, 12/ 20 kV
- Phase/Earth Conductor: Class 5 flexible tinned copper/Copper
- Insulation: Rubber compound
- Inner Sheath: Rubber compound
- Section area: 25-185mm2
- Cores: 3+3
- Application: Flexible cable for fixed distribution lines in mines and alongside material handling equipment. Suitable for indoor and outdoor applications
PUR-HF Low Voltage Chain Festoon Cable
- Voltage: 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: HF (Halogen Free) compound based on polyester
- Outer Sheath: TPU, PUR HFFR (Polyurethane – Halogen Free, Flame Retardant)
- Cores: 3,4,5
- Section aera: 1.5mm2-185mm2
- Application: For use as energy and control cable in festoon systems and as a chain cable.
PUR/TPU Spreader LV Reeling Cable
- Voltage: 0.6/1kV
- Conductor: Class 5 flexible tinned copper
- Insulation: Halogen free compound based on polyester
- Inner and Outer Sheath: TPU, PUR-HF (Halogen Free, flame retardant Polyurethane)
- Braiding: Anti-twisting element – Aramid yarns braiding
- Sheath Colour: Black, Yellow or Orange.
- Application: Mainly used for spreader reeling applications. Strength member to increase tensile load, acceleration and speed
Hot Sales Rubber Cable Products
Heavy Duty H07RN-F Cable for Heavy Mobile Equipment
- Voltage: 450/750V
- Phase/Earth Conductor: Class 5 flexible copper
- Insulation: EPR
- Sheath: PCP(Polychioroprene) Type EM3
- Application: use in the supply of energy for portable or mobile equipment.
JHS Waterproof Flat and Round Type Submersible Pump Cable
- Voltage: 300/500V, 450/750V, 600/1000V
- Type: Flat/Round or twisted
- Conductor Working temperature: 85°C
- Insulation: EPR/PVC/Rubber
- Application: This cable is suitable for various types of the lead wire of submersible motor.
Round and Flat type Trailing Rubber Cable With Composite Fiber Optic Core
- Voltage: 3.3kv, 6/10Kv
- Conductor: Class 5,6 flexible copper
- Insulation: EPR
- Outer Sheat: EPR
- Cores: 3+3 Core, 6 Cores
- Application: it is for use oncable reel system on material handling equipment(i.e. Stacker/reclaimer, STS, RMG).
PNCT, 2PNCT-R/F, 3PNCT Rubber Cable for Unloader, Stacker & Reclaimer,Crane
- Voltage: 600/1000V, 3000V Or other
- Color: Black or by request.
- Conductor: Flexible Copper/Tinned Copper
- Insulation: Rubber/EPR
- Cores: 1,2, 3, 4, 5, 6, 7, 8 Core and more cores
- Standard: JIS C3327/IEC/VDE etc
- Application: the the application ranges high tension unloader, impact resistance, Stacker & Reclaimer Abrasion Resistance Gantry, Craneetc
10mm2-120mm2 Flexible Rubber Welding Cable Used for Welding Machine
- Conductor: bare annealed copper flexible conductor for class 5
- Insulated: flexible Single or double insulation of rubber
- Sheath: flexible PVC/rubber
- No.Cross-section: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120m2, 150mm2, 185mm2.
- ASTM Standard AWG Size: 6awg, 4awg, 2awg, 1awg, 1/0awg, 2/0awg, 3/0awg, 4/0awg, 250awg, 350awg, 500awg.
- Color: Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
UL Certification SJOOW/SOOW/SJO/SEOOW Cable Resistance Oil and Water
- Voltage: 300 Volt
- Conductor: Copper/Tinned Copper
- Insulation: Ethylene Propylene Diene Monomer (EPDM) or EP compound
- Jacket: rubber or CPE or CP compound
- Size: 2awg, 4awg,6awg,8awg, 2/0awg,3/0awg, 4/0awg.
- Core: black, green, yellow or other
- Feature: Excellent resistance to oil and moisture Good tensile strength, elongation and aging characteristics High flexibility Excellent abrasion resistance Water-resistant for indoor and outdoor use
- 0.6/1KV HT-PNCT-F Rubber Cable Parameter Sheet
- The H07RN-F Flexible Rubber Cable Parameter Sheet
| Number | Conductor Composition | Outer Diameter | Thickness of Insulation | Thickness of Sheath | Insulation Resistance (20)(Min.) | Weight |
|---|---|---|---|---|---|---|
| Corexsqmm | Max./mm | mm | mm | mm | km | kg/km |
| 3×16 | 0.26 | 6 | 1.2 | 2.3 | 300 | 930 |
| 3×25 | 0.26 | 7.4 | 1.2 | 2.5 | 300 | 1290 |
| 3×35 | 0.26 | 8.7 | 1.2 | 2.7 | 200 | 1650 |
| 3×50 | 0.26 | 10.4 | 1.5 | 3 | 200 | 2290 |
| 3×95 | 0.26 | 14.5 | 2 | 3.7 | 200 | 4170 |
| 3×120 | 0.26 | 16.2 | 2 | 4 | 200 | 5090 |
| 3×150 | 0.26 | 18.2 | 2 | 4.2 | 200 | 6150 |
| 3×185 | 0.26 | 20.2 | 2.5 | 4.6 | 200 | 7710 |
| 4×25 | 0.31 | 7.4 | 1.2 | 2.7 | 300 | 1790 |
| 4×35 | 0.31 | 8.7 | 1.2 | 2.9 | 200 | 2290 |
| 4×50 | 0.31 | 10.4 | 1.5 | 3.2 | 200 | 3160 |
| 4×95 | 0.31 | 14.5 | 2 | 4 | 200 | 5720 |
| 4×120 | 0.31 | 16.2 | 2 | 4.3 | 200 | 6980 |
| 4×150 | 0.31 | 18.2 | 2 | 4.6 | 200 | 8450 |
| 4×185 | 0.31 | 20.2 | 2.5 | 5.1 | 200 | 10690 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|---|
| mm2 | mm | mm | kg/km | |
| 4 | 6 | 1 | 16.4 | 449 |
| 4 | 10 | 1.2 | 21.8 | 833 |
| 4 | 16 | 1.2 | 25.4 | 1138 |
| 4 | 25 | 1.4 | 30.7 | 1714 |
| 4 | 35 | 1.4 | 33.4 | 2204 |
| 4 | 50 | 1.6 | 39.6 | 3029 |
| 4 | 70 | 1.6 | 44.9 | 4121 |
| 4 | 95 | 1.8 | 51.9 | 5361 |
| 4 | 120 | 1.8 | 61.3 | 7400 |
| 5 | 2.5 | 0.9 | 14 | 297 |
| 5 | 4 | 1 | 16.2 | 422 |
| 5 | 6 | 1 | 18.2 | 567 |
| 5 | 10 | 1.2 | 24 | 1010 |
| 5 | 16 | 1.2 | 28.2 | 1400 |
| 5 | 25 | 1.4 | 33.9 | 2096 |
| 5 | 35 | 1.4 | 37.2 | 2700 |
| 5 | 50 | 1.6 | 44 | 3730 |
| 5 | 70 | 1.6 | 54 | 4945 |
| 5 | 95 | 1.8 | 63 | 6430 |
| 7 | 2.5 | 0.9 | 17.6 | 445 |
| 12 | 2.5 | 0.9 | 21.4 | 702 |
