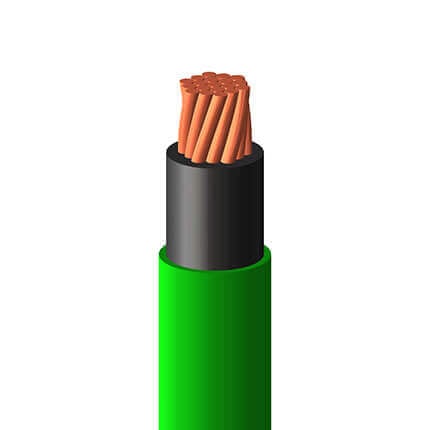

Safe-T-Ground, Single Conductor, 1000V
Tray Grounding cables are suitable for use in ventilated, non-ventilated and ladder type cable trays, direct burial, raceways and for exposed or concealed wiring in wet, damp or dry locations in -40°C (40°F) environments. Applicable for use in Utilities, Industrial and Commercial applications.
VOLTAGE
- 1000 V
- Optional: 600, 2000 V
PRODUCT CONSTRUCTION
- Insulation:
- XLPE (RW90 rated) rated: 90°C wet/dry
- Jacket:
- FR PVC outer green jacket rated: 90°C to -40°C
- Available in:
- Custom insulation/jacket colours
- Aluminum conductors
- Solid green or green dual yellow SAFET-STRIPES for instrumentation/isolated grounding identification
CERTIFICATION/COMPLIANCES
- IEEE 383/1202 (70,000 BTU/hr), Vertical Flame Test rated
- XLPE (RW90 rated), 90°C wet/dry
- UV sunlight resistant “SUN RES” (all colours)
- Oil resistant “PR I” and “OIL RES”
- Direct burial rated
- -40°C cold bend/impact rated
- Rated for use in hazardous locations:
- Zone 0 (Class 1, Division 1) (Intrinsically Safe circuits only)
- Zone 2 (Class I, Division 2)
- Zone 22 (Class II & III, Division 2)
COLOUR CODING
Black conductor (standard)
Applications
- Generation – Renewables – Wind
- Transit
- Water/Waste Water Treatment
- Shipboard
- Generation – Traditional Power
- Generation
- Communication Power & Control
- Generation – Nuclear
- Power Distribution
- Industrial Construction/Automation
- Civil Construction Projects
- Power Distribution – LV
- Industrial
- Generation – Renewables
- Petrochem/Pulp & Paper
- Utility
- Commercial Construction Projects
- Generation – Renewables – Geo Thermal
- Generation – Renewables – Solar
- Mining
Properties

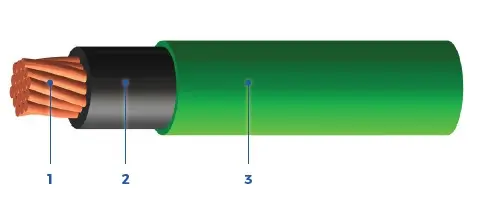

- 1. Stranded Bare (ASTM B8) Annealed Copper Conductors
- 2. XLPE (RW90 Rated) Insulated Conductor
- 3. FR PVC Outer Green Protective jacket
GREEN CONDUCTOR
| Number of Conductors | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
|---|---|---|---|---|---|---|
| AWG | in. | mm | lbs/1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | |
| 1 | 8 | 0.307 | 7.8 | 82 | 122 | 80 | 132 | 60 | 2.8 | 70 |
| 1 | 6 | 0.374 | 9.5 | 126 | 188 | 105 | 210 | 95 | 3.4 | 85 |
| 1 | 4 | 0.421 | 10.7 | 182 | 271 | 140 | 334 | 151 | 3.8 | 96 |
| 1 | 3 | 0.448 | 11.4 | 221 | 329 | 165 | 421 | 191 | 4.0 | 102 |
| 1 | 2 | 0.479 | 12.2 | 269 | 400 | 190 | 531 | 241 | 4.3 | 109 |
| 1 | 1 | 0.588 | 14.9 | 364 | 542 | 220 | 670 | 304 | 5.3 | 134 |
| 1 | 1/0 | 0.628 | 16.0 | 443 | 659 | 260 | 845 | 383 | 5.7 | 144 |
| 1 | 2/0 | 0.671 | 17.0 | 539 | 803 | 300 | 1065 | 483 | 6.0 | 153 |
| 1 | 3/0 | 0.722 | 18.3 | 661 | 984 | 350 | 1336 | 606 | 6.5 | 165 |
| 1 | 4/0 | 0.778 | 19.8 | 812 | 1209 | 405 | 1693 | 768 | 7.0 | 178 |
| 1 | 250 | 0.884 | 22.5 | 975 | 1450 | 455 | 2000 | 907 | 8.0 | 202 |
| 1 | 350 | 0.987 | 25.1 | 1316 | 1958 | 570 | 2800 | 1270 | 8.9 | 226 |
| 1 | 500 | 1.115 | 28.3 | 1819 | 2707 | 700 | 4000 | 1814 | 10.0 | 255 |
| 1 | 750 | 1.294 | 32.0 | 2650 | 3944 | 885 | 6000 | 2722 | 11.6 | 296 |

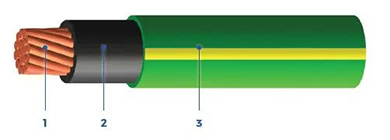

- 1. Stranded Bare (ASTM B8) Annealed Copper Conductors
- 2. XLPE (RW90 Rated) Insulated Conductor
- 3. FR PVC Outer Green with Dual Yellow SAFE-T- STRIPES Protective Jacket
SAFE-T-STRIPE CONDUCTOR
| Number of Conductors | Conductor Size | Nominal Diameter Overall Cable | Cable Weight | Ampacity* | Max. Pulling Tension (Pulling Eye) | Min. Bend Radius (Pull) |
|---|---|---|---|---|---|---|
| AWG | in. | mm | lbs|1000ft | kg|km |
30°C ambient | lb | kg | in. | mm | |
| 1 | 8 | 0.307 | 7.8 | 82 | 123 | 80 | 132 | 60 | 2.8 | 70 |
| 1 | 6 | 0.374 | 9.5 | 126 | 188 | 105 | 210 | 95 | 3.4 | 85 |
| 1 | 4 | 0.421 | 10.7 | 183 | 272 | 140 | 334 | 151 | 3.8 | 96 |
| 1 | 3 | 0.448 | 11.4 | 221 | 329 | 165 | 421 | 191 | 4.0 | 102 |
| 1 | 2 | 0.479 | 12.2 | 269 | 401 | 190 | 531 | 241 | 4.3 | 109 |
| 1 | 1 | 0.588 | 14.9 | 365 | 543 | 220 | 670 | 304 | 5.3 | 134 |
| 1 | 1/0 | 0.628 | 16.0 | 443 | 659 | 260 | 845 | 383 | 5.7 | 144 |
| 1 | 2/0 | 0.671 | 17.0 | 540 | 804 | 300 | 1065 | 483 | 6.0 | 153 |
| 1 | 3/0 | 0.722 | 18.3 | 662 | 985 | 350 | 1336 | 606 | 6.5 | 165 |
| 1 | 4/0 | 0.778 | 19.8 | 813 | 1210 | 405 | 1693 | 768 | 7.0 | 178 |
| 1 | 250 | 0.884 | 22.5 | 976 | 1452 | 455 | 2000 | 907 | 8.0 | 202 |
| 1 | 350 | 0.987 | 25.1 | 1317 | 1960 | 570 | 2800 | 1270 | 8.9 | 226 |
| 1 | 500 | 1.115 | 28.3 | 1821 | 2709 | 700 | 4000 | 1814 | 10.0 | 255 |
| 1 | 750 | 1.294 | 32.9 | 2652 | 3946 | 885 | 6000 | 2722 | 11.6 | 296 |
