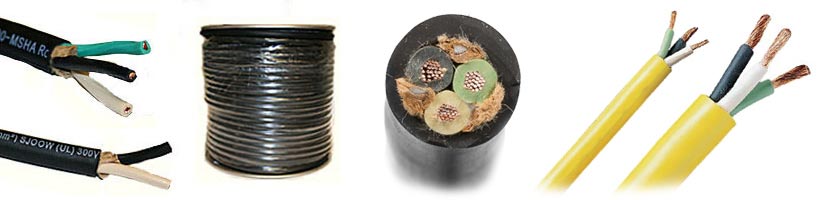

Resistance Oil and Water SJOOW/SJO/SOOW/SEOOW Rubber Cable
Huaddong group is a professional rubber cable (include: sjoow cable, sjo cable, soow cable, h07rn-f, 2pnct cable, mining rubber cable, pump cable etc) manufacturer.
Description:
- 1. Insulation: Ethylene Propylene Diene Monomer (EPDM) or EP compound
- 2. Jacket: rubber or CPE or CP compound
- 3. Voltage: 300 Volt
- 4. -40ºC to +90ºC
- 5. 90ºC 300 Volt UL /CSA Portable Cord
- 6. Excellent resistance to oil and moisture Good tensile strength, elongation and aging characteristics High flexibility Excellent abrasion resistance Water-resistant UL Listed and CSA Certified for indoor and outdoor use.
SJ, SJO, SEOOW and SJOW have all been superseded by SJOOW. Any SJ, SJO and SJOW RFQs will be quoted as SJOOW Cable.
SJOOW Cable
- Voltage Rating:
- 300V
- Conductors:
- Class K stranded bare copper
- Insulation:
- EPDM
- Jacket:
- Yellow CPE (Other colors available upon request)
Application
SJOOW type flexible wire is designed for ultra-hard use in industrial equipment, heavy-duty tools, battery chargers, portable lights, welding leads, marine power supplies, power extensions and mining applications.
SOOW Cable
- Voltage Rating:
- 600V
- Conductors:
- Class K stranded bare copper
- Insulation:
- EPDM
- Jacket:
- Yellow CPE (Other colors available upon request)
Application
SOOW type flexible wire is designed for extra hard use in industrial equipment, heavy duty tools, battery chargers, portable lights, welding leads, dock power, power extensions and mining applications.
SJEOOW Cable
- Voltage Rating:
- 300V
- Conductor:
- Class K stranded bare copper
- Insulation:
- Heat, moisture, and oil-resistant TPE
- Filler:
- Non-wicking polypropylene fillers, with a tissue-paper separator wrapped around the assembly
- Jacket:
- Black TPE (Other colors available upon request)
Application
SJEOOW type flexible wire is permitted for indoor and outdoor temporary power, portable industrial machinery, compressors, conveyors and automated production equipment.
SEOOW Cable
- Voltage Rating:
- 600V
- Conductor:
- Class K stranded bare copper
- Insulation:
- Heat, moisture, and oil resistant TPE
- Filler:
- Non-wicking polypropylene fillers, with a tissue-paper separator wrapped around the assembly
- Jacket:
- Black TPE (Other colors available upon request)
Application
SEOOW type flexible cords are permitted for indoor and outdoor temporary power, portable industrial machinery and compressors, food processing and washing facilities.
| Size (AWG or kcmil) | No. of Conductors | No. of Strands | Nom. OD (mils) | Nominal Total Weight (lbs/1000′) | Allowable Ampacity | Nom. DC Resistance (Conductor) |
| 18 AWG | 3 | 16 | 306 | 57 | 10 | 6.59 |
| 16 AWG | 3 | 65 | 328 | 69 | 13 | 4.05 |
| 14 AWG | 3 | 41 | 365 | 93 | 18 | 2.55 |
| 14 AWG | 4 | 41 | 394 | 112 | 15 | 2.55 |
| 12 AWG | 3 | 65 | 430 | 140 | 25 | 1.61 |
| Size (AWG or kcmil) | No. of Conductors | No. of Strands | Nom. OD (mils) | Nominal Total Weight (lbs/1000′) | Allowable Ampacity | Nom. DC Resistance (Conductor) |
| 16 AWG | 2 | 65 | 370 | 75 | 13 | 4.05 |
| 16 AWG | 3 | 26 | 390 | 91 | 13 | 4.05 |
| 16 AWG | 4 | 26 | 415 | 107 | 10 | 4.05 |
| 14 AWG | 2 | 41 | 513 | 134 | 18 | 2.55 |
| 14 AWG | 3 | 41 | 525 | 158 | 18 | 2.55 |
| 14 AWG | 4 | 41 | 565 | 193 | 15 | 2.55 |
| 12 AWG | 3 | 65 | 609 | 219 | 25 | 1.61 |
| 12 AWG | 4 | 65 | 668 | 274 | 20 | 1.61 |
| 10 AWG | 3 | 104 | 655 | 281 | 30 | 0.98 |
| 10 AWG | 4 | 104 | 710 | 337 | 25 | 0.98 |
| Size (AWG or kcmil) | No. of Conductors | No. of Strands | Nom. OD (mils) | Nominal Total Weight (lbs/1000′) | Allowable Ampacity | Nom. DC Resistance (Conductor) |
| 18 AWG | 3 | 16 | 308 | 48 | 10 | 6.59 |
| 18 AWG | 4 | 16 | 328 | 58 | 7 | 6.59 |
| 16 AWG | 2 | 26 | 310 | 46 | 13 | 4.05 |
| 16 AWG | 3 | 26 | 329 | 60 | 13 | 4.05 |
| 16 AWG | 4 | 26 | 370 | 78 | 10 | 4.05 |
| 14 AWG | 2 | 41 | 340 | 60 | 18 | 2.55 |
| 14 AWG | 3 | 41 | 363 | 80 | 18 | 2.55 |
| 14 AWG | 4 | 41 | 393 | 99 | 15 | 2.55 |
| 12 AWG | 2 | 65 | 410 | 93 | 25 | 1.61 |
| 12 AWG | 3 | 65 | 428 | 119 | 25 | 1.61 |
| 12 AWG | 4 | 65 | 468 | 152 | 20 | 1.61 |
| 10 AWG | 2 | 104 | 541 | 159 | 30 | 0.98 |
| 10 AWG | 3 | 104 | 573 | 205 | 30 | 0.98 |
| 10 AWG | 4 | 104 | 628 | 261 | 25 | 0.98 |
| Size (AWG or kcmil) | No. of Conductors | No. of Strands | Nom. OD (mils) | Nominal Total Weight (lbs/1000′) | Allowable Ampacity | Nom. DC Resistance (Conductor) |
| 18 AWG | 6 | 16 | 484 | 117 | 5.5 | 6.4 |
| 18 AWG | 7 | 16 | 488 | 125 | 4.5 | 6.4 |
| 18 AWG | 8 | 16 | 517 | 138 | 4.5 | 6.4 |
| 18 AWG | 10 | 16 | 592 | 167 | 3.5 | 6.4 |
| 18 AWG | 12 | 16 | 613 | 190 | 3.5 | 6.4 |
| 18 AWG | 14 | 16 | 640 | 214 | 3.5 | 6.4 |
| 18 AWG | 16 | 16 | 697 | 256 | 3.5 | 6.4 |
| 16 AWG | 4 | 26 | 416 | 93 | 10 | 4.12 |
| 16 AWG | 5 | 26 | 492 | 129 | 8 | 4.12 |
| 16 AWG | 6 | 26 | 533 | 149 | 8 | 4.12 |
| 16 AWG | 7 | 26 | 525 | 154 | 7 | 4.12 |
| 16 AWG | 8 | 26 | 560 | 174 | 7 | 4.12 |
| 16 AWG | 14 | 26 | 725 | 287 | 5 | 4.12 |
| 16 AWG | 16 | 26 | 757 | 317 | 5 | 4.12 |
| 14 AWG | 2 | 41 | 497 | 113 | 18 | 2.64 |
| 14 AWG | 3 | 41 | 522 | 137 | 18 | 2.64 |
| 14 AWG | 4 | 41 | 592 | 180 | 15 | 2.64 |
| 14 AWG | 6 | 41 | 690 | 248 | 12 | 2.64 |
| 14 AWG | 7 | 41 | 690 | 262 | 10 | 2.64 |
| 14 AWG | 8 | 41 | 743 | 298 | 10 | 2.64 |
| 14 AWG | 10 | 41 | 835 | 352 | 7 | 2.64 |
| 12 AWG | 2 | 65 | 570 | 159 | 25 | 1.66 |
| 12 AWG | 3 | 65 | 603 | 193 | 25 | 1.66 |
| 12 AWG | 6 | 65 | 745 | 317 | 16 | 1.66 |
